Smithson Martin Emulator DVS (Dual View System)

Emulator Dual View System (DVS) by Smithson Martin is the only touch screen solution that allows DJ, VJ, LJ, or even producer and presenter to show the crowd what they are really doing on stage. DVS offers up to 6 simultaneous touch points with high precision and real-time response below 8ms.

Product Information

American Audio

Apa itu Emulator DVS?

“Emulator DVS (Dual View System) adalah satu-satunya DJ controller dengan konsep terbaru berupa touch-screen dan layar semi transparan yang dapat dilihat dari dua sisi (depan dan belakang), sehingga memungkinkan setiap pengunjung/crowd untuk benar-benar melihat dan merasakan perbedaan dari apa yang dilakukan oleh DJ. Berbeda dengan konsep alat DJ yang selama ini ditempatkan di atas meja dan ditutupi sehingga pengunjung tidak benar-benar tahu apa yang terjadi.

Sistem Emulator DVS terdiri dari layar yang terbuat dari kaca tempered khusus yang dilengkapi touch frame multi-touch sebagai sensor sentuh, sebuah proyektor jarak dekat, sebuah stand portable yang stylish, dan software Emulator Pro.

Software Emulator Pro sendiri merupakan ‘overlay’ yaitu software yang ‘duduk’ di atas software lainnya dan bertugas sebagai MIDI controller atas software tersebut. Dengan demikian, Emulator DVS sendiri sebenarnya bukan saja hanya dapat digunakan sebagai DJ controller, tetapi juga dapat digunakan sebagai controller untuk semua software audio apapun yang menerima input MIDI sebagai salah satu metode pengoperasiannya. Baik itu software production/sequencer, synthesizer, video jockey, lighting, dan sebagainya.

Semua Ini menjadikan Emulator sebagai alat performance all-in-one yang paling memukau dan harus dimiliki oleh setiap DJ profesional atau venue yang benar-benar ingin menawarkan sesuatu yang baru dan berbeda.”

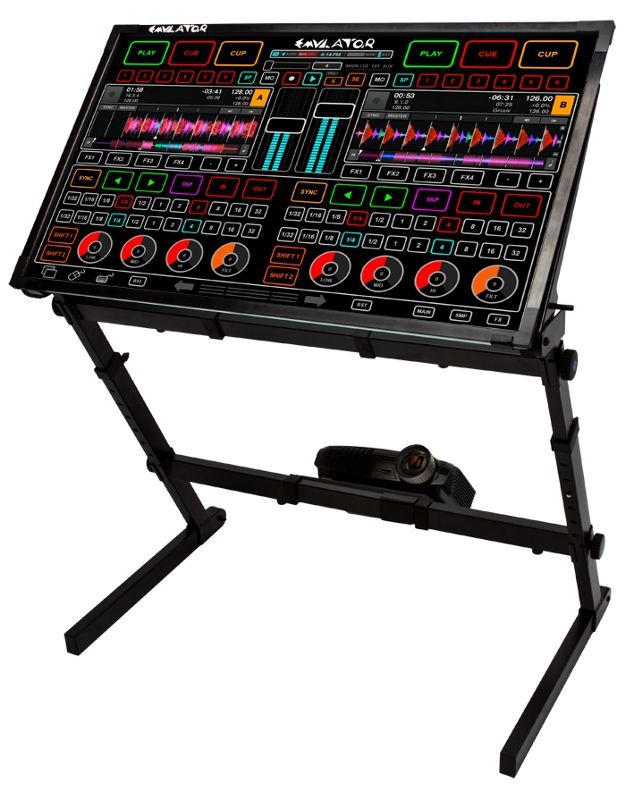

DVS front

Emulator Dual View System (DVS) is the most revolutionary experience for on-stage performers in the last 30 years! Emulator DVS is the first REAL and USABLE Multi-Touch MIDI Control System that allows the crowd to see exactly what the artist is doing on a huge transparent touch screen. Whether you are a VJ, Lighting Programmer, Controlling Lasers or the DJ, you can use the Emulator DVS to control your software all while the audience watches in awe!

The art of performing on stage is now part of the clubs lightshow, this is the next level in performance!

The Emulator DVS can also be used as a multi-touch podium & presentation tool for meetings, conferences, lectures and any public address situations. Corporate events are made more interactive because the podium is transparent and the audience can see right through it while watching the presenter. Audience attention is increased, presenters feel enlivened with new technology!



What is the backbone of Emulator DVS?

Emulator is multi-touch midi control software for Musicians, DJ’s, Lighting Designers, Video Editors, VJ’s, Radio Broadcast Stations, Recording Studios and much more. Our patent-pending technology allows you to make a custom multi-touch layout on top of any software you wish to control. Our easy to use control editor gives you unlimited options for how you create your dream midi interface. Emulator really is the best midi controller you will ever own. When new versions of your software come out, you can quickly and easily change your multi-touch controller so your hardware NEVER becomes obsolete (well, unless we invent something that doesn’t require a screen).

Emulator Modular & Emulator for Traktor (FT) software come bundled with the DVS hardware.

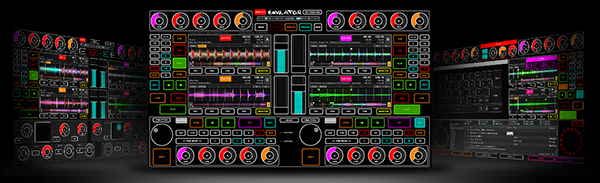

Emulator for Traktor is a complete multi-touch midi controller software. Emulator for Traktor contains over 130 buttons, knobs and faders covering all common features of the underlying software. Emulator Modular includes a complete set of objects so you can completely custom design your own multi-touch interface with buttons, sliders, circular knobs, jog wheels and even your own custom graphics.

You have NEVER seen a crowd react to DJ equipment like this before.



The reaction is simply incredible.

Emulator DVS system allows the crowd to see what the performer is doing and more importantly gives the artist another way to communicate with the audience. This brings the performance to whole new level.

Emulator DVS is available in three sizes, 32″, 42″ and 46″. Manufactured with a highly accurate and extremely responsive 6 touch sensor running with very low latency (less than 8ms)



Emulator is just awesome!

DVS back



How does the Emulator Dual View System (DVS) screen work?

The Emulator touch screen you see on all the videos works by using rear projection on the backside of frosted glass. A short throw projector is mounted below the screen and projected up onto the glass thus making the image visible to both the DJ and the crowd. The actual screen is where the magic happens. The screen has hundreds of infrared sensors that form a grid over the glass and when your finger breaks this grid, the screen knows where you are touching and voila!! With low lighting, the screen appears to float in mid-air and just watch for the open mouth, dumbfounded looks from EVERYONE as they see Emulator for the first time. I love that part! *NOTE: This also means that things like confetti can touch points on the screen. Be careful when using confetti around the DVS.



Is Emulator Stable?

YES 100% Stable. We have tested this software in a variety of situations from 45 Degrees Celsius (113 F) to -10 Degrees Celsius (14 F) and it has NEVER failed during a performance. As long as you use a computer with the minimum requirements, you will be absolutely blown away by how stable Emulator is. We have prioritized the computer to put 90% of the CPU processing towards audio and only 10% towards graphics so you might encounter a slight lag in the visual (ie. waveform stops moving for a minute). This is normal and happens with every DJ software, but the music never stops.

*NOTE: The Emulator Dual View System (DVS) uses Infrared technology and as such does NOT work in direct sunlight. Also, the projector is not bright enough to keep up with the sun. Try and play where there is at least shade. This warning does not apply to THE MONSTER or the Kontrol Surface 1974.



What is included with the Emulator Hardware solutions?

Emulator Dual View System (DVS) comes with the following:

  • Emulator Multi-Touch Screen (6 simultaneous touch points) 32″, 42″, 46″
  • Etched, Tempered Chemically strengthened glass
  • Custom folding Emulator stand
  • Dual-arm adjustable projector-laptop stand
  • NI Traktor Audio 2
  • HDMI cable
  • USB & all power cables
  • Emulator Pro Software

Emulator Software



What is Emulator?

Emulator is multi-touch midi control software and hardware for Musicians, DJ’s, Lighting Designers, Video Editors, VJ’s, Radio Broadcast Stations, Recording Studios and much more.

Our patent-pending technology allows you to make a custom multi-touch layout on top of any software you wish to control. Our easy to use control editor gives you unlimited options for how you create your dream midi interface. Emulator really is the best midi controller you will ever own. When new versions of your software come out, you can quickly and easily change your multi-touch controller so your hardware NEVER becomes obsolete (well, unless we invent something that doesn’t require a screen).



What Operating System(s) does Emulator work with?

Emulator was designed for use with Windows 7 and it’s native Multi-Touch configuration. Emulator will now work on Windows 8 and we are working on a special version for Mac OSX.



What Software does Emulator work with?

Emulator will work with ANY midi software to make it multi-touch. Our online community forum allows users to share knowledge and also share different editable layouts for all sorts of programs. We will have layouts available on our website for Traktor, Ableton, Virtual DJ, Grand MA, Light Jockey and more. Emulator for Traktor (FT) is available for free when you buy the lifetime license.

Here is a sample of software titles that Emulator will work with. This list is not comprehensive by any means, feel free to email us with other software you find to midi map!

DJ Applications Traktor Pro 2.0, Virtual DJ, Serato (with external mixer), Torq, Deckadance, Mixvibes, Ableton, ProDJ, MixMeister, PCDJ, PCDJ Karaoke

Music Production Cakewalk, ProTools, Ableton, Reason, Kore, FL Studio, Sonar Pro, Acid, Bitwig (soon we hope)

Video Resolume, Arkaos, Grand VJ, PCDJ, Virtual DJ, Serato SL, Mixvibes, VFX

Pro Audio iLive, Cakewalk, ADK, Soundforge, Yamaha PM5D, Digidesign

Lighting Light Jockey, ShowXpress, GrandMA 2, Venue Magic, WYSIWYG, Martin Show Designer, Softplot



What computer do I need to run Emulator?

Minimum system requirements:

  • 1.7GHz Dual-core Intel i5 CPU, 2 GB RAM
  • ASIO sound card (Native Instruments, Audio 6 or Motu
  • MIDI Software
  • System suggested: Windows 7 (64 bit)
  • Intel i7 CPU, 8 GB RAM or better
  • Native Instruments Audio2 sound card or better
  • Emulator For Traktor (FT) runs ONLY at 1280×800 for the Emulator Dual View System (DVS)
  • Emulator For Traktor (FT) runs at 1280×800 for the Kontrol Surface 1974 (KS-1974)
  • Emulator Modular support resolutions form 1024×760 to full HD (1920×1080)





Emulator DVS 46″ 6-touch  $4599

(laptop & short-throw projector not included)
