UltimateSupport MDS-100 Modular Device Stand

CALL

Modules Clear
Add to wishlist
SKU: N/A Categories: , , , , Tag:

Description

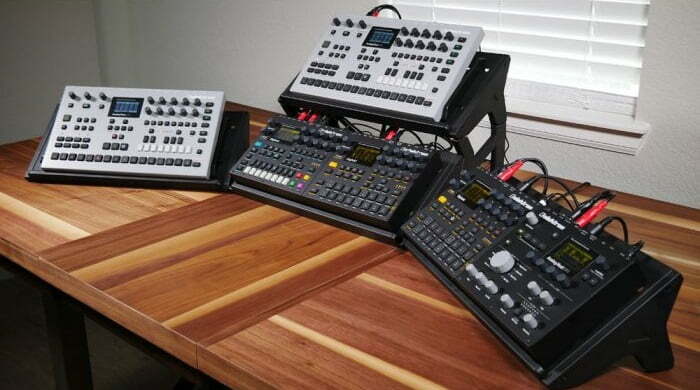

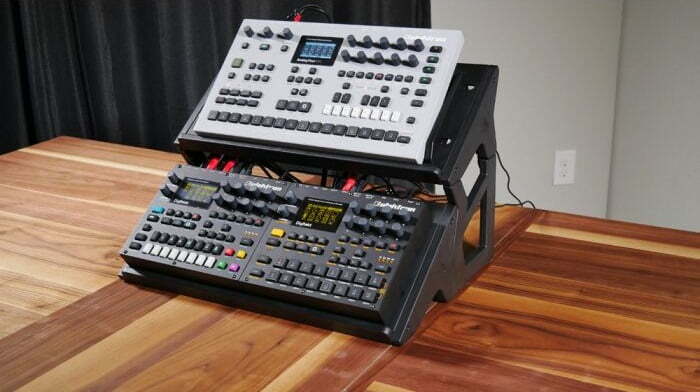

Stack 2x MDS-100 using MDS-X Expander and you have 2-tier angled stand for your machines.

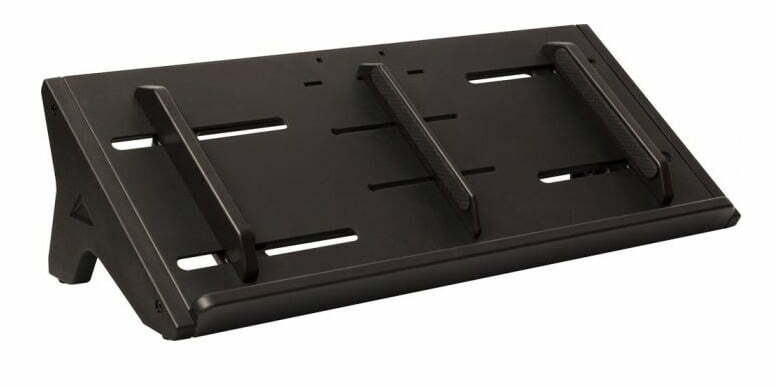

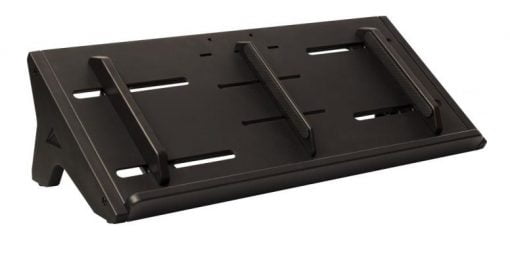

Modular Device Stand

The MDS-100 modular desktop stand from Ultimate Support has been designed to support the wide variety of hardware based performance and recording configurations musicians all over the world are creating. Whether you are using desktop synthesizers, adapting effects pedals to your hardware synths or looking for a way to elevate your control surfaces, the MDS-100 is the customizable solution you’ve been looking for. The adjustable clamping walls and divider allow you to firmly place more than one device on the surface- and you can expand to a two tier configuration using two MDS-100 units and our MDS-X expander. Forget about overpriced, proprietary solutions that limit your choices, and take control of your setup with the MDS series Modular Device Stands.



MDS-100 Features

  • Modular Device Stand that can be expanded with additional MDS-100 unit and MDS-X Expander
  • Optional Center dividing wall for placing devices side by side

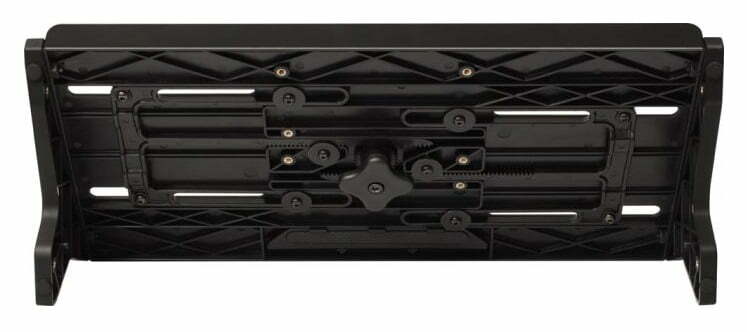

  • Adjustable outer walls
  • Constructed from extra durable glass polymer plastic combination





Specifications

  • Part Number: 17983
  • Width: 18.83″ (478.40mm)
  • Depth: 7.82″ (198.62mm)
  • Height: 5.55″ (140.94mm)
  • Clamping Surface Depth: 8.34″ (211.9mm)
  • Clamping Surface Max Area: 133.27 sq. in. (85980.47 sq. mm)
  • Clamping Width Range (w/o divider): 6.41″ (162.9mm) – 15.98″ (405.9mm)
  • Clamping Width Range (with divider, each side): 2.84″ (72.1mm) – 7.62″ (193.59mm)
  • Clamp Height: .91″ (23mm)
  • Weight: 2.8lbs (1.3 kg)

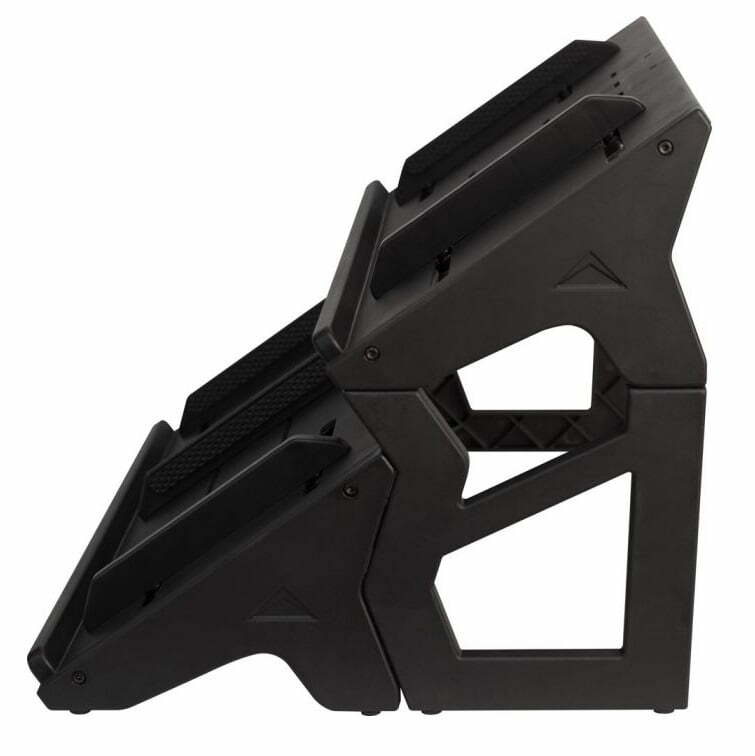

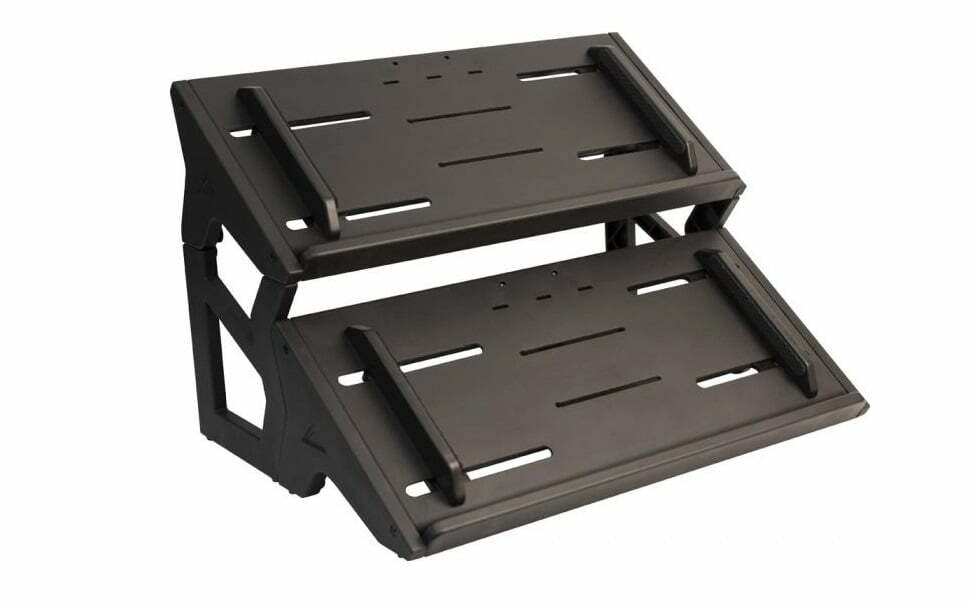

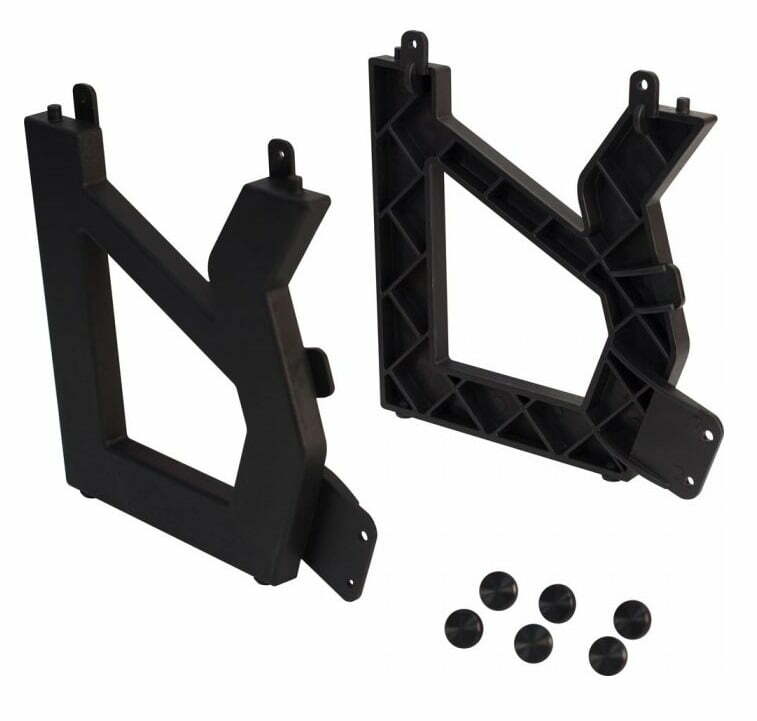

Modular Device Stand Expander for Use with 2 MDS-100 units

The MDS-X Expander from Ultimate Support let’s you stack two MDS-100 units to create a fully customizable, non-proprietary, two-tier solution for use with the desktop synthesizers, drumamachines, and effect units of your choice. Free yourself from just using one stand for dedicated products and solve your device stand problems permanently with the MDS-100 and MDS-X Expander from Ultimate Support.



MDS-X Features

  • Modular Device Expander for use with 2 MDS-100 Modular Device Stands
  • Constructed from extra durable glass polymer plastic combination





Specifications

  • Part Number: 17984
  • Height – 12.26” (311.34mm)
  • Depth – 13.91” (353.29mm)
  • Width – 18.83” (478.40mm)
  • Expander Weight – 0.6lbs. (.27 kg)
  • Assembled Weight – 6.2lbs. (2.8 kg)
