Saramonic SR-AX107

Rp3.500.000

Similar to SR-PAX2, the SR-AX107 allows you to connect professional condenser microphones, wireless microphones, digital recorders, external audio mixers, sound boards and more to your DSLR camera or camcorder via two balanced XLR inputs. What’s more, is that SR-AX107 features an Isolation Transformer which provides a completely noise free and pure sound, and a built in Auto Gain Control, as well as dual headphone jacks that allow you to monitor the audio from the adapter at the input and output points.

Add to wishlist
SKU: SARA-SRAX107 Categories: , , Tags: , ,

Description

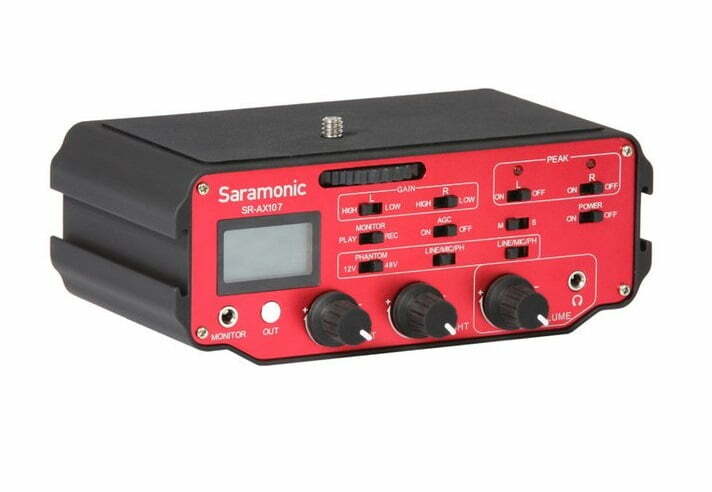

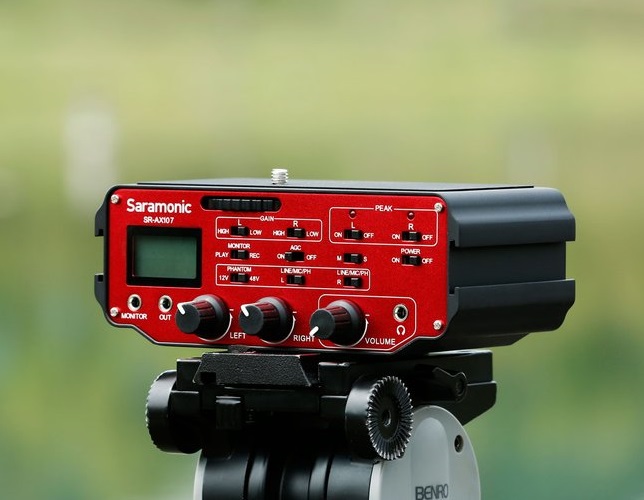

Saramonic SR-AX107

The SARAMONIC SR-AX107 is a 2-channel XLR audio adapter featuring preamplifiers and phantom power. This audio adapter is ideal for any DSLRcamera with a built-in microphone jack.

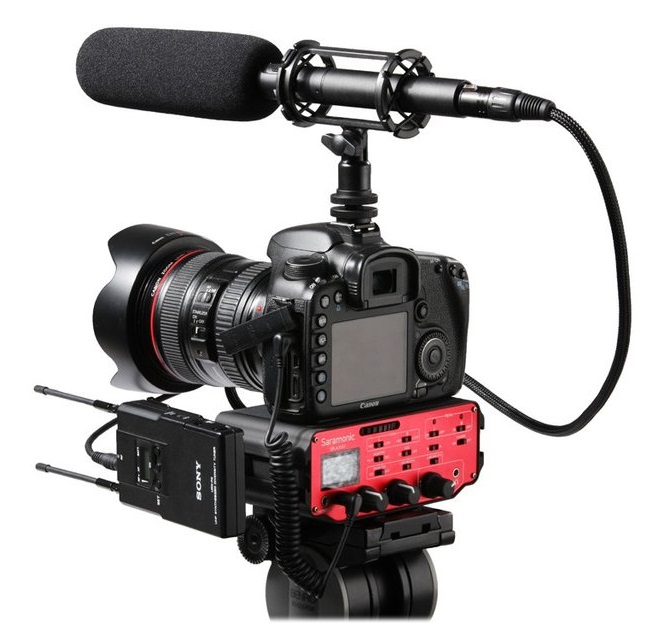

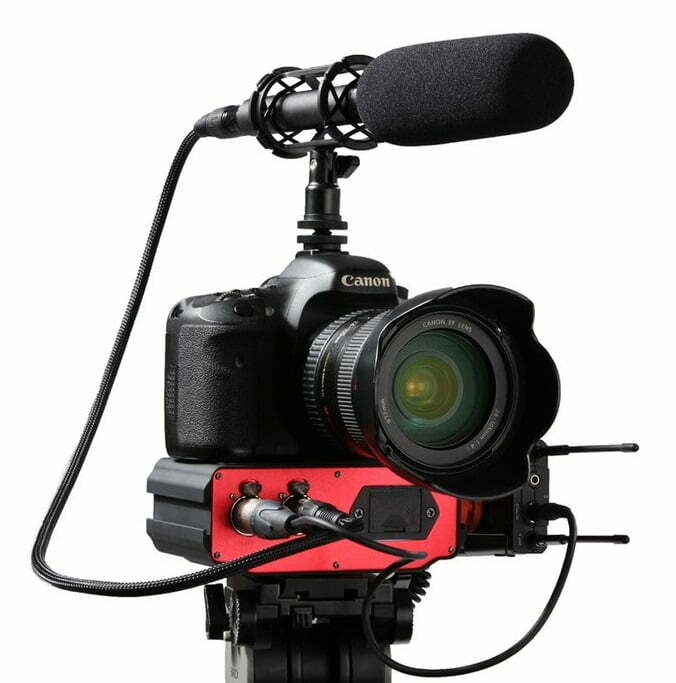

The SR-AX107 allows you to connect professional condenser microphones, wireless microphones, digital recorders, external audio mixers, sound boards and more to your DSLR camera or camcorder via two balanced XLR inputs.

The SR-AX107 is designed to save hours in post-production. On-board level meter allows you to verify the proper input levels in real time, while the output signal can be adjusted by the level controls for optimum recording. The dual headphone jacks allow you monitor the audio from the adapter at the input and output points.

The Saramonic SR-AX107 features an Isolation Transformer which provides a completely noise free and pure sound, and a built in Auto Gain Control switch allows you to turn off auto gain to reduce noise during quiet moments.

Features

  • Two balanced XLR inputs
  • Isolation Transformer provides a pure, noise-free sound
  • Level Meter indicates the sound level in dB for each channel
  • Gain Switches – Selects LOW for unity gain or HIGH for +20dB boost
  • Peak Switches – Turn on/off the LED signal indicators which flash red for overload
  • AGC ON/OFF – To active camera AGC function

Specifications

  • Input Levels : -3 dBu/ +14 dBu
  • Output Level : Nominal MIC levels
  • Frequency Response : 20 Hz to 20 kHz (+/- 0.5 dB)
  • THD : Less than 0.01% @ 1kHz, -30dBu input
  • S/N Ratio : 85 dB @ 1 Khz, -30 dBu input
  • Gain : 0 dB/ 20 dB
  • Phantom Power : Dual regulated 12 or 48 volt power supplies, Current to 14 mA (direct short)
  • Level meter : -18 to +3 dB in 3 dB increments
  • Dimensions : 6″x 3.75″x 1.75″(L x W x H)
    (152 mm x 95 mm x 44 mm)
  • Weight : 18 oz (0.51 kg)
