Description

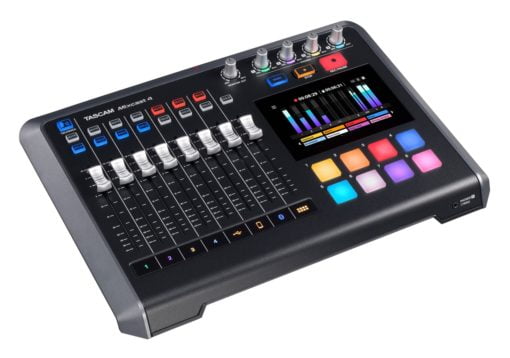

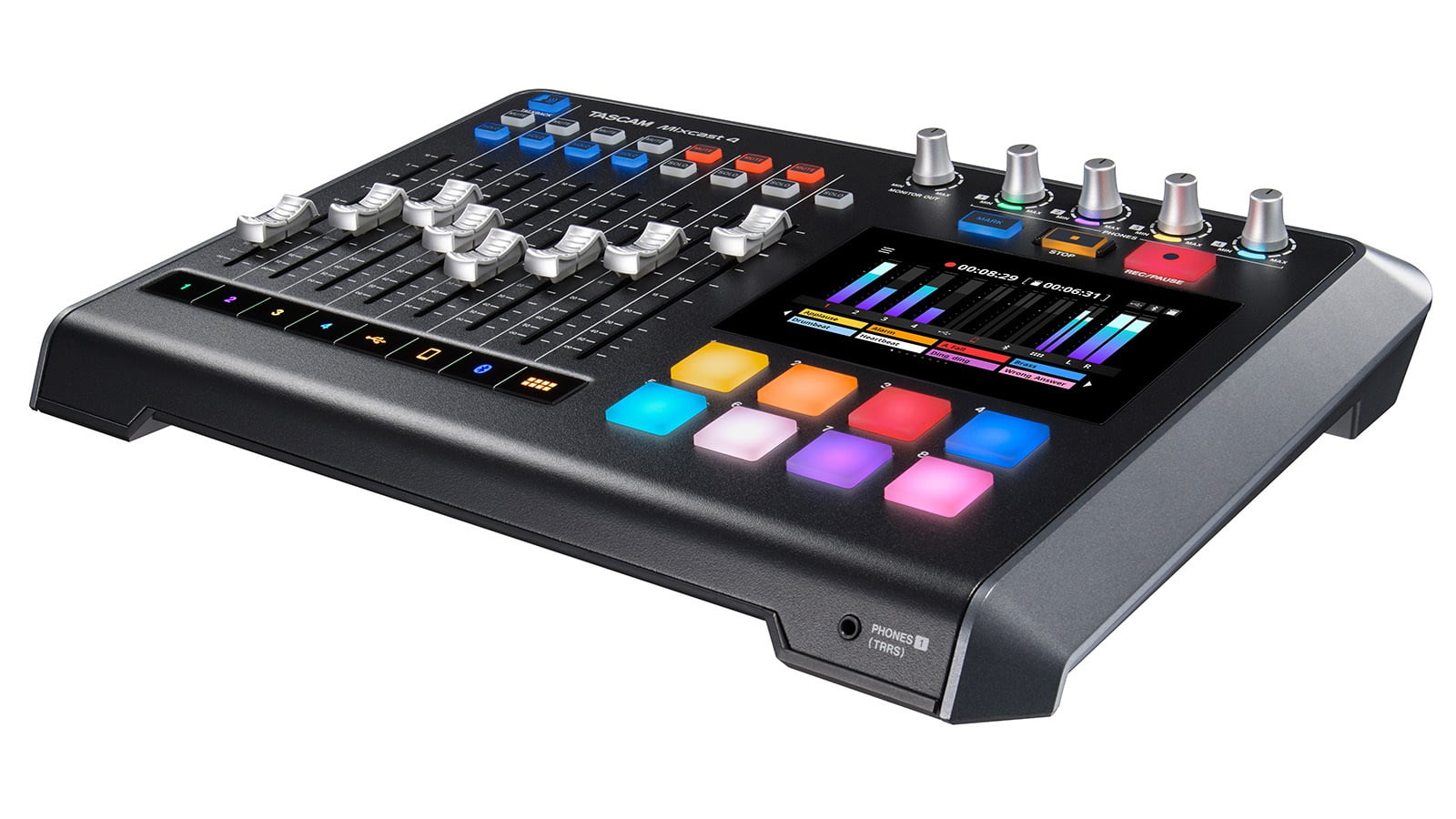

Podcast Station with built-in Recorder / USB Audio Interface

Mixcast 4

Podcast audio creation made easy

Mixcast 4 makes professional content creation easy. For Podcast creation, live streaming, event production, or voice over, Mixcast 4 will mix and record mic inputs, internal sounds and music via the trigger pads, and external audio input from your phone or PC. Together with the TASCAM Podcast Editor software, a complete solution – including both waveform editing and sound pad control – is provided from pre-production to completion.

Improve your production workflow and inspiration

The Mixcast 4 is a one-stop workstation that allows for the recording and mixing of sound sources without complicated settings. It provides all audio-related operation and workflow needed for live-streaming, events, podcasts, and other applications. The bundled TASCAM Podcast Editor software will expand the ability to assign content and sound effects to the internal touchpads, and will allow for smooth and easy remote track arming, effects assignment, audio editing and more without the need for expertise and complexity.

Stress-free touch panel control

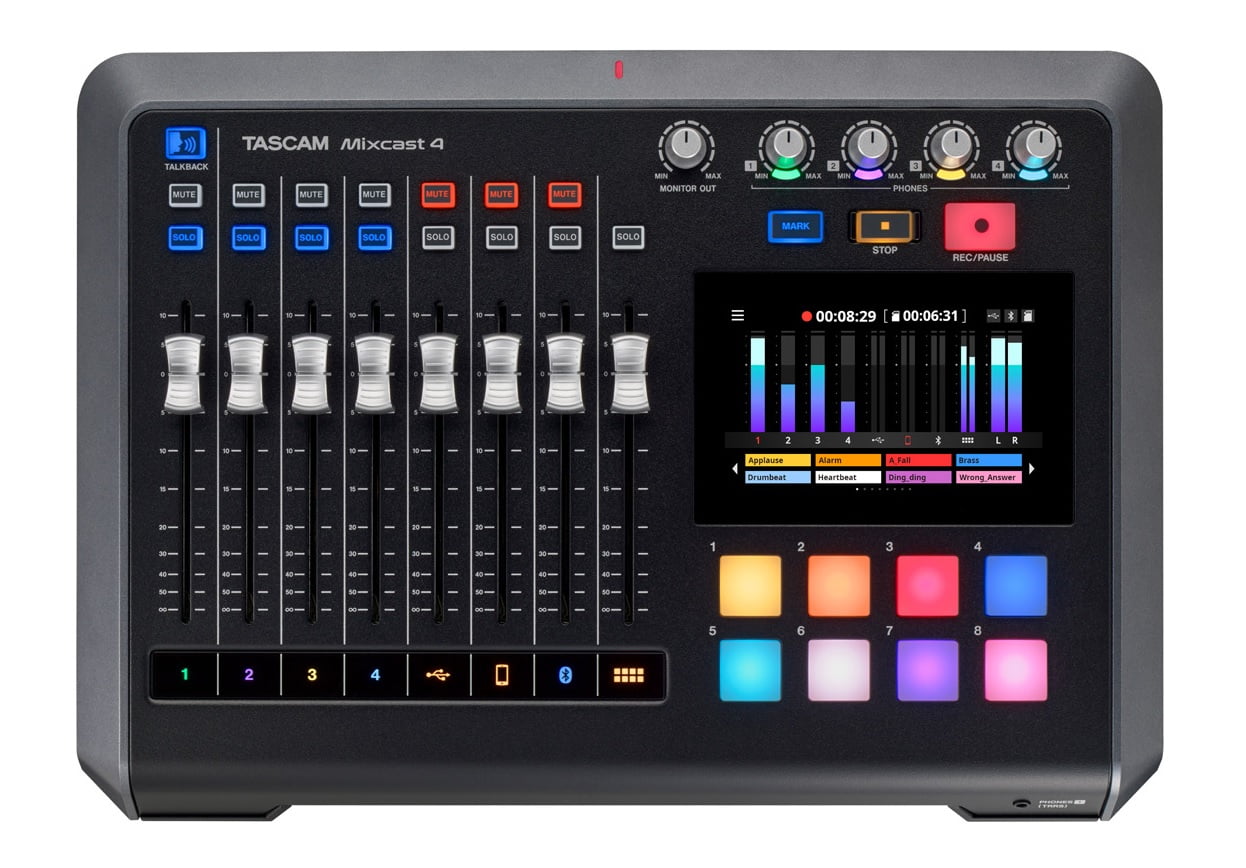

Equipped with 4 mic inputs and 4 individual headphone outputs, the Mixcast 4 is always ready for production thanks to the installed auto-mixing function that will automatically adjust optimal levels and set mic priority with no troublesome configuration for a perfect mix. The Mixcast 4 also showcases a 5-inch color touch screen that provides quick and intuitive access to desired menu control settings.

One-stop workstation with a variety of functions

From audio recording to the mixing of recorded audio, the Mixcast 4 offers a one-stop solution with multiple convenient functions such as 14-track multi-track recording direct to the unit’s SD card, Bluetooth®, an AUX IN (3.5mm) connection to easily mix and record phone conversations/sound sources, and PC connectivity that allows the unit to import sounds from a computer.

Enhance content with real-time sound effects

The Mixcast 4 comes with fully customizable sound pads. In addition to preset sound effects, users can flexibly assign new sounds or even pre-recorded mic sounds that have been recorded on the unit. The Mixcast 4 sound pads also allow for easy and on-time voice effects such as voice transformation, reverb, and more to make live-streams and recordings even more interesting and fun.

Bundled with TASCAM Podcast Editor dedicated software

The TASCAM Podcast Editor offers simple and practical editing of audio content, track arming, as well as easy configuration and assignment of sound effects and background music to the sound pads. There’s no need for expert knowledge on DAW software as the TASCAM Podcast Editor also offers intuitive graphics that will help users record audio easily using the Mixcast 4. TASCAM Podcast Editor is designed specifically for Mixcast 4, and seamlessly integrates together for a total production environment.

Features at a glance

  • Podcast production of up to 4 people: 4 mic inputs with auto-mix, 4 headphone outputs

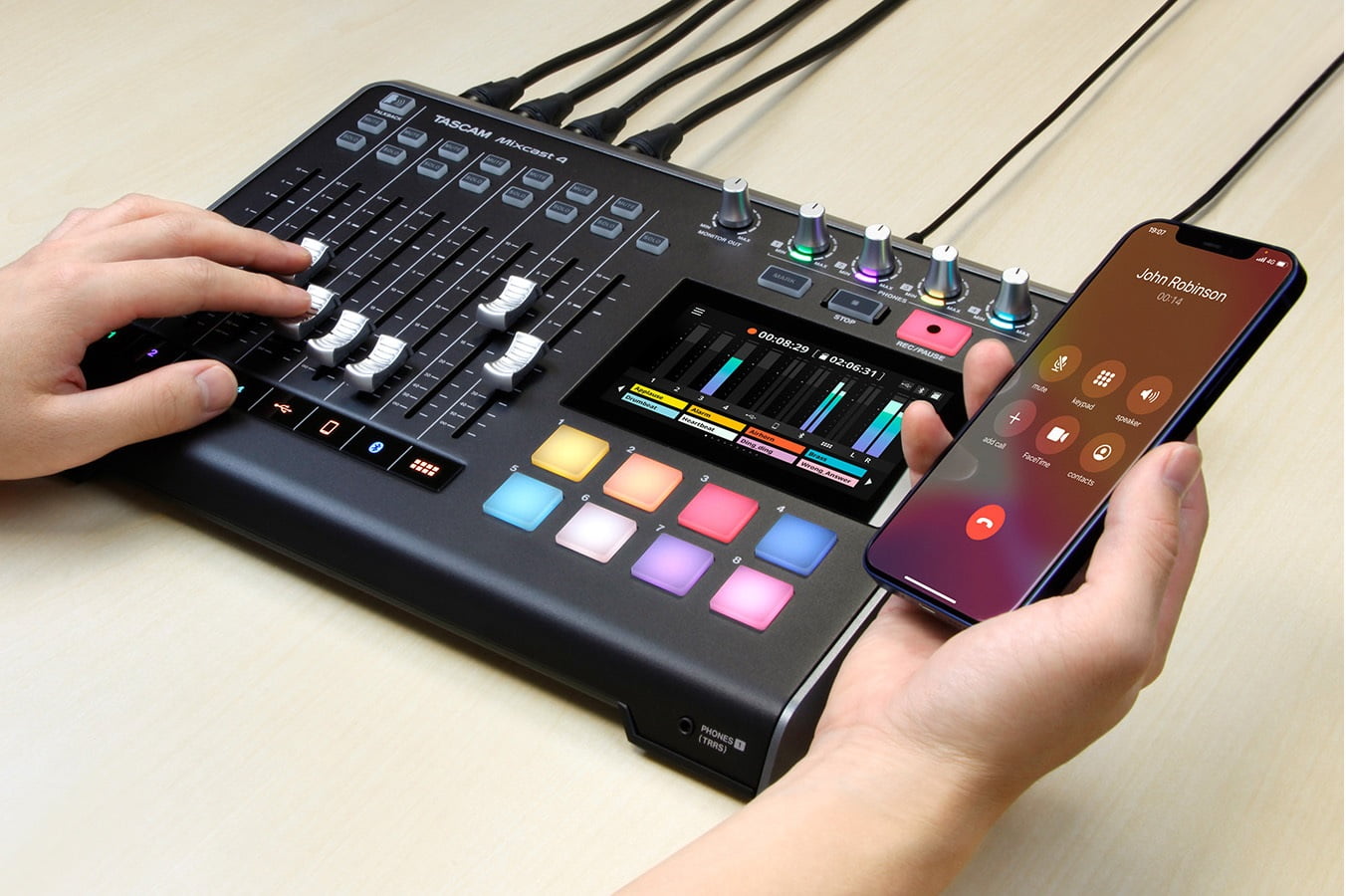

  • Invite guests and friends: Mix-Minus to connect call-ins with echo-free audio via Bluetooth, USB input or 4-pole TRRS audio cable
  • Sound pads for instant sound triggering and effects
  • Easy and intuitive control using the 5-inch touch panel
  • Fully compatible with the dedicated TASCAM Podcast Editor software to cover the entire production workflow
  • Direct internal multi-track recording to SD card (up to 14 tracks)
  • 14in/2out USB audio interface
  • Nine language options including English, French, German, Italian, Spanish, Russian, Chinese, Japanese and Korean

Included Items

  • Power adapter PS-P1220E NUT
  • Owner’s manual (warranty included)

Accessories

  • Carrying bag for Mixcast 4 CS-PCAS20 (sold separately)
  • Dynamic microphone for broadcast streaming TM-70 (sold separately)

Spec description

Recorder specifications
Recording mediaSD cards (64 MB to 2 GB), SDHC cards (4 GB to 32 GB), SDXC cards (48 GB to 512 GB)
Recording/playback formats
WAV(BWF)48 kHz, 24 bit, 2 ch Stereo/14 ch Poly
Max. recordable tracks14 tracks (12 track + 2 mix)
Analog audio input ratings
MIC INPUT jacks (1-4)
ConnectorsXLR/TRS combo jacks
XLRXLR-3-31 (1: GND, 2: HOT, 3: COLD)
TRS6.3mm (1/4″) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level+10 dBu (when LEVEL at min.)
Nominal input level-10 dBu (when LEVEL at min.)
Minimum input level-76.5 dBu (when LEVEL at max.)
Gain range66.5 dB
Input impedance2.1 kΩ
PHONES (TRRS) 1 jack (CTIA standard)
Connector3.5 mm (1/8″) 4-pole mini jack
Maximum input level+4 dBV (when LEVEL at min.)
Nominal input level-16 dBV (when LEVEL at min.)
Minimum input level-82.5 dBV (when LEVEL at max.)
Gain range66.5 dB
Input impedance2 kΩ
LINE IN (TRRS) jack (CTIA standard)
Connector3.5 mm (1/8″) 4-pole mini jack
Maximum input level+8 dBV
Nominal input level-12 dBV
Input impedance12 kΩ
LINE IN L/R (balanced) jacks
Connectors6.3mm (1/4″) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level+24 dBu
Nominal input level+4 dBu
Input impedance11 kΩ
Analog audio output ratings
PHONES jacks (1-4)
Connectors6.3mm (1/4″) standard stereo jacks
Maximum output45 mW + 45 mW (0.1% THD+N or less, into 32Ω load)
PHONES (TRRS) 1 jack (CTIA standard)
Connector3.5 mm (1/8″) 4-pole mini jack
PHONES (TRRS) 1 output splits from PHONES 1 output
LINE OUT (TRRS) jack (CTIA standard)
Connector3.5 mm (1/8″) 4-pole mini jack
Maximum output level-25 dBu
Nominal output level-45 dBu
Output impedance100 Ω
MONITOR OUT L/R (balanced) jacks
Connectors6.3mm (1/4″) standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level+20 dBu
Nominal output level+0 dBu
Output impedance200 Ω
LINE OUT jack
Connector3.5mm (1/8″) stereo mini jack
Maximum output level+6 dBv
Nominal output level-14 dBv
Output impedance200 Ω
Control input/output
USB port
ConnectorUSB Type-C
FormatsUSB2.0 HIGH SPEED
USB AUDIO CLASS 2.0
USB MASS STORAGE CLASS
Bluetooth®
Output class2 (about 10m* unobstructed transmission distance)
Supported profileA2DP
Supported A2DP codecsSBC, AAC
Supported A2DP content protectionSCMS-T
Recording times (in hours: minutes)Recording format: 24-bit / 48kHz WAV
14 ch: 0:35 (4 GB) / 1:10 (8 GB)
2 ch: 4:07 (4 GB) / 8:15 (8 GB)
The recording times shown above are not continuous recording times. They are total recordable times for SD/SDHC/SDXC cards.
PowerDedicated AC adapter (PS-P1220E NUT), DC 12 V
Power consumption12.5 W (maximum)
Weight2.55 kg
Operating temperature range0 – 40°C
Dimensions374.8(W) × 56.5(H) × 263.6(D) mm (excluding protrusions)
374.8(W) × 71.2(H) × 266.7(D) mm (including protrusions)
Include itemsAC adapter (PS-1220E NUT), USB Type-C to Type-C cable, Owner’s manual (inc. warranty)



Audio Performance

Mic amp EIN (equivalent input noise)-125 dBu or less (150Ω termination, LEVEL at max.)
Frequency responseMic input jacks (1-4)
20 Hz – 20 kHz: +0.3 dB / -0.3 dB (JEITA)
S/N ratio101 dB( Mic input jacks (1-4), channel faders at 0, 20kHz SPCL LPF +A-Weight)
Distortion0.003%
( Mic input jacks (1-4), 1kHz sine wave, channel faders at 0, 20kHz SPCL LPF)
Crosstalk95 dB or more
Note: Measurement conditions conform to JEITA CP-2905B.
