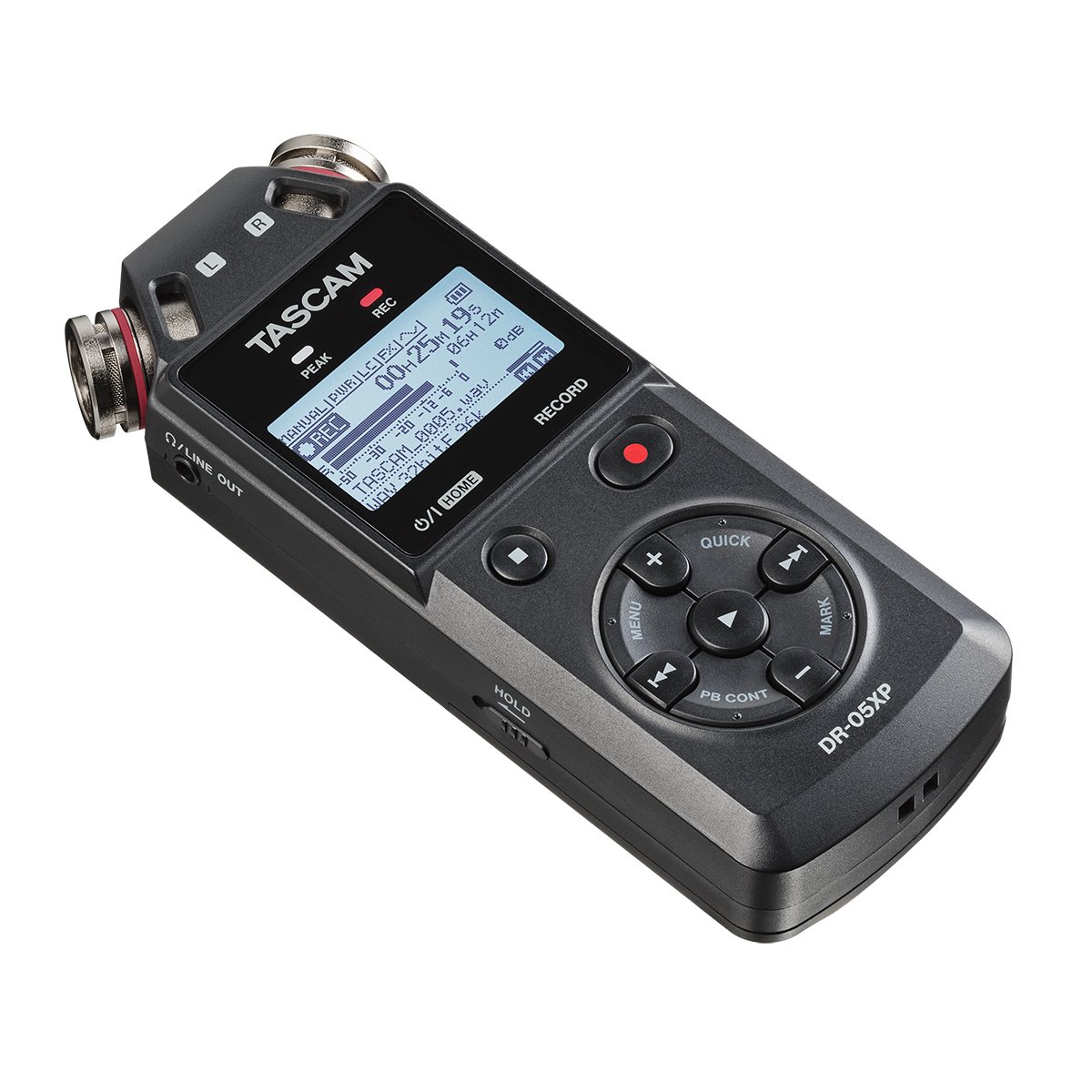

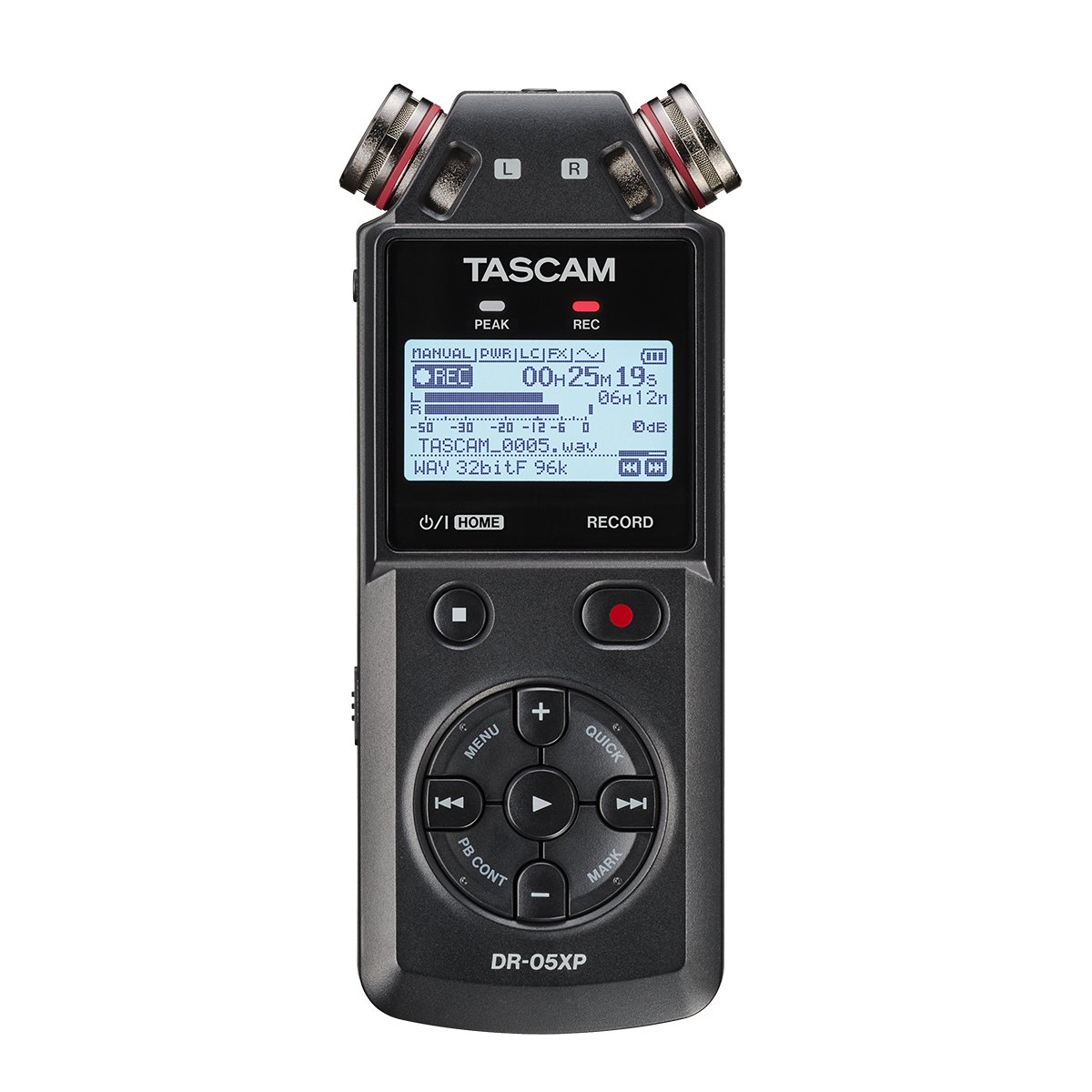

Tascam DR-05XP
Tascam DR-05XP - Image 2
Tascam DR-05XP - Image 3
Tascam DR-05XP - Image 4

Tascam DR-05XP

Rp2.450.000

Categories: , Tags: ,

Description

DR-05XP 2-Channel 32-Bit Float Portable Handheld Recorder With USB-C Interface

Pro-Quality Portable Recording, Simplified
The TASCAM DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you’ll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.

Key Feature:

  • 2-channel portable handheld audio recorder with up to 512GB microSDXC card storage
  • Flexible recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3
  • Omnidirectional condenser microphones handle loud environments and sources (up to 125dB SPL)
  • 2-in/2-out USB-C audio interface for recording directly to your computer
  • Up to 17.5 hours of operation with 2 x AA alkaline batteries

Spec Description

Recorder specifications
Recording media/file systemsmicroSD cards / microSDHC cards / microSDXC cards (up to 512 GB)
Recording/playback formats
WAV (BWF)
Sampling frequency44.1 kHz / 48 kHz / 96 kHz
Quantization bit depth16-bit / 24-bit / 32-bit float
MP3
Sampling frequency44.1 / 48 kHz
Quantization bit depth32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
Maximum number of input channels2
Maximum number of recordable tracks2
Analog audio input/output ratings
MIC/EXT IN jack (can provide plug-in power)
Connector3.5mm (1/8″) stereo mini jack
Input Impedance18 kΩ or more (when plug-in power is turned off)
2 kΩ or more (when plug-in power is turned on)
Nominal input level– 20 dBV
Maximum input level-4 dBV
PHONES/LINE OUT jack
Connector3.5mm (1/8″) stereo mini jack
Output impedance12 Ω
Nominal output level– 14 dBV (10kΩ loaded)
Maximum output level+2 dBV (10kΩ loaded)
Maximum output20 mW + 20 mW (32 Ω load)
Working impedance16 – 250Ω
Built-in Speaker
Output0.3W (monaural)
USB
ConnectorUSB Type-C
FormatUSB 2.0 High Speed Mass Storage Class
USB 1.1 Full Speed Audio Class
USB Audio
Sampling rate44.1 / 48 kHz
Quantization bit depth24-bit
Number of inputs2 channels (output from this unit)
Number of outputs2 channels (input to this unit)
General
Power2AA batteries (alkaline or NiMH)
USB bus power (5V/0.5A) from a computer, etc.
TASCAM PS-P520U AC adapter (sold separately)
Power consumption1.7 W (maximum)
Weight174 g / 0.384 lb (including batteries)
126 g / 0.278 lb (not including batteries)
Operating temperature range0 – 40 °C / 32 – 104 °F
Dimensions60.5 x 142.3 x 27 mm
2.39 x 5.61 x1.07 inch
(W x H x D, including protrusions)
Included itemsDR-05XP x1
Safety guide (including warranty) x1
TASCAM ID registration guide x1
