Tascam HS-P82

Rp48.200.000

TASCAM’s HS-P82 offers 8 tracks of the highest quality recording, yet it’s built for the rigors of location recording with reliable solid-state performance. The HS-P82 is built for location television and film production audio, with eight microphone inputs for big shoots or reality programs.

SKU: TSCM-HSP82 Categories: , ,

Description



TASCAM’s HS-P82 offers 8 tracks of the highest quality recording, yet it’s built for the rigors of location recording with reliable solid-state performance. The HS-P82 is built for location television and film production audio, with eight microphone inputs for big shoots or reality programs.



Audio is recorded at up to 192kHz/24-bit WAV format to a pair of Compact Flash cards. This solid state media is completely reliable with no moving parts, and you can record to both cards simultaneously for extra security (card-mirroring). The Broadcast WAV files include iXML metadata for quick import into nearly any video or audio editing system, either via the USB 2.0 connection or a standard card reader.

For multi-microphone music or surround effects recording, the HS-P82 includes Mid-Side decoding – either recorded to the track or only for monitoring & playback. Microphone gain settings can be ganged together for input level control or fades, and inputs automatically mute when the gain is moved to its minimum setting.





TASCAM also provides firmware upgrades for products from time to time. The latest upgrade – V1.20 – provides the ability to rename takes and automatically start and pause recording in response to the state of an external timecode signal.

The HS-P82 offers several options for power. It runs on either NP batteries or AA, an included AC adapter, external DC input or a V-mount adapter for Endura batteries. An internal slate microphone is available for naming takes. Functions like a 5-second pre-record buffer, front panel lockout and headphone output alert signal further inspire confidence.

For high-resolution music recording, a set of AES/EBU connectors is available for attaching pedigree A/D converters and preamplifiers. SMPTE timecode in and out, video and word sync are provided. All of this is controlled from a color touchscreen interface which makes operation fast and simple.





Features:



Recording fuctions:

  • Dual Compact Flash recording media supports backup and mirroring
  • Long battery life through low power usage

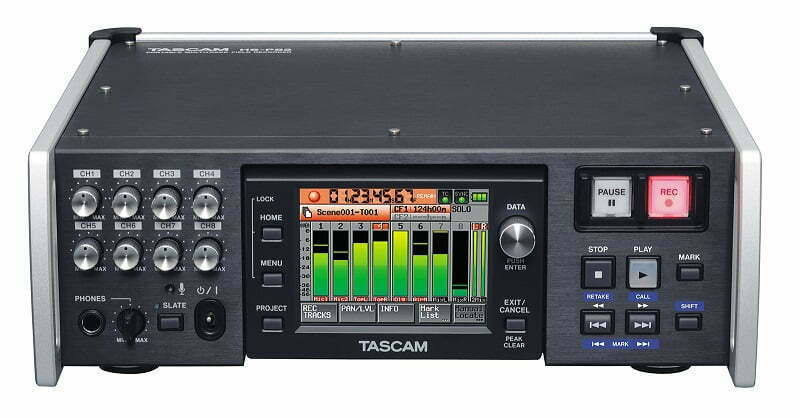

  • Easy to read and operate using pivoting TFT Color Touch Panel interface
  • All-aluminum chassis is rugged yet lightweight
  • 8-track recording plus stereo mix for a total of 10-track recording
  • 8-track recording at up to 96kHz/24-bit
  • 4-track recording at 192kHz/24-bit
  • Broadcast WAV (BWF) support with iXML metadata
  • Take renaming function
  • Various power options include NP type, AC adaptor (included), external DC input (XLR 4-pin) and optional V-mount adaptor for ENDURA batteries. (A 10x AA battery tray is included – useful for short-term emergency operation in case of external power failure while recording)
  • Up to 5-second pre-record buffer
  • Internal microphone for slate recording
  • Limiter and low-cut filter per track
  • Mid-side microphone decoding – either during recording or on monitor/playback only
  • Trim ganging for multi-channel/multi-microphone input level control (both MIC and LINE level inputs)
  • Minimum input gain setting mutes input
  • Auto or manual cue points
  • Alert signal to headphone output
  • Retake function
  • Panel lockout function to prevent accidental transport switching

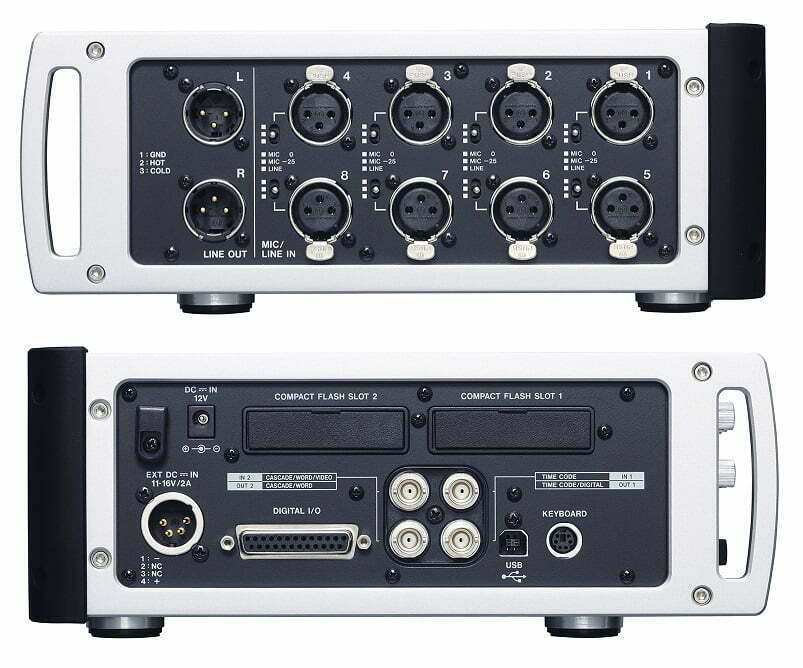

Inputs/Outputs:

  • 8 high-quality microphone preamps and A/D converters with independent +48V phantom power for each (standard XLR connectors)
  • 8 AES/EBU inputs and outputs (DB-25 connector)
  • Sampling rate converter on each AES/EBU input
  • 2 balanced analog outputs (XLR connector)
  • Stereo digital output (BNC connector)
  • SMPTE Timecode In and Out (BNC connector)
  • Video/Word Clock/Cascade I/O (BNC connector)
  • Headphone out (1/4″ stereo jack)
  • PS/2 keyboard input for track naming
  • USB 2.0 high-speed data transfer to PC
  • Mic Input EIN –125dBu
Recording mediaCF card (Compact Flash)
File systemFAT32
File formatBWF (Monophonic, Polyphonic)
Number of channels8 channels (44.1k / 48k / 88.2k / 96k Hz)
8 channels + Stereo mix (44.1k / 48k Hz)
4 channels (176.4k / 192k Hz)
Quantization bit rate16 / 24-bit
Sampling frequency44.1k / 47.952k / 48k / 48.048k / 88.2k / 96k / 176.4k / 192k Hz
(47.952k / 48.048k Hz: 48kHz ±0.1% pull-up/pull-down)
Reference clockInternal, Word in, Video in, Digital in (CH1-2, CH3-4, CH5-6, CH7-8)
Timecode frame rate23.976 / 24 / 25 / 29.97 DF / 29.97 NDF / 30 DF / 30 NDF
Built-in MicOmnidirectional, monaural
Limiter
Attach time3 msec
Release time300 msec
Threshold–5dBFS
Ratio32:1
Low cut filter
Cut off frequency40 / 80 / 120 Hz
Slope–12dB/OCT, –18dB/OCT
Inputs/Outputs
Mic/Line input (1-8)
ConnectorXLR-3-31 (1: GND, 2: HOT, 3: COLD) × 8
Input impedance
LINE10Ω
MIC –252.4Ω
MIC 02.4Ω
Nominal input level
LINE+6dBu (1.55Vrms, –9dB), +4dBu (1.23Vrms, other than –9dB)
Maximum input level
LINE+15dBu (4.36Vrms), +18dBu (6.16Vrms), +20dBu (7.75Vrms), +22dBu (9.76Vrms), +24dBu (12.28Vrms)
MIC –25+11dBu (2.75Vrms)
MIC 0–14dBu (0.15Vrms)
Minimum input level
MIC –25–45dBu (4.36Vrms)
MIC 0–70dBu (0.25Vrms)
Line output
ConnectorXLR-3-32 (1: GND, 2: HOT, 3: COLD) × 1 pair
Output impedance100Ω or less
Nominal output level+6dBu (1.55Vrms, Ref. level: –9dB), +4dBu (1.23Vrms, Ref. level: other than –9dB)
Maximum output level+15dBu (4.36Vrms), +18dBu (6.16Vrms), +20dBu (7.75Vrms), +22dBu (9.76Vrms), +24dBu (12.28Vrms)
Phone
Connector1/4″ (6.3mm) Stereo phone jack × 1
Output power100mA + 100mA (THD+N 1% or less, into 32Ω)
Digital I/O
ConnectorD-sub 25 pin × 1
FormatAES3-2003/IEC60958-4 (AES/EBU)
Maximum input voltage7mVp-p
Minimum input voltage200mVp-p
Output voltage3.5Vp-p
Digital output
ConnectorBNC × 1
FormatAES3-2003/AES-3id-2001 (AES/EBU)
Output voltage1Vp-p/75Ω
Control I/O
EXT DC IN
ConnectorXLR 4-32 (1: –, 2: NC, 3: NC, 4: +)
Input voltage11 to 16V (2A)
Cascade/Word/Video In
ConnectorBNC
Input voltage5V TTL equivalent
Input impedance75Ω ±10%
(Allowable frequency deviation of external synch: ±100ppm)
Cascade/Word/Video Out
ConnectorBNC
Input voltage5V TTL equivalent
Input impedance75Ω ±10%
(Allowable frequency deviation of external synch: ±100ppm)
Sampling frequency44.1k / 49.952; / 48lk / 48.048k / 88.2k / 96k / 176.4k /192k Hz
(47.952k / 48.048k Hz: 48kHz &pllusmn;0.1% pull-up/pull-down)
Time Code In
ConnectorBNC
Input voltage0.5 to 5Vp-p
Input impedance10kΩ
Time Code Out
ConnectorBNC
Input voltage2.0Vp-p
Input impedance600Ω
USB
ConnectorUSB B-type 4-pin × 1
FormatUSB2.0 HIGH SPEED (480MHz)
Keyboard
Connectormini DIN (PS/2) × 1
PowerAC 100 – 240V, 50/60Hz (AC adapter PS-1225L)
10 AA batteries (Alkaline or NiMH)
External DC battery (DC 11 to 16V, 2A or more)
Power consumption18W
Battery operation time* All times are approximate. Continuous operation)
NP type batteryLi-ion: 14.8V / 4.6Ah (68W)
Playback5 hours (JEITA)
Recording5 hours (JEITA)
AA type batteryNi-MH
Playback2 hours (JEITA)
Recording2 hours (48kHz, 24-bit, 8ch with phantom power OFF, varies with operating conditions. JEITA)
Dimensions (W×H×D)10.6″ × 3.9″ × 10.2″ / 270 × 99.7 × 260 mm
Weight8.06 lbs. / 3.65 kg (excluding batteries)



Audio performance

Frequency response
Input (Mic/Line) → Line out20Hz to 20kHz 0dB (±0.5dB) Fs=All
at 40kHz –1dB (±1.0dB) Fs=88.2k/96kHz
at 80kHz –3dB (+1dB/–2dB) Fs=176.4k/192kHz
Distortion
Input (LINE) → Line out0.003% or less (Ref. level: when –20dB, +23dBu input 1kHz, AES-17 LPF)
Input (MIC –25) → Line out0.02% or less (Ref. level: when –20dB, –10dBu input Trim +20dB 1kHz, AES-17 LPF)
Input (MIC 0) → Line out0.02% or less (Ref. level: when –20dB, –35dBu input Trim +20dB 1kHz, AES-17 LPF)
S/N radio
Input (LINE) → Line out11-dB or more (22kHz LPF A-weighted)
Input (MIC –25) → Line out100dB or more (22kHz LPF A-weighted)
Input (MIC 0) → Line out100dB or more (22kHz LPF A-weighted)



Computer compatibility

Windows
OSWindows XP, Windows Vista, Windows 7
CPUPentium 300MHz or faster
Memory128MB or more
USB portUSB2.0 (Intel chipset host controller is recommended.)
Macintosh
OSOS X10.2 or later
CPUPowerPC G3, G4, Intel Mac 266MHz or faster
Memory64MB or more
USB portUSB2.0 (Intel chipset host controller is recommended.)



Supported Media

CF card
MakerSeriesModelCapacity
GREEN HOUSEGH-CF C SeriesGH-CF8GC New8GB
LexarLexar® Platinum II 200x CompactFlash® (CF) CardLCF16GBCJP20016GB
LexarLexar® Platinum II 200x CompactFlash® (CF) CardLCF4GBBCJP2004GB
LexarLexar® Platinum II 200x CompactFlash® (CF) CardLCF8GBBCJP2008GB
LexarLexar® Platinum II 80x CompactFlash® (CF) CardLCF4GBBCJP0804GB
LexarLexar® Platinum II 80x CompactFlash® (CF) CardLCF8GBBCJP0808GB
LexarLexar® Platinum II 200x CompactFlash® (CF) CardLCF16GBBJP20016GB
LexarLexar® Platinum II 200x CompactFlash® (CF) CardLCF8GBBBJP2008GB
LexarLexar® Professional 1000x CompactFlash® (CF) Card (UDMA7)LCF128CTBJP1000128GB
LexarLexar® Professional 1000x CompactFlash® (CF) Card (UDMA7)LCF16GCTBJP100016GB
LexarLexar® Professional 1000x CompactFlash® (CF) Card (UDMA7)LCF32GCTBJP100032GB
LexarLexar® Professional 1000x CompactFlash® (CF) Card (UDMA7)LCF64GCTBJP100064GB
LexarLexar® Professional 1066x CompactFlash® Card (UDMA7)LCF128CRBJPR1066128GB
LexarLexar® Professional 1066x CompactFlash® Card (UDMA7)LCF16GCRBJP106616GB
LexarLexar® Professional 1066x CompactFlash® Card (UDMA7)LCF32GCRBJP106632GB
LexarLexar® Professional 1066x CompactFlash® Card (UDMA7)LCF64GCRBJP106664GB
LexarLexar® Professional 300x CompactFlash® (CF) CardLCF16GCRBJP30016GB
LexarLexar® Professional 300x CompactFlash® (CF) CardLCF32GCRBJP30032GB
LexarLexar® Professional 300x CompactFlash® (CF) CardLCF8GBERBJP3008GB
LexarLexar® Professional 400x CompactFlash® (CF) CardLCF16GCRBJP40016GB
LexarLexar® Professional 400x CompactFlash® (CF) CardLCF32GCRBJP40032GB
LexarLexar® Professional 400x CompactFlash® (CF) CardLCF8GBCRBJP4008GB
LexarLexar® Professional 400x CompactFlash® (CF) Card (UDMA7)LCF128CTBJP400128GB
LexarLexar® Professional 400x CompactFlash® (CF) Card (UDMA7)LCF16GCTBJP40016GB
LexarLexar® Professional 400x CompactFlash® (CF) Card (UDMA7)LCF32GCTBJP40032GB
LexarLexar® Professional 400x CompactFlash® (CF) Card (UDMA7)LCF64GCTBJP40064GB
LexarLexar® Professional 400x CompactFlash® (CF) Card (UDMA7)LCF8GBCTBJP4008GB
LexarLexar® Professional 600x CompactFlash® (CF) CardLCF16GCRBJP60016GB
LexarLexar® Professional 600x CompactFlash® (CF) CardLCF32GCRBJP60032GB
LexarLexar® Professional 600x CompactFlash® (CF) CardLCF8GBCRBJP6008GB
LexarLexar® Professional 800x CompactFlash® (CF) Card (UDMA7)LCF128CTBJP800128GB
LexarLexar® Professional 800x CompactFlash® (CF) Card (UDMA7)LCF16GCTBJP80016GB
LexarLexar® Professional 800x CompactFlash® (CF) Card (UDMA7)LCF32GCTBJP80032GB
LexarLexar® Professional 800x CompactFlash® (CF) Card (UDMA7)LCF64GCTBJP80064GB
LexarLexar® Professional 800x CompactFlash® (CF) Card (UDMA7)LCF8GBCTBJP8008GB
LexarLexar® Professional 800x CompactFlash® Card (UDMA7)LCF16GCRBJP80016GB
LexarLexar® Professional 800x CompactFlash® Card (UDMA7)LCF64GCRBJP80064GB
LexarLexar® Professional 800x CompactFlash® Card (UDMA7)LCF8GBCRBJP8008GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA6)SDCFXP-016G-J9116GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA6)SDCFXP-032G-J9132GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA6)SDCFXP-064G-J9164GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA7)SDCFXP-016G-J9216GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA7)SDCFXP-032G-J9232GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA7)SDCFXP-128G-J91A128GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA7)SDCFXPS-016G-J6116GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA7)SDCFXPS-016G-J9216GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA7)SDCFXPS-032G-J6132GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA7)SDCFXPS-032G-J9232GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA7)SDCFXPS-064G-J6164GB
SanDiskSanDisk Extreme PRO® CompactFlash® Memory Card (UDMA7)SDCFXPS-064G-J9264GB
SanDiskSanDisk Extreme® CompactFlash® Memory Card (UDMA)SDCFX-008G-J618GB
SanDiskSanDisk Extreme® CompactFlash® Memory Card (UDMA)SDCFX-016G-J6116GB
SanDiskSanDisk Extreme® CompactFlash® Memory Card (UDMA)SDCFX-032G-J6132GB
SanDiskSanDisk Extreme® CompactFlash® Memory Card (UDMA7)SDCFXS-008G-J618GB
SanDiskSanDisk Extreme® CompactFlash® Memory Card (UDMA7)SDCFXS-016G-J6116GB
SanDiskSanDisk Extreme® CompactFlash® Memory Card (UDMA7)SDCFXS-032G-J6132GB
SanDiskSanDisk Extreme® CompactFlash® Memory Card (UDMA7)SDCFXS-064G-J6164GB
SanDiskSanDisk Extreme® IV CompactFlash® Memory CardSDCFX4-4096-J454GB
SanDiskSanDisk Extreme® IV CompactFlash® Memory CardSDCFX4-8192-J458GB
SanDiskSanDisk Ultra® CompactFlash® Memory CardSDCFH-002G-J61A2GB
SanDiskSanDisk Ultra® CompactFlash® Memory CardSDCFHG-004G-J954GB
SanDiskSanDisk Ultra® CompactFlash® Memory CardSDCFHG-008G-J958GB
SanDiskSanDisk Ultra® CompactFlash® Memory CardSDCFHG-016G-J9516GB
SanDiskSanDisk Ultra® CompactFlash® Memory CardSDCFHS-016G-J3516GB
TASCAMCF-HSRCF-1HSR1GB
TASCAMCF-HSRCF-4HSR4GB
TOSHIBAEXCERIA PRO Compact Flash cardCF-AX016G16GB
TOSHIBAEXCERIA PRO Compact Flash cardCF-AX032G32GB
