Magewell USB Capture Series
Price range: Rp7.200.000 through Rp13.100.000
- Overview
- USB Capture HDMI Gen 2 (32060)
- USB Capture SDI Gen 2 (32070)
- USB Capture AIO (32110)
- USB Capture HDMI Plus (32040)
- USB Capture SDI Plus (32050)
- USB Capture DVI Plus (32080)
- USB Capture HDMI 4K Plus (32090)
- USB Capture SDI 4K Plus (32100)

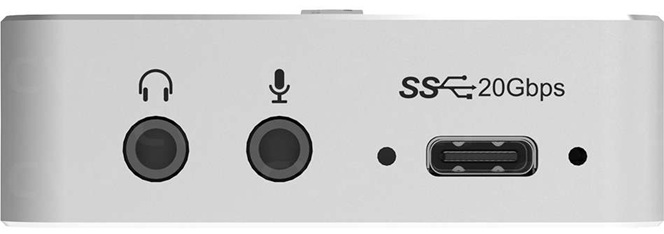

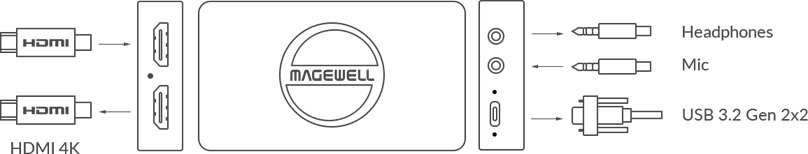

- USB Capture HDMI 4K Pro (32150)

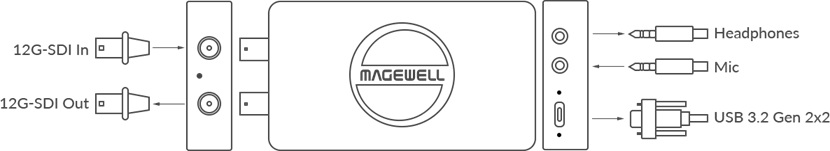

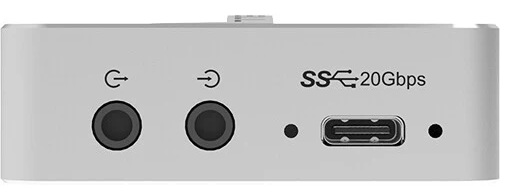

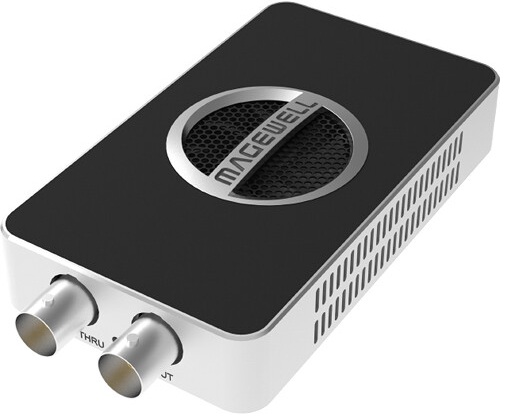

- USB Capture SDI 4K Pro (32160)

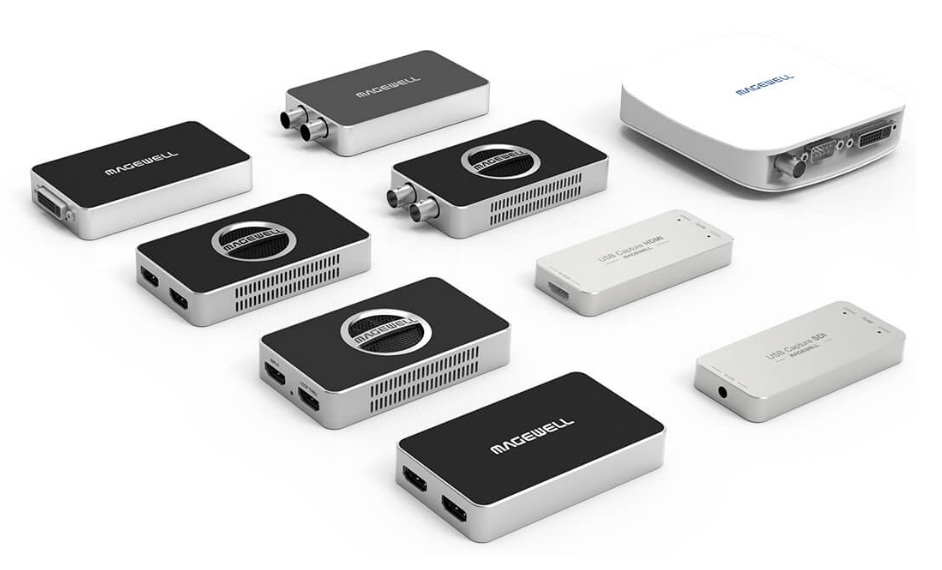

USB Capture Family
Magewell’s USB Capture, USB Capture Plus and USB Capture Pro external capture devices are the easiest way to bring high-quality video and audio signals into market-leading software solutions for video conferencing, streaming, live production, lecture capture and more.
Plug-and-Play Simplicity and Compatibility
Featuring driver-free installation and automatic input detection for true plug-and-play operation, the USB Capture family supports Windows, Mac, Linux and Chrome operating systems and offers broad compatibility with popular third-party software.
USB Connectivity for Data & Power
Our single-channel USB Capture devices enable all types of computers including laptops to capture HD or 4K signals through a standard USB interface, with no additional power source required.
Full Range of Interface Choices
Compatible with sources ranging from professional video cameras and hardware switchers to SLR cameras and game consoles, USB Capture dongles are available in multiple models to support most common digital and analog signals at resolutions ranging from SD (720x480) to 1080p HD (1920x1080) and 4K Ultra HD (4096x2160).

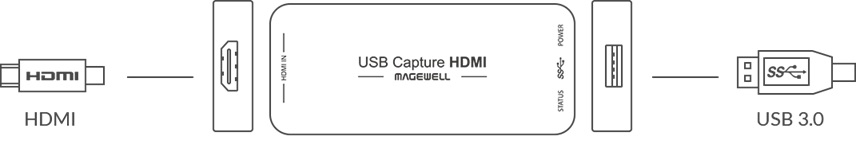

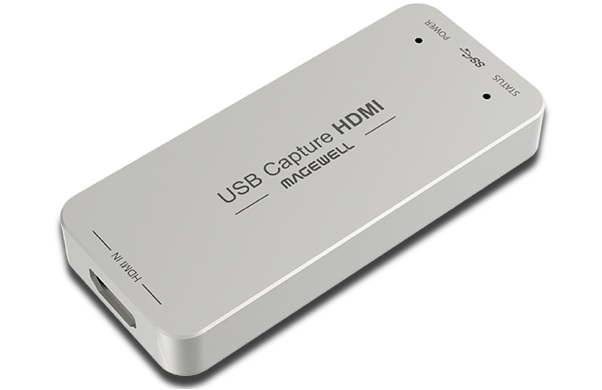

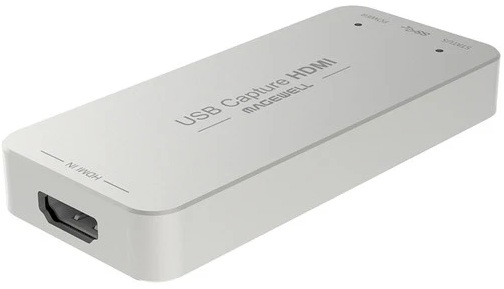

The Magewell USB Capture HDMI Gen 2 (Part Number: 32060) is a professional USB video capture device designed to capture HDMI video and audio signals and transfer them to a computer via USB 3.0. It is widely used for live streaming, video conferencing, recording, and AV integration.
Interface
Key Specifications Operating System Compatibility No proprietary drivers are required because the device is USB Video Class (UVC) compliant. Compatible Software The device works with most applications that support standard UVC capture devices, including: Key Features Gen 2 Improvements over Gen 1 Compared to the original USB Capture HDMI (P/N 32011), the Gen 2 (P/N 32060) offers: Typical Applications

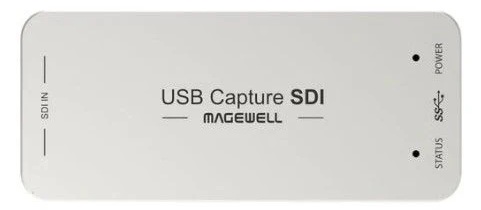

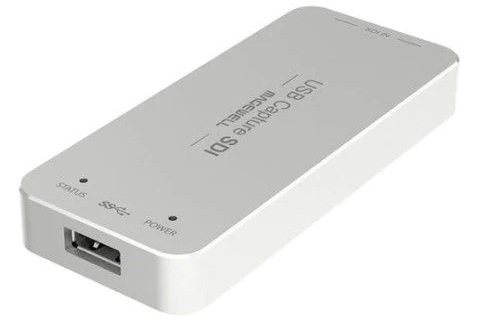

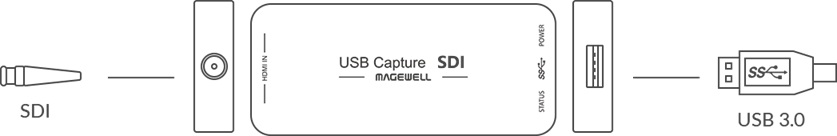

The Magewell USB Capture SDI Gen 2 (Part Number: 32070) is a compact USB video capture device designed to capture SD, HD, and 3G-SDI video signals and transfer them to a computer over USB 3.0 without requiring additional drivers on most operating systems.
Interface
Key Specifications
- Model: Magewell USB Capture SDI Gen 2
- Part Number: 32070
- Video Input: 1 × SD/HD/3G-SDI
- Audio Input: Embedded 2-channel SDI audio
- Host Interface: USB 3.0 (backward compatible with USB 2.0, with reduced performance)
- Maximum Input Resolution: Up to 2048 × 1080
- Maximum Frame Rate: Up to 120 fps (depending on the input resolution)
- Video Formats: SD, HD, and 3G-SDI
- Plug-and-Play: UVC (USB Video Class) compliant, requiring no proprietary drivers for most applications
Operating System Compatibility
- Windows
- macOS
- Linux
- ChromeOS
Supported Software
The device works with most applications that support standard UVC capture devices, including:
- OBS Studio
- VLC Media Player
- Zoom
- Microsoft Teams
- vMix
- Wirecast
- XSplit
- Other DirectShow, V4L2, or AVFoundation-compatible software
Key Features
- Low-latency video capture
- Automatic input format detection
- Supports SDI embedded audio
- Compact, portable design
- Firmware upgrade support
- Compatible with Magewell USB Capture Utility for configuration and diagnostics
Typical Applications
- Live streaming
- Video conferencing
- Broadcast production
- Video recording
- Medical imaging
- Industrial and machine vision
- Education and training

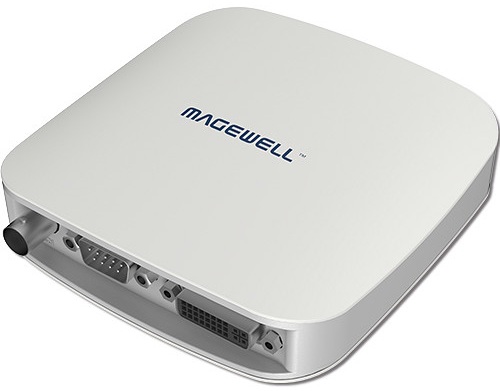

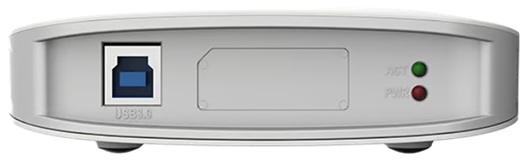

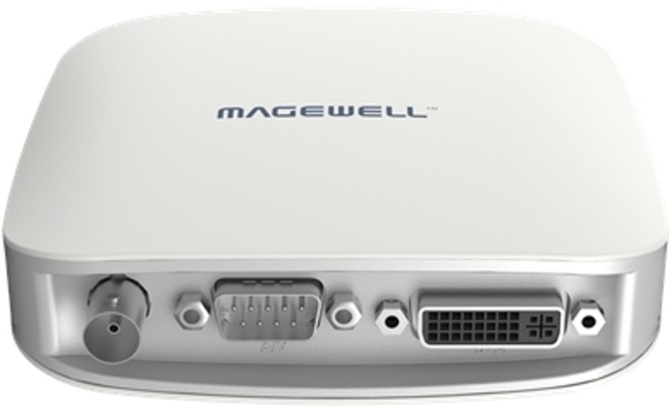

The Magewell USB Capture AIO (P/N: 32110) is a professional USB 3.0 multi-interface video capture device that supports both digital and analog video sources in a single unit. It captures one input at a time and is designed for live streaming, video conferencing, recording, broadcast, and AV integration.
Interface
General Information
- Product: Magewell USB Capture AIO
- Part Number: 32110
- Host Interface: USB 3.0 (compatible with USB 2.0)
- Capture Channels: 1 video + audio

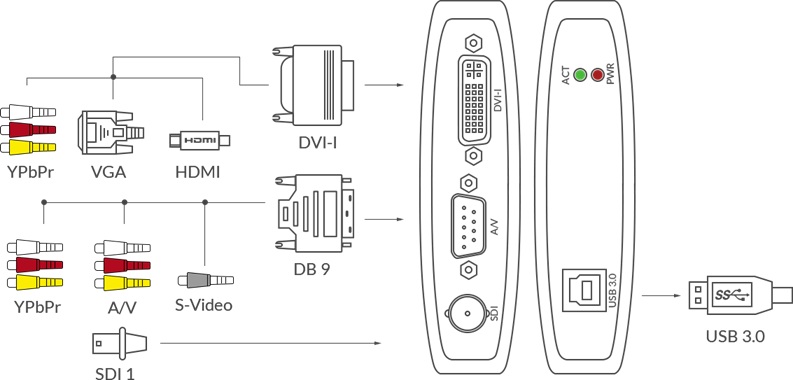

Video Inputs
Supports one of the following inputs at a time:
- SD/HD/3G-SDI (BNC)
- HDMI (via included DVI-I to HDMI breakout cable)
- DVI-I
- VGA (via included DVI-to-VGA adapter)
- Component (YPbPr)
- Composite (CVBS)
- S-Video (YC)
Audio Inputs
- Embedded SDI audio
- Embedded HDMI audio
- Analog stereo audio
- Captures up to 2-channel PCM audio
Video Performance
- Maximum input resolution: 2048 × 2160
- Maximum capture resolution: 2048 × 2160
- Maximum capture frame rate: Up to 120 fps (depending on resolution and USB bandwidth)
- Automatic input format detection
- Hardware scaling
- Deinterlacing
- Color space conversion
- Aspect ratio conversion
- Cropping
Operating System Support
- Windows
- macOS
- Linux
- ChromeOS
The device is USB Video Class (UVC) compliant, so it works without proprietary drivers in most applications.
Compatible Software
- OBS Studio
- VLC Media Player
- vMix
- Wirecast
- XSplit
- Zoom
- Microsoft Teams
- Google Meet
- Any DirectShow, V4L2, or AVFoundation-compatible application
Included Accessories
- USB Capture AIO unit
- USB 3.0 cable
- DVI-to-VGA adapter
- DVI-I to HDMI/Component breakout cable
- DB9 breakout cable (Composite, S-Video, Component, Analog Audio)
Typical Applications
- Live streaming
- Broadcast production
- Video conferencing
- Lecture capture
- Legacy analog video digitization
- AV system integration
- Medical and industrial imaging

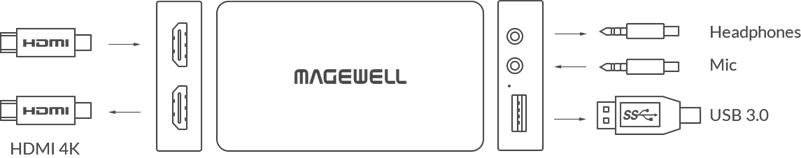

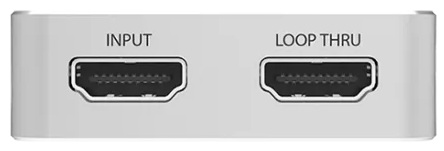

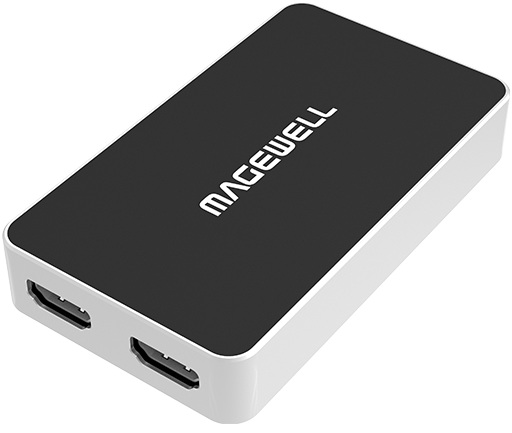

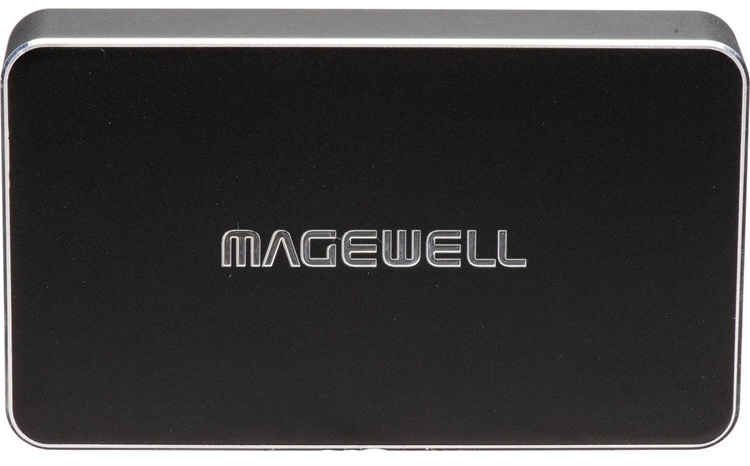

The Magewell USB Capture HDMI Plus (P/N: 32040) is a professional USB 3.0 HDMI capture device with HDMI loop-through, designed for live streaming, recording, conferencing, and AV integration. Unlike the standard USB Capture HDMI models, the Plus version adds HDMI pass-through, microphone input, and headphone output.
Interface
General Information
- Product: Magewell USB Capture HDMI Plus
- Part Number: 32040
- Host Interface: USB 3.0 (compatible with USB 2.0)
- Capture Channels: 1 HDMI video + audio
Video Interfaces
- 1 × HDMI input (HDMI 1.4 / DVI-D compatible)
- 1 × HDMI loop-through output
- Supports HDMI loop-through resolutions up to 4096 × 2160
- Supports 4K60 4:2:0 input and automatically downscales for capture when needed.
Audio Interfaces
- HDMI embedded audio input
- 3.5 mm microphone input
- 3.5 mm headphone output for audio monitoring
- Supports up to 8-channel HDMI embedded audio input
- Captures up to 2-channel PCM audio over USB.
Video Performance
- Maximum capture resolution: 2048 × 2160
- Maximum capture frame rate: Up to 120 fps (depending on resolution and USB bandwidth)
- Hardware processing includes:
- Scaling
- Deinterlacing
- Cropping
- Aspect ratio conversion
- Color space conversion
- Frame rate conversion
- Image flip and mirror.
Operating System Compatibility
- Windows
- macOS
- Linux
- ChromeOS
The device is USB Video Class (UVC) compliant, so it works with most applications without requiring proprietary drivers.
Compatible Software
- OBS Studio
- VLC Media Player
- vMix
- Wirecast
- XSplit
- Zoom Rooms
- Microsoft Teams Rooms
- Google Meet
- QuickTime Player
- Any DirectShow, V4L2, or AVFoundation-compatible application.
Included Accessories
- USB Capture HDMI Plus
- USB 3.0 cable.
Key Features
- HDMI loop-through for connecting a local display while capturing
- Plug-and-play UVC operation
- Custom EDID support
- Automatic input signal detection
- Continuous 24/7 operation
- LED status indicator
- Compatible with Magewell USB Capture Utility for firmware updates and configuration.
Typical Applications
- Live streaming
- Game capture
- Video conferencing
- Broadcast production
- Lecture capture
- AV system integration
- Presentation recording.

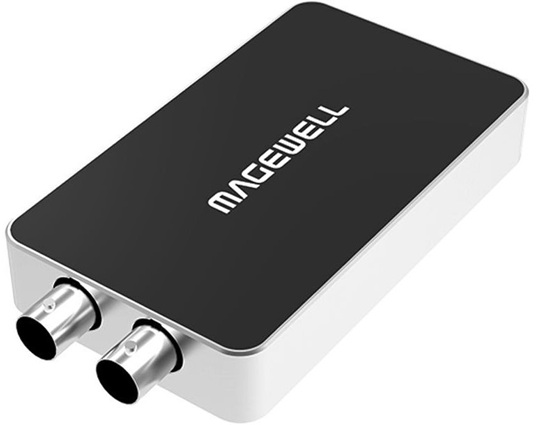

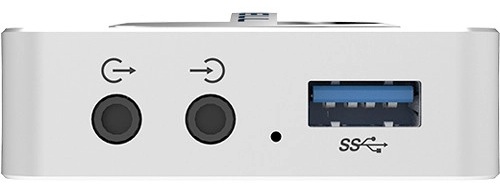

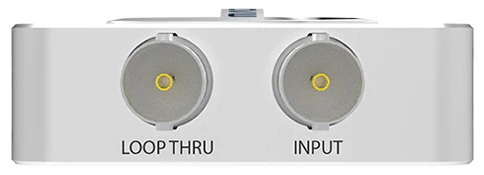

The Magewell USB Capture SDI Plus (P/N: 32050) is a professional USB 3.0 SDI video capture device with SDI loop-through, designed for broadcast, live streaming, recording, and AV workflows. It allows users to capture an SDI source into a computer while passing the SDI signal through to another SDI device such as a monitor, switcher, or recorder.

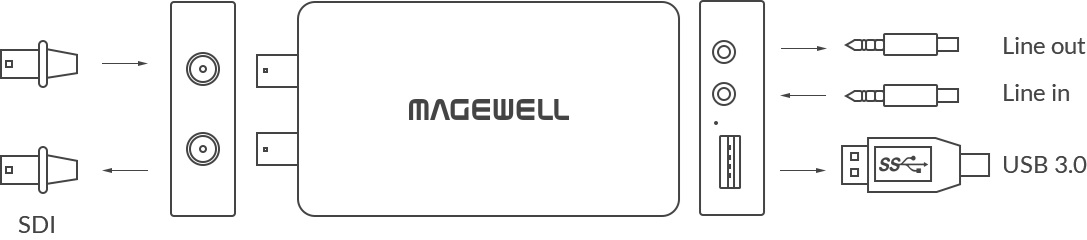

Interface
General Information
- Product: Magewell USB Capture SDI Plus
- Part Number: 32050
- Type: Single-channel SDI capture device
- Host Interface: USB 3.0 (compatible with USB 2.0 / USB 3.1 Gen 1)
Video Interfaces
- 1 × SDI input
- 1 × SDI loop-through output
- Supports:
- SD-SDI
- HD-SDI
- 3G-SDI
- 2K SDI
- SDI standards:
- SMPTE ST 259 (SD-SDI)
- SMPTE ST 292 (HD-SDI)
- SMPTE ST 425 (3G-SDI Level A/B)
Video Performance
- Maximum input & loop-through resolution: 2048 × 1080 @ 60 fps (4:2:2 10-bit)
- Maximum capture resolution: 2048 × 1080
- Maximum capture frame rate: Up to 120 fps (depending on resolution and USB bandwidth)
Supported processing features:
- Scaling
- Cropping
- Deinterlacing
- Aspect ratio conversion
- Color format conversion
- Frame rate conversion
- Flip and mirror functions
Audio Support
- SDI embedded audio input
- 3.5 mm analog line input
- 3.5 mm line output (SDI audio extraction)
- Supports up to 2-channel audio capture at 48 kHz
Operating System Compatibility
- Windows
- macOS
- Linux
- ChromeOS
The device is compatible with standard capture applications and does not require proprietary drivers for common UVC workflows.
Compatible Software
Works with applications including:
- OBS Studio
- VLC Media Player
- vMix
- XSplit
- Zoom
- Microsoft Teams Rooms
- Google Meet
- Other DirectShow, V4L2, and AVFoundation-compatible software
Key Features
- SDI input with real-time SDI loop-through
- Low-latency capture
- Automatic SDI signal detection
- Long-distance SDI transmission support (up to 150 m for 3G-SDI signals)
- 24/7 continuous operation capability
- Firmware updates and configuration through Magewell USB Capture Utility
Included Accessories
- Magewell USB Capture SDI Plus unit
- USB 3.0 cable
Typical Applications
- Broadcast camera capture
- Live event streaming
- Studio production
- Video conferencing
- Lecture capture
- SDI monitoring workflows
- Professional AV systems

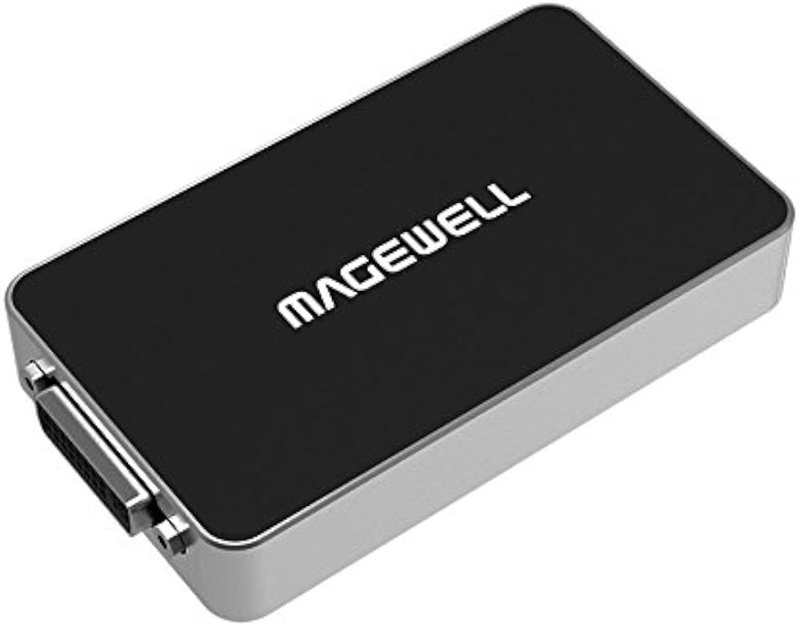

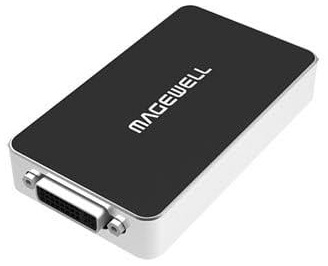

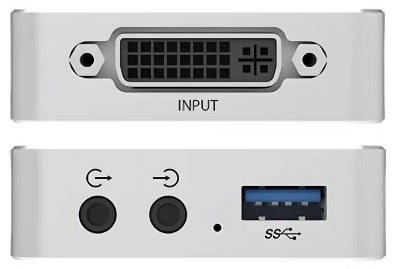

The Magewell USB Capture DVI Plus (P/N: 32080) is a professional USB 3.0 multi-format video capture device designed to capture DVI, HDMI, VGA, and Component video sources into a computer. It is commonly used for live streaming, recording, video conferencing, AV presentation capture, and industrial/medical imaging applications.
Interface
General Information
- Product: Magewell USB Capture DVI Plus
- Part Number: 32080
- Type: Single-channel HD capture device
- Host Interface: USB 3.0 (compatible with USB 2.0 / USB 3.1 Gen 1)

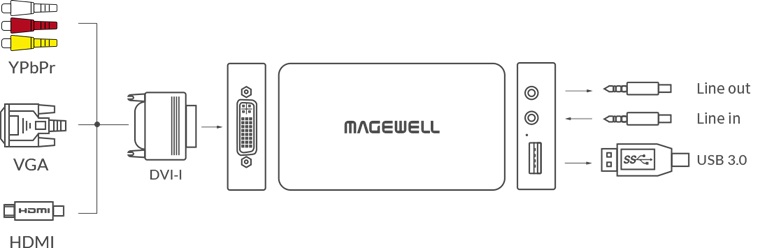

Video Inputs
The device supports one video input at a time:
- DVI-I input
- HDMI input (via included DVI-I to HDMI breakout cable)
- VGA input (via included DVI-to-VGA adapter)
- Component (YPbPr) input (via breakout cable)
Supported Signal Types
- DVI 1.0
- HDMI 1.4a
- VGA / RGB analog
- Component YPbPr / YCbCr
Video Performance
- Maximum input resolution: Up to 2048 × 2160
- Maximum capture resolution: Up to 2048 × 2160
- Maximum capture frame rate: Up to 120 fps (depending on resolution and USB bandwidth)
Supported video processing:
- Scaling
- Cropping
- Deinterlacing
- Aspect ratio conversion
- Frame rate conversion
- Color format conversion
- Flip and mirror functions
Audio Support
- HDMI embedded audio capture
- Analog audio input via 3.5 mm Line In
- Audio output via 3.5 mm Line Out
- Supports up to 2-channel audio capture
Operating System Compatibility
- Windows
- macOS
- Linux
- ChromeOS
The device is UVC-compatible and works with most standard capture applications without requiring proprietary drivers.
Compatible Software
Works with:
- OBS Studio
- VLC Media Player
- vMix
- XSplit
- Zoom Rooms
- Microsoft Teams Rooms
- Google Meet
- QuickTime Player
- Other DirectShow, V4L2, and AVFoundation-compatible software
Included Accessories
- USB 3.0 cable
- DVI-to-VGA adapter
- DVI-I to HDMI + Component breakout cable
Key Features
- Captures computer graphics signals and video sources
- Supports digital and analog video formats
- Automatic input signal detection
- Custom EDID support
- Low-latency hardware processing
- 24/7 continuous operation capability
- Firmware updates and configuration through Magewell USB Capture Utility
Typical Applications
- Computer screen capture
- Live streaming
- Presentation recording
- Video conferencing
- Broadcast graphics capture
- Medical imaging systems
- Industrial cameras and inspection systems
- AV system integration

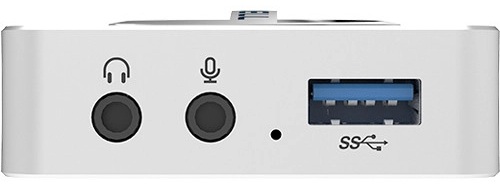

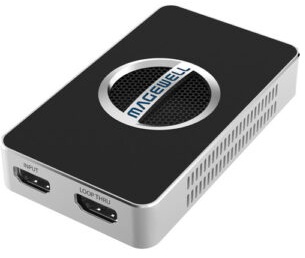

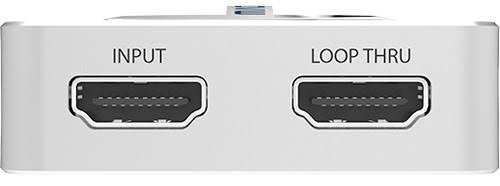

The Magewell USB Capture HDMI 4K Plus (P/N: 32090) is a professional USB 3.0 HDMI 4K capture device with HDMI loop-through, designed for high-resolution video capture, live streaming, recording, broadcast, and AV applications. It supports HDMI 2.0 input with 4K UHD capture capability.

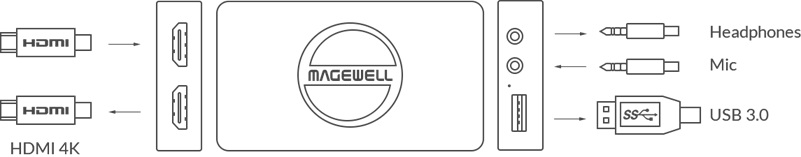

Interface
General Information Video Interfaces Video Performance Supported capture formats include: Supported pixel formats: HDMI Signal Support Audio Support Video Processing Features Built-in hardware processing includes: Operating System Compatibility The device works with standard capture applications through common APIs such as DirectShow, V4L2, and AVFoundation. Compatible Software Key Features Included Accessories Typical Applications

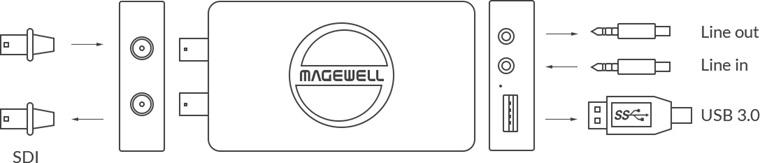

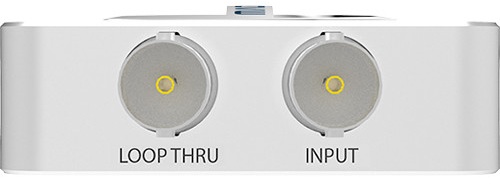

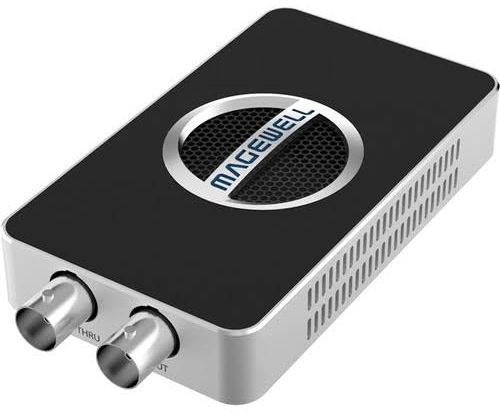

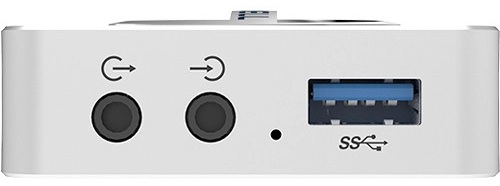

The Magewell USB Capture SDI 4K Plus (P/N: 32100) is a professional USB 3.0 4K SDI capture device with SDI loop-through, designed for broadcast, live production, streaming, recording, and professional AV workflows. It supports SD, HD, 3G-SDI, 2K-SDI, and 6G-SDI signals, including 4K video capture.
Interface
General Information
- Product: Magewell USB Capture SDI 4K Plus
- Part Number: 32100
- Type: Single-channel 4K SDI capture device
- Host Interface: USB 3.0 (compatible with USB 2.0 / USB 3.1 Gen 1)
Video Interfaces
- 1 × SDI input
- 1 × SDI loop-through output
- Supports:
- SD-SDI
- HD-SDI
- 3G-SDI
- 2K-SDI
- 6G-SDI
Supported SDI standards:
- SMPTE ST 259
- SMPTE ST 292
- SMPTE ST 425 (3G-SDI)
- SMPTE ST 2081 (6G-SDI 4K)
Video Performance
- Maximum input and loop-through resolution:
- Up to 4096 × 2160 @ 30 fps (6G-SDI, 4:2:2 10-bit)
- Maximum capture resolution:
- Up to 4096 × 2160
- Maximum capture frame rate:
- Up to 120 fps (depending on resolution and host system performance)
Supported capture resolutions include:
- 4096 × 2160p23.98/24/25/29.97/30
- 3840 × 2160p23.98/24/25/29.97/30
- 2560 × 1440p60
- 1920 × 1080p up to 90 fps
- 1280 × 720p
- SD formats
Color and Video Processing
Supports:
- RGB/YUV 4:4:4 (10/12-bit)
- YUV 4:2:2 (8/10/12-bit)
- RGBA/YUVA 4:4:4:4 (10-bit)
Built-in hardware processing:
- Scaling
- Cropping
- Deinterlacing
- Aspect ratio conversion
- Color format conversion
- Frame rate conversion
- Flip and mirror functions
Audio Support
- SDI embedded audio input
- Up to 8-channel embedded audio support
- 3.5 mm analog Line In
- 3.5 mm Line Out for extracted SDI audio
- USB output supports up to 2-channel audio at 48 kHz
Operating System Compatibility
- Windows
- macOS
- Linux
- ChromeOS
The device works with standard capture software through common APIs such as DirectShow, V4L2, and AVFoundation.
Compatible Software
Works with:
- OBS Studio
- VLC Media Player
- vMix
- XSplit
- Zoom Rooms
- Microsoft Teams Rooms
- Google Meet
- QuickTime Player
- Other UVC-compatible streaming and recording applications
Key Features
- 4K SDI capture over USB 3.0
- SDI loop-through for monitoring or downstream equipment
- Low-latency hardware capture
- Automatic SDI signal detection
- Supports long-distance SDI transmission:
- Up to 150 m for 3G-SDI
- Up to 75 m for 6G-SDI
- 24/7 continuous operation capability
- Firmware updates and configuration through Magewell USB Capture Utility
Included Accessories
- Magewell USB Capture SDI 4K Plus unit
- USB 3.0 cable
Typical Applications
- 4K broadcast camera capture
- Live event streaming
- Studio production
- OB van and broadcast workflows
- Medical imaging
- Professional AV systems
- Remote production
- Conference and lecture recording

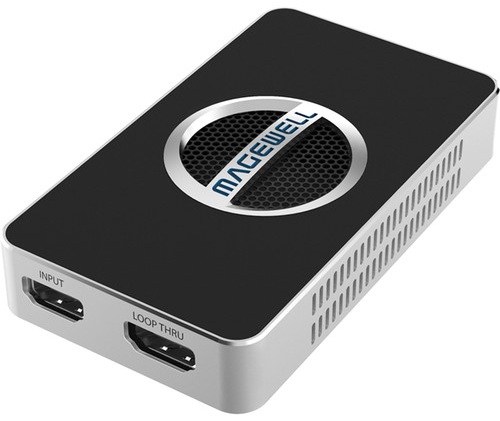

The Magewell USB Capture HDMI 4K Pro (P/N: 32150) is a professional USB 3.2 Gen 2×2 HDMI capture device designed for high-end 4K video acquisition, live streaming, broadcast production, recording, and AV workflows. It supports HDMI 2.0 input with 4K60 4:4:4 capture capability and provides HDMI loop-through for monitoring or downstream equipment.
Interface
General Information
- Product: Magewell USB Capture HDMI 4K Pro
- Part Number: 32150
- Type: Single-channel 4K HDMI capture device
- Host Interface: USB 3.2 Gen 2×2 (up to 20 Gbps)
- Capture Channels: 1 × HDMI video + embedded/analog audio
Video Interfaces

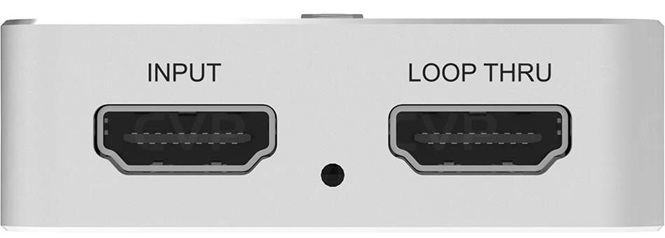

- 1 × HDMI input
- 1 × HDMI loop-through output
- Supports:
- HDMI 2.0
- DVI-D compatible signals
Maximum input and loop-through capability:
- 4096 × 2160 @ 60 fps
- 4:4:4 chroma sampling
Video Capture Performance
- Maximum capture resolution: Up to 4096 × 2160
- Maximum capture frame rate: Up to 240 fps (depending on host system, USB bandwidth, and operating system)
Supported formats include:
- 4096 × 2160p / 3840 × 2160p
- 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
- 2560 × 1440p60
- 1920 × 1080p up to high frame rates
- 720p and SD formats
Supported color formats:
- RGB/YUV 4:4:4 (8/10/12-bit)
- YUV 4:2:2 (12-bit)
- YUV 4:2:0 (8/10/12-bit)
Audio Support
- HDMI embedded audio:
- Up to 8 channels
- 24-bit
- 192 kHz
- 3.5 mm microphone/audio input
- 3.5 mm headphone output for monitoring
- Supports capturing 2-channel audio over USB
Video Processing Features
Built-in FPGA-based processing provides:
- Scaling
- Cropping
- Deinterlacing
- Aspect ratio conversion
- Color space conversion
- Frame rate conversion
- Flip and mirror functions
Operating System Compatibility
- Windows
- macOS
- Linux
- ChromeOS
The device works with standard video applications using common capture interfaces, making it compatible with professional and consumer streaming software.
Compatible Software
- OBS Studio
- vMix
- VLC Media Player
- Wirecast
- Zoom
- Microsoft Teams
- Google Meet
- Other DirectShow, V4L2, and AVFoundation-compatible applications
Key Features
- True 4K60 HDMI capture
- HDMI loop-through output
- USB 3.2 Gen 2×2 high-bandwidth connection
- No external power supply required
- Low-latency hardware processing
- Custom EDID support
- Automatic HDMI signal detection
- 24/7 continuous operation support
- Firmware updates via Magewell USB Capture Utility
Included Accessories
- Magewell USB Capture HDMI 4K Pro unit
- USB 3.2 Type-C to Type-C cable
- USB 3.2 Type-C to Type-A cable
- HDMI cable
Typical Applications
- 4K live streaming
- Gaming capture
- Broadcast production
- Professional camera capture
- Corporate AV systems
- Video conferencing
- Medical imaging
- Lecture and presentation recording
- High-resolution workstation capture
The Magewell USB Capture SDI 4K Pro (P/N: 32160) is a professional USB 3.2 Gen 2×2 SDI capture device designed for high-end broadcast, live production, streaming, recording, and AV workflows. It supports 12G-SDI input with SDI loop-through and enables capture of SDI video up to 4K60.
Interface
General Information
- Product: Magewell USB Capture SDI 4K Pro
- Part Number: 32160
- Type: Single-channel 4K SDI capture device
- Host Interface: USB 3.2 Gen 2×2 Type-C (up to 20 Gbps)
- Capture: 1 × SDI video + embedded audio
Video Interfaces

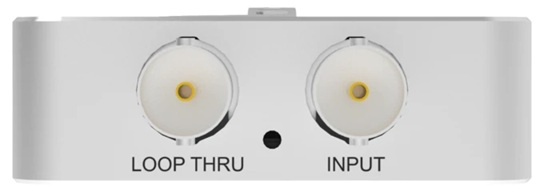

- 1 × SDI input
- 1 × SDI loop-through output
Supported SDI formats:
- SD-SDI
- HD-SDI
- 3G-SDI
- 6G-SDI
- 12G-SDI
Maximum input and loop-through capability:
- 4096 × 2160 @ 60 fps
- 10-bit YUV 4:2:2
Video Capture Performance
- Maximum capture resolution: Up to 4096 × 2160
- Maximum capture frame rate: Up to 240 fps (depending on resolution, USB bandwidth, and host system)
Supported capture formats include:
- 4096 × 2160p / 3840 × 2160p at 23.98/24/25/29.97/30/50/60 fps
- 2560 × 1440p60
- 1920 × 1080p and 1280 × 720p up to high frame rates
- SD formats
Supported color formats:
- RGB/YUV 4:4:4 (8/10/12-bit)
- YUV 4:2:2 (12-bit)
- YUV 4:2:0 (8/10/12-bit)
Audio Support
- SDI embedded audio:
- Up to 8 channels
- 24-bit
- 192 kHz
- 3.5 mm analog Line In
- 3.5 mm Line Out for extracted SDI audio
- USB output supports 2-channel audio stream
Video Processing Features
Built-in FPGA-based processing provides:
- Scaling
- Cropping
- Deinterlacing
- Aspect ratio conversion
- Color space conversion
- Frame rate conversion
- Flip and mirror functions
Operating System Compatibility
Supported platforms:
- Windows
- Linux
- macOS
- ChromeOS
Compatible through standard capture APIs:
- DirectShow
- V4L2
- AVFoundation
Compatible Software
Works with:
- OBS Studio
- vMix
- VLC Media Player
- XSplit
- Zoom
- Microsoft Teams
- Google Meet
- QuickTime Player
- Other UVC-compatible streaming and recording software
Key Features
- True 4K60 SDI capture
- 12G-SDI support
- SDI loop-through for monitoring or downstream equipment
- USB 3.2 Gen 2×2 high-bandwidth connection
- Low-latency hardware processing
- Automatic SDI signal detection
- 24/7 continuous operation capability
- Firmware updates and configuration through Magewell USB Capture Utility
Included Accessories
- Magewell USB Capture SDI 4K Pro unit
- USB 3.2 Type-C to Type-C cable
- USB 3.2 Type-C to Type-A cable
Typical Applications
- 4K broadcast camera capture
- Live event production
- OB van and studio workflows
- Professional streaming
- Medical imaging
- Remote production
- Corporate AV systems
- High-resolution SDI monitoring and recording
