JAG LAV6A Lavalier Microphone
Rp5.400.000
https://www.youtube.com/watch?v=isljia2fa0I
JAG LAV6A – Description

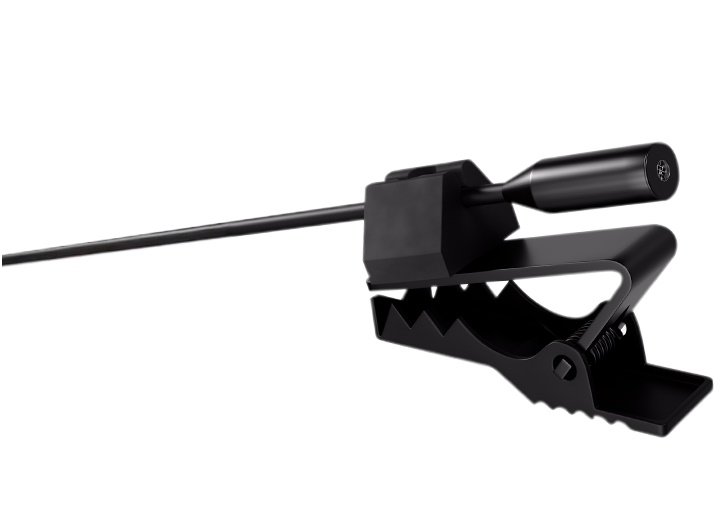

The JAG LAV6A is a professional miniature lavalier (clip-on) condenser microphone designed for high-quality speech and vocal capture. Thanks to its ultra-small 3 mm capsule, it is almost invisible when worn, making it ideal for presentations, broadcast, theatre, film, TV, interviews, and live events.
It delivers a natural, clear, and detailed sound and is built to handle very high sound pressure levels. The LAV6A features a modular connector system, allowing it to be used with a wide range of wireless systems and wired setups simply by changing the connector.
https://youtu.be/EDb-z7Wu6TQ?si=Y4t8i4wMjPa3_bMA
JAG LAV6A – Technical Specifications
| Parameter | Specification |
|---|---|
| Microphone Type | Back-electret condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 50 Hz – 15 kHz |
| Sensitivity | 5.6 mV/Pa (±3 dB @ 1 kHz) |
| Maximum SPL | 153 dB SPL (peak) |
| Output Impedance | 2 kΩ (±30%) |
| Capsule Diameter | 3 mm (ultra-miniature) |

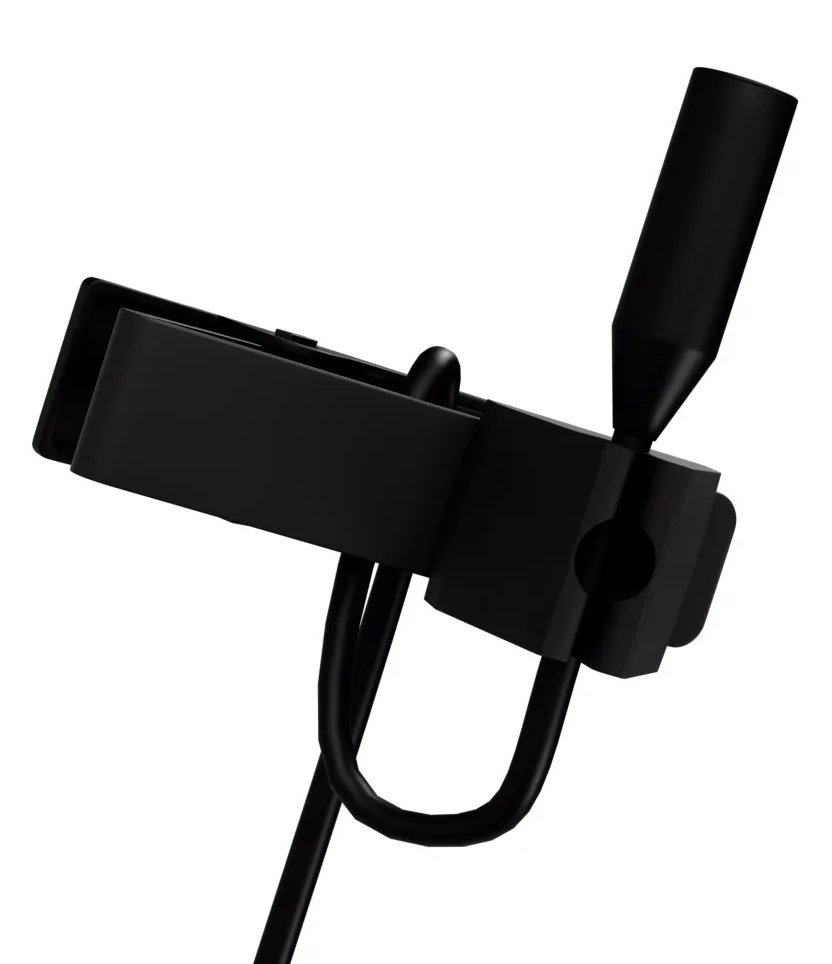

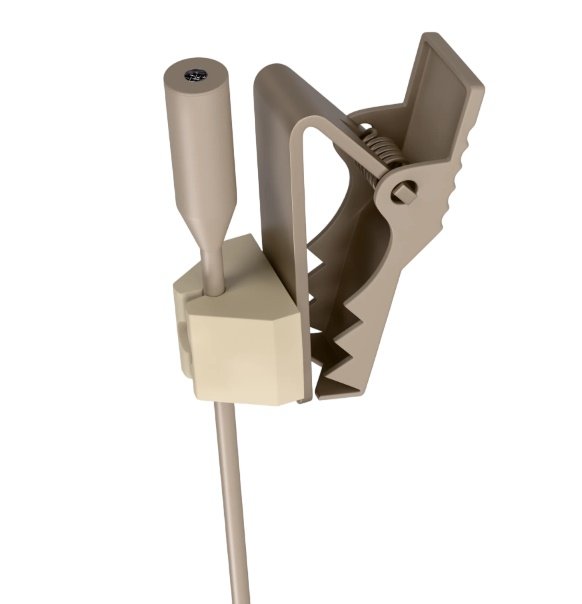

| Colors Available | Beige (skin color) / Black |
| Connector System | Modular (Shure, Sennheiser, Sony, AKG, Audio-Technica, LEMO, XLR, etc. via adapters) |
| Replaceable Parts | Cable, connector, clip, windscreen |
| Application | Speech, vocals, broadcast, theatre, video & live production |
⚠️ Note: Connector adapters are usually sold separately, depending on the wireless or wired system you use.
✅ Key Advantages
Extremely small and discreet (almost invisible on camera)
Natural, clear sound for speech and vocals
Very high SPL handling (suitable even for loud voices)
Highly flexible thanks to modular connectors
Service-friendly: parts can be replaced instead of replacing the whole mic
❗ Limitations
Omnidirectional only (no cardioid version)
Not fully waterproof (splash-resistant only)
