Description

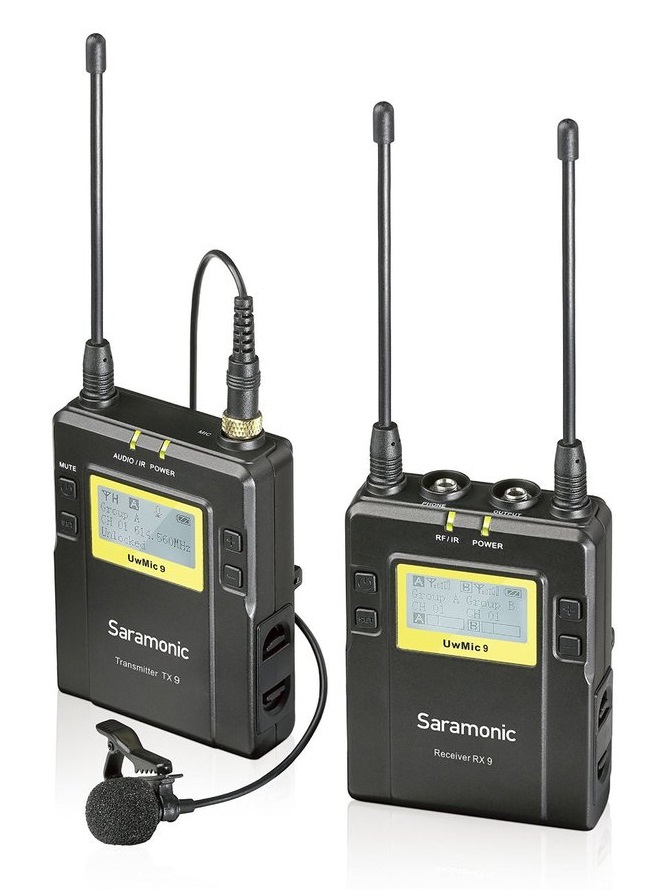

UwMic RX9+TX9 System
The Saramonic RX9+TX9 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.
The system includes a camera-mountable, wireless receiver, wireless body-pack transmitter and clip-on lavalier mic.
RX9 Receiver
The Saramonic UwMic9-RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.
Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.
TX9 Transmitter
This compact transmitter employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.
Features
- Reliable, broadcast-quality audio
- Wireless transmitter with lavalier microphone
- UHF Frequency Range: 514 MHz – 596 MHz; 96 selectable channels in 2 groups
- Operating Range: Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
- Easy-to-read LCD displays
UwMic9 TX9
The Saramonic TX9 96-Channel Bodypack Transmitter Unit with Lavalier Microphone adds an additional transmitter to the UwMic9 System.
This compact transmitter employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.
The item includes a 1 wireless body-pack transmitter and 1 clip-on lavalier microphone, lapel clip, and windscreen.
Specifications
- Channels: 96
- Groups: A and B
- Oscillator type: PLL synthesizer
- Output: 3.5mm mini jack
- Antenna: 1/4 wire antenna
- Audio output level: -60 dBV
- Headphone output level: 30mW (16 ohm)
- Frequency Range: 514 MHz – 596 MHz
- Sensitivity: -95 dBm
- Signal to noise ratio: 70 dB or more
- Voice delay: 12 ms
- Reference deviation: +/- 5 kHz
- Frequency response: 40 Hz to 18 kHz (+/- 3dB)
- Distortion: 0.5% or less
- Spur suppression: -60 dB
- Weight: 218.7g (w/out batteries)
- Battery: 2 AA size batteries
- Dimensions: 170.9 x 63.5 x 30.0 mm

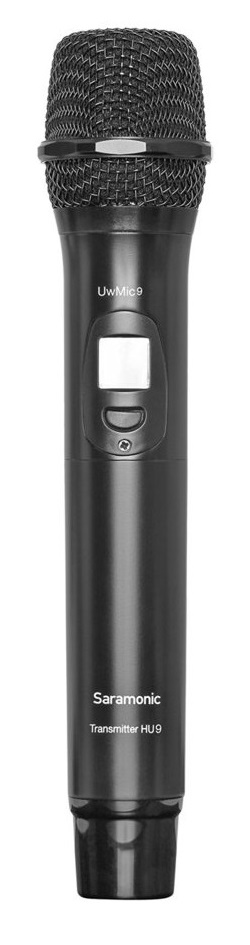

UwMic HU9
The Saramonic HU9 Digital UHF Wireless Handheld Microphone with Integrated TX Transmitter provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, electronic news gathering (ENG), – or anyone who needs mobile, dependable audio broadcasting and recording.
The HU9 system includes the TX transmitter integrated hand-held wireless UHF microphone. Receiving unit sold separately.
Hand-held Microphone
The Saramonic HU9 is a handheld, wireless microphone transmitter that features a compact, metallic body, an easy-to-read LCD display, a RF power switch and a PLL synthesizer. This broadcast-quality microphone will capture rich, crystal-clear sound. It has a built-in antenna, a muting function and power lock function. The channel of the HU9 is synced up with the receiver via an infrared connection.
Features
- Reliable, broadcast-quality audio
- Wireless UHF hand-held microphone compatible with RX9 receiver
- UHF Frequency Range: 514 MHz – 596 MHz; 96 selectable channels in 2 groups
- Operating Range: Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
- Easy-to-read LCD displays
Specification
- Channel number: 96
- Channel group: A and B
- Oscillator type: PLL Synthesizer
- Carrier frequencies: 514 MHz – 596 MHz
- Reference deviation: +/-5 kHz (-60 dBV, 1 kHz input)
- Signal to noise ratio: 70 dB or more
- Spur suppression: -60 dB
- Voice delay: 12 ms
- Antenna: 1/4 wire antenna
- Reference audio input level: -60 dBV (MIC input, 0 dB attenuation)
- RF output level: 30mW/20mW/10mW selectable
- Distortion: 0.5% or less
- Weight: Approx. 338.2g (excl. batteries)
- Battery: 2 AA size batteries
- Dimensions: 254 x 52 x 52mm

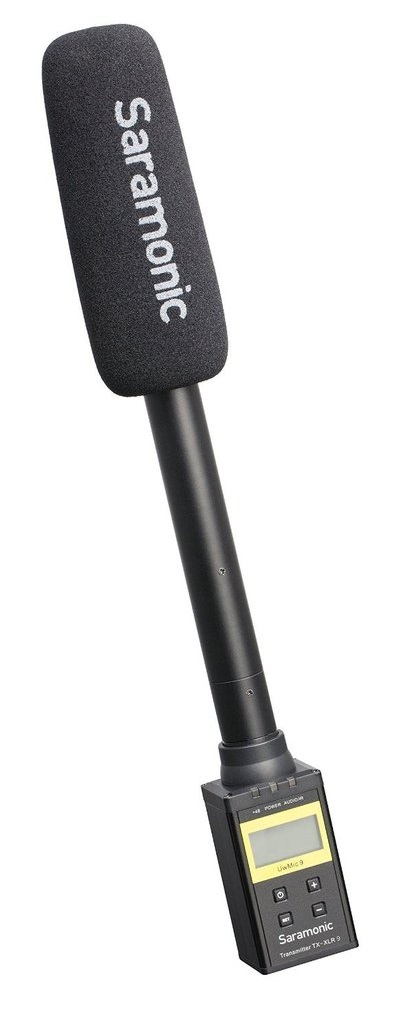

UwMic9 TX-XLR9
The Saramonic TX-XLR9 Plug-on XLR Transmitter allows you to connect any XLR microphone to the UWMIC9 Wireless System. The TX-XLR9 provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, electronic news gathering (ENG), – or anyone who needs mobile, dependable audio broadcasting and recording.
Specifications
- Channel number: 96
- Channel group: A and B
- Oscillator type: PLL Synthesizer
- Carrier frequencies: 514 MHz – 596 MHz
- Audio input connector: XLR-3-11C Type (Female)
- Phantom Power: +48V or None
- Battery: 2 AA size batteries
