The Magewell Pro Capture AIO Series is a family of professional PCIe video capture cards designed for broadcast, live production, medical imaging, AV integration, and streaming applications. The "AIO" (All-In-One) models support multiple video input types on a single card, making them suitable when you need to capture different signal formats without changing hardware.
Key features
- Multiple input formats
- SDI
- HDMI
- DVI
- VGA
- Component
- Composite (CVBS)
- S-Video
- PCI Express interface
- Standard Pro Capture AIO: PCIe Gen2 x1
- 4K models: PCIe Gen2 x4
- Hardware video processing
- Deinterlacing
- Color adjustment
- Cropping
- Color space conversion
- Hardware timestamps
- Low-latency capture
- Compatible with Windows, Linux, and macOS
- Supports popular software such as OBS Studio, vMix, Wirecast, VLC, and other DirectShow/V4L2/AVCaptureSession applications.
Main models
| Model | Maximum Resolution | Inputs |
|---|---|---|
| Pro Capture AIO | Up to 2048×2160 | SDI, HDMI/DVI, VGA, Component, Composite, S-Video |
| Pro Capture AIO 4K | Up to 4096×2160 (4K) | HDMI 2.0 and 6G-SDI |
| Pro Capture AIO 4K Plus | Up to 4096×2160 with enhanced HDMI 2.0/SDI capabilities and HDR10 support | HDMI 2.0 and SDI |
Typical applications
- Live streaming
- Video conferencing
- Medical imaging systems
- Industrial machine vision
- Lecture capture
- Broadcast production
- AV system integration
Advantages
- Very stable drivers.
- Excellent compatibility with professional video software.
- Multiple capture streams from a single input.
- Hardware processing reduces CPU usage.
- Multiple Magewell cards can be installed in one PC.

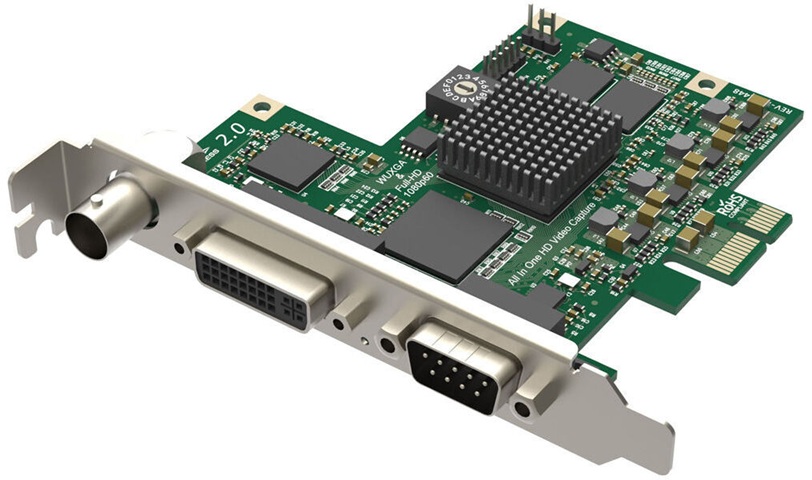

The Magewell Pro Capture AIO 11020 is the standard Pro Capture AIO PCIe capture card. It is a single-channel HD capture card that supports a wide range of digital and analog video inputs on one card, making it suitable for broadcast, AV integration, medical imaging, and legacy video capture.

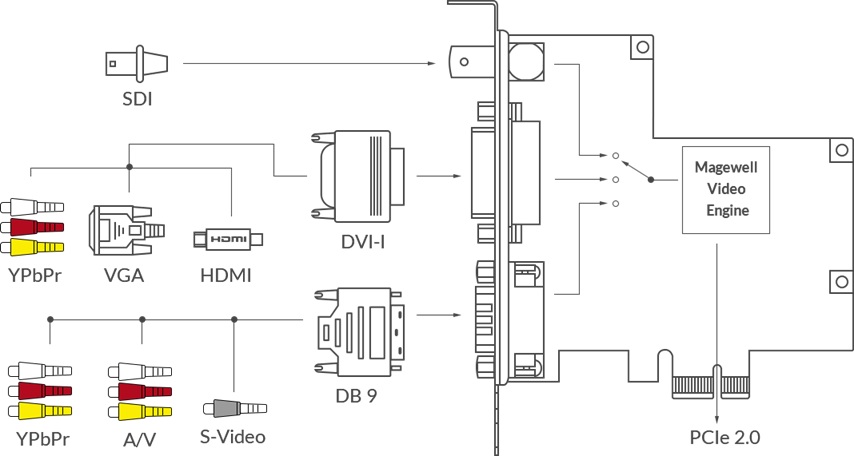

Interface
Specifications
- Part Number: 11020
- Interface: PCI Express Gen2 x1
- Maximum input resolution: Up to 2048 × 2160
- Video processing: 10-bit hardware processing
- Operating systems: Windows, Linux, macOS
- Supported APIs: DirectShow, DirectKS, V4L2, AVCaptureSession
- Supported software: OBS Studio, vMix, Wirecast, VLC, XSplit, VirtualDub, and other compatible capture applications.
Supported video inputs
The card can capture one input source at a time from:
- 1 × SDI (SD/HD/3G-SDI)
- 1 × HDMI (via included DVI-I breakout)
- DVI
- VGA
- Component (YPbPr)
- Composite (CVBS)
- S-Video (YC)
It also supports embedded SDI/HDMI audio as well as analog stereo audio.
Hardware features
- Hardware deinterlacing
- Video scaling
- Cropping
- Aspect ratio conversion
- Color adjustment
- Color space conversion
- Hardware timestamps
- Multiple simultaneous capture streams from the same input
- Ultra-low latency (approximately 64 video lines)
Included accessories
The retail package includes:
- Pro Capture AIO card (11020)
- DVI-to-VGA adapter
- DVI-I to HDMI/Component breakout cable
- DB9 breakout cable for Composite, S-Video, Component, and Analog Audio
Typical applications
- HDMI camera capture
- SDI camera capture
- VHS or legacy analog video digitization
- Medical imaging systems
- Industrial vision
- Live streaming and recording
- Lecture capture

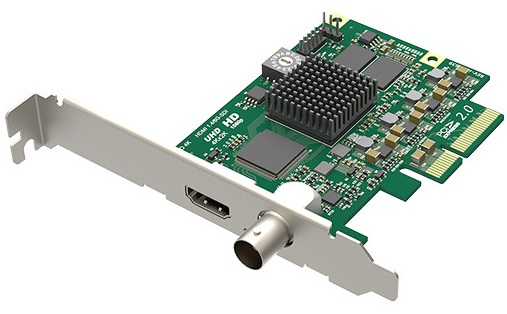

The Magewell Pro Capture AIO 4K (Part Number: 11170) is a professional single-channel PCIe 4K capture card designed to capture either an HDMI or SDI source at resolutions up to DCI 4K. It is commonly used in broadcast, live production, medical imaging, AV integration, and industrial video applications.
Interface
Key specifications
- Part Number: 11170
- Capture channels: 1
- Host interface: PCI Express Gen2 x4
- Maximum input resolution: 4096 × 2160 (DCI 4K)
- Supported operating systems:
- Windows 10/11 and Windows Server
- Linux
- macOS
- Supported APIs:
- DirectShow / DirectKS (Windows)
- V4L2 (Linux)
- AVCaptureSession (macOS)

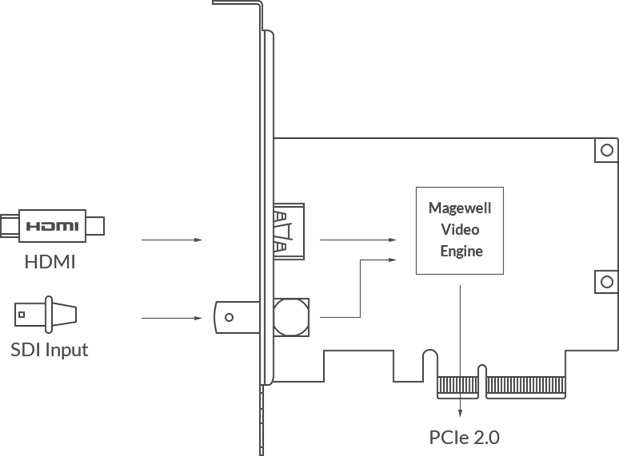

Video inputs
The card captures one source at a time from either:
- 1 × HDMI
- Supports HDMI 1.4 input
- Embedded audio
- 1 × SD/HD/3G/6G-SDI
- Embedded audio
- Timecode support
- Closed Caption support via SDK
Hardware processing
Built-in FPGA processing includes:
- 10-bit video processing
- Deinterlacing
- Cropping
- Scaling (up/down conversion)
- Aspect ratio conversion
- Color space conversion
- Color adjustment
- Hardware timestamping
- On-screen display (OSD)
- SG-DMA transfer mode for efficient data movement
Software compatibility
The card works with many professional applications, including:
- OBS Studio
- vMix
- Wirecast
- VLC
- XSplit
- VirtualDub
- Custom applications using the Magewell Capture SDK
Package contents
The retail package includes:
- Pro Capture AIO 4K (11170)
- Low-profile PCIe bracket for compact systems

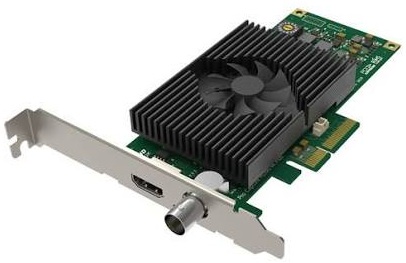

The Magewell Pro Capture AIO 4K Plus (Part Number: 11140) is the highest-end model in the Pro Capture AIO family. Compared with the standard AIO 4K (11170), it adds HDMI 2.0, HDR10 support, higher frame-rate capture, and more advanced video processing features.
Interface
Key specifications
- Part Number: 11140
- Capture channels: 1
- Host interface: PCIe Gen2 x4
- Maximum input resolution: 4096 × 2160 (DCI 4K)
- Maximum capture frame rate: Up to 144 fps (depending on resolution and PCIe bandwidth)
- Operating systems:
- Windows 10/11 and Windows Server
- Linux
- macOS

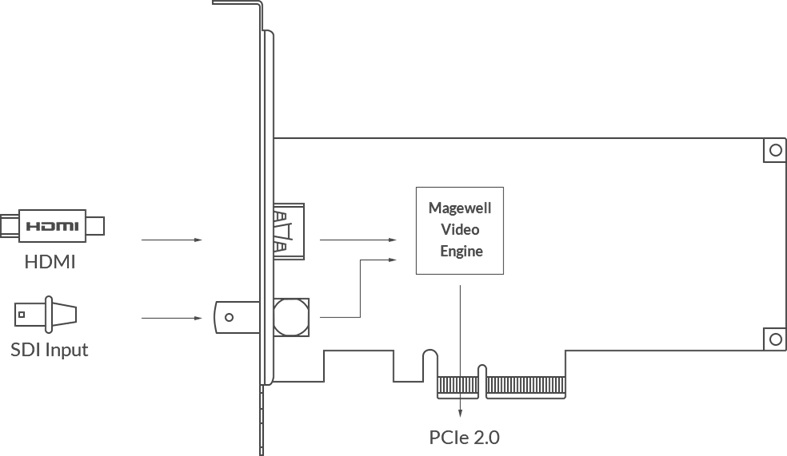

Video inputs
The card captures one input source at a time from:
- HDMI 2.0 (also compatible with DVI-D)
- SD/HD/3G/6G-SDI
It supports:
- Embedded HDMI and SDI audio
- HDR10 metadata over HDMI
- Sony/Canon DSLR timecode extraction
- Closed Caption extraction (via SDK for SDI)
Video processing
Built-in FPGA hardware processing includes:
- 10-bit video processing
- Cropping
- Scaling
- Deinterlacing
- Aspect ratio conversion
- Color space conversion
- Frame rate conversion
- PNG on-screen display (OSD)
- Hardware timestamps
- Ultra-low latency (about 64 video lines)
Capture formats
Supports capture up to 4K in multiple pixel formats, including:
- NV12, I420, YV12
- YUY2, UYVY
- BGR24/BGR32
- V410 and Y410 (10-bit)
- Multiple simultaneous capture streams from the same input source
Software compatibility
Compatible with:
- OBS Studio
- vMix
- Wirecast
- VLC
- XSplit
- VirtualDub
- Any DirectShow, V4L2, or AVCaptureSession application
- Magewell Capture SDK for custom development
