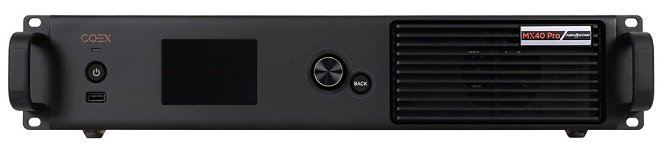

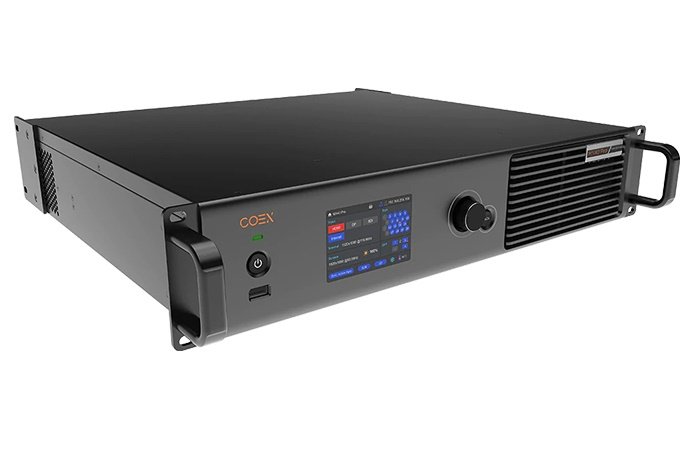

NovaStar MX40 Pro
The MX40 Pro is NovaStar’s latest flagship 4K LED controller from the COEX series. The device has numerous video inputs and a total of 20 LED outputs.
In conjunction with the new VMP software (Vision Management Platform) from NovaStar, the user is offered simple operation with extensive functions.
Hardware features:
Inputs:
- 3x HDMI 2.0 (max. 4096×2160@60Hz or 8192×1080@60Hz)
- 1x DP 1.2 (max. 4096×2160@60Hz or 8192×1080@60Hz)
- 1x 12G-SDI (max. 4096×2160@60Hz), supports ST-2082, ST-2081, ST-424 & ST-292

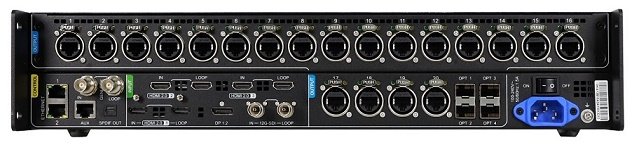

Outputs:
- 20x LED-Out (RJ45):
- 8Bit@60Hz: 650,000 pixels
- 10Bit@60Hz: 480.00 pixels (only in conjunction with A10s Pro Receiving card)
- 10/12Bit@60Hz: 325,000 pixels
- 3x HDMI 2.0 loop
- 1x 12G-SDI loop
- 4x OPT-Out (10G)
Further features:
- Genlock
- Color Processing: Color Replacement, Color Correction, 3D LUTs, Color Curves
- Dynamic Booster
- Grayscale calibration
- Brightness & chroma calibration
- HDR10
- Low latency
- 3D-capable
- Integrated network switch for cascading multiple devices
general specifications:
- Supply voltage: AC 100-240V, 50/60HZ
- Dimensions: 482.6 x 467.0 x 94.2 mm (WxDxH)
- Power consumption: 70Watt
- Weight: 7.5kg
