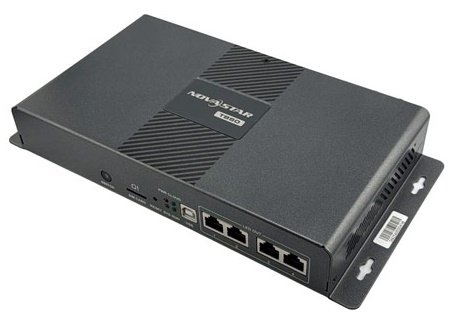

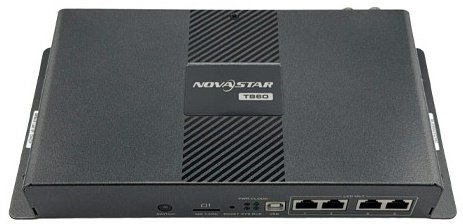

Novastar TB60 LED Multimedia Player & Controller

Novastar TB60 LED Multimedia Player & Controller
Novastar TB60 LED Multimedia Player & Controller - Image 2
Novastar TB60 LED Multimedia Player & Controller - Image 3

Rp10.200.000

SKU: NVS-TB60 Categories: , , , Tags: , , ,

Nova Star TB60 multimedia player:

The NovaStar TB60 belongs to the latest generation of multimedia players from NovaStar. The TB60 combines the functions of an LED controller and a media player in one device. It impresses with a new, more powerful processor and has a larger internal memory than the previous products in the Taurus series. The device can be controlled using a computer, smartphone or tablet

Features:

  • 4 Gigabit Ethernet ports with a processing capacity of up to 650,000 pixels per port (maximum width/height: 4096 pixels)
  • WLAN (stand-alone or as an access point)
  • 1x HDMI 1.4 output (max.:1080p@60Hz, can be used as loop-out)
  • 1x HDMI 1.4 input
  • Stereo audio output
  • 1x USB 3.0 (Type A): For importing media from a USB stick or for carrying out firmware updates.
  • Processor: Quad-Core ARM A55 1.8Ghz
  • 1GB working memory
  • 16GB internal memory
  • 2 connections for sensors (e.g. NovaStar NS060 light sensor)
  • Configurable via LAN/WLAN with ViPlex Express & NovaLCT
  • Synchronized playback between multiple devices possible (synchronization via NTP or GPS (4G module required))
  • Supports the NovaStar 4G module (not included)



Novastar TB60: Exceptional Processing Power

The Novastar TB60 sold by JYLED boasts exceptional processing capabilities, handling diverse video source content with rapid speed and minimal latency. If you’re curious about the reasons behind this powerful processing, the following details will provide insight.

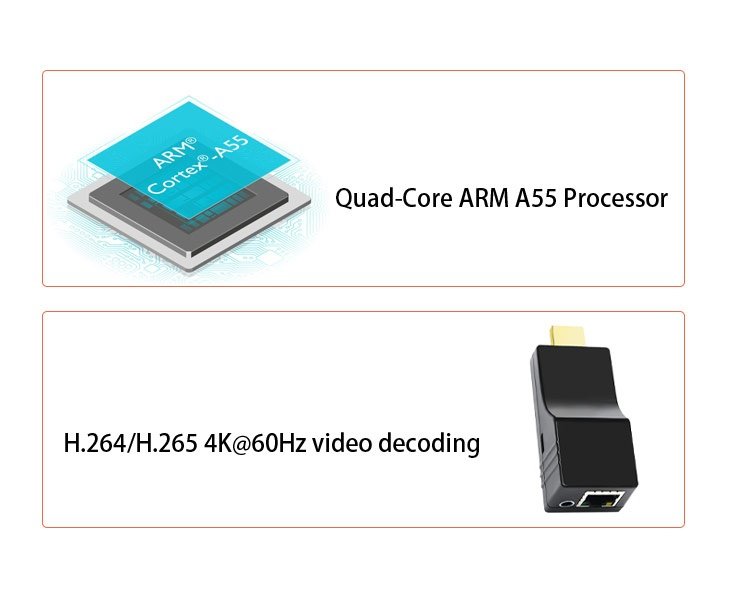

The Novastar TB60 is equipped with a powerful quad-core ARM A55 processor. This processor distributes tasks across four independent cores, enabling simultaneous multitasking. This significantly enhances processing capabilities, while its high clock speed of 1.8GHz handles web browsing, word processing, and basic daily tasks with ease.

The Novastar TB60 supports H.264/H.265 4K@60Hz video decoding, delivering exceptional video compression. This reduces file sizes while maintaining high quality, resulting in crisp and detailed visual effects.

Furthermore, the Novastar TB60 features 1GB of onboard RAM and 16GB of internal storage. The 1GB onboard RAM temporarily stores accessed data within the device, enhancing program execution speed and smoothness. The 16GB internal storage allows for large capacity data storage while maintaining optimal device performance.

NovaStar TB60 — Specifications

System & Performance

  • Processor: Quad‑core ARM A55 @ approximately 1.8 GHz

  • Operating System: Android 11

  • RAM: 1 GB

  • Internal Storage: 32 GB

  • Video Decoding: Hardware 4K @ 60 Hz (supports common video codecs)

  • Multi‑stream Playback: Can handle multiple video streams simultaneously, depending on layout

Display & Pixel Support

  • Maximum Pixel Capacity: Up to 2,300,000 pixels

  • Maximum Resolution: Approximately 4096 × 4096 pixels

  • Playback Modes:

    • Asynchronous: Playback of scheduled or stored media

    • Synchronous: Real‑time content from HDMI input

  • Multi‑screen Sync: Supported with proper timing setup

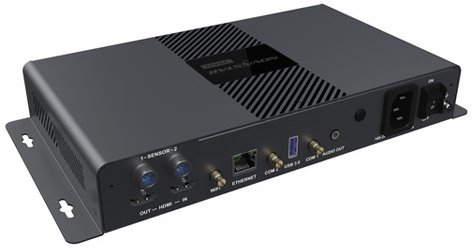

Ports & Connectivity

LED & Network

  • 4 × Gigabit Ethernet (LED OUT): For driving LED screens

  • 1 × Gigabit Ethernet (LAN): For network control and communication

Video Input/Output

  • 1 × HDMI Input: For live video source (HDMI standard)

  • 1 × HDMI Output: For local monitoring or video pass‑through

USB

  • 1 × USB 3.0 Type‑A: For media playback and storage expansion

  • 1 × USB Type‑B: For direct PC connection for content publishing/control

Audio

  • 1 × 3.5 mm Stereo Audio Output

Wireless / Optional Modules

  • Wi‑Fi: Dual mode (Access Point + Station)

  • Optional Cellular Module (4G/5G): For remote connectivity (module not included)

Sensors

  • 2 × Sensor Ports: For ambient brightness, temperature, humidity, etc.

Key Features

  • Supports asynchronous and synchronous playback modes

  • Dual playback options: Scheduled media or live HDMI content

  • Multi‑screen synchronization support

  • Remote content publishing and monitoring

  • Flexible screen layout, scheduling, and playlists

  • Network priority: Wired Ethernet > Wi‑Fi > optional cellular

  • Sensor integration for environmental responsiveness

Power & Environmental

  • Power Input: AC 100–240 V, 50/60 Hz

  • Typical Power Consumption: Around 18 W

  • Operating Temperature: –20 °C to +60 °C

  • Storage Temperature: –40 °C to +80 °C

  • Humidity: 0–85% non‑condensing

  • Protection Rating: IP20 (suitable for indoor use)

Physical

  • Dimensions: Around 274 × 139 × 40 mm

  • Weight: Around 1.2–1.3 kg

  • Construction: Metal enclosure for durability

  • Typical Accessories: Wi‑Fi antenna(s), power cable, and mounting hardware
