Pixelhue F Series Video Switcher

CALL

This product is currently out of stock and unavailable.

This product is currently out of stock and unavailable.

Add to wishlist
SKU: N/A Categories: , ,

Description

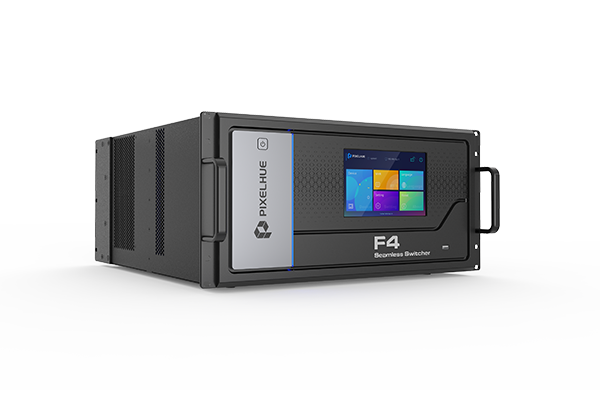

Pixehue F4 Video Switcher

The Highest Performance

Pixelhue Flex View series- F4, designed for easy management of multiple displays for shows or visual management systems. Suitable for use with a variety of input formats and multiple display outputs. F4, designed with the latest high-Performance FPGA Chipset, delivers reliable, stable, faster, and better image performance, and outputs non compressed 4k@60hz 4:4:4 10bits video. Built with a focus on environmental protection, the Pixelhue-designed foundation is a great long-term solution, simplifying upgrades through modules for future use.

What’s better, the F4 features support for projectors and irregularly shaped displays, two features not available on the F4 Lite.

Ultimate flexibility through modular design

The F4 Processor is designed with 8 input slots and 6 output slots, allowing you to easily select I/O modules with different input and output connectors to match the visual system’s requirement.

More optional I / O modules will be provided for upgrades in the future. The F4 utilizes a modular design and supports 8 input and 6 output cards with a maximum of 32 inputs and 24 outputs. Each output card can offer up to 2K@60Hz loading capacity.

The F4 supports at most 48 SL mix layers, or 24 DL mix layers or 12 4K mix layers. It also supports a variety of input and output connectors, including DVI, DP, HDMI, and 3G SDI connectors, allowing easy customization for any project or show.

Reliable & worry-free operation

In this rapidly evolving market, reliable technology is the key to an outstanding event. The F4 allows you to configure the system to accommodate a variety of connectivity arrangements and display requirements. The F4 features dual power supplies, full machine data backup to local configuration, fast restore and can work perfectly 24/7. F4 also undergoes a series of rigorous drop tests, shock & vibration tests and thermal tests, ensuring it can survive in any kind of road trip or event environments.

Easy to Use

F4 works exceptionally well with our matching video processing software, TRITON. TRITON provides an offline mode and preediting functionality, which can directly import while on-site and migrate between different devices. This software is easy to master, and a sophisticated yet user-friendly interface guides you from beginning to end of any kind of event with as little complex operation as possible.

The F4 also improves on the F4 Lite with a larger 7” LCD display on the front panel for better MVR monitoring.

Total event control with U3 Controller

With the U3 event controller, satisfy any kind of event requirements such as stage performance, high-end auto shows, TV program recording, product launch events, or any kind of large-scale exhibition.



Specs

INPUTS1. Standard, custom and advanced EDID settings Common resolutions: 1920×1080p@60Hz, 3840×1080p@60Hz and 3840×2160p@60Hz, etc.

2. Input source deinterlacing processing

3. Input source cropping

OUTPUTS1. Standard, custom and advanced output timing settings

2. Output width can be up to 8192 pixels, better choice for LED applications

MULTIVIEWER OUTPUTS1. Two dedicated output connectors configured as MVR connectors, with a fixed resolution of 1920×1080p@60Hz

2. Monitor all inputs and screens (PVW and PGM)

3. UMD display and color adjustment

4. MVR background color adjustment

5. Customizable layouts for easy use

6. Border adjustment for MVR window

AUX1. AUX screens supported AUX connector can be in independent or mosaic use

2. AUX screen can follow the preset switching

3. Free view of inputs and screens (PGM)

Screens1. Outputs configured as single screens or edge-blended widescreens

2. Bezel compensation and edge blending

3. Irregular screen mosaic and output AOI function, ideal for complex and irregular LED screen applications

4. Dedicated BNC with loop-through for Genlock to ensure a synchronized output

5. Virtual pixels supported

6. Up to 128 presets

Transition and Effect1. Send PVW to PGM via Take, Cut or T-bar operation

2. Fade transition

3. Customizable transition durations

4. Copy or swap display on PVW and PGM

Layers1. Each output card supports up to 8x SL mixing layers, 4x DL mixing layers or 2x 4K mixing layers

2. Full screen roaming supported

3. Fade and cut transitions on all layers

4. Adjustable layer mask and border with different border effects

5. Layer flipping, copying and mirroring

6. Pure color layer can be used as background

BKG&LOGO1. BKG can be a captured or imported image

2. Unlimited BKG quantity in 512 MB storage space

3. Imported LOGO images supported

4. Independent BKG and LOGO for each screen

5. BKG fills the whole screen by default.

PROCESSING1. High quality scaling engine

2. Low latency processing

3. Compliant with HDCP 1.4 and HDCP 2.2

Control1. Intuitive control via U3 event controller

2. Dual control modes, U3 event controller and control PC

Others1. Free conversion between HDR10, HLG and SDR

2. User keys (containing layer properties such as size, position, border color, etc.) for more convenient and fast layer properties configuration

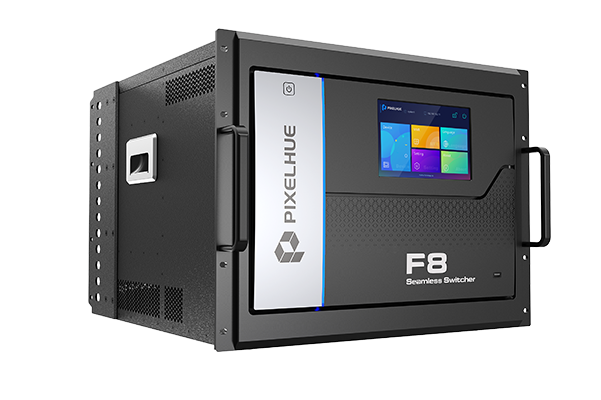

Pixelhue F8 Video Switcher

The Highest Performance

Pixelhue Flex View series- F8, designed for easy management of multiple displays for shows or visual management systems. Suitable for use with a variety of input formats and multiple display outputs.

F8, designed with the latest high-Performance FPGA Chipset, delivers reliable, stable, faster, and better image performance, and outputs non compressed 4k@60hz 4:4:4 10bits video. Built with a focus on environmental protection, the Pixelhue designed foundation is a great long-term solution, simplifying upgrades through modules for future use.

Ultimate flexibility through modular design

The F8 Processor is designed with 8 input slots and 8 output slots, allowing you to easily select I/O modules with different input and output connectors to match the visual system’s requirement. More optional I / O modules will be provided for upgrades in the future. The F8 utilizes a modular design and supports 8 input and output cards with a maximum of 32 inputs and outputs. Each output card can offer up to 2K@60Hz loading capacity. The F8 supports at most 64 SL mix layers, or 32 DL mix layers or 16 4K mix layers. It also supports a variety of input and output connectors, including DVI, DP, HDMI, and 3G SDI connectors, allowing easy customization for any project or show.

Reliable & worry-free operation

In this rapidly evolving market, reliable technology is the key to an outstanding event. The F8 allows you to configure the system to accommodate a variety of connectivity arrangements and display requirements. The F8 features dual power supplies, full machine data backup to local configuration, fast restore and can work perfectly 24/7. F8 Lite also undergoes a series of rigorous drop tests, shock & vibration tests and thermal tests, ensuring it can survive in any kind of road trip or event environments.

Easy to Use

F8 works exceptionally well with our matching video processing software, TRITON. TRITON provides an offline mode and preediting functionality, which can directly import while on-site and migrate between different devices. This software is easy to master, and a sophisticated yet user-friendly interface guides you from beginning to end of any kind of event with as little complex operation as possible.

Total event control with U3 Controller

With the U3 event controller, satisfy any kind of event requirements such as stage performance, high-end auto shows, TV program recording, product launch events, or any kind of large-scale exhibition.



Specs

INPUTS1. Standard, custom and advanced EDID settings Common resolutions: 1920×1080p@60Hz, 3840×1080p@60Hz and 3840×2160p@60Hz, etc.

2. Input source deinterlacing processing

3. Input source cropping

OUTPUTS1. Standard, custom and advanced output timing settings

2. Output width can be up to 8192 pixels, better choice for LED applications

MULTIVIEWER OUTPUTS1. Two dedicated output connectors configured as MVR connectors, with a fixed resolution of 1920×1080p@60Hz

2. Monitor all inputs and screens (PVW and PGM)

3. UMD display and color adjustment

4. MVR background color adjustment

5. Customizable layouts for easy use

6. Border adjustment for MVR window

AUX1. AUX screens supported AUX connector can be in independent or mosaic use

2. AUX screen can follow the preset switching

3. Free view of inputs and screens (PGM)

Screens1. Outputs configured as single screens or edge-blended widescreens

2. Bezel compensation and edge blending

3. Irregular screen mosaic and output AOI function, ideal for complex and irregular LED screen applications

4. Dedicated BNC with loop-through for Genlock to ensure a synchronized output

5. Virtual pixels supported

6. Up to 128 presets

Transition and Effect1. Send PVW to PGM via Take, Cut or T-bar operation

2. Fade transition

3. Customizable transition durations

4. Copy or swap display on PVW and PGM

Layers1. Each output card supports up to 8x SL mixing layers, 4x DL mixing layers or 2x 4K mixing layers

2. Full screen roaming supported

3. Fade and cut transitions on all layers

4. Adjustable layer mask and border with different border effects

5. Layer flipping, copying and mirroring

6. Pure color layer can be used as background

BKG&LOGO1. BKG can be a captured or imported image

2. Unlimited BKG quantity in 512 MB storage space

3. Imported LOGO images supported

4. Independent BKG and LOGO for each screen

5. BKG fills the whole screen by default.

PROCESSING1. High quality scaling engine

2. Low latency processing

3. Compliant with HDCP 1.4 and HDCP 2.2

Control1. Intuitive control via U3 event controller

2. Dual control modes, U3 event controller and control PC

Others1. Free conversion between HDR10, HLG and SDR

2. User keys (containing layer properties such as size, position, border color, etc.) for more convenient and fast layer properties configuration



Input add-ons

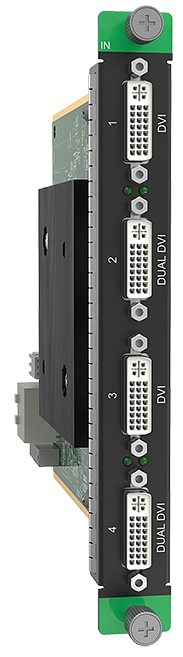

F Series SL-DVI Quad Input Card Module

  • Single link DVI-D×4
  • HDCP 1.4 complicant
    • SL mode: Up to 2048 × 1080@60Hz 4:4:4 8-bit
    • DL mode: Up to 4096 × 1080@60Hz 4:4:4 8-bit
  • Dual link mode supported, connectors 2 adn 4 active
  • EDID management for VESA, and CVT compliant user timings
  • Common resolutions
    • 1920 × 1080p@30/48/50/59.94/60Hz

F Series HDMI1.3 Quad Input Card Module

  • HDMI 1.3×4
  • HDCP 1.4 complicant
    • Up to 2048 × 1080@60Hz 4:4:4 8-bit
  • EDID management for VESA, and CVT compliant user timings
  • Common resolutions
    • 1920 × 1080p@30/48/50/59.94/60Hz

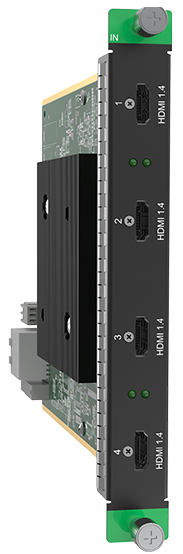

F Series HDMI1.4 Quad Input Card Module



  • 4x HDMI1.4
  • HDCP 1.4 compliant
    • SL: Up to 2048×1080@60Hz 4:4:4 8-bit
    • DL: Up to 3840×1080@60Hz 4:4:4 8-bit
  • EDID management for VESA, and CVT compliant user timings
  • Common resolutions
    • 1920×1080p@30/48/50/59.94/60Hz
    • 3840×1080p@30/50/59.94/60Hz

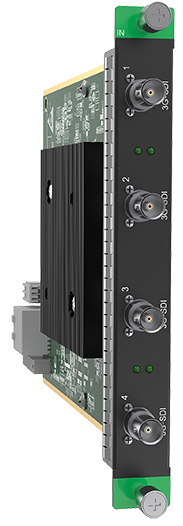

F Series 3G-SDI Quad Input Card Module

  • 3G SDI×4
  • Downward compatible with SD/HD SDI
  • Bi-level at SD and Tri-level at HD
  • Deinterlacing by default
  • Support for SMPTE 425-1, 2048-2, 296M, 292M and 259M
  • Common resolutions
  • 720×576i (PAL)@50Hz
    • 720 × 480i(NTSC)@59.94Hz
    • 1920 × 1080i@50/59.94/60Hz

F Series 12G-SDI Dual Input Card Module

2x 12G-SDI or 4x 3G-SDI or 1x 12G-SDI + 2x 3G-SDI

  • 12G-SDI
    • Downward compatible with 6G-SDI, 3G-SDI, HD-SDI and SD-SDI
    • Connectors 1 and 3 are available
  • 3G-SDI
    • Downward compatible with HD-SDI and SD-SDI
    • Four connectors are available
  • Deinterlacing by default
  • Common resolutions
    • 12G-SDI ▫ 720×480i@59.94Hz ▫ 720×576i@50Hz ▫ 1920×1080i@50/59.94/60Hz ▫ 3840×2160p@23.98/24/25/29.97/30/50/59.94/60Hz
    • 3G-SDI ▫ 720×576i(PAL)@50Hz ▫ 720×480i(PAL)@59.94Hz ▫ 1920×1080i@50/59.94/60Hz

F Series DP1.1 Quad Input Card Module

  • DP1.1×4
  • HDCP 1.3 complicant
    • SL mode: Up to 2048 × 1080@60Hz 4:4:4 8-bit
    • DL mode: Up to 3840 × 1080@60Hz 4:4:4 8-bit
  • EDID management for VESA, and CVT compliant user timings
  • Common resolutions
    • 1920 × 1080p@30/48/50/59.94/60Hz
    • 3840 × 1080p@30/50/59.94/60Hz
F Series Dual 4K HDMI2.0/DP1.2 Input Card Module



  • DP 1.2×2, HDMI 2.0×2
  • DP1.2: HDCP 1.3 compliant
    • Up to 4096×2160@60Hz 4:4:4 10-bit
  • HDMI: HDCP 2.2 compliant
    • Up to 4096×2160@60Hz 4:4:4 8-bit
  • Only two connectors can be used simultaneously and these t wo connectors must come from different groups. (Group 1: Connectors 1&2.Group 2: Connectors 3&4)
  • EDID management for VESA, and CVT compliant user timings
  • Common resolutions
    • 1920 × 1080p@30/48/50/59.94/60Hz
    • 3840 × 1080p@30/50/59.94/60Hz
    • 3840 × 2160p@30/50/59.94/60Hz



Output add-ons

F Series DVI(HDMI1.4) Quad Output Card Module



  • DVI(HDMI 1.4)×4
  • HDCP 1.4 complicant
  • SL mode
    • Up to 2048 × 1080@60Hz 4:4:4 8-bit
    • Max. output width: 2048 pixels
    • Max. output height: 2048 pixels
    • Connectors 2 and 4 are active, connectors 1 and 3 copy the output on connectors 2 and 4.
  • DL mode
    • Up to 4096 × 1080@60Hz 4:4:4 8-bit
    • Max. output width: 4096 pixels
    • Max. output height: 4096 pixels
    • Connectors 1,2,3 and 4 are all active.
  • Support for VESA/CVT and user timings
  • Support for single link (default) and dual link modes
  • Compatible with HDMI 1.4 in DL mode
  • Common resolutions
    • 1920 × 1080p@30/48/50/59.94/60Hz
    • 2048 × 1080p@30/48/50/59.94/60Hz
    • 3840 × 1080p@30/50/59.94/60Hz

F Series SL-DVI Quad Output Card Module



  • Single Link DVI-D×4
  • HDCP 1.4 complicant
    • Up to 2048 × 1080@60Hz 4:4:4 8-bit
    • Max. output width: 2048 pixels
    • Max. output height: 2048 pixels
  • Support for VESA/CVT and user timings
  • Common resolutions
    • 1920 × 1080p@30/48/50/59.94/60Hz

F Series HDMI1.3 Quad Output Card Module

  • HDMI 1.3×4
  • HDCP 1.4 complicant
    • Up to 2048 × 1080@60Hz 4:4:4 8-bit
    • Max. output width: 2048 pixels
    • Max. output height: 2048 pixels
  • Support for VESA/CVT and user timings
  • Common resolutions
    • 1920 × 1080p@30/48/50/59.94/60Hz

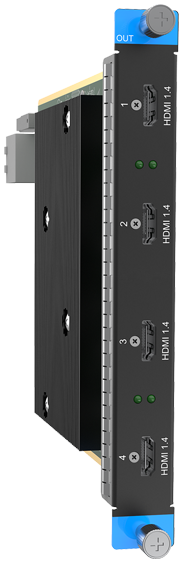

F Series HDMI1.4 Quad Output Card Module



  • HDMI 1.4×4
  • HDCP 1.4 complicant
  • SL mode
    • Up to 2048 × 1080@60Hz 4:4:4 8-bit
    • Max. output width: 2048 pixels
    • Max. output height: 2048 pixels
    • Connectors 1,2,3 and 4 are all active.
  • DL mode
    • Up to 4096 × 1080@60Hz 4:4:4 8-bit
    • Max. output width: 4096 pixels
    • Max. output height: 4096 pixels
    • Connectors 2 and 4 are active, connectors 1 and 3 copy the output on connectors 2 and 4.
  • Support for VESA/CVT and user timing
  • Support for single link (default) and dual link modes
  • Common resolutions
    • 1920 × 1080p@30/48/50/59.94/60Hz
    • 2048 × 1080p@30/48/50/59.94/60Hz
    • 3840 × 1080p@30/50/59.94/60Hz

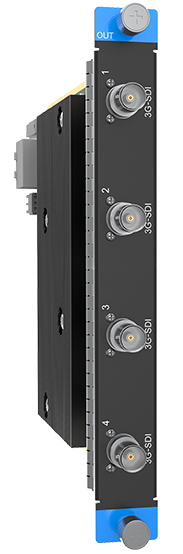

F Series 3G-SDI Quad Output Card Module

  • 4x 3G-SDI
  • Backward compatible with HD-SDI and SD-SDI
  • Support for ST-424 (3G), ST-292 (HD) and SMPTE259 SD
  • Under 1920×1080@50/59.94/60Hz, Level A and Level B adjustment supported
  • Support for interlaced signal timing settings
  • Connector copying supported Connectors 2 and 4 are active, while connectors 1 and 3 copy the outputs on connectors 2 and 4 respectively
  • Common resolutions
    • 720 × 480i(NTSC)@59.94Hz
    • 720 × 576i(PAL)@50Hz
    • 1280 × 720p@23.98/24/25/29.97/30/50/59.94/60Hz
    • 1920 × 1080p@23.98/24/25/29.97/30/50/59.94/60Hz
    • 1920 × 1080i@50/59.94/60Hz

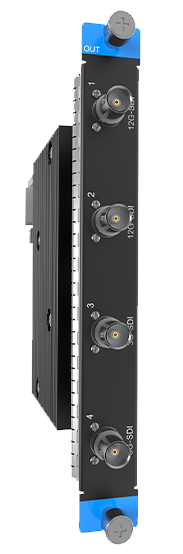

F Series 12G-SDI Output Card Module

  • 1x 12G-SDI or 4x 3G-SDI
  • 12G-SDI:
    • Downward compatible with 6G-SDI, 3G-SDI, HD-SDI and SD-SDI
    • Connectors 1 is available, while connector 2 copies the output on connector 1
    • Connectors 3 and 4 are unavailable
    • Max. resolution: 4096×2160@60Hz
    • 1920 × 1080i@50/59.94/60Hz
  • 3G-SDI:
    • Downward compatible with HD-SDI and SD-SDI
    • Four connectors are available
    • Max. resolution: 1920×1080@60Hz
  • Support for ST-2082(12G), ST-2081 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD)
  • Level A and Level B adjustment NOT supported
  • Support for interlaced signal output
  • Support for output timing settings
  • Common resolutions
    • 12G-SDI:
      • 720×480i (NTSC)@59.94Hz
      • 720×576i (PAL)@50Hz
      • 1280×720p@23.98/24/25/29.97/30/50/59.94/60Hz
      • 1920×1080p@23.98/24/25/29.97/30/50/59.94/60Hz
      • 1920×1080i@50/59.94/60Hz
      • 2048×1080p@23.98/24/25/29.97/30/50/59.94/60Hz
      • 3840×2160p@23.98/24/25/29.97/30/50/59.94/60Hz
      • 4096×2160p@23.98/24/25/29.97/30/50/59.94/60Hz
    • 3G-SDI:
      • 720×576i (PAL)@50Hz
      • 720×480i (NTSC)@59.94Hz
      • 1280×720p@23.98/24/25/29.97/30/50/59.94/60Hz
      • 1920×1080i@50/59.94/60Hz
      • 1920×1080p@23.98/24/25/29.97/30/50/59.94/60Hz

F Series DVI(HDMI1.4)/OPT Output Card Module

  • DVI(HDMI 1.4)×2
  • 10G OPT×4
  • DVI: HDCP 1.4 complicant
    • Up to 4096 × 1080@60Hz 4:4:4 8-bit
    • Max. output width: 4096 pixels
    • Max. output height: 4096 pixels
  • OPT 1 copies the output on DVI1.4-1.
  • OPT 2 copies the output on DVI1.4-2.
  • OPT 3 copies the output on OPT1.
  • OPT 4 copies the output on OPT2.
  • Support for VESA/CVT and user timings
  • Common resolutions
    • 1920 × 1080p@30/48/50/59.94/60Hz
    • 2048 × 1080p@30/48/50/59.94/60Hz
    • 3840 × 1080p@30/50/59.94/60Hz

F Series 4K HDMI2.0/OPT Output Card Module



  • HDMI 2.0×2
  • 10G OPT×4
  • HDMI 2.0: HDCP 2.2 compliant
    • Up to 4096×2160@60Hz 4:4:4 8-bit
    • Support DL (default) and 4K connector capacity
  • DL mode:
    • Max. output width: 4096 pixels
    • Max. output height: 4096 pixels
    • Only two connectors (free combination) can be used in DL mode
  • 4K mode:
    • Max. output width: 8192 pixels
    • Max. output height: 7680 pixels
    • Two connectors output the same content in 4K mode
  • OPT 1 and OPT 2 copy the output on HDMI.
  • OPT 3 and OPT 4 copy the output on OPT1 & OPT2.
  • Support for VESA/CVT and user timings
  • Common resolutions
    • 1920 × 1080p@30/48/50/59.94/60Hz
    • 2048 × 1080p@30/48/50/59.94/60Hz
    • 3840 × 1080p@30/50/59.94/60Hz
    • 3840 × 2160p@30/50/59.94/60Hz



Aux Add-ons

F Series AUX – SL-DVI Output Card Module

  • DVI1.3×4
  • HDCP 1.4 compliant
    • Up to 2048×1080@60Hz 4:4:4 8-bit
    • Max. output width: 2048 pixels
    • Max. output height: 2048 pixels
  • Support for VESA/CVT and user timings
  • Common resolutions
    • 1920×1080p@30/48/50/59.94/60Hz

F Series AUX – HDMII Output Card Module

  • HDMI1.3×4
  • HDCP 1.4 compliant
    • Up to 2048×1080@60Hz 4:4:4 8-bit
    • Max. output width: 2048 pixels
    • Max. output height: 2048 pixels
  • Support for VESA/CVT and user timings
  • Common resolutions
    • 1920×1080p@30/48/50/59.94/60Hz

Related products
