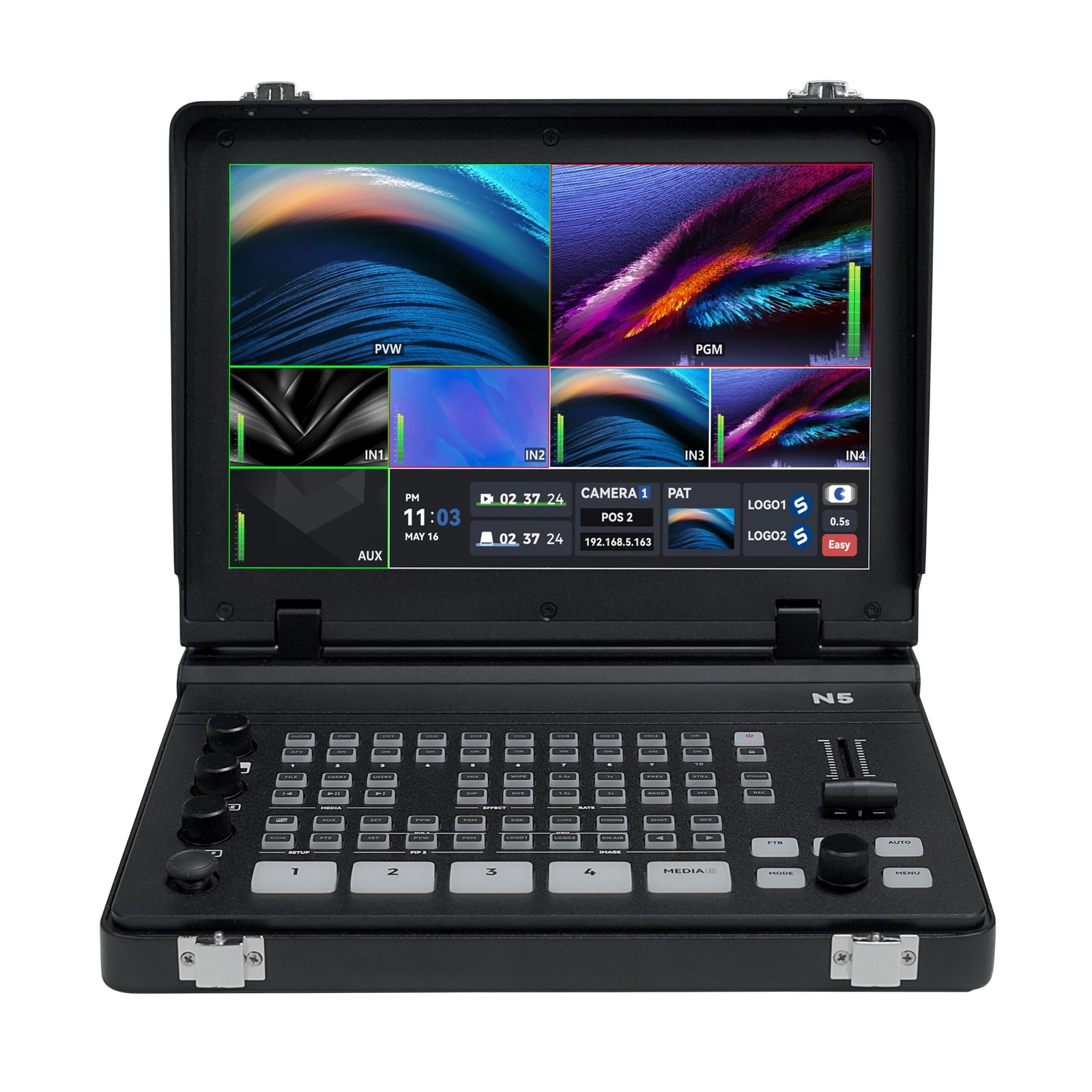

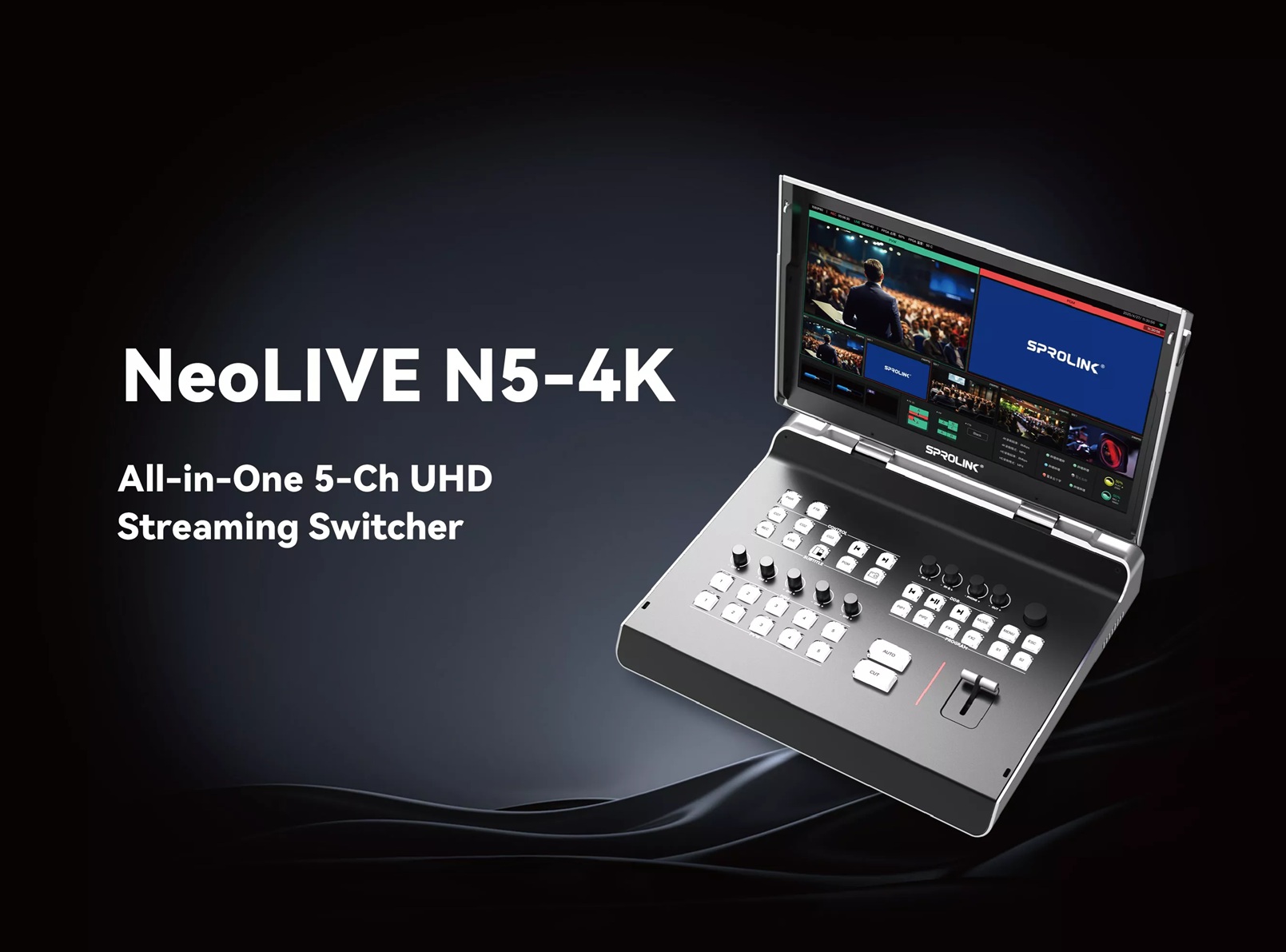

he SPROLINK NeoLIVE N5 Series is a professional multi-functional live streaming video switcher designed for high-quality multi-camera production and broadcast workflows. It combines powerful switching, built-in 10.1″ flip-up touchscreen monitoring, hardware-based streaming, and advanced production tools into one compact, laptop-style unit — ideal for events, studio livestreams, e-commerce, education, and hybrid presentations.
Both N5 and N5S models support multi-platform streaming directly via Ethernet without needing a computer, extensive media playback options, and advanced visual effects for professional live workflows.

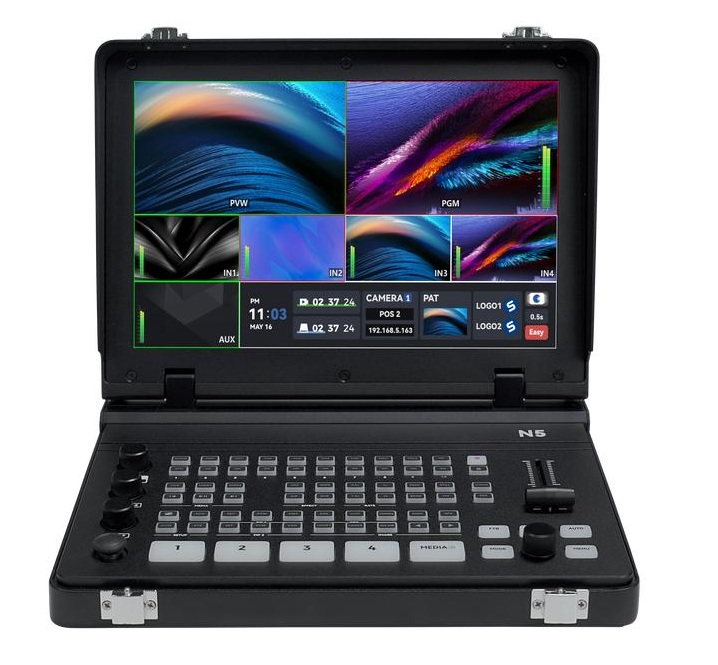

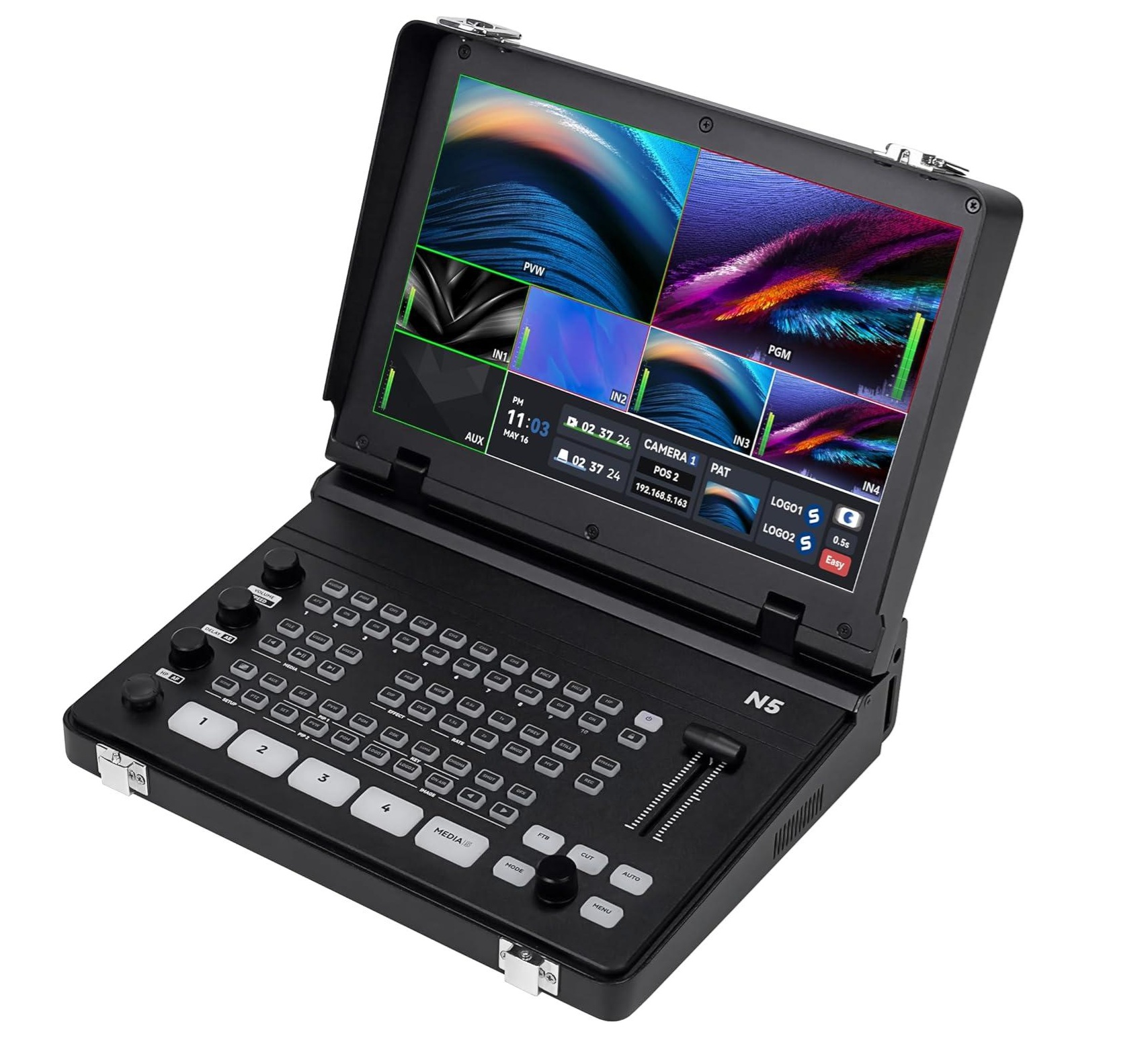

The SPROLINK NeoLIVE N5 is a professional 5-channel live streaming and video production switcher designed for multi-camera live events, studio streams, e-commerce, education, and corporate productions. It features a 10.1-inch flip-up touch screen, built-in hardware streaming engine, and integrated tools like NDI support, media playback, overlays, and chroma key — all in a compact, laptop-style unit. The N5 model specifically includes 4 HDMI inputs, with the first two supporting 4K video, making it ideal for mixed-resolution workflows.
Key Features
Large Touchscreen Interface
10.1″ flip-up touch display for intuitive monitoring and control without needing external monitors.
Supports portrait and landscape rotation for flexible workflow layouts.
Multi-Input & Output
4 × HDMI inputs (first two support 4K) for cameras, computers, and other sources.
2 × HDMI outputs for Program (PGM) and Multi-View (MV) monitoring.
USB-C port supporting UVC streaming/capture.
Built-In Streaming & Network Inputs
Hardware streaming engine allows direct RTMP/SRT streaming via Ethernet without a computer.
Optional NDI input for low-latency network video sources.
Media Playback & UVC Support
Integrated media player can playback video and image files (via USB) as live sources.
UVC camera support allows USB webcams or UVC sources to act as inputs.
Transitions & Visual Effects
Multiple professional effects: FADE, WIPE, DIP, DVE.

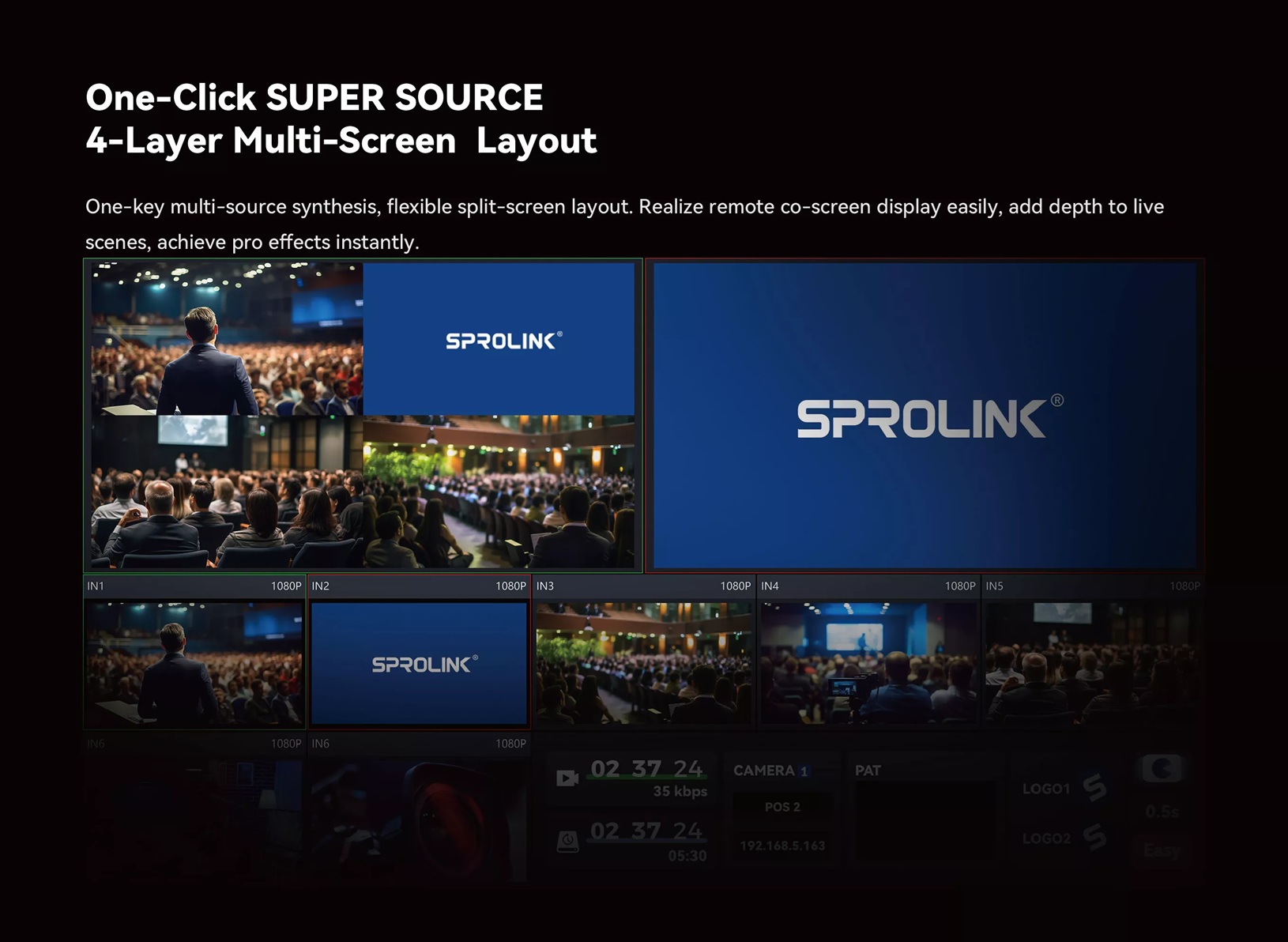

Super Source output combines multiple inputs into a composite output layout.
Graphics & Overlays
Lower third dynamic text overlays for titles and labels.
Virtual chroma key with color picker for background replacement.
Audio Mixer & Monitoring
Professional built-in audio mixer with AFV (Audio Follows Video) and MIX modes.
Headphone monitoring for real-time audio checks.
PTZ Camera Control
Joystick control supports up to four PTZ cameras for smooth multi-camera productions.
Recording
Direct USB drive or external HDD recording of live streaming for archiving or post-production.
Remote & Web Control
Built-in web server allows remote control via browser (e.g., phone/tablet).

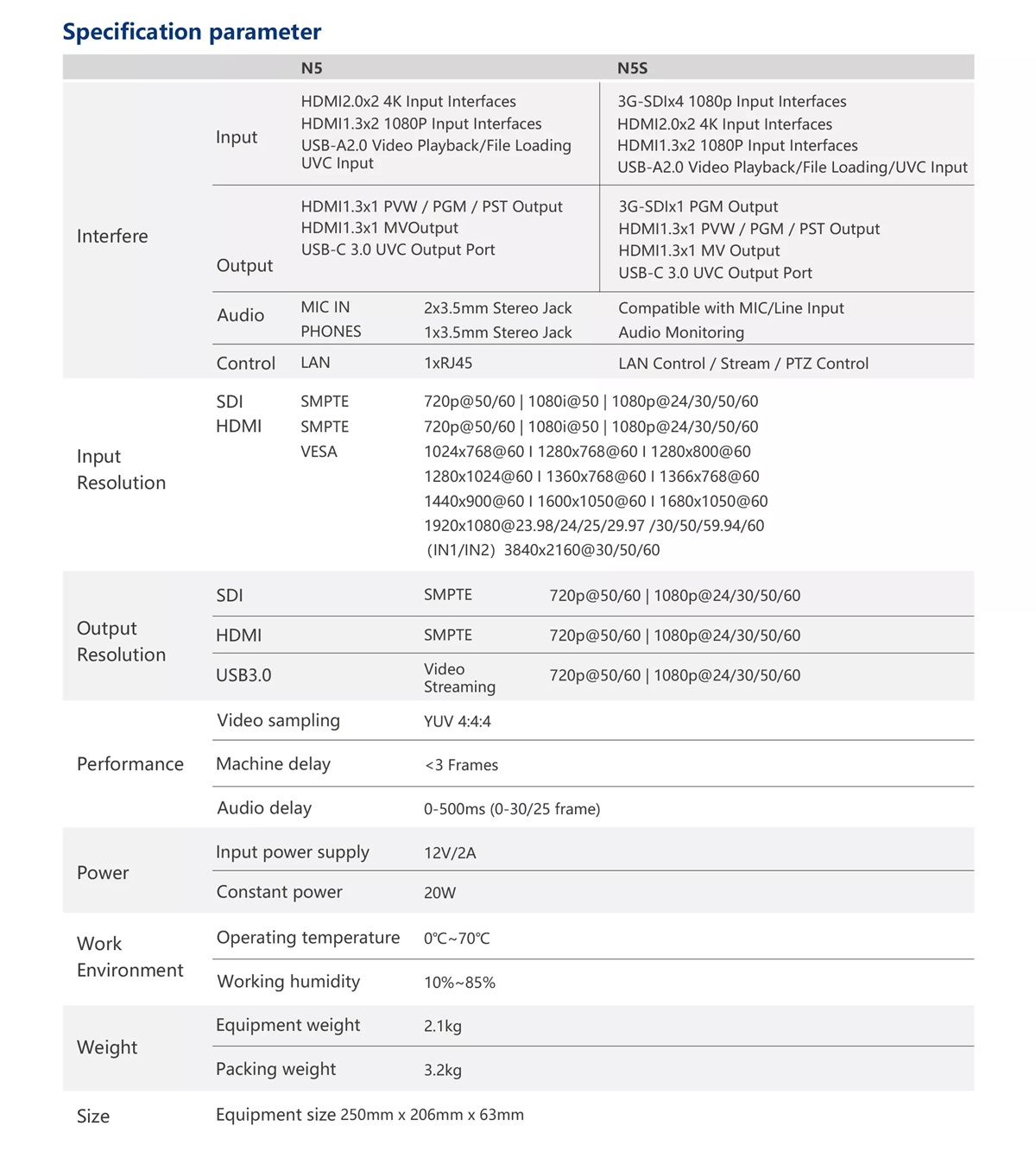

Key Specifications
Category
Specification
Display
10.1″ flip-up touchscreen
Video Inputs
4 × HDMI (IN1 & IN2 support 4K), UVC/USB, optional NDI input
Video Outputs
2 × HDMI (PGM & MV), USB-C 3.0 (UVC)
Streaming
Built-in RTMP/SRT engine (Ethernet)
Network Input
Optional NDI via Ethernet
Media Playback
Built-in media player (USB)
Audio
Built-in audio mixer with AFV/MIX, headphone monitoring
Effects
DVE, FADE, WIPE, DIP transitions
Overlays
Lower third dynamic overlay, chroma key
Control
LAN/web browser control
Recording
USB/HDD recording support
PTZ Control
Up to 4 PTZ cameras (joystick)
The SPROLINK NeoLIVE N5 Series is a professional live streaming and multi-camera switcher designed for broadcast-grade video production. It combines multi-input video switching, a built-in 10.1″ flip-up touchscreen, hardware streaming, media playback, and advanced effects, all in a compact laptop-style unit. This makes the N5 platform ideal for live events, studios, corporate streaming, education, and e-commerce livestreams.

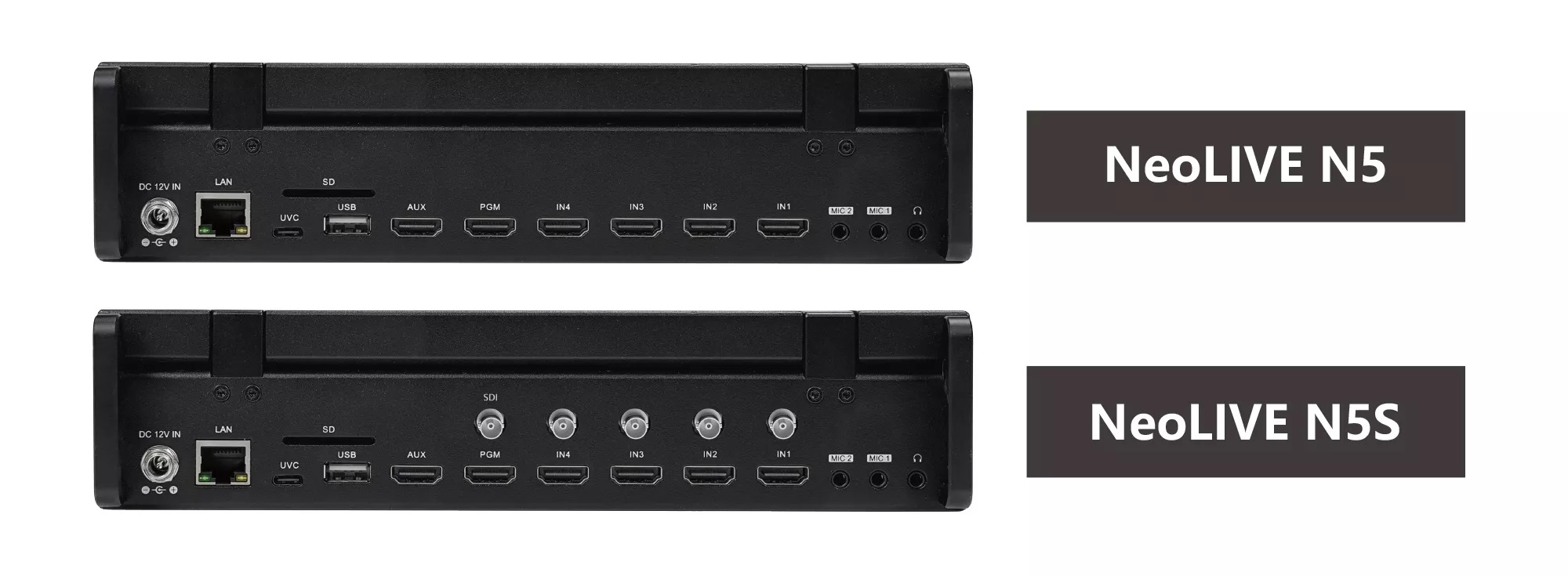

The series includes: ✔ NeoLIVE N5 — four HDMI inputs (with two supporting 4K) ✔ NeoLIVE N5S — eight input channels (4 × SDI + 4 × HDMI) (Both share the same overall feature set and production engines.)
Key Features
Built-In Touchscreen Interface
10.1″ flip-up touch display — makes switching, monitoring, and menus easy without external monitors.
Screen rotation supports portrait and landscape modes for flexible livestream layouts.
