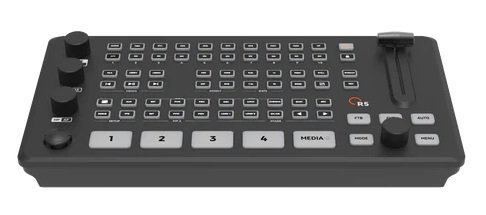

The SPROLINK NeoLIVE R5S is a fully upgraded multi-functional broadcast video switcher designed for live streaming, multi-camera production, and professional broadcasting workflows. It combines multiple video inputs, built-in streaming, recording, and dynamic visual effects into one compact device, aimed at content creators, event producers, educators, and live streaming studios.
This model enhances traditional switchers by supporting both HDMI and SDI video sources, dual-channel RTMP streaming, media playback, and Lower Third overlays, enabling high-quality, multi-platform production without needing a separate computer.
Key Features
Multi-Source Video Inputs
Five total inputs, including two SDI inputs and two HDMI inputs with 4K support plus a multifunctional input.
Supports UVC cameras, remote video feeds, and media files as input sources.
Built-In Streaming & Recording
Dual RTMP streaming channels via Ethernet (direct streaming to platforms like TikTok, YouTube, Facebook).
In-house recording to USB flash disk or external hard drive.
Output & Monitoring
PGM (Program) output for main broadcast.
MV (Multiview) output for previewing multiple sources.
Built-In Media Player & Dynamic Overlays
Integrated media player can play videos and images directly as sources.
Lower Third dynamic overlay for professional graphics and text.
Flexible Screen & Controls
Supports both portrait and landscape orientation for different broadcast formats.
Built-in web server allows remote control from any browser.
Versatile Connectivity
Type-A USB 3.0 lossless streaming/capture support.
Compatible with UVC cameras and remote camera feeds (NDI/SRT/RTMP protocols).
Audio & Effects
Integrated audio mixer handling embedded and external audio.
Multiple transition effects (e.g., FADE, WIPE, DIP, DVE) for smooth scene switching.
Key Specifications
| Category | Specification |
|---|---|
| Video Inputs | 5 total (2× SDI, 2× HDMI with 4K support, 1× multifunctional input) |
| Video Outputs | HDMI Program (PGM) & HDMI Multiview (MV) outputs |
| Streaming | Dual RTMP streaming via Ethernet |
| Recording | USB flash disk & HDD direct recording |
| Media Playback | Built-in media player (video/image) |
| Overlay | Lower Third dynamic overlay |
| Orientation | Supports vertical & horizontal screens |
| Control | Built-in web server for browser control |
| USB | Type-A USB 3.0 support for lossless streaming/capture |
| Audio | Professional audio mixing support (multiple inputs) |
| Protocols | UVC, NDI, SRT, RTMP support for remote feeds |
The SPROLINK NeoLIVE R5PRO is a professional multi-functional live streaming video switcher designed for multi-camera production, live events, e-commerce, education, and broadcast-style streaming. It integrates a built-in 5.5″ screen, hardware streaming engine, versatile input handling, media playback, and recording into a compact unit — allowing you to stream directly to platforms without a separate PC. The switcher supports both horizontal and vertical (portrait) formats, making it flexible for different types of livestreaming content.
Key Features
Multi-Input & Super Source Output
Up to five input channels with support for multiple sources combined into one “super source” output.
Two channels support 4K input, enabling high-quality video feeds from UHD cameras.
Accepts UVC cameras, remote feeds (NDI/SRT/RTMP), and media files as inputs.
Built-In Display & Flexible Format
5.5″ built-in preview screen for monitoring and control without external monitors.
Toggle between landscape and portrait modes — ideal for social media livestreams (e.g., TikTok).
Streaming & Connectivity
Built-in hardware streaming engine for PC-free streaming to services like TikTok, YouTube, and Facebook via Ethernet or Wi-Fi.
Dual-channel RTMP streaming allows simultaneous streams to different platforms.
Web server control lets you manage settings from any device with a browser.
Recording & Media
Direct internal recording to USB disks or external hard drives for archiving or post-production.
Built-in media player can play video or image files (JPG/PNG) as sources.
Transitions, Effects & Overlays
Multiple transition effects including FADE, WIPE, DIP, and DVE with adjustable durations.
Dynamic Lower Third overlays for titles and graphics.
Chroma key (green screen) support with color picker for professional backgrounds.
Camera & Audio Control
PTZ joystick control for up to 5 cameras (PTZ control function).
Professional audio mixer with mic inputs and headphone monitoring.
Supports AFV (Audio Follows Video) and mixed audio modes.
Key Specifications
| Specification | Details |
|---|---|
| Display | 5.5″ built-in screen (horizontal/portrait) |
| Input Channels | 5 total (with multi-input “super source”) |
| 4K Support | 2 × HDMI inputs support UHD 4K60 |
| Standard HDMI Inputs | 2 × HDMI 1080p60, plus 2 × 4K HDMI inputs |
| USB Inputs/Outputs | USB-A for media/UVC input; USB-C 3.0 for UVC/streaming/recording |
| Streaming | Built-in RTMP engine; dual-channel streaming via Ethernet/Wi-Fi |
| Output | Dual HDMI outputs (PGM/MV) and Multiview previews |
| Recording | USB disk & HDD recording |
| Overlay | Dynamic Lower Thirds, chroma key support |
| PTZ Control | Joystick control for PTZ cameras |
The NeoLIVE R5PRO-S is a multi-functional live streaming switcher built for content creators, studios, broadcasters, e-commerce, education, and event production. It combines HD/4K video inputs, built-in monitoring, integrated streaming engine, advanced overlays, and PTZ camera control into a single compact unit — helping you stream or record professional-level live video without needing a separate computer. The device supports both horizontal (landscape) and vertical (portrait) broadcast formats to fit modern social platforms and dynamic content use cases.
Key Features
Multi-Input Video Switching
4 SDI + 4 HDMI input ports for flexible multi-camera setups (selectable configuration).
Supports HD and 4K HDMI sources to accommodate high-resolution inputs.
Inputs accept various sources including UVC cameras, computers, and media players.
Built-In Monitoring & Formats
5.5″ built-in LCD screen for live preview and switcher control without external monitors.
Seamless landscape and portrait mode switching for vertical social streams (e.g., TikTok, Instagram).
Streaming & Recording
Dual-channel RTMP streaming via Ethernet for simultaneous multi-platform broadcast.
Built-in hardware streaming engine, so no PC is required.
Direct recording to USB drives or external hard disks.
Professional Graphics & Effects
Dynamic Lower Third overlays for titles, names, and on-screen graphics.
Built-in media player for instant playback of video files and images.
Super source multiview output combines multiple inputs into one composite output.
PTZ & Camera Control
Joystick-based PTZ camera control via serial or IP for up to 5 cameras.
Smooth remote control of pan/tilt/zoom cameras from the switcher interface.
Audio & Integration
2 × 3.5 mm stereo mic inputs plus headphone monitoring output.
Integrated audio mixer for AFV (Audio Follows Video) and mixed audio modes.
USB-A lossless streaming/capture for external capture devices or software.
Remote & Web Control
Built-in web control server allows remote operation via web browser.
Supports PGM (Program) and Multiview (MV) outputs for professional monitoring workflows.
Key Specifications
| Category | Specification |
|---|---|
| Display | 5.5″ built-in LCD monitoring screen |
| Video Inputs | 4 × HDMI + 4 × SDI (multi-channel selectable) |
| Video Outputs | 2 × HDMI (PGM + MV), 1 × SDI (PGM) |
| Streaming | Dual RTMP streaming via Ethernet |
| Recording | USB drive & HDD recording support |
| Control Interfaces | RJ-45 LAN (streaming/PTZ control), web browser control |
| Camera Control | PTZ joystick control (up to 5 cameras) |
| Audio Inputs | 2 × 3.5 mm mic/line inputs |
| Audio Output | 1 × 3.5 mm headphone jack |
| Capture & Playback | USB-A for media playback/UVC/recording |
| Media Support | JPG/PNG image import, video playback via built-in player |
| Formats | SDI/HDMI compatible, up to 4K input support |
| Power | Standard 12 V/DC input |
| Weight & Size | ~2 kg; portable fixed-mount design |
