Description

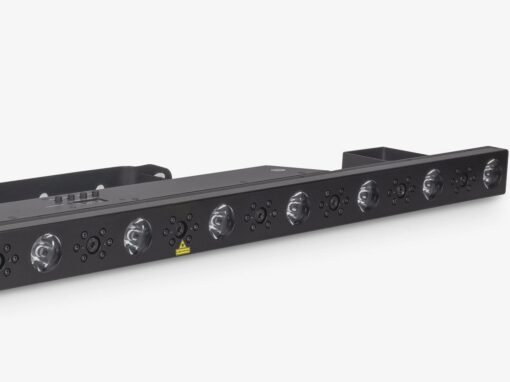

Red-laser/LED bar
Laser bars have become very popular during the last few years, and so we included them in our portfolio too. To develop one is not rocket science and there are many of them available on the market. So instead of manufacturing them, we select for you the best ones available on the market and make sure they work 100%.
Specifications
| Source | Type: | Semiconductor laser diode | 10x static red laser beam | 10x 3-Watt LED blinder |
| Suitability: | Indoor laser displays / Stage lighting |
| System control: | DMX512, Auto-mode, Sound-to-light |
| Compliant with: | EN 60825-1, Class 3B |
| Weight [kg]: | 4 |
| Size [WxHxD, mm]: | 1000 x 50 x 166 |
| Guaranteed opt. output [mW]: | 200 [per each laser output] |
| R | G | B [mW]: | 200 | – | – |
| Wavelengths [nm, ±5nm]: | 638 | – | – |
| Beam size [mm]: | 4 |
| Beam divergence [mrad]: | 1.8 [full angle] |
| Modulation [kHz] | type: | 30 | analogue |
| X-Y scanners: | – |
| Power requirements [V] | Input: | 100-230/50-60Hz | Neutrik powerCON |
| Max. power consumption [VA]: | 250 |
| Operation temperature [°C]: | 10-40 |
| Ingress Protection rating [IP]: | 20 |
| Included in the set: | 1.5M power lead, user manual. |
| HW features: | – |
| Laser safety features: | – |
| note A | – |
| note B | – |

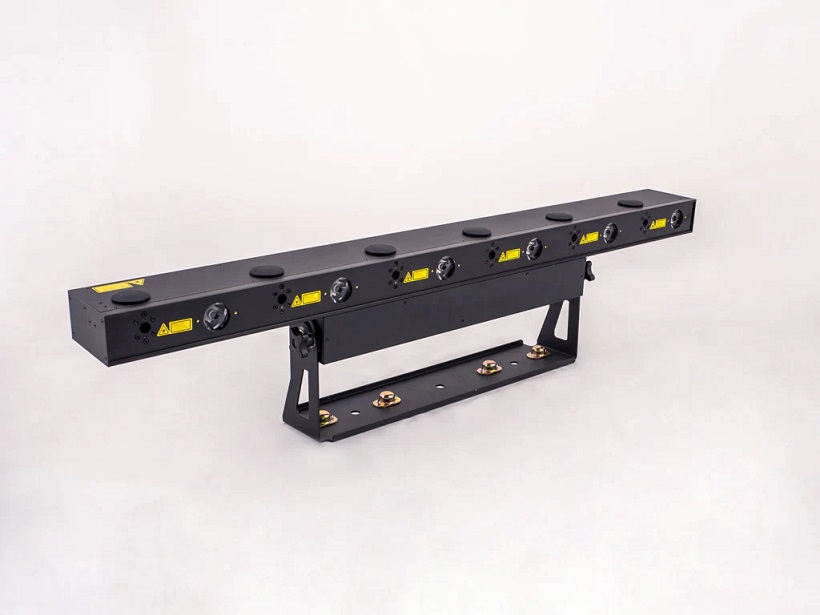

Kvant Laser LED Bar (RGB)
KVANT RGB LASER-LED BAR offers six powerful, full-colour static laser beams and six warm-white LED blinders.
The laser bar is controlled via DMX512 or and can also be run in “Sound Active Mode”.
Specifications
| Source | Type: | Semiconductor diode/LED | six full-color static laser beams & six 3-Watt LED blinders |
| Suitability: | Indoor laser displays/stage lighting |
| System control: | DMX512, Auto-mode, Sound-to-light |
| Laser class: | IIIb |
| Weight [kg]: | 7.5 |
| Size [WxHxD, mm]: | 1000x128x117 mm [excluding mounting bracket] |
| Guaranteed opt. output [mW]: | 480mW [per individual output] |
| R | G | B [mW]: | 180 | 100 | 200 |
| Wavelengths [nm, ±5nm]: | 638 | 520 | 450 |
| Beam size [mm]: | 4mm |
| Beam divergence [mrad]: | 2 mrad [at full angle] |
| Modulation [kHz] | type: | 30 | analogue |
| Power requirements [V] | Input: | 100-240/50-60Hz | Neutrik PowerCON |
| Max. power consumption [VA]: | Max. 60 Watts |
| Operation temperature [°C]: | 10-40 °C |
