Unity Lasers Elite 2 Pro FB4

CALL

Add to wishlist
Categories: ,

Description

Description

Overview

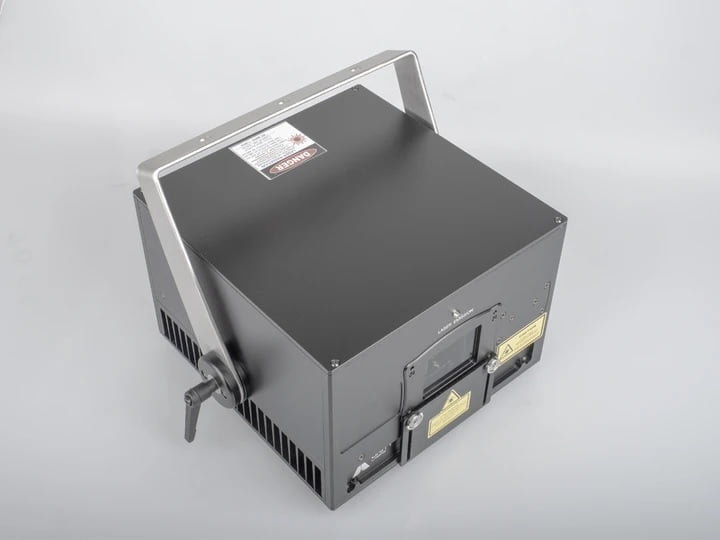

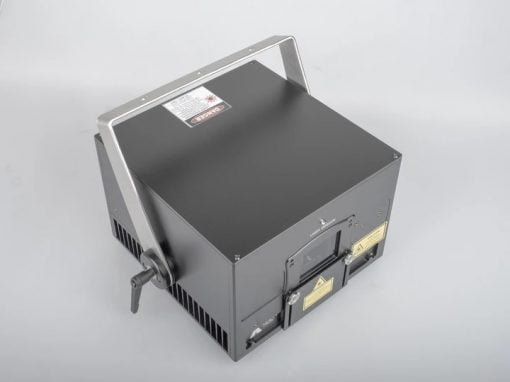

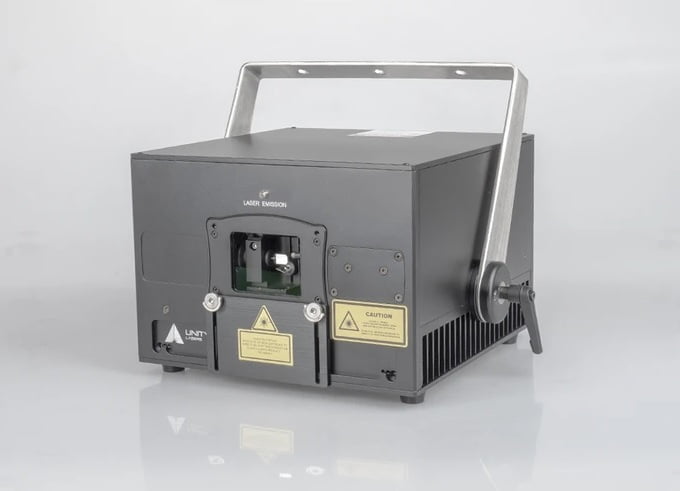

The Unity ELITE 2 PRO FB4 is a 2-Watt full color RGB diode-based laser system, with Pangolin’s FB4 media server integrated inside a robust housing. Our ELITE 2 PRO FB4 is ideal for lighting designers as well as special FX companies, who want to integrate lasers, into any multimedia setup.

Applications

The ELITE 2 PRO FB4 is a perfect show laser system for small to medium sized venues. In addition, the unit’s compact size and multimedia functionality makes it ideal for use in large quantities on tours and related projects where vast numbers of lasers need to be used.

ELITE 2 PRO FB4 can also be used both indoors and outdoors, for the projection of laser graphics, logos, text and laser billboard advertisements. Unity ELITE 2 PRO FB4 is suitable for venues/crowds of up to 2,500 people in capacity.

Control

Our ELITE PRO FB4 series cater to the workflow of lighting designers.

Offering easy control in three different ways:

  1. Console Mode – Over DMX or ArtNET, directly from a console. And we include over 1,500 FREE laser gobos for you to control, directly on the laser.
  2. Streaming Mode – Allowing for direct control from a PC using Pangolin’s QuickShow or Beyond Software (over Ethernet).
  3. Auto Mode – Finally, we also offer auto-mode operation, where you can upload your desired laser content to the projector (this can be fully programmed shows, as well as single cues) and set the day, date and time for the projection, and it will be done automatically for you. No trigger, PC or control setup required. A truly auto-play setup, ideal for permanent installations.

In addition, ELITE PRO FB4 series laser projectors include Pangolin’s QuickShow software completely FREE.

QuickShow laser show design software gives you the ability to design and create any sort of laser show effects you can imagine (from aerial beam effects, to text, graphics, and logos, and even fully programmed timeline shows), and you can then control those elements from any setup you desire – be it a lighting console, PC, or auto-mode.

You can try a FREE demo of Pangolin’s QuickShow software, and see it in action here: http://www.pangolin.com/quickshow

What’s in the box

The ELITE 2 PRO FB4 package includes all of your main accessories, FREE.

  • Laser show projector
  • Protective travel case
  • FB4 Media Server
  • QuickShow laser show design software
  • Ethernet / ArtNET control cable
  • E-stop safety system and E-stop cables
  • Interlocks
  • Keys

Specifications

Product Name:ELITE 2 PRO
Type Of Laser:Full-colour, Semiconductor diode laser system
Guaranteed Optical Output:2,000mW
Suitable For:Small to medium indoor / Outdoor laser shows and Laser graphic displays

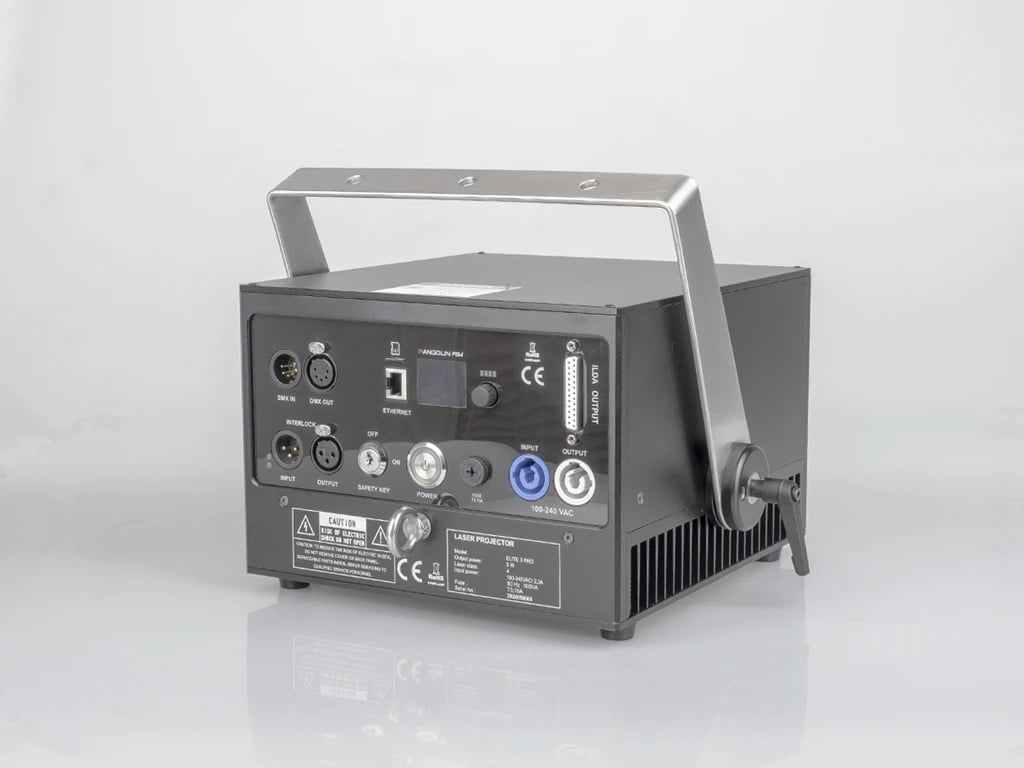

Control Signal:Pangolin FB4 – Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console, Autoplay
Scanning System:35,000 Points per second @ 8°
Scan Angle:50°
Safety:Fully complies with the latest EN 60825-1, and FDA regulations
Weight:8kg
Package Includes:Pelicase, Power cord, 10M CAT5 cable, E-STOP box with 10M cable, Set of 4 safety keys, 3-pin interlock bypass plug, User guide.
R | G | B [mW]:500 | 500 | 1000
Beam Size [mm]:5 x 3
Beam Divergence:<1mrad [Full Angle]
Modulation:Analog 100kHz
Power Requirements:100-230V/50Hz
Consumption:Max. 150W
Operation Temperature:10-40 °C
Ingress Rating:IP 20
System Features:All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. are managed by inbuilt FB4 control system. Scanning system protection, Daisy chain of emergency STOP signal for multiple system “one-hit” operation.
Laser Safety Features:Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
Notice:*Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output.
Dimensions [cm]:Length: 238
Width: 246
Height: 175
