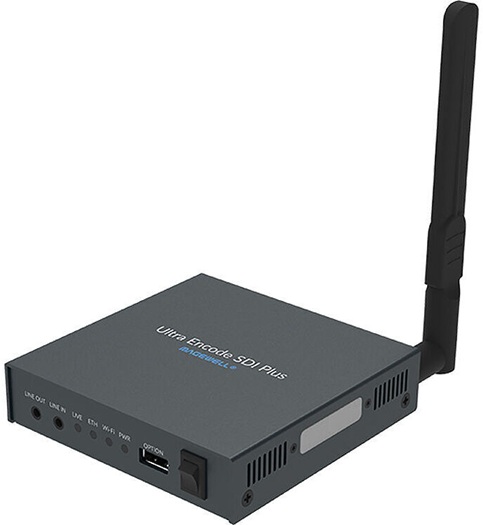

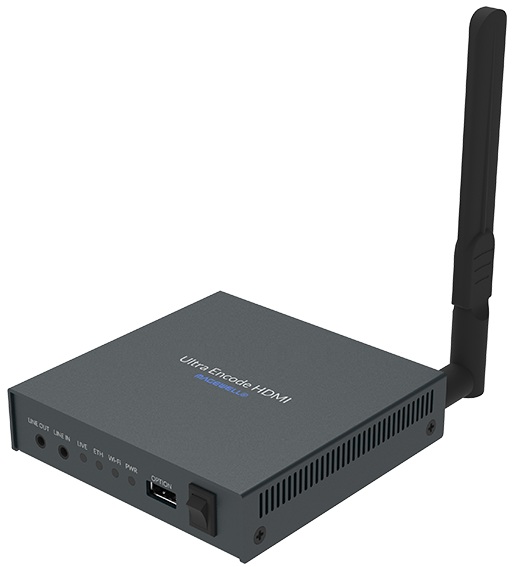

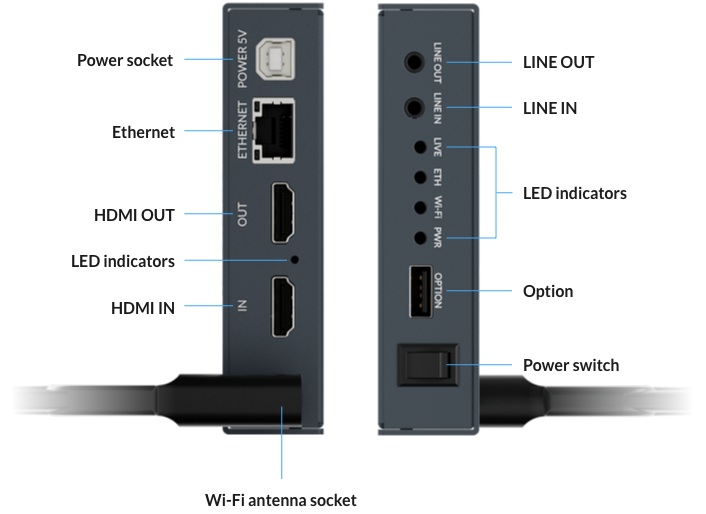

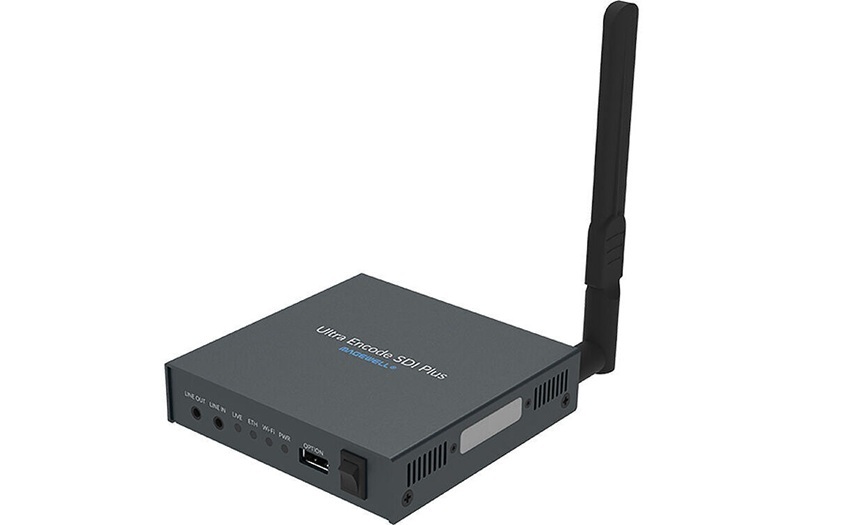

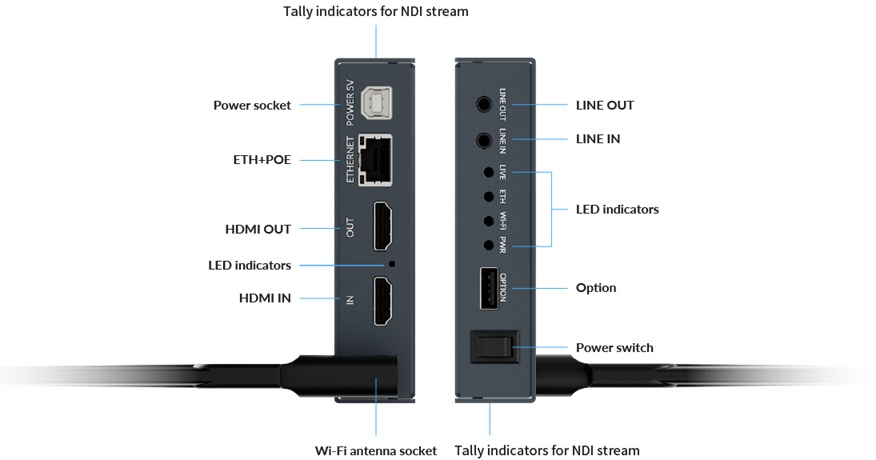

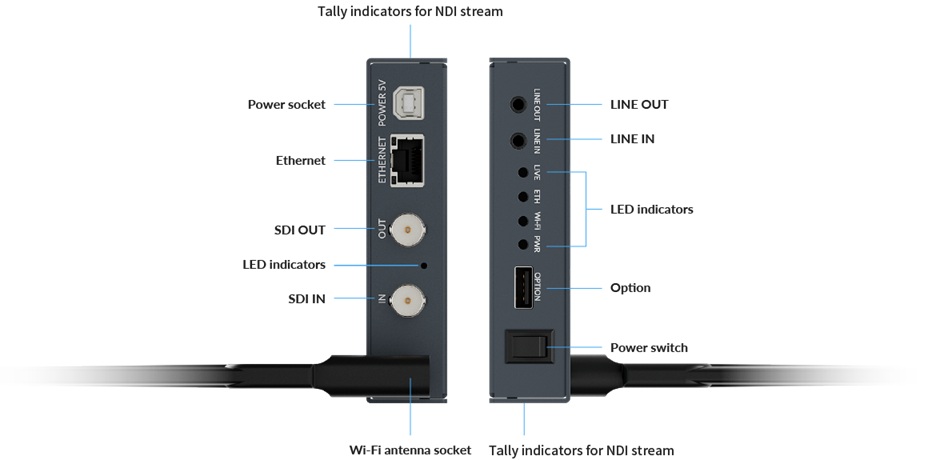

Magewell Ultra Encode

Ultra Encode AIO

Ultra Encode AIO live media encoders take the capabilities of our original Ultra Encode models to a whole new level for advanced use cases. It builds on the functionality of the Ultra Encode family with expanded features including HDMI and SDI input connectivity in a single unit; 4K encoding and streaming from the HDMI input; simultaneous multi-protocol streaming; higher streaming bitrates; file recording; and much more. This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.

Multi-Input Video Processing

The single-channel Ultra Encode AIO can encode one live input source – either HDMI or SDI – or mix video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output. Up to eight user-configurable overlays – including text, images, and a clock – can be applied to the output profile.

Flexible Formats and Protocols

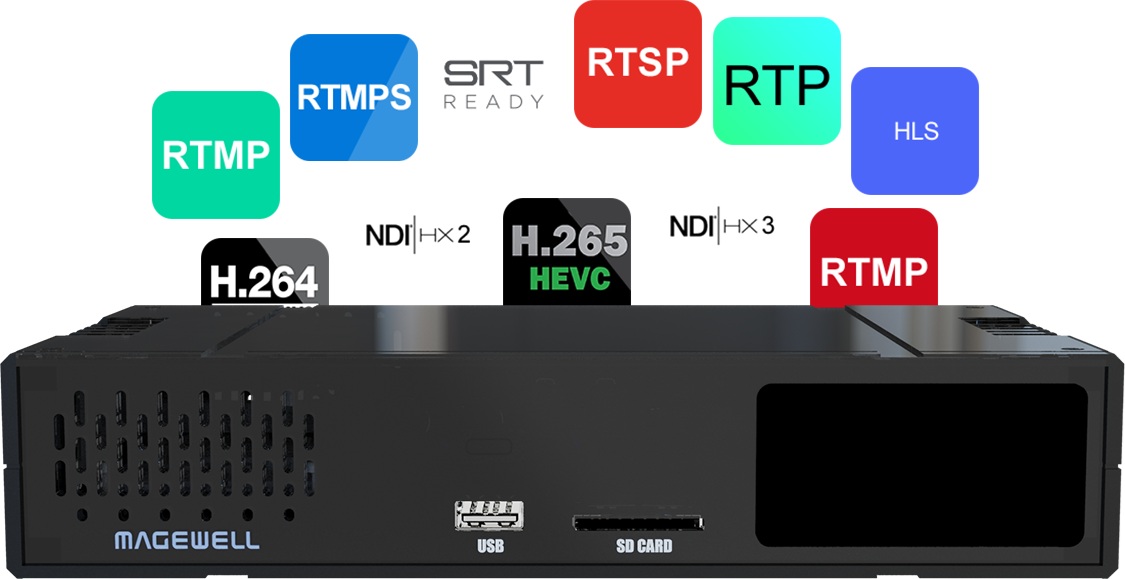

Ultra Encode AIO supports multiple video encoding formats – including H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3 – and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology. Up to eight channels of audio can be encoded in AAC format.

Powerful Encoding & Streaming Capabilities

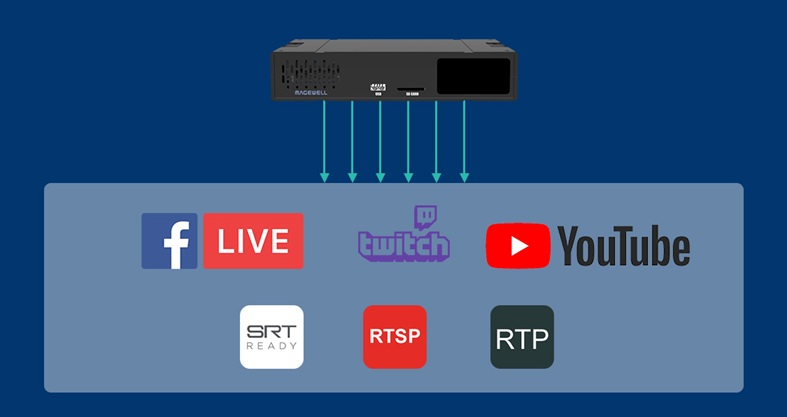

Video can be encoded at resolutions up to 4096×2160 at 30 frames per second from HDMl & SDI sources. Ultra Encode AIO can stream to up to six different target destinations simultaneously at bitrates up to 32Mbps per stream.

Versatile Recording and Streaming

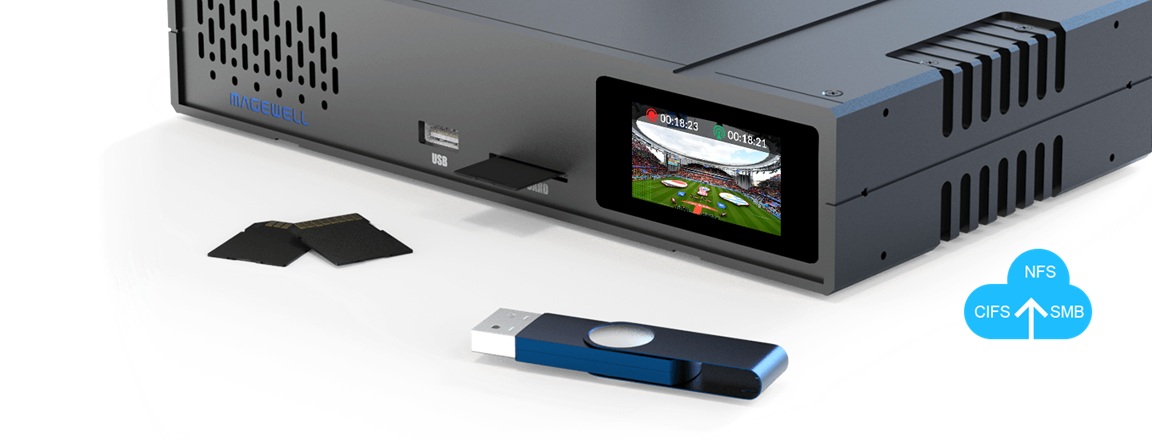

Ultra Encode AIO supports streaming and recording simultaneously. Inputs can be recorded as files to an SD card or an external, USB-connected storage device or networked storage (NFS, CIFS or SMB).

Magewell Ultra Encode AIO

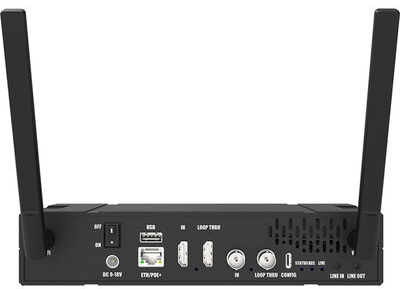

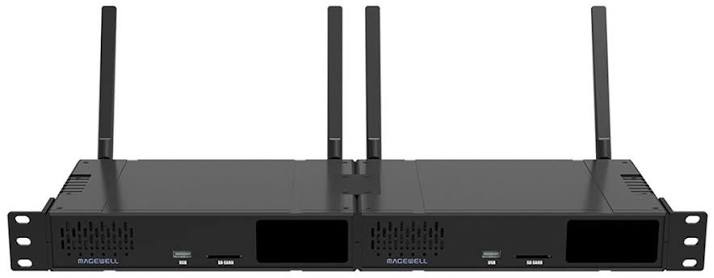

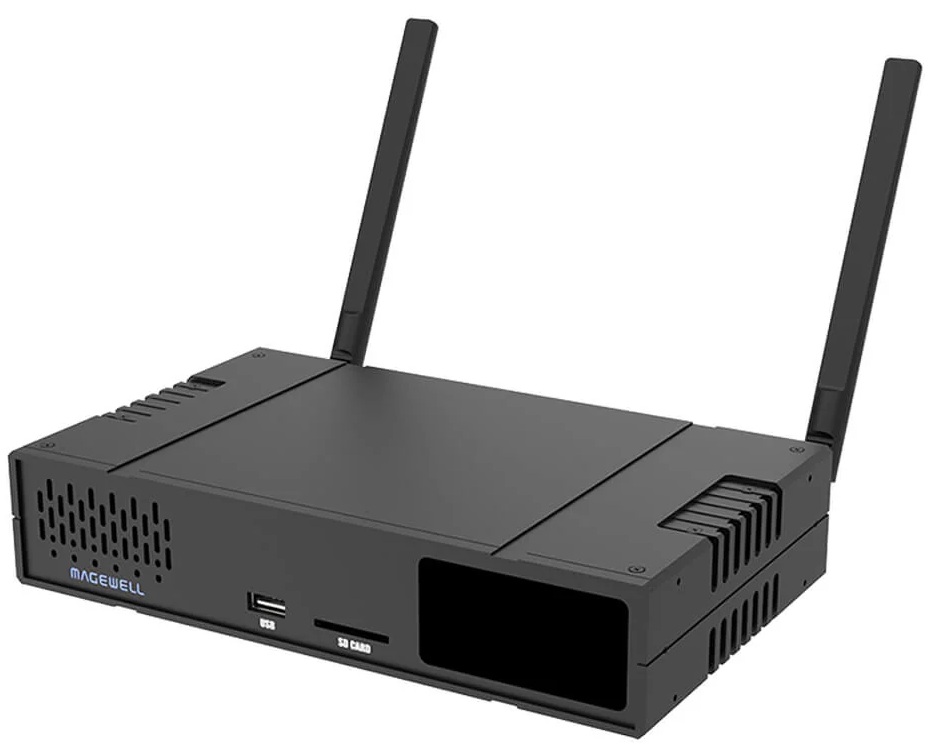

The Magewell Ultra Encode AIO is a professional all-in-one live media encoder that combines HDMI and SDI inputs in a single rack-mountable appliance. It supports 4K UHD encoding, dual-input video mixing (Picture-in-Picture or Side-by-Side), simultaneous multi-protocol streaming, recording, NDI® HX2/HX3, advanced overlays, and enterprise remote management. It is designed for broadcast, live events, corporate AV, education, houses of worship, and IP production workflows.

General Information

Video Interface

HDMI

• 1 × HDMI input
• 1 × HDMI loop-through output
• HDMI 1.4a / DVI-D compatible
• Custom EDID support

Maximum HDMI Input

• Up to 4096 × 2160 @ 60 fps

SDI

• 1 × SDI input
• 1 × SDI loop-through output
• Supports SD-SDI, HD-SDI, 3G-SDI, and 6G-SDI

Maximum SDI Input

• Up to 4096 × 2160 @ 30 fps

Video Processing

• Encode HDMI or SDI individually
• Mix HDMI and SDI together
• Picture-in-Picture (PiP)
• Side-by-Side layouts
• Custom layouts and scaling

These dual-input mixing capabilities are a key differentiator of the AIO model.

Audio

Embedded Audio

SDI

• Up to 16 channels
• 24-bit / 192 kHz

HDMI

• Up to 8 channels
• 24-bit / 192 kHz

Analog Audio

• 3.5 mm Line In
• 3.5 mm Line Out

Audio Features

• Audio channel mapping
• Multi-stream AAC encoding
• Audio monitoring through Line Out

Encoding Performance

Video Codecs

• H.264 (AVC)
• H.265 (HEVC)
• NDI® HX2
• NDI® HX3

Audio Codec

• AAC

Dual Stream Encoding

• Main Stream
• Sub Stream

Maximum Encoding Resolution

• 4096 × 2160 @ 30 fps

Maximum Bitrate

• Up to 32 Mbps (standard protocols)
• Up to 62 Mbps for NDI® HX3

Additional Encoding Features

• Rotation (0°, 90°, 180°, 270°)
• Cropping
• Aspect ratio conversion
• Closed-caption support (SDI)
• Timecode support (SDI)

Streaming Protocols

Supports simultaneous streaming using:

• RTMP
• RTMPS
• RTSP
• RTP
• SRT (Caller, Listener, Rendezvous)
• HLS
• MPEG-TS over UDP
• MPEG-TS over RTP
• RIST
• Zixi
• TVU ISSP
• HTTP
• NDI® HX2
• NDI® HX3

Streaming Features

• Up to 6 simultaneous streaming sessions
• Streaming scheduler
• Native streaming to YouTube, Facebook Live, and Twitch
• Automatic reconnect

Recording

Supports recording to:

• SD card
• USB flash drive
• USB SSD/HDD
• Network Attached Storage (NFS/CIFS)

Recording Formats

• MP4
• MOV
• TS

Recording Features

• Simultaneous streaming and recording
• Recording scheduler
• Loop recording
• Automatic upload to remote storage
• File splitting
• Recording management through Web UI

Network Connectivity

• Gigabit Ethernet (10/100/1000 Mbps)
• PoE+ (IEEE 802.3at)
• Wi-Fi 802.11 a/b/g/n/ac
• USB networking
• Optional 4G/5G USB modem support

Management and Control

Configuration methods include:

• Built-in Web UI
• Magewell Control Hub
• HTTP API
• Zixi ZEN Master integration
• 1.9-inch color LCD touchscreen

Management capabilities include:

• Live preview
• Encoder configuration
• Stream control
• Recording management
• Overlay configuration
• Firmware updates
• Device diagnostics
• Network management

Advanced Features

• HDMI + SDI dual-input support
• Picture-in-Picture
• Side-by-Side layouts
• Up to 8 overlays per stream
  • Text
  • Images
  • Logos
  • Clock
• NDI® HX2/HX3
• Closed captions
• Timecode support
• Low-latency encoding
• Scheduling
• Automatic reconnect
• Enterprise fleet management
• HTTP API integration

Power

Package Contents

• Magewell Ultra Encode AIO
• Screw-locking DC power adapter
• 2 × Wi-Fi antennas
• HDMI cable
• USB cable

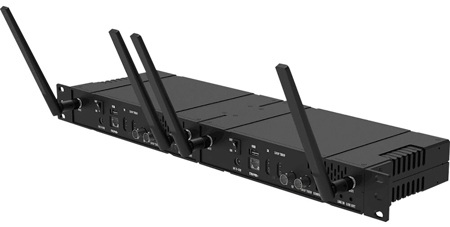

• Rack-mount ears and mounting hardware
• Quick Start Guide

Typical Applications

• Broadcast contribution
• Live television production
• Multi-camera streaming
• Corporate AV
• House of worship
• Sports broadcasting
• Remote production
• Online education
• Government streaming
• Medical imaging
• Enterprise AV-over-IP
• NDI production workflows
