Description

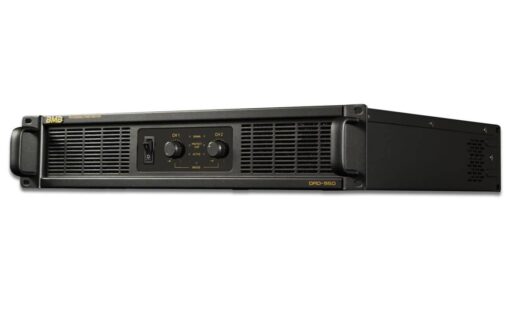

DAD Series
Standard power amplifier for PA speaker.
Circuit safety protection will prevent damage in case of accident.
Case size is standard 2U.
Switch 2 type of output system. (Stereo / Bridge)
- Designed for PA speaker.
- High power, 1800W x 1ch. (DAD-950)

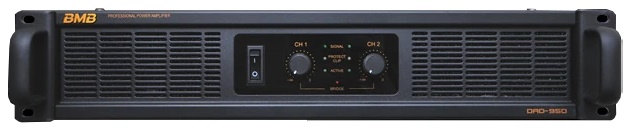

DAD-950
| DAD-950 (SE) | |
|---|---|
| Rating Output Power 1kHz THD=@1% |
1200W×2CH(4Ω):stereo mode 950W×2CH(8Ω):stereo mode 1800W×1CH(8Ω);bridge mode |
| Frequency Characteristic(20Hz～20kHz、8Ω) | ±0.3dB |
| THD(8Ω,1kHz) | 0.02% |
| SN Ratio | 105dB over |
| Damping factor(100Hz 8Ω) | 250 over |
| Voltage Gain | 40±2dB |
| Channel Separation(20Hz～1000Hz 8Ω) | 85dB over |
| Input Impedance | 20kΩ(balance) |
| Audio Input Connectors | XLR type×2CH |

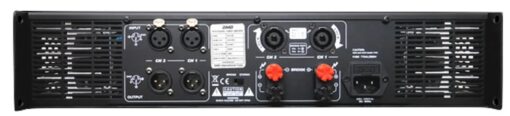

| Output Connectors | Neutrik SpeakON® NL4MP(1+/1-) Screw type(+/-) |
| HPF Switch | 50Hz/PASS |
| Ground Switch | GND/FLOAT |
| AC Input | 220V～240V(50/60Hz) |
| Power Consumption(1/8 Output Pink noise 8Ω) | 3000W |
| Cooling Fans | Automatic air volume control fans |
| Dimensions(mm) | 482(W)×89(H)×423(D) |
| Weight | 24.0kg |

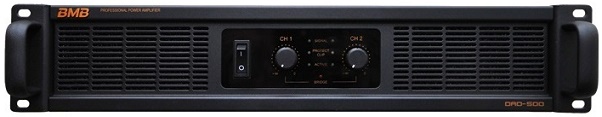

DAD-500
| DAD-500 (SE) | |
|---|---|
| Rating Output Power 1kHz THD=@1% |
700W×2CH(4Ω):stereo mode 500W×2CH(8Ω):stereo mode 1000W×1CH(8Ω):bridge mode |
| Frequency Characteristic(20Hz～20kHz、8Ω) | ±0.3dB |
| THD(8Ω,1kHz) | 0.02% |
| SN Ratio | 103dB over |
| Damping factor(100Hz 8Ω) | 250 over |
| Voltage Gain | 40±2dB |
| Channel Separation(20Hz～1000Hz 8Ω) | 85dB over |
| Input Impedance | 20kΩ(balance) |
| Audio Input Connectors | XLR type×2CH |

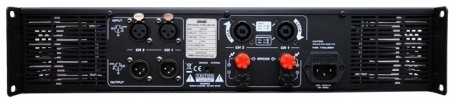

| Output Connectors | Neutrik SpeakON® NL4MP(1+/1-) Screw type(+/-) |
| HPF Switch | 50Hz/PASS |
| Ground Switch | GND/FLOAT |
| AC Input | 220V～240V(50/60Hz) |
| Power Consumption(1/8 Output Pink noise 8Ω) | 1900W |
| Cooling Fans | Automatic air volume control fans |
| Dimensions(mm) | 482(W)×89(H)×423(D) |
| Weight | 19.0kg |
