Description
Available in a variety of sizes.Woofer size 5 to 12 inch ,6 models.
Any combination in different music spaces.(Living room/entertainment room/office/Bar/Coffee shop/KTV…)
The new 4 equal tweeter design, four directions of equal amplification, better balance and better hearing.
Selling point
- Multi-scene use, Flexible combination，New Entertainment Speaker Series.
- Paper Cone made in Japan.

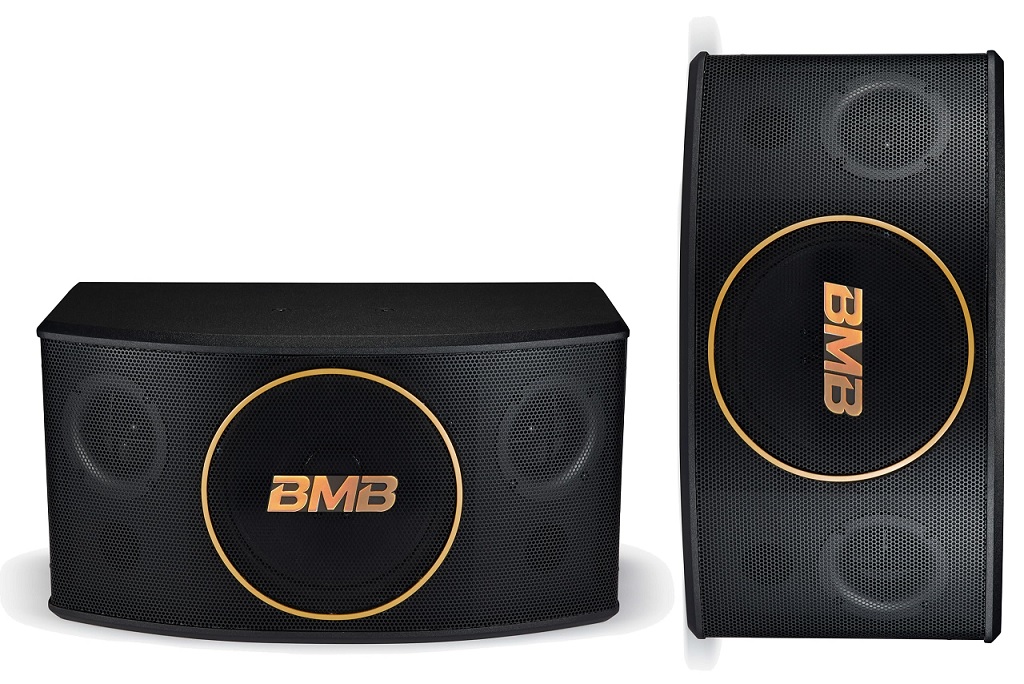

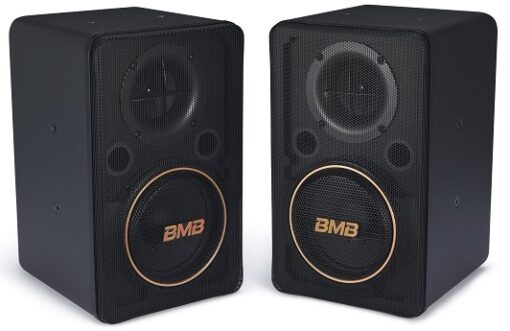

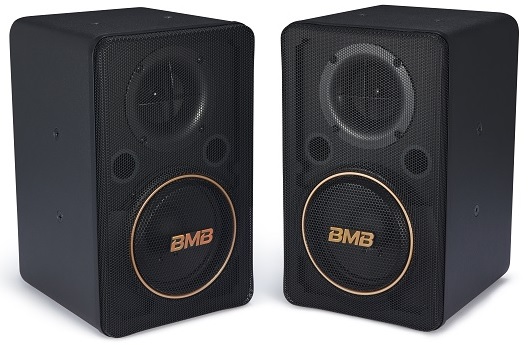

Multiple installation choices (CSJ-06/08)
Supports vertical and horizontal orientation, ceiling mounting, and stand mounting, and rotatable BMB Logo.
Can adapt to both stereo and multi-channel setups with versatile installation options.
Uses a common “easy-to-sing” sound for all applications.
Sound spreads equally in four directions
CSJ Series use 4-directional New Tweeter Horn. Spread out Twitter sound more wide range. It can be u
sed as a center speaker
without distinguishing between left and right channels.

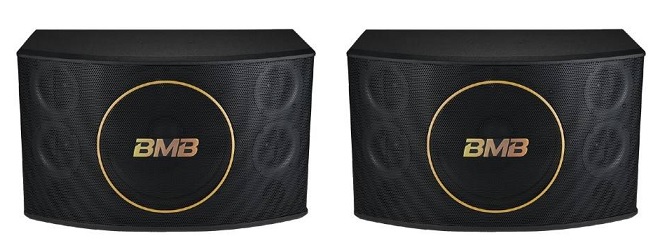

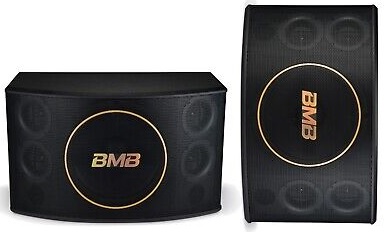

With various sizes
6 models, Woofer size 5 to 12 inch to adapt to any music space.
Utilizing a versatile (multi-channel) structural design.
Create a private Music and Karaoke space with CSJ series.
Paper Cone made in Japan By using a woofer cone paper made in Japan,
Improves the low-frequency range from conventional karaoke speakers achieving a “enveloping sound“ can sing comfortably.
40w built-in amplifier, 4.5-inch compact Bluetooth speaker.
Mic input Echo is included, karaoke is possible.
Can be combined a pair of CSJ-05A by Wireless with TWS function.
Interior design that can be installed vertically or horizontally，Enjoy stereo sound in combination with CSJ-05.
Selling point
- 40w 4.5 inch Bluetooth speaker with Karaoke function.
- TWS wireless link function provides more connection style, fit for various scene.
Karaoke function (CSJ-05A)
“Mic input” “Mic Echo” are equipped.
Can enjoy Karaoke without amplifier.
Wireless link(CSJ-05A)
For stereo use, 2pcs of CSJ-05A can be linked by Wireless link“TWS”function.
Bluetooth connection
Bluetooth pairing with playback device

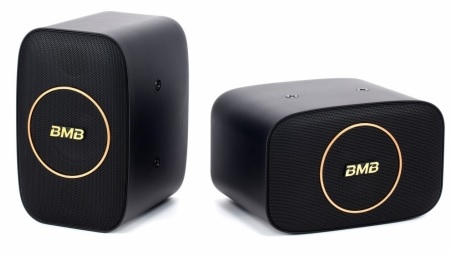

Multiple installation choices
Supports vertical and horizontal set up.
and can be rotated BMB Logo.
| CSJ-05A [5″] |
| System Type |
Full range active speaker |
| Frequency Range(-10dB) *1 |
75Hz-18kHz |
| Power Consumption1 |
40W+40W |
| Dimensions (WxHxD) |
247.5mm x 157mm x 188.6mm (9.7″ x 6.2″ x 7.4″) |
| Shipping Dimensions (WxHxD) |
310mm x 225mm x 250mm (12.2″ x 8.86″ x 9.84″) |
| Net Weight |
3.0kg(6.6Ibs) |
| Shipping Weight |
3.94kg(8.67Ibs) |

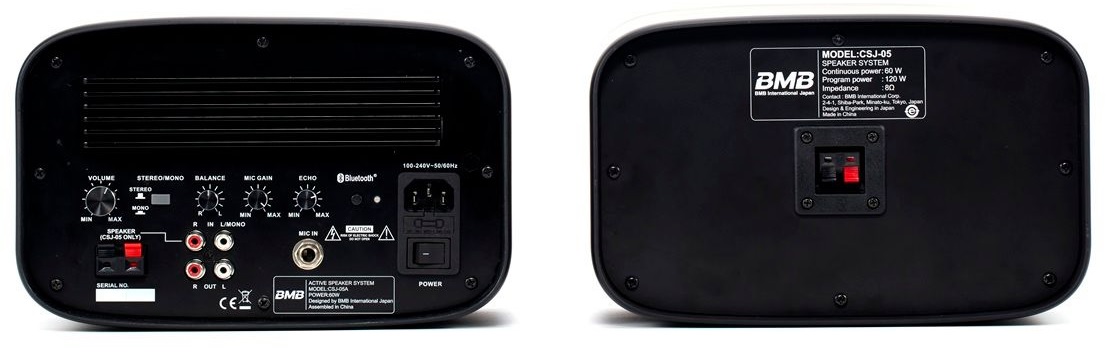

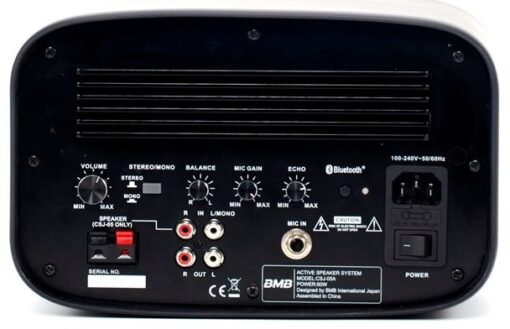

| Connectors |
Audio IN/OUT(RCA)
SPEAKER OUT(CSJ-05 ONLY)
MIC IN (PHONE,UNBALANCED) |
| Speaker Unit |
Full range unit： 116mm（4.5″）Cone 25.5mm（1″）Voice Coil x 1 |

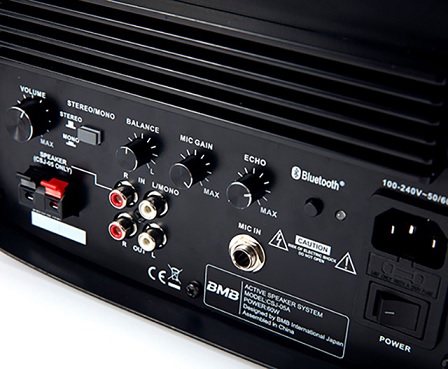

| Controls |
VOLUME
STEREO/MONO
BALANCE
MIC GAIN
ECHO |
| Indicator |
Power ON(Green LED)
Bluetooth ON(Blue LED)/TWS(Green LED) |
| Bluetooth |
Version 5.3
Range : Up to 9m (30ft) |
| Input Voltage |
100-240V/50-60Hz |
| Enclosure Construction |
5mm（0.196″）ABS |
| CSJ-05 [5″] |
| System Type |
Full range speaker |
| Frequency Range(-10dB) *1 |
62Hz-18kHz |
| Sound Pressure Level *2 |
82dB |
| Impedance |
8Ω |
| Power Capacity |
Continuous 60W, Program 120W |
| Dimensions (WxHxD) |
247.5mm x 157mm x 188.6mm(9.7″ x 6.2″ x 7.4″) |
| Shipping Dimensions (WxHxD) |
310mm x 225mm x 256mm(12.2″ x 8.86″ x 9.84″) |
| Net Weight |
2.64kg (5.82lbs) |
| Shipping Weight |
3.34kg (7.36llbs) |

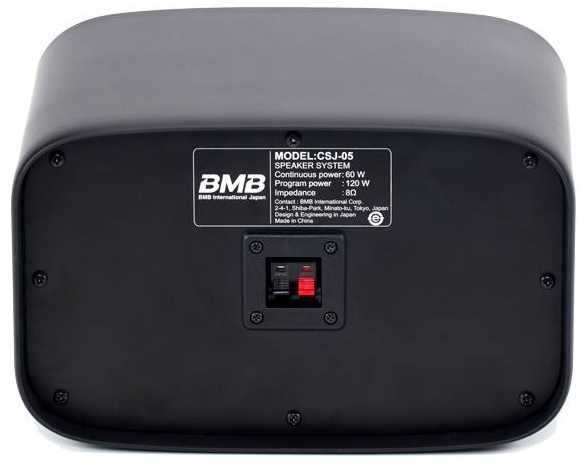

| Input Connectors |
12mm（spacing distance）terminal |
| LF Unit |
116mm(4.5″) Cone, 25.5mm(1″) Voice Coil x 1 |
| Enclosure Construction |
5mm（0.196″）ABS |
