Ortofon 2M Series

TBA

Type Clear

Description

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Each of the 2M Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:

  • 2M Mono SE, 2M Mono and 2M 78 are a true mono cartridges for playing mono vinyl records
  • 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
  • 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details
  • 2M Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements
  • 2M Black is the best of everything, true to the groove with resolution and accurate insight into each recording

The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Step into the music with the 2M Red

With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into music itself. This is our entry-level cartridge in the series, but what an entry.

Featues:
The 2M Red features a tipped Elliptical diamond and split pole pins with a copper wire.
The engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.

Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Red delivers an open, dynamic sound with a slight touch of warmth.

Maintenance Set included the package

2M Red Maintenance Set included the package:

1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7

2M Red Technical data

Output voltage at 1000 Hz, 5cm/sec. – 5.5 mV
Channel balance at 1 kHz – 1.5 dB
Channel separation at 1 kHz – 22 dB
Channel separation at 15 kHz – 15 dB
Frequency response – 20-20.000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force – 70 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Elliptical
Stylus tip radius – r/R 8/18 µm
Tracking force range – 1.6-2.0 g (16-20 mN)
Tracking force, recommended – 1.8 g (18 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 1.3 kOhm
Internal inductance – 700 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 150-300 pF
Cartridge colour, body/stylus – Black/Red
2M standard and 2M Verso cartridges weight – 7.2 g

Replacement stylus unit – 2M Red (interchangeable with 2M Blue and 2M Silver)

Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.

2M Series styli interchangeability:
The 2M Series’ engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
– 2M Red, 2M Blue and 2M Silver
– 2M Bronze, 2M Black and 2M Black LVB 250
– 2M Mono and 2M 78

REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature’s Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm – without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you’re tonearm is ready to play.
3.2 – 4 mm spacers should be enough for 2M cartridge.

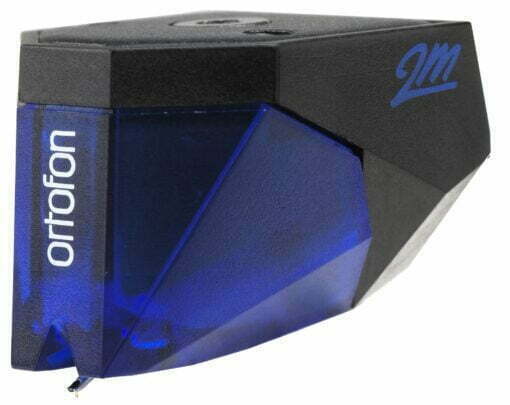

Next level authenticity with the 2M Blue

The goal for any cartridge should be to reproduce the sound as close to the artists vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue you get serious about listening to vinyl.

Features:
The 2M Blue features a Nude Elliptical diamond and split pole pins with a copper wire.

Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.
2M Red Blue maintenence.png
Maintenance Set included the package

2M Blue Maintenance Set included the package:

1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7



2M Blue Technical data

Output voltage at 1000 Hz, 5cm/sec. – 5.5 mV
Channel balance at 1 kHz – 1.5 dB
Channel separation at 1 kHz – 25 dB
Channel separation at 15 kHz – 15 dB
Frequency response – 20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force – 80 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Nude Elliptical
Stylus tip radius – r/R 8/18 µm
Tracking force range – 1.6-2.0 g (16-20 mN)
Tracking force, recommended – 1.8 g (18 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 1.3 kOhm
Internal inductance – 700 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 150-300 pF
Cartridge colour, body/stylus – Black/Blue
Cartridge weight – 7.2 g

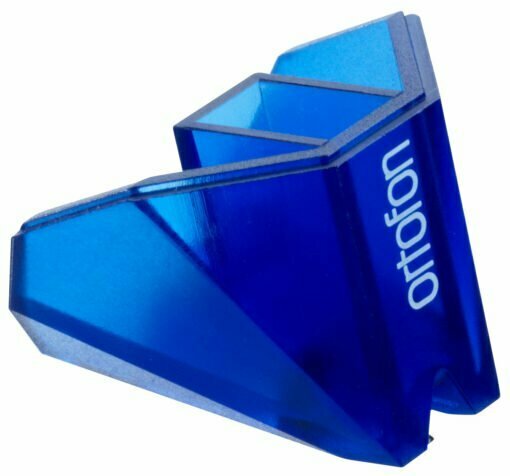

Replacement stylus unit – 2M Blue (interchangeable with 2M Red and 2M Silver)

Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.

2M Series styli interchangeability:
The 2M Series’ engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
– 2M Red, 2M Blue and 2M Silver
– 2M Bronze, 2M Black and 2M Black LVB 250
– 2M Mono and 2M 78

Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature’s Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm – without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you’re tonearm is ready to play.
3.2 – 4 mm spacers should be enough for 2M cartridge.

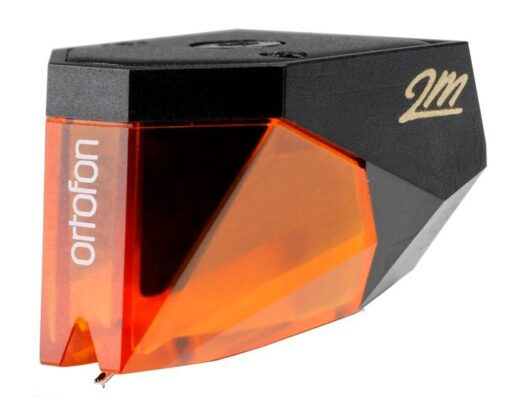

Bona fide precision with the 2M Bronze

To us hi-fi is more than a fancy label. High fidelity is the goal of everything we do. The 2M Bronze is designed to give the music a whole new dimension of precision. Listening to your records with the 2M Bronze is like hearing them for the first time and you get to fall in love with the songs all over. That is what hi-fi means to us and that is what you get with the 2M Bronze.

Features:
The 2M Bronze features a Nude Fine Line diamond, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information. Additionally, its larger footprint ensures reduced distortion and record wear. The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Maintenance Set included the package

2M Bronze Maintenance Set included the package:

1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7
1 x Stylus pressure gauge

*Not all parts from the 2M Bronze Verso package appear in the picture

2M Bronze Technical data

Output voltage at 1000 Hz, 5cm/sec. – 5 mV
Channel balance at 1 kHz – 1 dB
Channel separation at 1 kHz – 26 dB
Channel separation at 15 kHz – 15 dB
Frequency response – 20-20.000 + 2 / – 0 dB
Tracking ability at 315Hz at recommended tracking force – 80 µm
Compliance, dynamic, lateral – 22 µm/mN
Stylus type – Nude Fine Line
Stylus tip radius – r/R 8/40 µm
Tracking force range – 1.4-1.7 g (14-17 mN)
Tracking force, recommended – 1.5 g (15 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 1.2 kOhm
Internal inductance – 630 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 150-300 pF
Cartridge colour, body/stylus – Black/Bronze
Cartridge weight – 7.2 g

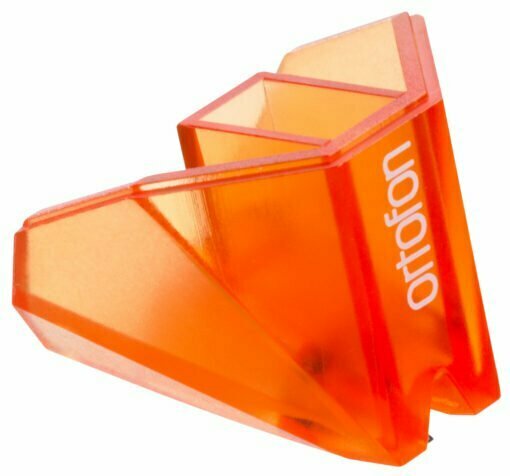

Replacement stylus unit – 2M Bronze (interchangeable with 2M Black and 2M Black LVB 250)

Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.

2M Series styli interchangeability:
The 2M Series’ engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
– 2M Red, 2M Blue and 2M Silver
– 2M Bronze, 2M Black and 2m Black LVB 250
– 2M Mono and 2M 78

Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature’s Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm – without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you’re tonearm is ready to play.
3.2 – 4 mm spacers should be enough for 2M cartridge.

2M Black – True to the groove

The 2M Black is the flagship of the series and it lives up to this with flying colors. The Shibata diamond gives it contact with the groove like nothing else. You can hear every little detail in the music from every part of the spectrum. Just the way the artist wanted you to. For those who want to sense the presence of the artist in the room when they listen to their records.

Features:
The 2M Black is graced with a Shibata diamond which slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information. The 2M Black uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Maitenance Set included the package

2M Black Maintenance Set included the package:

Stylus brush, carbon fibre
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7
1 x Stylus pressure gauge



2M Black Technical data

Output voltage at 1000 Hz, 5cm/sec. – 5 mV
Channel balance at 1 kHz – 1 dB
Channel separation at 1 kHz – 26 dB
Channel separation at 15 kHz – 15 dB
Frequency response – 20-20.000 + 2 / – 0 dB
Tracking ability at 315Hz at recommended tracking force – 80 µm
Compliance, dynamic, lateral – 22 µm/mN
Stylus type – Nude Shibata
Stylus tip radius – r/R 6/50 µm
Tracking force range – 1.4-1.7 g (14-17 mN)
Tracking force, recommended – 1.5 g (15 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 1.2 kOhm
Internal inductance – 630 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 150-300 pF
Cartridge colour, body/stylus – Black/Black
Cartridge weight – 7.2 g

Replacement stylus unit – 2M Black (interchangeable with 2M Bronze and 2M Black LVB 250)

Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.

2M Series styli interchangeability:
The 2M Series’ engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
– 2M Red, 2M Blue and 2M Silver
– 2M Bronze, 2M Black and 2m Black LVB 250
– 2M Mono and 2M 78
