Cinema Studio Roll out the red carpet for the newest addition to the APERION® family – Theatrus – coming to a home theater near you! Theatrus brings home the full-sized Cinematic experience, engineered to perfection to produce impressive volume levels, without compromising high-resolution sound quality. Also designed for professional music studios and film production facilities, the Theatrus speakers are the evolution and next generation of Aperion engineering. The Theatrus line features the APERION® AMT Ribbon Tweeter, APERION® Dual Soft-Dome Mid-Range Drivers, and APERION® Dual Curv™ Woofers all linked to a high-efficiency crossover network. Tailor the sound to your space with the speakers rear frequency adjustments for installation and placement behind screens – then relax, sit back and enjoy the show.
https://youtu.be/Q7jbiHyLUFY

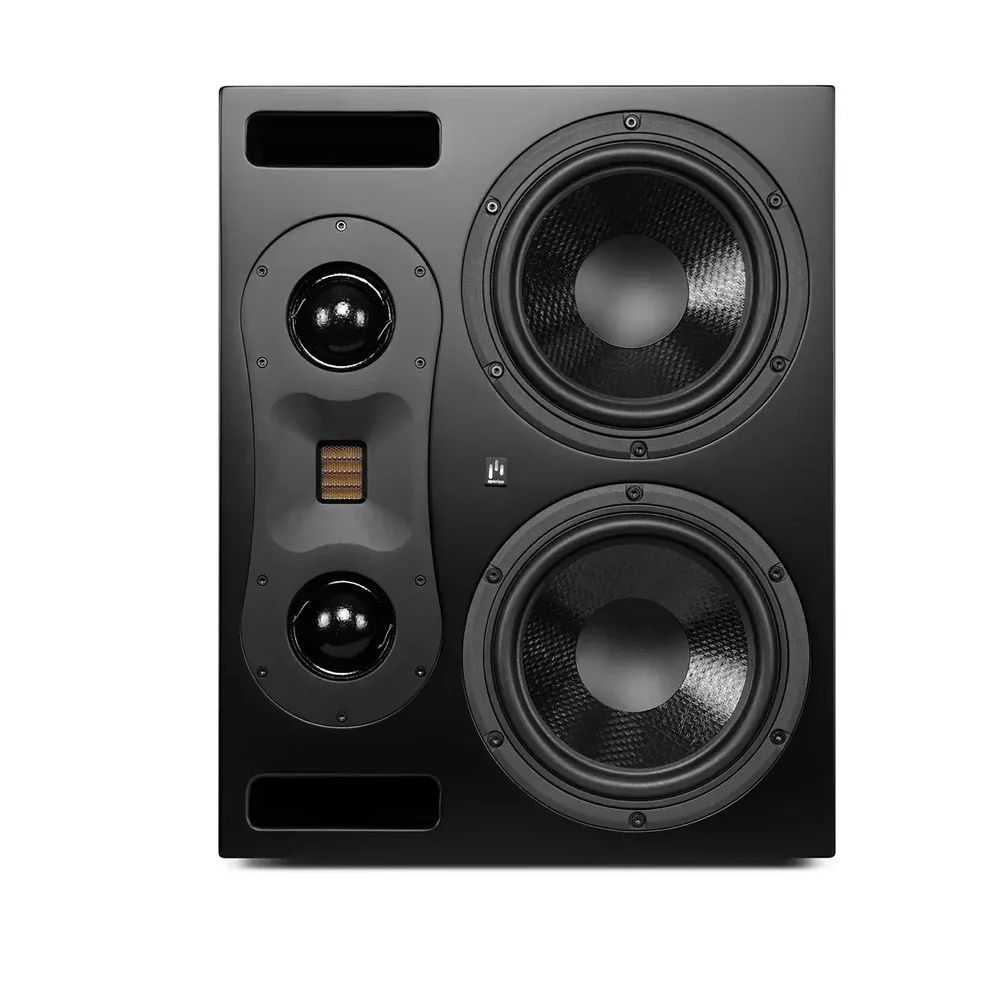

The T80 is a 3-Way design, featuring an array of five (5) drivers, which fuses into a superforce of sound quality that is designed for home theater, custom installation, professional music studios, and film studios. It’s not all about sound though, the speaker has a clean and smooth appearance. The Aperion crafted AMT Haier Ribbon Tweeter, and Dual 2-inch Soft-Dome Mid-Range Drivers are housed in a custom designed aluminum faceplate. Enhanced low end is produced by Dual 8″ Woofers which were crafted from German Propex Fabrics Curv material. The T80 offers higher sound pressure levels, suitable for larger listening environments. High-Efficiency plus High-Power makes for an explosively wide sound field. Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Placed On-wall, In-Wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speakers can be arranged vertically or horizontally, dependent on the application. Along with the integrated mounting inserts are two frequency tuning switch options on the rear of the speaker for even greater placement flexibility. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.
Features
APERION AMT (Air Motion Transformer) Ribbon Tweeter
APERION 2″ Soft-Dome Fabric Mid-Range Drivers x 2
APERION 8″ Curv Cone Woofers x 2
Optimized Crossover Network with Mylar and Polypropylene Capacitors
Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
Rear Adjustment Bass-Frequency Compensation for On-Wall or In-Wall Placement
Anti-Resonant Cabinet
Rear Premounted Insert Threads for Easy Installation
5-Way Gold Plated Binding Posts
Magnetic Acoustically Transparent Grille Cloth
Rotatable Logo – Easy-Pull Spring-Loaded (On Cabinet) or Magnetic (On Grille)
Specification
Frequency Response:
(+/- 3dB) 30-35,000 Hz
Impedance:
4 Ohms
Sensitivity:
94 dB
Recommended Power:
20-350 Watts
Peak Power:
700 Watts
Tweeter:
One AMT (Air Motion Transformer) Tweeter
Midrange:
Two German 2″ Soft-Dome Fabric Mid-Range Drivers
Woofer:
Two German 8″ Curv® Cone Woofers
Driver Configuration:
3-Way Five Drivers
Enclosure Type:
Ported w/ Optional Port Plugs, Anti-Resonant, Internally Braced
Product Weight:
50 lbs/ 21.3 Kgs
Product Dimensions:
(W/H/D) 15.75 x 19.7 x 11.8 inch / 400 x 500 x 300 mm (Without Grilles)
Placement Location:
Main Speakers (Left, Center, Right)
Shipping Weight:
56.2 Lbs / 25.5 Kgs
Shipping Dimensions:
(W/H/D) 21 x 27 x 19 inch / 535 x 670 x 480 mm

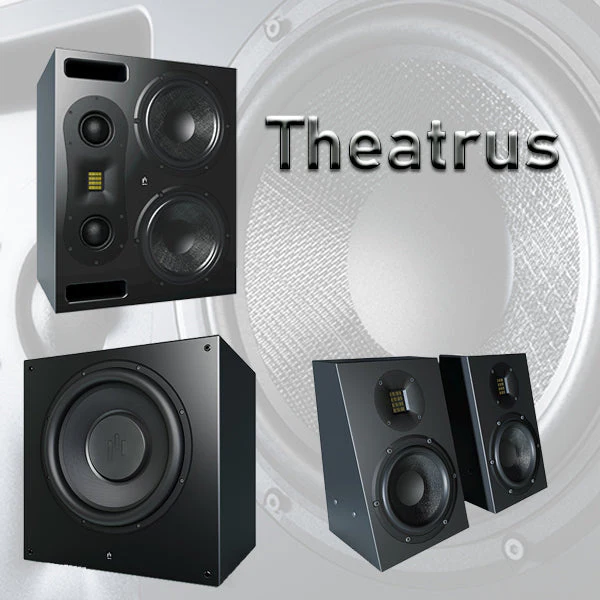

Roll out the red carpet for the newest addition to the Aperion family – Theatrus – coming to a home theater near you!
APERION Theatrus brings home the full-sized Cinematic experience, engineered to perfection to produce impressive volume levels, without compromising high-resolution sound quality.
Also designed for professional music studios and film production facilities, the Theatrus speakers are the evolution and next generation of Aperion engineering.
The Theatrus line features the APERION® AMT Ribbon Tweeter, Dual Soft-Dome Mid-Range Drivers, and Dual Curv™ Woofers all linked to a high-efficiency crossover network.
Tailor the sound to your space with the speakers rear frequency adjustments for installation and placement behind screens – then relax, sit back and enjoy the show.

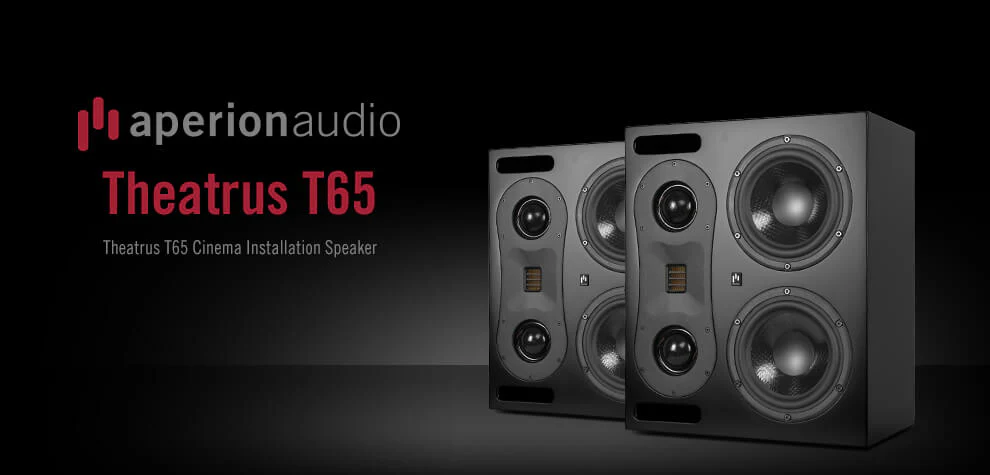

The T65 is a 3-Way design, featuring an array of five (5) drivers, which fuses into a superforce of sound quality that is designed for home theater, custom installation, professional music studios, and film studios. It’s not all about sound though, the speaker has a clean and smooth appearance. The Aperion crafted AMT Haier Ribbon Tweeter, and Dual 2-inch Soft-Dome Mid-Range Drivers are housed in a custom designed aluminum faceplate. Enhanced low end is produced by Dual 6.5″ Woofers which were crafted from German Propex Fabrics Curv material. The T65 offers higher sound pressure levels, suitable for larger listening environments. High-Efficiency plus High-Power makes for an explosively wide sound field. Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Placed On-wall, In-Wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speakers can be arranged vertically or horizontally, dependent on the application. Along with the integrated mounting inserts are two frequency tuning switch options on the rear of the speaker for even greater placement flexibility. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.
Features
APERION AMT (Air Motion Transformer) Ribbon Tweeter
APERION 2″ Soft-Dome Fabric Mid-Range Drivers x 2
APERION 6.5″ Curv Cone Woofers x 2
Optimized Crossover Network with Mylar and Polypropylene Capacitors
Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
Rear Adjustment Bass-Frequency Compensation for On-Wall or In-Wall Placement
Anti-Resonant Cabinet
Rear Premounted Insert Threads for Easy Installation
5-Way Gold Plated Binding Posts
Magnetic Acoustically Transparent Grille Cloth
Rotatable Logo – Easy-Pull Spring-Loaded (On Cabinet) or Magnetic (On Grille)
Specification
Frequency Response:
(+/- 3dB) 35-35,000 Hz
Impedance:
4 Ohms
Sensitivity:
94 dB
Recommended Power:
20-250 Watts
Peak Power:
500 Watts
Tweeter:
One Aperion AMT (Air Motion Transformer) Tweeter
Midrange:
Two German 2″ Soft-Dome Fabric Mid-Range Drivers
Woofer:
Two German 6.5″ Curv® Cone Woofers
Driver Configuration:
3-Way Five Drivers
Enclosure Type:
Ported w/ Optional Port Plugs, Anti-Resonant, Internally Braced
Product Weight:
33 Lbs / 15 Kgs
Product Dimensions:
(W/H/D): 14 x 17 x 8.7 inch / 360 x 430 x 220 mm (Without Grilles)
Placement Location:
Main Speakers (Left, Center, Right)
Shipping Weight:
39.7 Lbs / 18 Kgs
Shipping Dimensions:
(W/H/D): 20 x 23.6 x 15.5 inch / 505 x 600 x 395 mm
https://youtu.be/dKHZv7KkB8M

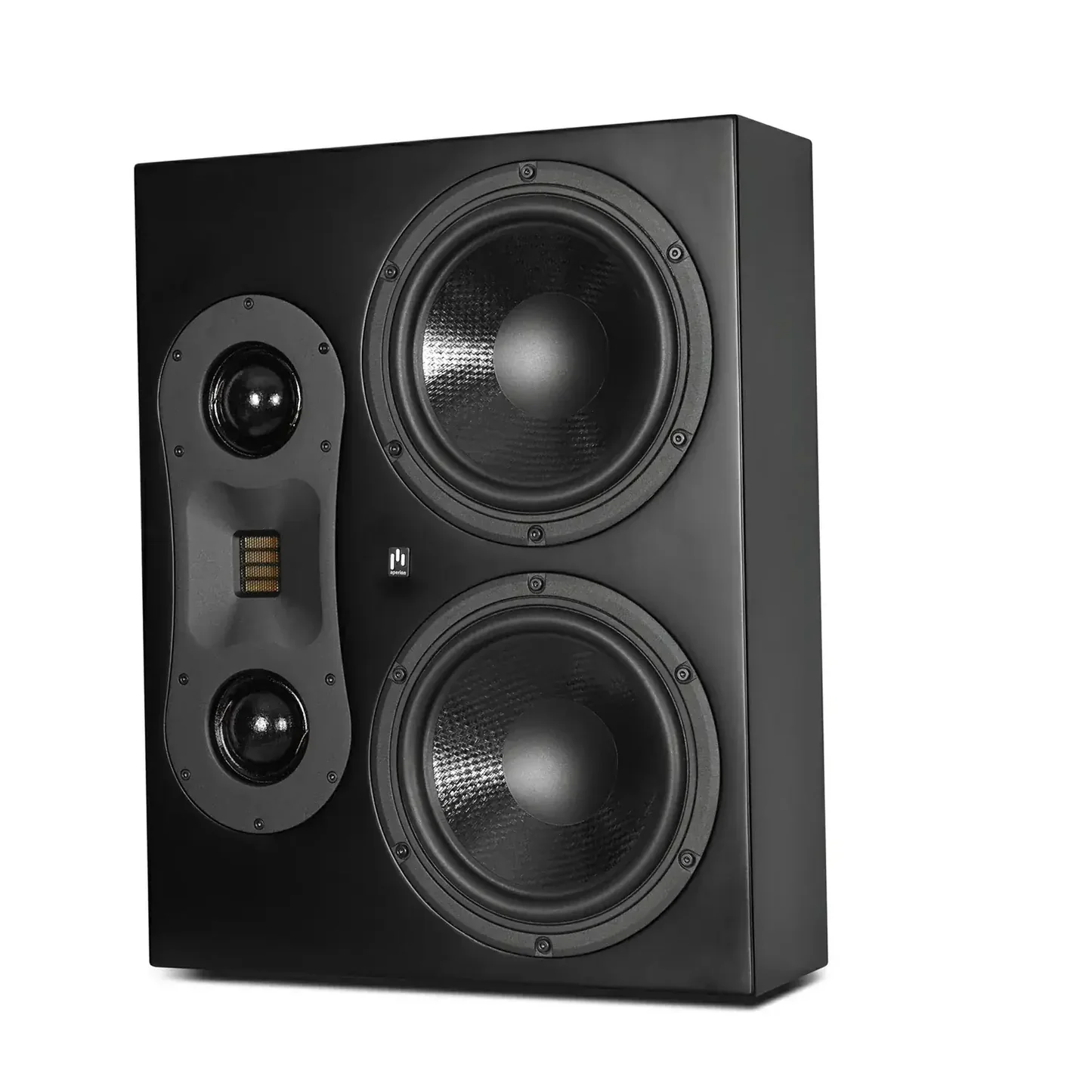

The T80S is a 3-Way design, featuring an array of five (5) drivers, which fuses into a superforce of sound quality that is designed for home theater, custom installation, professional music studios, and film studios. It’s not all about sound though, the speaker has a clean and smooth appearance. The Aperion crafted AMT Haier Ribbon Tweeter, and Dual 2-inch Soft-Dome Mid-Range Drivers are housed in a custom designed aluminum faceplate. Enhanced low end is produced by Dual 8″ Woofers which were crafted from German Propex Fabrics Curv material. The T80S offers higher sound pressure levels, suitable for larger listening environments. High-Efficiency plus High-Power makes for an explosively wide sound field. Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Placed On-wall, In-Wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speakers can be arranged vertically or horizontally, dependent on the application. Along with the integrated mounting inserts are two frequency tuning switch options on the rear of the speaker for even greater placement flexibility. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.
Features
APERION AMT (Air Motion Transformer) Ribbon Tweeter
APERION 2″ Soft-Dome Fabric Mid-Range Drivers x 2
APERION 8″ Curv Cone Woofers x 2
Optimized Crossover Network with Mylar and Polypropylene Capacitors
Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
Rear Adjustment Bass-Frequency Compensation for On-Wall or In-Wall Placement
Anti-Resonant Cabinet
Rear Premounted Insert Threads for Easy Installation
5-Way Gold Plated Binding Posts
Magnetic Acoustically Transparent Grille Cloth
Easy-Pull Spring-Loaded Rotatable Logo
Specification
Frequency Response:
(+/- 3dB) 60-35,000 Hz
Impedance:
4 Ohms
Sensitivity:
94 dB
Recommended Power:
20-350 Watts
Peak Power:
700 Watts
Tweeter:
One AMT (Air Motion Transformer) Tweeter
Midrange:
Two German 2″ Soft-Dome Fabric Mid-Range Drivers
Woofer:
Two German 8″ Curv® Cone Woofers
Driver Configuration:
3-Way Five Drivers
Enclosure Type:
Sealed Cabinet, Anti-Resonant, Internally Braced
Product Weight:
35.7 Lbs / 16.2 Kgs
Product Dimensions:
(W/H/D): 15.7 x 19.7 x 5 inch / 400 x 500 x 130 mm (Without Grilles)
Placement Location:
Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers
Shipping Weight:
42.8 Lbs / 19.4 Kgs
Shipping Dimensions:
(W/H/D) 20.5 x 25.4 x 11.6 inch / 520 x 645 x 295 mm

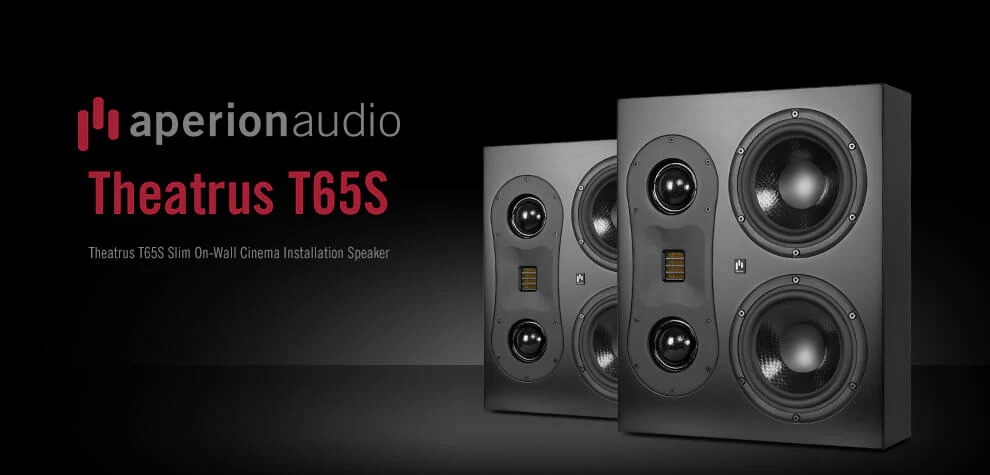

The T65S is a 3-Way design, featuring an array of five (5) drivers, which fuses into a superforce of sound quality that is designed for home theater or custom installation, professional music studios, and film studios. It’s not all about sound though, the speaker has a clean and smooth appearance. The Aperion crafted AMT Haier Ribbon Tweeter, and Dual 2-inch Soft-Dome Mid-Range Drivers are housed in a custom designed aluminum faceplate. Enhanced low end is produced by Dual 6.5″ Woofers which were crafted from German Propex Fabrics Curv material. The T65S offers higher sound pressure levels, suitable for larger listening environments. High-Efficiency plus High-Power makes for an explosively wide sound field. Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Placed On-wall, In-Wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speakers can be arranged vertically or horizontally, dependent on the application. Along with the integrated mounting inserts are two frequency tuning switch options on the rear of the speaker for even greater placement flexibility. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.
Features
APERION AMT (Air Motion Transformer) Ribbon Tweeter
APERION 2″ Soft-Dome Fabric Mid-Range Drivers x 2
APERION 6.5″ Curv Cone Woofers x 2
Optimized Crossover Network with Mylar and Polypropylene Capacitors
Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
Rear Adjustment Bass-Frequency Compensation for On-Wall or In-Wall Placement
Anti-Resonant Cabinet
Rear Premounted Insert Threads for Easy Installation
5-Way Gold Plated Binding Posts
Magnetic Acoustically Transparent Grille Cloth
Easy-Pull Spring-Loaded Rotatable Logo
Specification
Frequency Response:
(+/- 3dB) 65-35,000 Hz
Impedance:
4 Ohms
Sensitivity:
94 dB
Recommended Power:
20-250 Watts
Peak Power:
500 Watts
Tweeter:
One AMT (Air Motion Transformer) Tweeter
Midrange:
Two German 2″ Soft-Dome Fabric Mid-Range Drivers
Woofer:
Two German 6.5″ Curv® Cone Woofers
Driver Configuration:
3-Way Five Drivers
Enclosure Type:
Sealed Cabinet, Anti-Resonant, Internally Braced
Product Weight:
26.5 Lbs/ 12 Kgs
Product Dimensions:
(W/H/D) 14 x 17 x 4.3 inch / 360 x 430 x 110 mm (Without Grilles)
Placement Location:
Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers
Shipping Weight:
33 Lbs / 15 Kgs
Shipping Dimensions:
(W/H/D) 19 x 23 x 11 inch / 485 x 580 x 275 mm

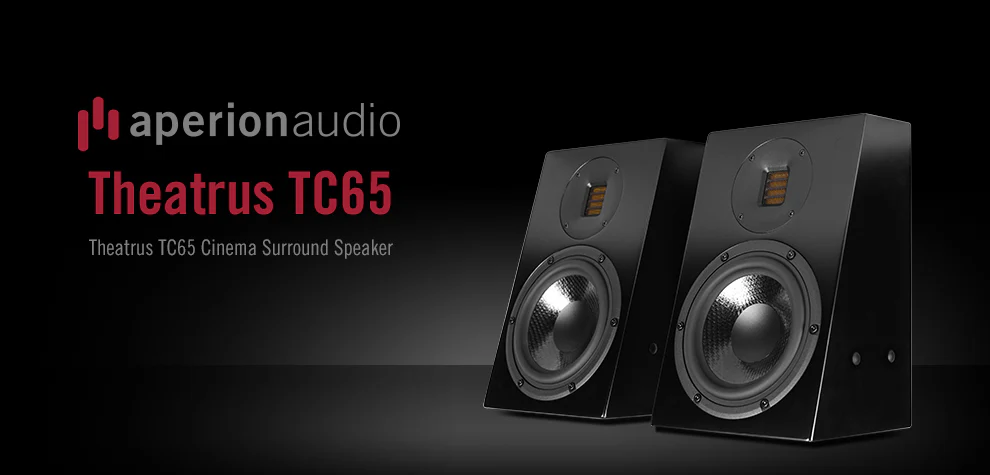

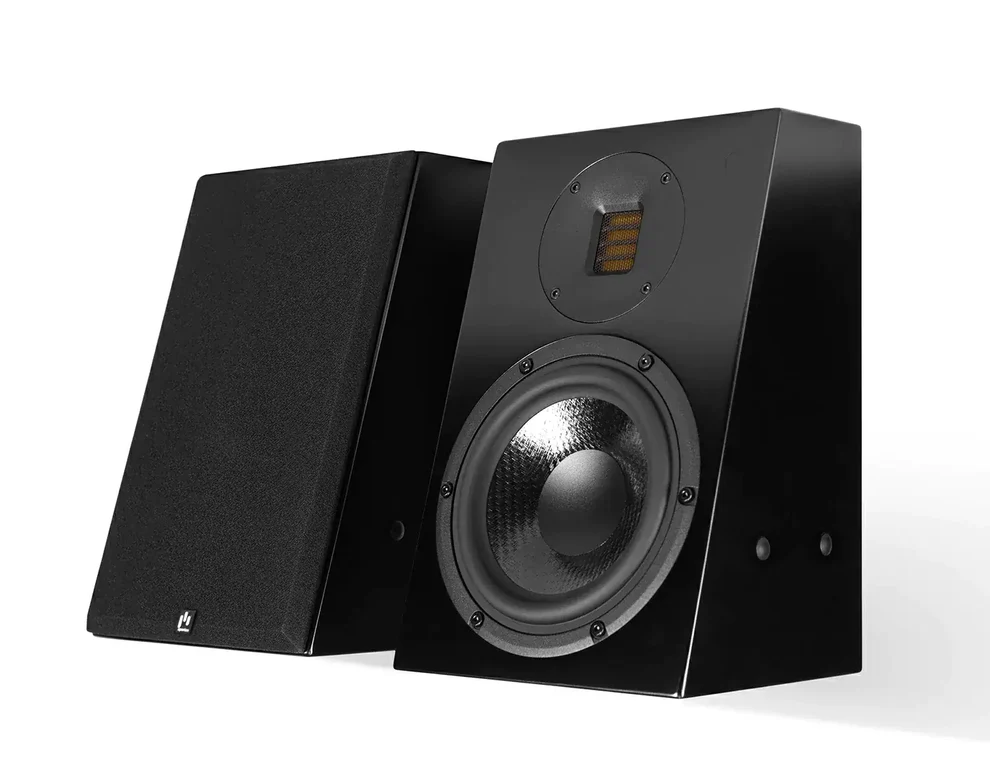

The APERION TC65 is a 2-Way design, which fuses into a superforce of sound quality that is designed for home theater, custom installation, professional music studios, and film studios. It’s not all about sound though, the speaker has a clean and smooth appearance. High frequency is reproduced brilliantly wtih the Aperion crafted AMT Haier Ribbon Tweeter, and enhanced midrange and low end is produced by Dual 6.5″ Woofers which were crafted from German Propex Fabrics Curv material. The TC65 offers higher sound pressure levels, suitable for larger listening environments. High-Efficiency plus High-Power makes for an explosively wide sound field. Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Placed On-wall, In-Wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speakers can be arranged vertically or horizontally, dependent on the application. Along with the integrated mounting inserts are two frequency tuning switch options on the rear of the speaker for even greater placement flexibility. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.
Key Features
APERION AMT (Air Motion Transformer) Ribbon Tweeter
APERION 6.5″ Curv Cone Woofers
Optimized Crossover Network with Mylar and Polypropylene Capacitors
Anti-Resonant Cabinet
Rear Insert Threads for Easy Installation
5-Way Gold Plated Binding Posts
Magnetic Acoustically Transparent Grille Cloth
Magnetic Rotatable Logo
Specification
Frequency Response:
(+/- 3dB) 80-35,000 Hz
Impedance:
4 Ohms
Sensitivity:
88 dB
Recommended Power:
20-100 Watts
Peak Power:
200 Watts
Tweeter:
One AMT (Air Motion Transformer) Tweeter
Woofer:
One German 6.5″ Curv® Cone Woofer
Driver Configuration:
2-Way
Enclosure Type:
Sealed Cabinet, Anti-Resonant, Internally Braced
Product Weight:
11 Lbs / 5 Kgs each
Product Dimensions:
(W/H/D): 7.9 x 12 x 6.7/3.1 inch / 200 x 305 x 170/80 mm (Without Grilles)
Placement Location:
Rear/Side Surround Or Height/Ceiling Speakers
Shipping Weight:
28.7 Lbs / 13 Kgs
Shipping Dimensions:
(W/H/D) 16 x 13 x 19.5 inch / 415 x 340 x 495 mm

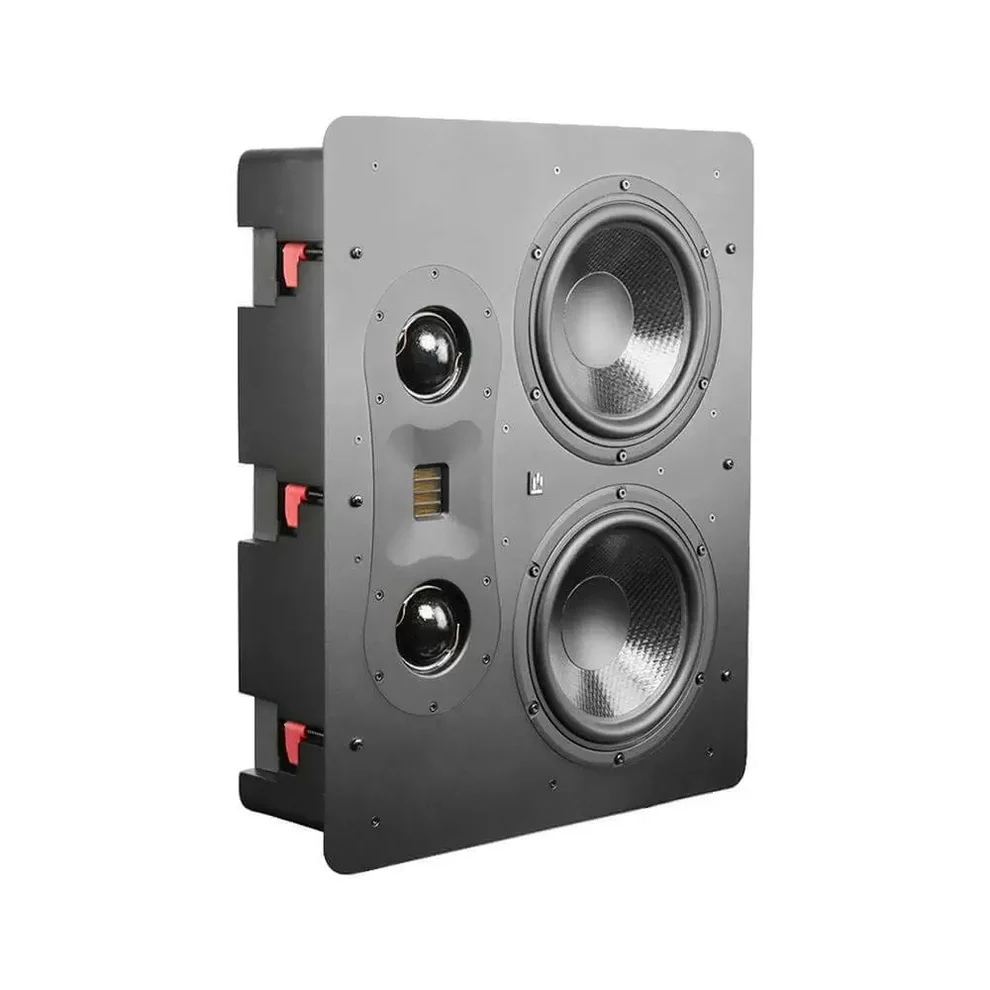

The APERION T80W is a 3-Way design In-Wall Speaker, featuring an array of five (5) drivers, which fuses into a superforce of sound quality that is designed for home theater, custom installation, professional music studios, and film studios. It’s not all about sound though, the speaker has a clean and smooth appearance.
The Aperion crafted AMT Haier Ribbon Tweeter, and Dual 2-inch Soft-Dome Mid-Range Drivers are housed in a custom designed aluminum faceplate. Enhanced low end is produced by Dual 8″ Woofers which were crafted from German Propex Fabrics Curv material. The T80W offers higher sound pressure levels, suitable for larger listening environments. High-Efficiency plus High-Power makes for an explosively wide sound field. Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Placed On-wall, In-Wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area.
The speakers can be arranged vertically or horizontally, dependent on the application. Along with the integrated mounting inserts are two frequency tuning switch options on the rear of the speaker for even greater placement flexibility. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.
Features
APERION AMT (Air Motion Transformer) Ribbon Tweeter
APERION Dual 2″ Soft-Dome Mid-range Drivers
APERION Dual 8″ Curv Cone Woofers
Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
Rear Adjustment Bass-Frequency Compensation for On-Wall or In-Wall Placement
APERION® Customized Internal Wiring
Optimized Crossover Network with Mylar and Polypropylene Capacitors
Rotatable Logo – Easy-Pull Spring-Loaded (On Cabinet) or Magnetic (On Grille)
Custom tuned cabinet
Specification
Frequency Response:
(+/- 3dB) 60-35,000 Hz
Impedance:
4 Ohms
Sensitivity:
94 dB
Recommended Power:
20-350 Watts
Peak Power:
700 Watts
Tweeter:
One AMT (Air Motion Transformer) Tweeter
Midrange:
Two German 2″ Soft-Dome Fabric Mid-Range Drivers
Woofer:
Two German 8″ Curv® Cone Woofers
Driver Configuration:
3-Way 8″ Backbox In-Wall Speaker
Enclosure Type:
Sealed Cabinet
Product Weight:
40 Lbs/18.2 Kg
Product Dimensions:
21″ x 17.3″ x 5.2″ / 540 x 440 x 132mm (HxWxD)
Cut-out Dimensions:
20″ x 16″ x 5.1″ / 506 x 406 x 130mm (HxWxD)
Placement Location:
Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers
Shipping Weight:
46.5 Lbs/ 21.1 Kgs
Shipping Dimensions:
26″ x 12″ x 20″/650x300x515 mm (H/W/D)

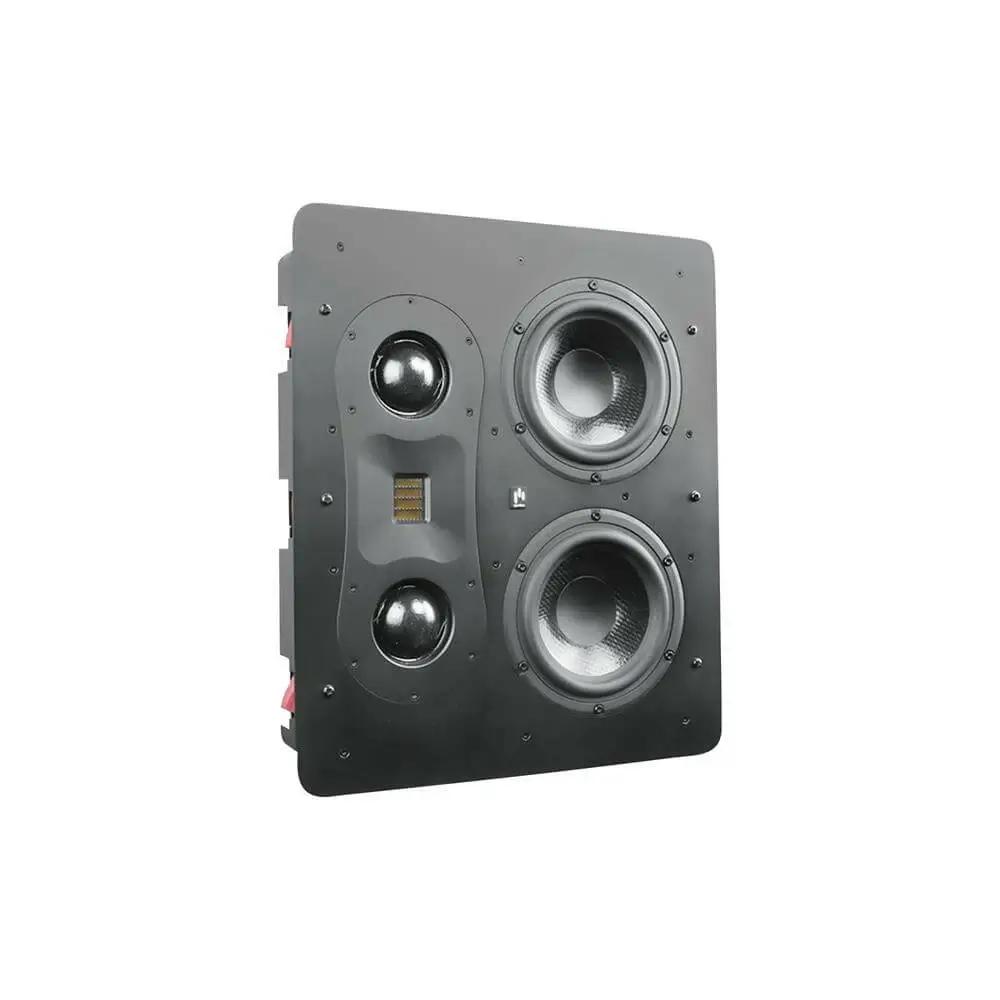

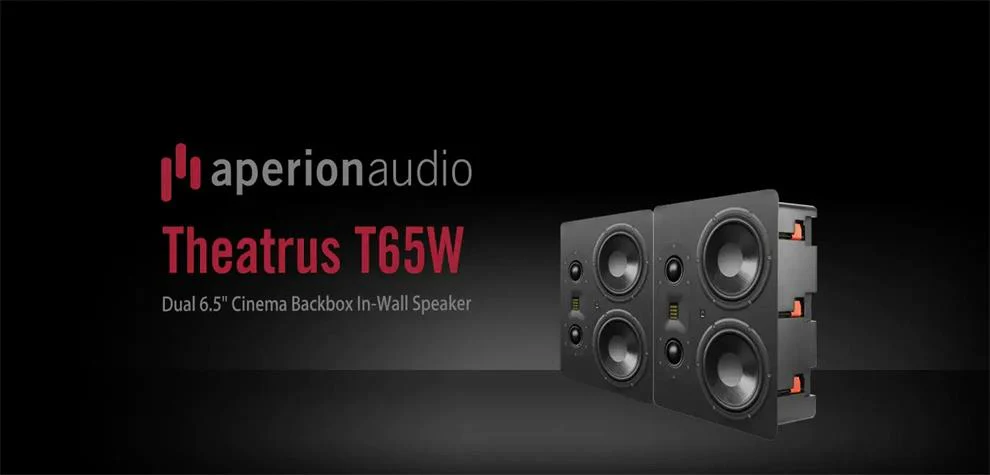

The T65W is a 3-Way design In-Wall Speaker, featuring an array of five (5) drivers, which fuses into a superforce of sound quality that is designed for home theater, custom installation, professional music studios, and film studios. It’s not all about sound though, the speaker has a clean and smooth appearance. The Aperion crafted AMT Haier Ribbon Tweeter, and Dual 2-inch Soft-Dome Mid-Range Drivers are housed in a custom designed aluminum faceplate. Enhanced low end is produced by Dual 6.5″ Woofers which were crafted from German Propex Fabrics Curv material. The T65W offers higher sound pressure levels, suitable for larger listening environments. High-Efficiency plus High-Power makes for an explosively wide sound field. Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Placed On-wall, In-Wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speakers can be arranged vertically or horizontally, dependent on the application. Along with the integrated mounting inserts are two frequency tuning switch options on the rear of the speaker for even greater placement flexibility. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.
Features
APERION AMT (Air Motion Transformer) Ribbon Tweeter
APERION Dual 2″ Soft-Dome Mid-range Drivers
APERION Dual 6.5″ Curv Cone Woofers
Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
Rear Adjustment Bass-Frequency Compensation for On-Wall or In-Wall Placement
APERION® Customized Internal Wiring
Optimized Crossover Network with Mylar and Polypropylene Capacitors
Rotatable Logo – Easy-Pull Spring-Loaded (On Cabinet) or Magnetic (On Grille)
Custom tuned cabinet
Specification
Frequency Response:
(+/- 3dB) 65-35,000 Hz
Impedance:
4 Ohms
Sensitivity:
94 dB
Recommended Power:
20-250 Watts
Peak Power:
500 Watts
Tweeter:
One AMT (Air Motion Transformer) Tweeter
Midrange:
Two German 2″ Soft-Dome Fabric Mid-Range Drivers
Woofer:
Two German 6.5″ Curv® Cone Woofers
Driver Configuration:
3-Way Dual 6.5″ Backbox In-Wall Speaker
Enclosure Type:
Anti-Resonant,Sealed
Product Weight:
31 Lbs/14.2 Kgs
Product Dimensions:
19″ x 16″ x 4.5″ / 470 x 400 x 112mm (HxWxD)
Cut-out Dimensions:
17.2″ x 13.3″ x 4.3″ / 436 x 336 x 110mm (HxWxD)
Placement Location:
Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers
Shipping Weight:
36.6 Lbs/ 16.6 Kgs
Shipping Dimensions:
23″ x 11″ x 19″/580x280x475 mm (H/W/D)

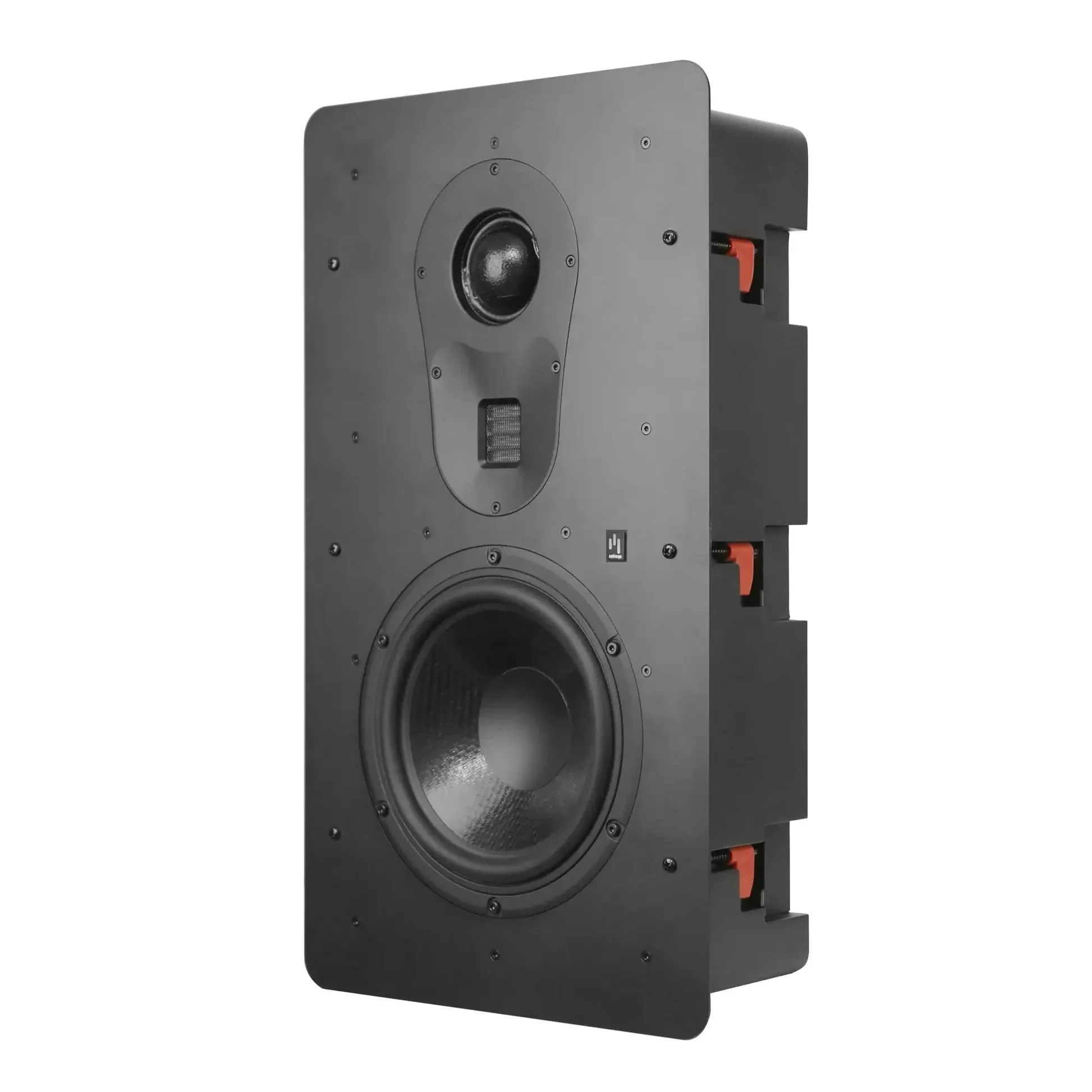

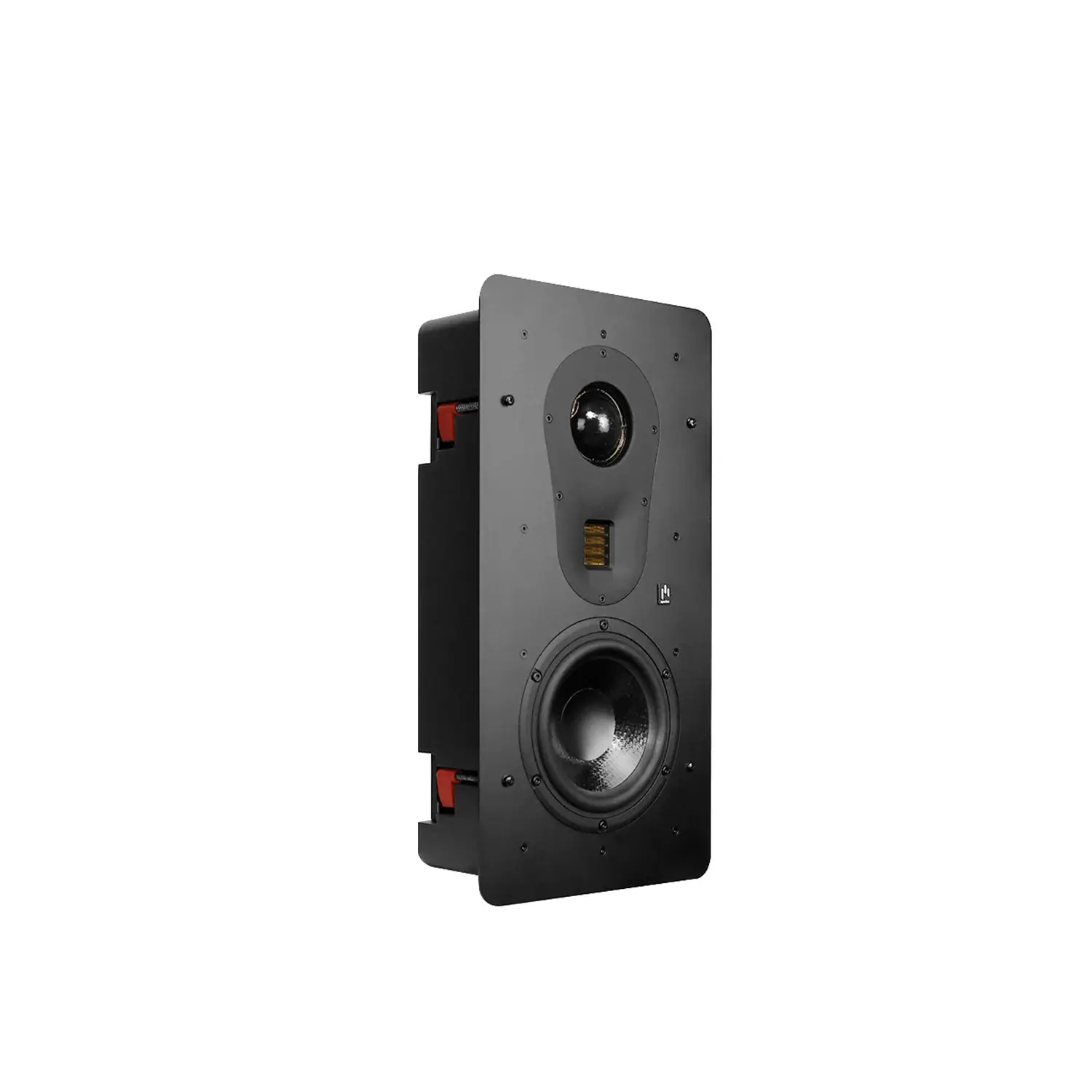

The T83W is a 3-Way design In-Wall Speaker, featuring an array of three (3) drivers, which fuses into a superforce of sound quality that is designed for home theater, custom installation, professional music studios, and film studios. It’s not all about sound though, the speaker has a clean and smooth appearance. The Aperion crafted AMT Haier Ribbon Tweeter, and one 2-inch Soft-Dome Mid-Range Driver is housed in a custom designed aluminum faceplate. Enhanced low end is produced by one 8″ Woofer which were crafted from German Propex Fabrics Curv material. The T83W offers higher sound pressure levels, suitable for larger listening environments. High-Efficiency plus High-Power makes for an explosively wide sound field. Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Placed On-wall, In-Wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speakers can be arranged vertically or horizontally, dependent on the application. Along with the integrated mounting inserts are two frequency tuning switch options on the rear of the speaker for even greater placement flexibility. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.
Features
APERION AMT (Air Motion Transformer) Ribbon Tweeter
APERION 2″ Soft-Dome Fabric Mid-Range Driver
APERION 8″ Curv Cone Woofer
Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
APERION® Customized Internal Wiring
Optimized Crossover Network with Mylar and Polypropylene Capacitors
Rotatable Logo – Easy-Pull Spring-Loaded (On Cabinet) or Magnetic (On Grille)
Custom tuned cabinet
Specification
Frequency Response:
(+/- 3dB) 60-35,000 Hz
Impedance:
4 Ohms
Sensitivity:
91 dB
Recommended Power:
20-200 Watts
Peak Power:
400 Watts
Tweeter:
One AMT (Air Motion Transformer) Tweeter
Midrange:
One German 2″ Soft-Dome Fabric Mid-Range Driver
Woofer:
One German 8″ Curv® Cone Woofer
Driver Configuration:
3-Way Single 8″ Backbox In-Wall Speake
Enclosure Type:
Anti-Resonant, Sealed
Product Weight:
28 Lbs/12.9 Kgs
Product Dimensions:
22″ x 12.6″ x 5.2″ / 560 x 320 x 132mm (HxWxD)
Cut-out Dimensions:
21″ x 11.3″ x 5.2″ / 526 x 286 x 130mm (HxWxD)
Placement Location:
Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers
Shipping Weight:
32.4 Lbs/ 14.7 Kgs
Shipping Dimensions:
26″ x 12″ x 16″/670x300x395 mm (H/W/D)

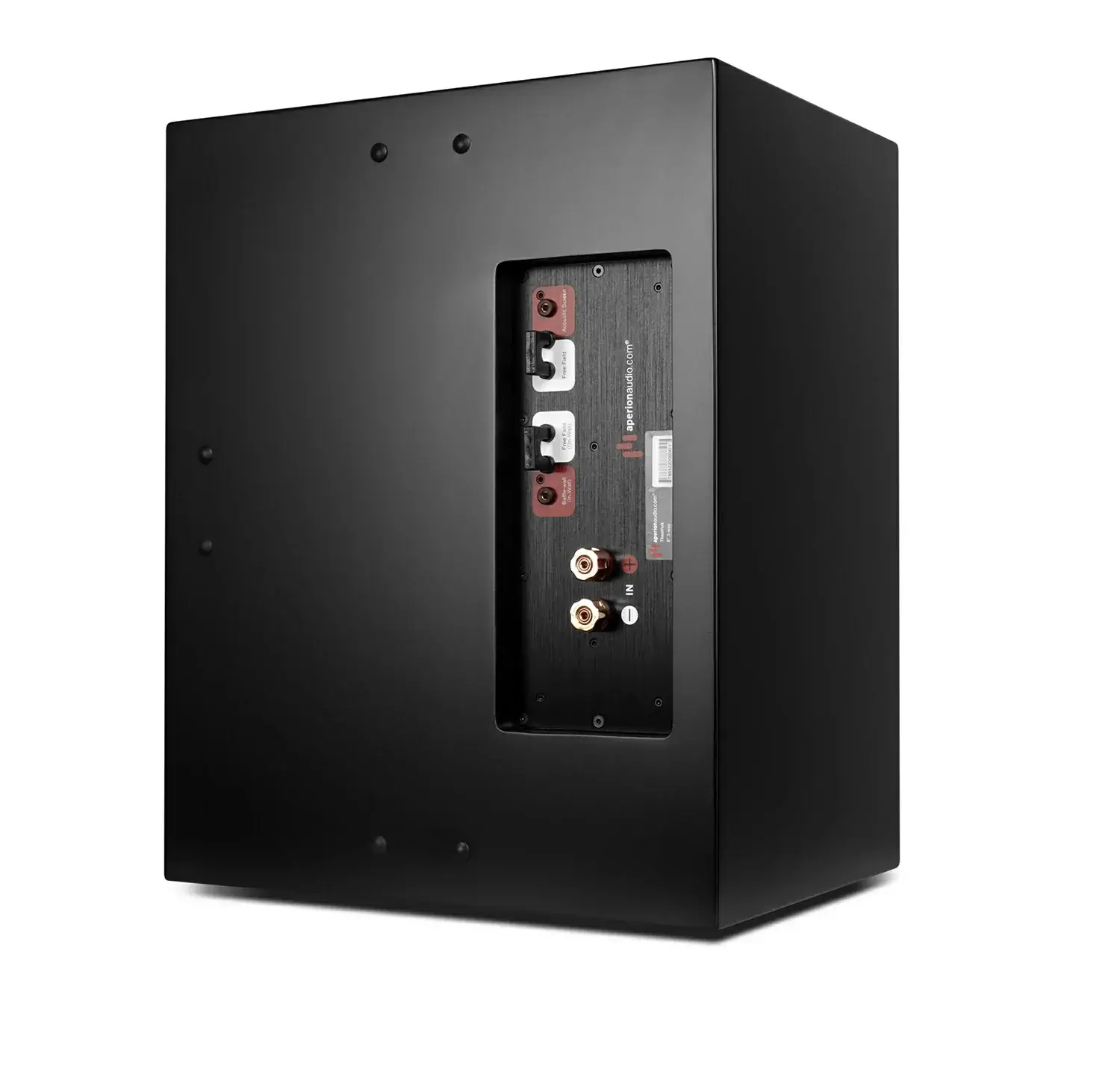

The T63W is a 3-Way design In-Wall Speaker, featuring an array of three (3) drivers, which fuses into a superforce of sound quality that is designed for home theater, custom installation, professional music studios, and film studios. It’s not all about sound though, the speaker has a clean and smooth appearance. The Aperion crafted AMT Haier Ribbon Tweeter, and one 2-inch Soft-Dome Mid-Range Driver is housed in a custom designed aluminum faceplate. Enhanced low end is produced by one 6.5″ Woofer which were crafted from German Propex Fabrics Curv material. The T63W offers higher sound pressure levels, suitable for larger listening environments. High-Efficiency plus High-Power makes for an explosively wide sound field. Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Placed On-wall, In-Wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speakers can be arranged vertically or horizontally, dependent on the application. Along with the integrated mounting inserts are two frequency tuning switch options on the rear of the speaker for even greater placement flexibility. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.
Features
APERION AMT (Air Motion Transformer) Ribbon Tweeter
APERION 2″ Soft-Dome Fabric Mid-Range Driver
APERION 6.5″ Curv Cone Woofer
Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
APERION Customized Internal Wiring
Optimized Crossover Network with Mylar and Polypropylene Capacitors
Rotatable Logo – Easy-Pull Spring-Loaded (On Cabinet) or Magnetic (On Grille)
Custom tuned cabinet
Specification
Frequency Response:
(+/- 3dB) 70-35,000 Hz
Impedance:
4 Ohms
Sensitivity:
91 dB
Recommended Power:
20-150 Watts
Peak Power:
300 Watts
Tweeter:
One AMT (Air Motion Transformer) Tweeter
Midrange:
One German 2″ Soft-Dome Fabric Mid-Range Driver
Woofer:
One German 6.5″ Curv® Cone Woofer
Driver Configuration:
3-Way Single 6.5″ Backbox In-Wall Speaker
Enclosure Type:
Anti-Resonant, Sealed
Product Weight:
20.5 Lbs/9.3 Kg
Product Dimensions:
20″ x 10.3″ x 4.5″ / 500 x 260 x 112mm (HxWxD
Cut-out Dimensions:
18.3″ x 9″ x 4.4″ / 466 x 226 x 110mm (HxWxD)
Placement Location:
Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers
Shipping Weight:
24 Lbs/ 10.9 Kgs
Shipping Dimensions:
24″ x 11″ x 13″/605x280x338 mm (H/W/D)

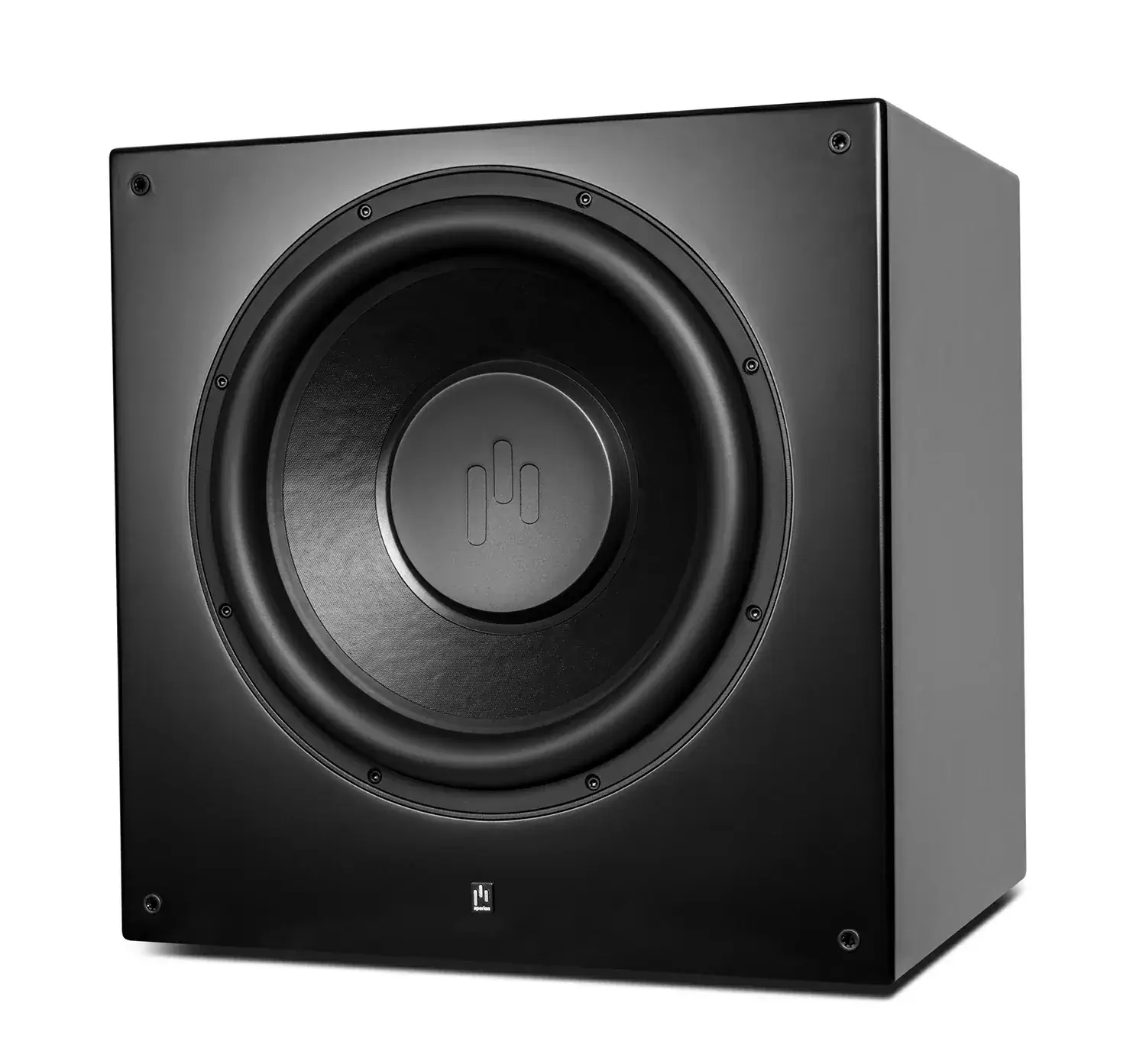

The APERION TS15 is a passive subwoofer design, which unleashes a superforce of sound quality that is designed for home theater, custom installation, professional music studios, and film studios. It’s not all about sound though, the speaker has a clean and smooth appearance. A passive subwoofer by nature, does not have a built-in amplifier and therefore requires a high power dedicated separate amplifier – ideally with DSP, EQ settings, and even a crossover control to better control the acoustics of your room.
The design of the TS15 Aperion crafted 15 inch driver is based upon the benefits of an extended pole piece in a magnet system. But here we went further, using Finite Element Analysis simulation, we optimized the complete magnet structure and specifically shaped the pole piece to achieve symmetric flux distribution along the travel path of the voice coil. This design approach provides better driving force linearity. It considerably reduces voice coil inductance modulation and DC offset of the moving system at high power levels. The result is much less distortion and more effective voice coil cooling.
The cone is a paper made out of a very strong, long fiber pulp blend to insure proper dynamic stability and stiffness. The surround is special NBR (Nitrile Butadiene Rubber) rubber surround, which has a low mechanical memory, providing for more accurate transient response. The large voice coil, high Xmax, and vented pole piece allow for clear and resolving performance without mechanical or thermal compression even at the highest output levels. The TS15 15inch woofer has been optimized to achieve clean dynamics and powerful bass reproduction at high power levels in a reasonably sized sealed-cabinet.
Specification
Frequency Response:
(+/- 3 dB) 18-400 Hz (With Amplifier)
Impedance:
4 Ohms
Sensitivity:
88 dB@1m 1w / 121 dB@1m 1000w
Rated Power:
750 Watts
Peak Power:
1500 Watts
Woofer:
APERION One 15″ Long-Throw Paper Cone Woofer
Driver Configuration:
Single 15″ Passive Woofer
Enclosure Type:
Anti-Resonant, Internally Braced, Sealed
Product Weight:
77 Lbs/35 Kg
Product Dimensions:
(W/H/D): 19.7 x 19.7 x 15.7 inch / 500 x 500 x 400 mm (Withno Grille) D
Placement Location:
Passive Subwoofer
Shipping Weight:
93.5 Lbs / 42.4 Kg
Shipping Dimensions:
(W/H/D) 26 x 27.5 x 24 inch / 655 x 700 x 615 mm

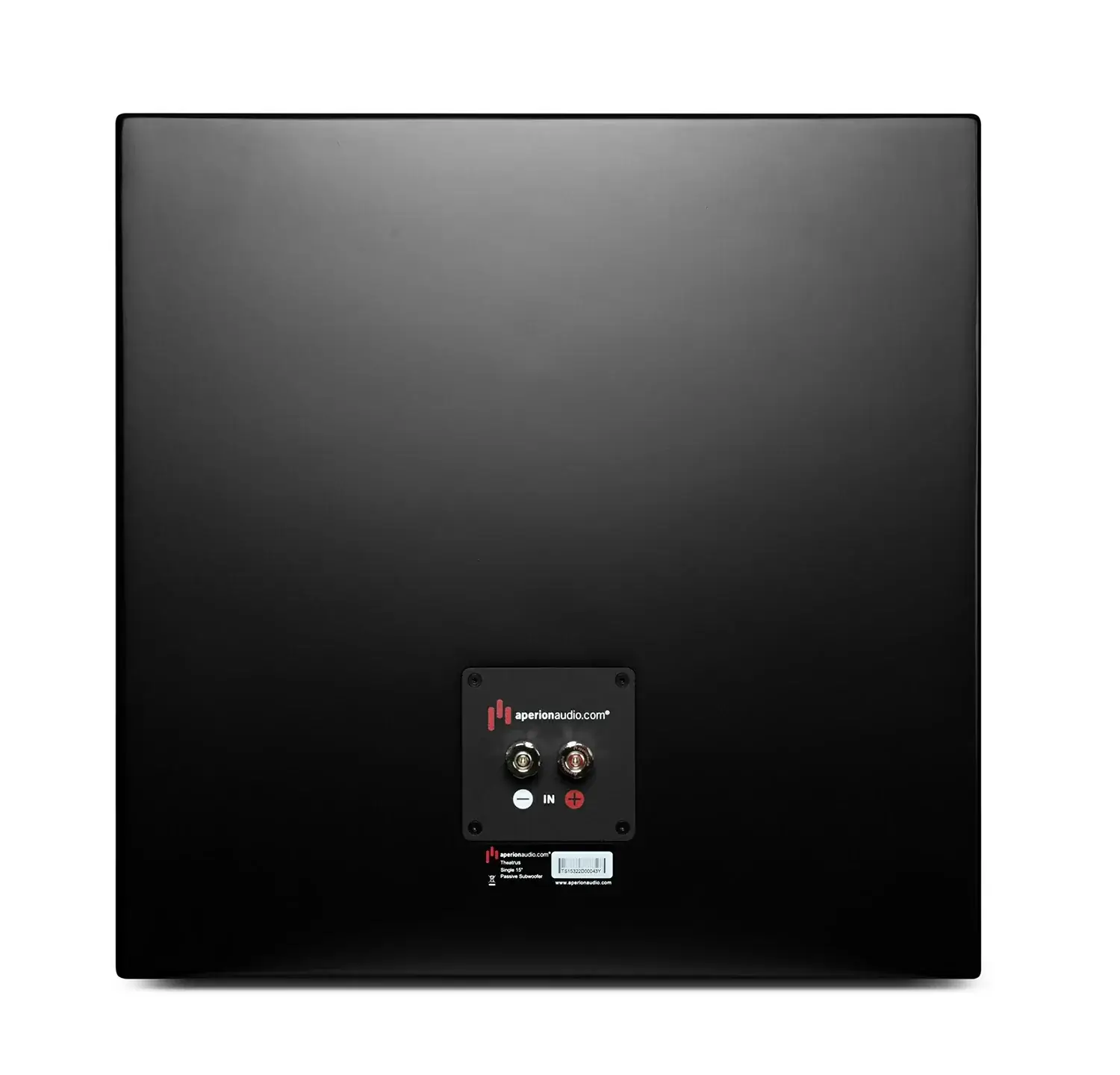

Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Generally placed on the ground as part of the front sound stage, the subwoofer can also be placed dependent on the room application. Simply plug in your favorite speaker wire to a separate amp, and you’re all set. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.
