Ogre Kronomaster Delay

Rp2.500.000

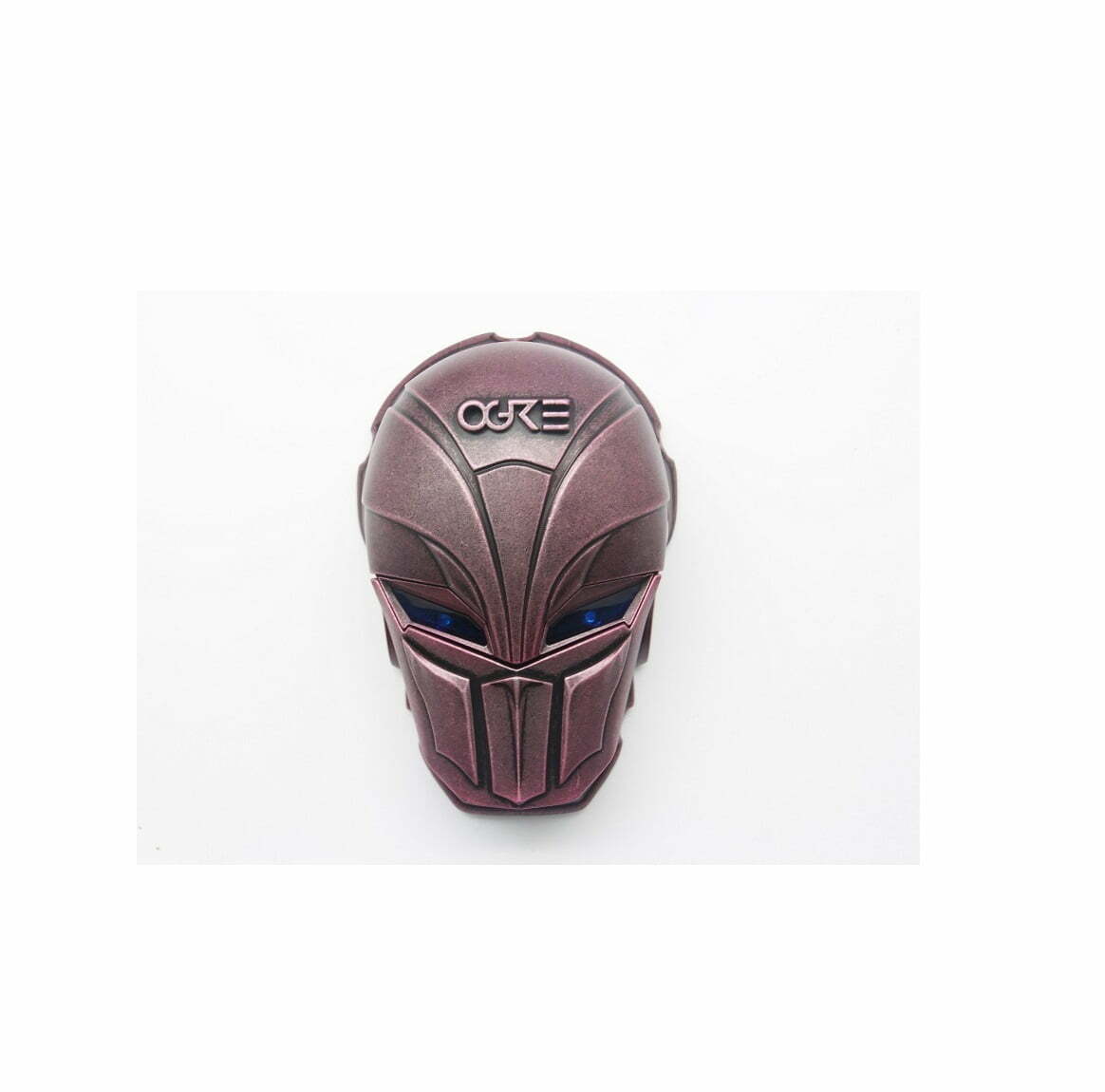

Color Clear

Description

Ogre







Kronomaster Delay

Ogre Kronomaster is based on PT2399 Digital Delay IC which is the industry standard for delay pedals. It features 3 control parameter which are time, repeat and mix, which enable you to achieve various kind of unique delay characteristics.

As in Tubeholic Overdrive, Kronomaster Delay also constructed using aluminum die casting method with very convenient design which features open/close sliding panel to keep your initial settings intact.

Features

  • Enclosure – Using a highly durable enclosure with original design manufactured by aluminum die casting method.

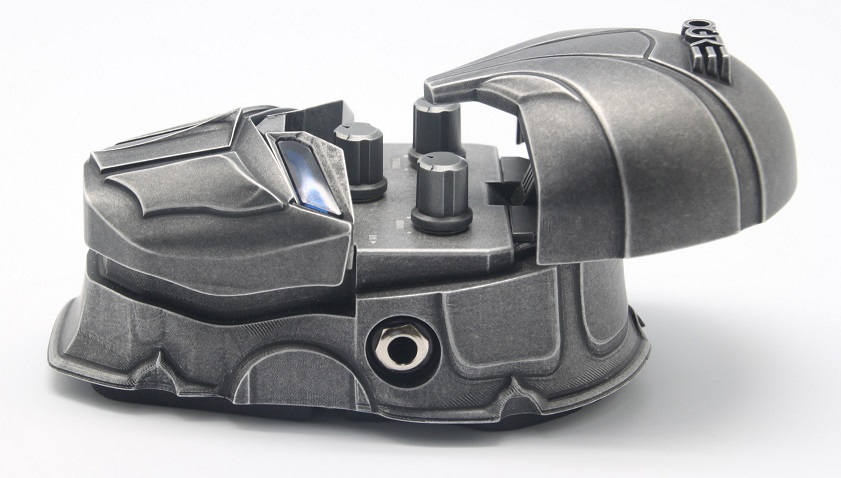

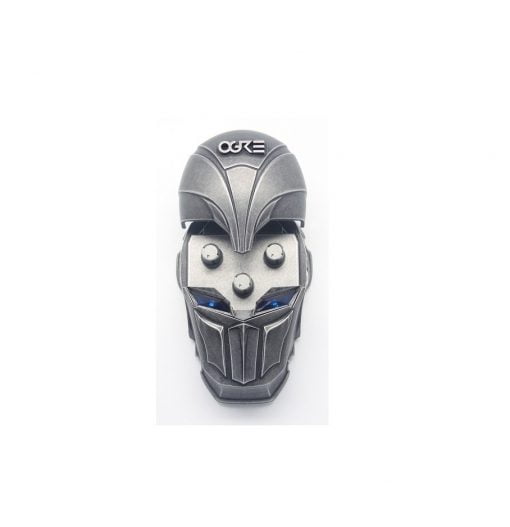

  • Cockpit head cover – Adopting a sliding-type cockpit head cover system in order to protect the setting status from outside access
  • LED display – Two blue LED windows with high visibility are used as effect-on displays
  • Knob – Adopting a knob with original design convenient for tone and volume control
  • True bypass – As all effect pedals from OGRE adopt true bypass method, there is no loss of guitar tone while effect is off.
  • Switch – Adopting not a metal knob of a mechanical switch but a pedal-type switching method
  • PCB – Constructing the switch, input / output jack, and all the circuits on one board in order to minimize the interference sound by the wiring connection
  • Hand-made – The hand-made effect pedal produced after thorough quality control



Specifications

  • Controls: Time / Repeat / Mix
  • Connectors: 1/4″ Input / 1/4″ Output / DC power input
  • ‘Effect on’ LED indicator
  • Input Impedance: 500K Ohm
  • Output Impedance: 10K Ohm
  • Power consumption: 25 mA~30 mA
  • Delay Time: approx. 25 mSec ~ 500 mSec
  • Power Supply: DC 9V 006P / 9V AC adapter
  • Dimension: 94 mm(W) x 141 mm(L) x 72 mm(H)
  • Weight: 470 g (without battery)
