Description
True Mobility Meets Professional Audio

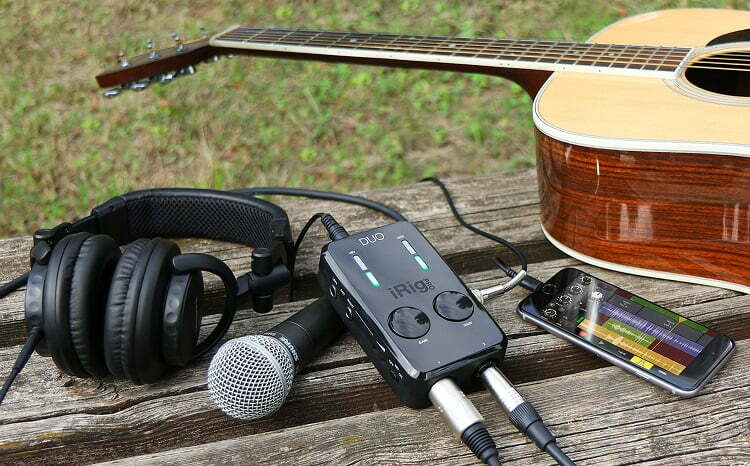

“Hey, I’ve got an idea!” So you’re hiking out in the middle of the woods. Maybe mountain climbing in the Himalayas with a Sherpa. Or you’re on the tour bus at 3 am and can’t sleep. And then…BOOM, an idea hits you. You stop everything, grab your guitar and your mic, plug them into your iRig Pro DUO, and then you plug it into your iPad. Or your Android. Or your computer.
You hit “Record,” and that idea that was once just floating around in your head is a song that you can upload for all your fans and followers to hear.
iRig Pro DUO is made for this. It’s made for you. Now you can truly go out and play and record anywhere, any time on any device with the smallest fully-featured dual-channel interface on the market.
True Mobile
To us, “truly mobile” means completely self contained… unhooked from the grid and free to create anytime and anywhere inspiration strikes you on any device.
iRig Pro DUO delivers true mobility in grand fashion. It packs a ton of useful recording features into an extremely compact enclosure that you can take with you anywhere.
First, it lets you go off the grid and record great audio anywhere thanks to its comprehensive powering options — for true mobility iRig Pro DUO can be powered with two AA batteries and does not draw any power from a connected iPhone or iPad. When using the included USB or Micro USB to OTG cable connected to a laptop or Android device, iRig Pro DUO can be powered by the attached device or onboard batteries. Back in the studio? iRig Pro DUO can be powered with an additional DC power supply for powering extended recording sessions.
Second, it has to sound great and accept every possible instrument and recording situation. iRig Pro DUO delivers high-quality 24-bit audio on the go or in the studio with plug-and-play simplicity. It features 2 channels with XLR/TRS combo audio jacks and phantom power that can accommodate everything from high-end condenser microphones to guitars, basses, keyboards and more. Its crystal-clear ultra-low noise high-headroom preamps ensure that you get professional grade sound everywhere you go.
All Platform
Fully universal “all-platform” portable recording is finally here thanks to iRig Pro DUO. It comes with every cable you need to connect to your iPhone, iPad, Android device or Mac/PC —you get a Lightning, USB-OTG and USB cables so no matter where you are or what device you happen to have with you, capturing brilliance is always enabled. And, iRig Pro DUO comes bundled with over $/€450 worth of software and apps for every platform to get you going.
Lightweight and Mobile
iRig Pro DUO is the smallest full-featured dual-channel interface on the market. Its elegantly designed lightweight thermoplastic housing is designed to take the rigors of life on the road, session after session. We’ve designed it so that it’s the perfect size — it fits easily into the palm of you hand and can fit in any backpack, gig bag or even your pocket.
Dual Channel Recording
But don’t take iRig Pro DUO’s size for granted. This is one seriously powerful and connectible interface. It features 2 channels with XLR/TRS combo audio jacks and phantom power that can accommodate everything from high-end phantom powered condenser microphones to guitars, basses, keyboards and more. Each channel has it’s own input gain control so you can dial in the perfect amount of input signal for your recording.
Studio Sound
Each of iRig Pro DUO’s two channels passes through an ultra-low noise high-headroom pro-quality preamp that then runs through a 24bit AD-DA converter, giving you amazing clarity and pristine studio-quality sound.
MIDI Machine

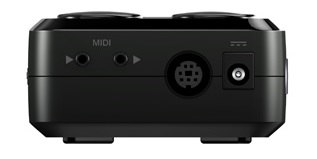

With iRig Pro DUO, you don’t just have a superb portable interface for audio; you can also hook up your favorite MIDI controllers. This is thanks to its included TRS to MIDI-DIN cables and dedicated MIDI in/out jacks, so you can control MIDI-compatible software (or send MIDI data to MIDI-compatible hardware, like synthesizers, drum machines and samplers) with plug and play simplicity. It just works.
Studio Mic Ready
High-quality studio condenser microphones require 48V of external power to function. It’s part of what makes them sound so good, crisp and accurate. With iRig Pro DUO, you’ll have that 48V of phantom power at your fingertips. Just plug in your high-quality condenser mic, flip iRig Pro DUO’s phantom power switch and record until your heart’s content.
Monitoring and Output
Monitoring your mixes and input is a breeze. iRig Pro DUO comes with two 1/4” TRS balanced analog audio outputs that let you send a zero-latency signal to your studio monitors or portable speakers. These outputs deliver a stunningly clear audio signal thanks to iRig Pro Duo’s exceptional output drivers. The totally floating design of iRig Pro DUO’s balanced outputs protect it from potential ground loop issues and buzz when performing onstage with iOS devices or laptops. This superior design makes it an ideal audio interface for when you want to perform live and connect your gear directly to the stage audio system without having to use any special cables or problematic DI Boxes.

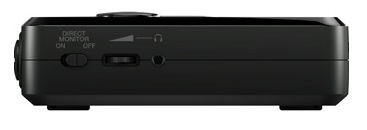

There’s also a Direct Monitor switch that lets you monitor either the direct incoming dry signals, or the processed signal returning from your device or computer. Plus, iRig Pro DUO has a high quality headphone amp with level control so you even monitor your recording and playback in real time with your favorite set of cans.
On or Off the Grid – You’re Powered
There’s nothing worse than getting lost in the creative groove and running out of juice. With iRig Pro DUO, you’ll have three options for power. First, iRig Pro DUO can be powered with 2 AA batteries when connected to an iPhone or iPad. Second, plug in the USB or Micro USB to OTG cables and iRig Pro DUO will be powered by the connected computer or Android device, or the AA batteries. Camped out in the studio? Plug it into the wall with a DC power adapter (not included) for extended recording sessions. Now you can record with confidence knowing full well that your interface is in it for the long haul with you.
Features
- Truly mobile dual input audio interface for iPhone, iPad, Android, Mac and PC
- Simultaneous dual track recording interface for all instruments
- Ultra-compact housing for extreme portability
- Dual identical XLR/TRS combo input jacks
- Dual ultra-low noise studio-quality IK preamps
- Individual input gain controls
- 48V phantom power
- Self-powered (2 AA batteries), device powered or DC power adapter (not included)
- 24-bit AD-DA converters
- Dual 1/4” switchable TRS balanced outs
- 1/8” 3.5mm Headphone out w/ level control
- MIDI IN/OUT jacks
- Ultra-compact housing fits in the palm of your hand
- Comes with mini-DIN to Lighting, Micro USB OTG and standard USB cables
- Designed and made in Italy
Specifications
- AD and DA Resolution: 24-bit
- Sampling Rate: 44.1 kHz and 48 kHz
- Power: USB bus power, battery power (2xAA), or DC power supply (9VDC – 500mA min. positive outside – not included)
- Metering: Multicolor LED
- Size: 75mm/2.95″ x 127mm/5″ x 37mm/1.46″
- Weight: 197.2g/6.96oz (batteries excluded)
- Battery Life:
• Recording – Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline)
• Playback – Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline)
*Max load condition: both inputs connected to two 1,5mA phantom powered loads, input gains set to maximum, outputs set to maximum.
**Min load condition is as follow: music playng, phantom power OFF.
Microphone Input
- Microphone Inputs: 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: approx 2 kOhms
- Gain Range: 48 dB
- Phantom Power: +48V ± 4V
- Frequency Response:
• from 5 Hz to 21 kHz (-3dB) Gain @ min
• from 30 Hz to 21 kHz (-3dB) Gain @ max - Input Noise:
• -103 dB(A) Gain @ min
• -86 dB(A) Gain @ max
Instrument Input
- Instrument Inputs: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
- Instrument Input Level: from 30 mVpp to 6.9 Vpp
- Instrument Input Impedance: 1 MOhms
- Gain Range: 27 dB
- Frequency Response:
• from 2 Hz to 21 kHz (-3dB) Gain @ min
• from 5 Hz to 21 kHz (-3dB) Gain @ max - Input Noise:
• -104 dB(A) Gain @ min
• -102 dB(A) Gain @ max
Line Output
- Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
- Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
- Maximum Output Level: +16 dBu into 600 Ohms balanced load
- Instrument Input Impedance: 1 MOhms
- Frequency Response: from 10 Hz to 21 kHz (-3dB)
- Output Dynamic Range: 106 dB(A)
- Output Impedance: 150 Ohms balanced
Includes
- iRig Pro DUO universal dual channel Audio-MIDI interface
- Lightning to Mini-DIN connection cable (60cm/23.62″)
- Micro-USB-OTG to Micro-USB connection cable (60cm/23.62″)
- USB to Mini-DIN connection cable (60cm/23.62″)
- 2 x 2.5mm jack to MIDI cable (160cm/63″)
- 2 x 1.5V AA Battery
