Novation Bass Station II

Rp8.250.000

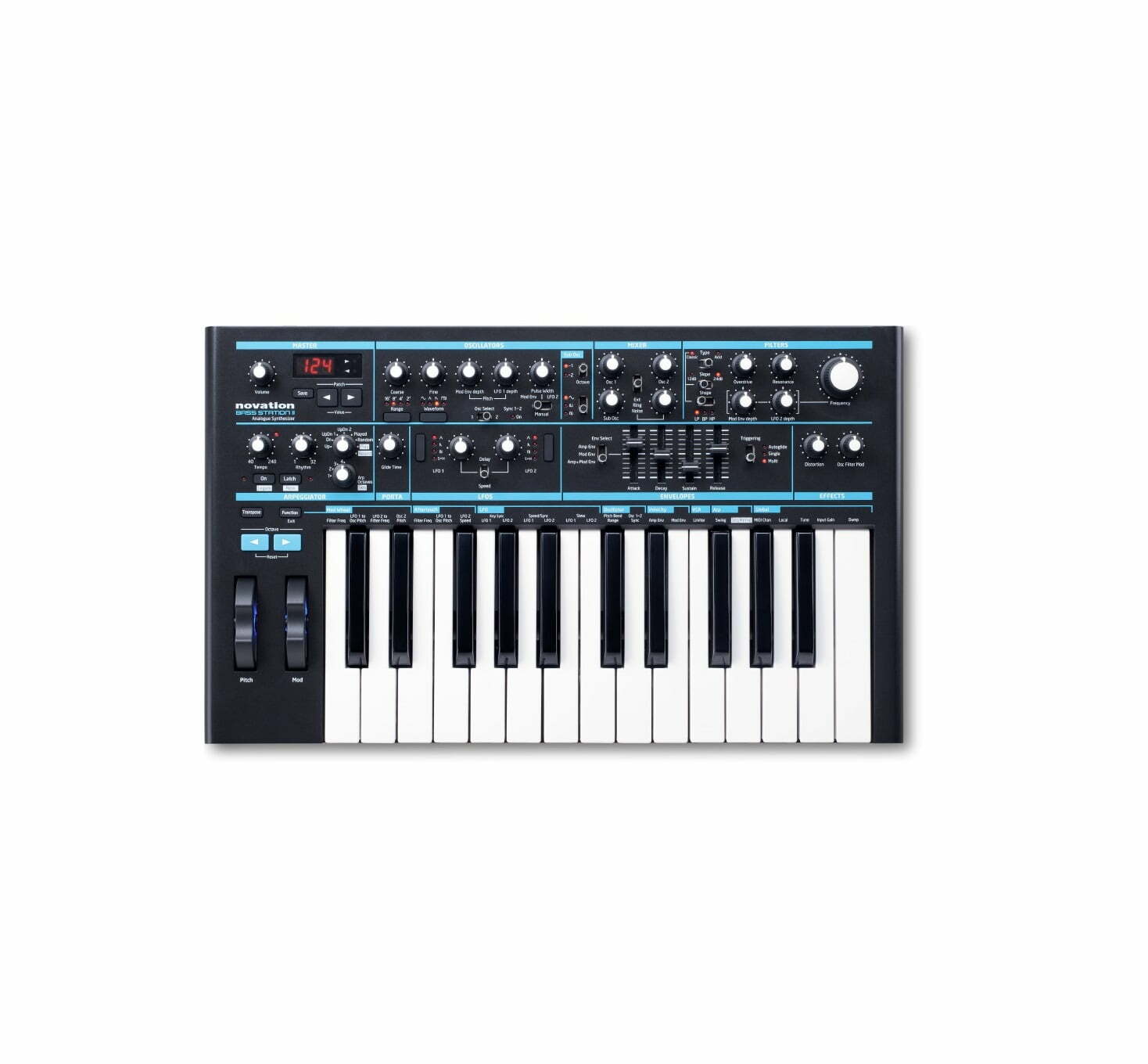

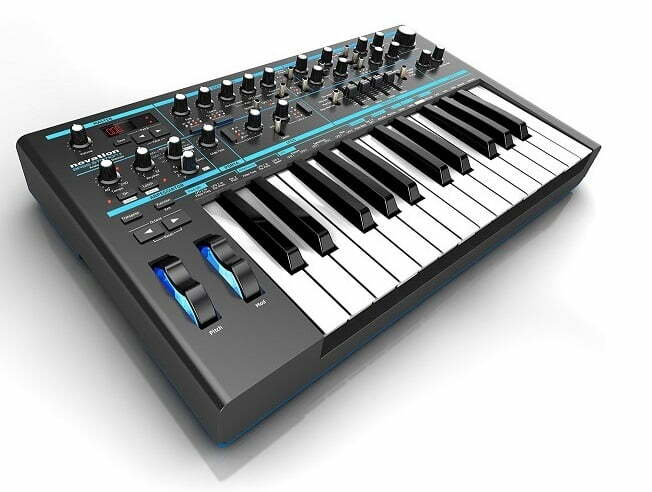

Novation Bass Station II is a small 25 keys analog monophonic synthesizer designed to create stunning bass in real-time. It features synth action keybed, step sequencer, arpeggiator, while the synth engine features two tuneable oscillators, a sub-oscillator, plus noise and ring modulation, with built-in 64 diverse patches and 64 free slots for user patches.

Description

Bass Station II – The Analog Monosynth Reborn

Nothing out there sounds this warm, fat and dirty. Bass Station II is our pure analogue monosynth. We based it on our classic Bass Station, then enhanced every area to make it even bigger, angrier and more versatile.

It has two tuneable oscillators, a sub-oscillator for enormous bass, plus noise and ring modulation. It also gives you two distinct analogue filter types: the classic multi-mode filter and a new acid filter, for a massive variation in sonic possibilities.

Easy Controls For Complex Design

We put as many controls as possible onto Bass Station II, so you can totally lose yourself in discovering and creating new sounds. Of course, we also laid out all those controls in the clearest and most useful way, to keep sound design as straightforward and fun as possible.

Save and Load Patches

We loaded Bass Station II with 64 diverse patches that showcase its huge sonic variation. We also left 64 slots free, so you can easily save and load your own patches on the unit, or in the free librarian software.

Instant Inspiration

Bass Station II’s pattern-based arpeggiator and step sequencer are a fun and immediate way to find new inspiration. The sequencer lets you record your own notes, ties, rests and rhythms in real time, then store them, recall them and use them with any patch you like. Easily and automatically sync them to your music software or hardware setup, or even add swing to get your groove going.

Connect To Just About Anything

Bass Station II is fully class compliant, so you can plug into anything via USB and start playing. It also has MIDI I/O on 5 pin din ports, so you can connect your other MIDI gear. You can even connect an external instrument and run it through Bass Station II’s analogue filter and effects.

Create a huge variety of sounds

Two pure analogue, sync-able and tuneable oscillators with four selectable waveforms, plus a third sub-oscillator, noise and ring modulation.

Enormous bass and shrieking leads

Switch the multi-mode Classic Filter between low, hi and band pass with 12 and 24dB slopes.

Improved analogue filter stage

A 24dB Acid Filter that is even darker, wetter and smoother than the Classic.

Turn Jekyll into Hyde

Create crunchy, aggressive sounds with fully analogue distortion, filter-modulation effects and a separate filter overdrive.

Easily load and save patches

Comes with 64 patches that cover a huge range of styles, but you can create, save, archive and swap 64 of your own too.

Get instant inspiration

Record notes, ties, rests and rhythms in real time using the step sequencer and arpeggiator, then easily store them, recall them and use them with any patch you like.

Experiment easily

Get your hands on loads of controls, cleverly arranged for intuitive patch design and sound editing.

Flexible modulation

Triangle, sawtooth and square LFO waveforms, as well as sample and hold, and two ADSR envelopes for filter, pitch and pulse width modulation.

Players keyboard

Full sized 25-note) velocity-sensitive keyboard, with a fast synth-action and aftertouch.

Store unlimited sounds

Keep as many patches as you like on your Mac or PC using the Librarian Software.



Specifications

Hardware & controller assignment

  • 25 note synth-action keyboard
  • Aftertouch can be assigned to modulate:
    • Filter frequency
    • LFO 1to Osc pitch
    • Osc 2 speed
  • Pitch wheel
  • Modulation wheel can be assigned to:
    • LFO 2 to filter frequency
    • LFO 1 to Osc pitch
    • Osc 2 pitch
  • Octave up/ down buttons
  • 64 factory presets
  • 64 slots for user patches (and patch dump facility for storing more)
  • Master volume dial

Inputs & Outputs

  • USB MIDI (for connecting & powering Bass Station II via host computer)
  • Mono output on 1/4″ TRS jack
  • Headphone output on 1/4″ TRS jack
  • External input on 1/4″ TRS jack
  • Sustain pedal input on 1/4″ TS jack
  • MIDI IN / MIDI OUT ports on 5 pin din
  • DC power input
  • Switch between power off / DC powered / bus powered



Synth Engine

  • Osc 1
  • Osc 2
  • Sub Osc (3)
  • Noise generator
  • Waveforms
    • sine
    • triangle
    • sawtooth
    • square/variable pulse width

Mixer

  • Osc 1 level
  • Osc 2 level
  • Sub Osc level
  • Noise generator level
  • Ring modulation depth
  • External signal level

Filter

Two filter types

  • Acid type (diode ladder filter design)
  • Classic type (derived from original Bass Station)

Envelopes

Two ADSR Envelopes (Attack/Decay/Sustain/Release)

  • Amp Envelope
  • Mod Envelope
  • Combined control of both Envelopes

LFO

Two LFOs each selectable between:

  • Triangle
  • Sawtooth
  • Square
  • Sample and hold
  • Both LFOs independently adjustable between rate and delay time
  • Key sync LFO 1 & 2
  • LFO slew on LFO 1& 2 (low pass filter on the LFO waveform)

Arpeggiator

  • Up to 32 different patterns
  • Select between 1-4 octave range
  • Swing function
  • Select direction:
    • up
    • down
    • up / down 1
    • up / down 2
    • As played
    • Random
  • Latch (hold the arpeggiator)

Step Sequencer

  • Up to four sequences
  • Assign one of 32 preset rhythms or create your own
  • insert rests or legato (slide)
  • Sequencer re-trigger function

Portamento

  • Adjust glide time
  • Single trigger or re-trigger modes
  • Integrate into step sequencer and arpeggiator

Dimension

457mm (18”) width x 273mm (10.75”) depth x 76mm (3”) height
