| Keyboard | ・ Responsive Hammer III action
– 88 keys
– Grade-weighted hammers
– Ivory Touch white key surfaces
– Let-off simulation
– Counterweights
– Triple sensor key detection |
|---|
| Pedal | ・ F-10H pedal unit
– Damper (with half-pedal support) |
|---|
| Piano Sound | ・ Harmonic Imaging XL (HI-XL)
– 88-key stereo sampling
– SK-EX, SK-5, EX recording
– 256 note maximum polyphony |
|---|
| Piano Resonance | – Damper Resonance
– String Resonance
– Undamped String Resonance |
|---|
| Piano Adjustment | ・Virtual Technician (23 parameters)
– Touch Curve (incl. User Touch Curve)
– Voicing
– Damper Resonance
– Damper Noise
– String Resonance
– Undamped String Resonance
– Key-off Effect
– Fall-back Noise
– Hammer Delay
– Topboard Simulation
– Decay Time
– Minimum Touch
– Stretch Tuning (incl. 88-key User Tuning)
– Temperament (incl. User Temperament)
– Temperament Key
– Key Volume (incl. 88-key User Key Volume)
– Half-Pedal Adjust
– Soft Pedal Depth- Stereo Width
– Key-off Noise (E.Piano)
– Key-off Delay (E.Piano)
– Key Click Level (Organ)
– Wheel Noise Level (Organ) |
|---|
| No. of Sounds | 256 voices |
|---|
| Reverb | 6 types |
|---|
| Brilliance | ✔ |
|---|
| Other Effects | 129 types |
|---|
| Speakers | – |
|---|
| Output Power | – |
|---|
| Headphone Enhancements | – |
|---|
| Display | 128 x 64 pixel LCD with backlight |
|---|
| Key Cover | – |
|---|
| Music Rest | Detachable type (included) |
|---|
Product

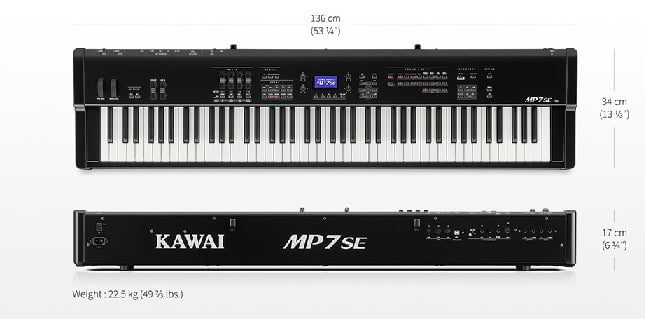

Size & Weight | Width | 136 cm (53 1/4″) |
|---|
| Depth | 34 cm (13 1/3″) |
|---|
| Height | 17 cm (6 3/4″) [music rest detached] |
|---|
| Net Weight | 22.5 kg (49 2/3 lbs.) |
|---|
Packing
Size & Weight | Dimensions | 152.5 (W) x 49 (D) x 30 (H) cm |
|---|
| Gross Weight | 32 kg |
|---|
| Available Finishes | Gloss Black |
|---|
| Basic Functions | Dual
Split
Transpose
Tuning
Registration |
|---|
| Internal Songs | Sound Demo | – |
|---|
| Piano Music | – |
|---|
| Concert Magic | – |
|---|
| Lesson Songs | – |
|---|
| Internal Recorder | Total Memory | approximately 90,000 notes |
|---|
| No. of Songs | 10 songs |
|---|
| Parts | 1 part |
|---|
| Metronome | Time Signatures | 1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8, 7/8, 9/8, 12/8 |
|---|
| Drum Rhythms | 100 patterns |
|---|
| Bluetooth * | – |
|---|
| USB Audio Recorder | Record/Playback | MP3
WAV |
|---|
| Other Functions | Overdubbing
Line In recording |
|---|
| App Functions | – |
|---|
| Connector Jacks | Headphone | 1 x 1/4″ Stereo jack |
|---|
| MIDI | MIDI IN, MIDI OUT, MIDI THRU |
|---|
| Line Out | 1/4″ L/MONO, R [unbalanced] |
|---|
| Line In | 1/4″ L/MONO, R [unbalanced] |
|---|
| USB to Host | ✔ |
|---|
| USB to Device | ✔ |
|---|
| Others | SOFT (FSW)
DAMPER/SOSTENUTO/SOFT (for GFP-3)
DAMPER (for F-10H)
EXP + EXP type switch |
|---|
| Power Consumption | 20 W |
|---|
| Power | Power cable |
|---|
| Bench | – |
|---|
| Headphones | – |
|---|
| Sheet Music | – |
|---|
| Others | Warranty Card *
Owner’s Manual
Music Rest
F-10H damper pedal (with half-pedal support) |
|---|
