OLED Display
Seamless Transitions
Split Point Crossfades
16 banks with 25 programs – 400 locations
Organize functionality for programs
Live Mode – 5 Live programs
Global Transpose: +/- 6 semitones
Program Transpose: +/- 6 semitones
Fine-tune: +/- 50 Cents
Kbd Touch: 3 velocity response curves
Triple Sensor keybed with Virtual Hammer Action Technology
Split functionality with selectable split point and LED indication
Layer functionality
Mono Output option
Dynamic Sustain Pedal action with the included Nord Triple Pedal
USB-MIDI
Free OS updates

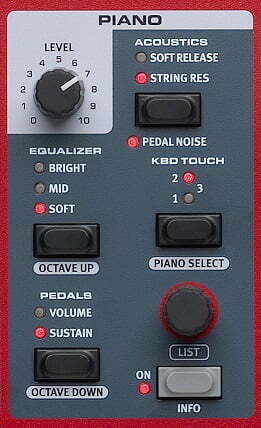

PIANO SECTION
6 types – Grand, Upright, Electric Pianos, Digital, Layer, Clavinet and Harpsichord.
Each category can contain up to 20 different models.
120 Voice Polyphony (stereo/mono pianos)
Piano Filters (Soft, Mid, Bright)
Advanced String Resonance (Generation 2) – adjustable amount
Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord
Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 – adjustable amount
Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)

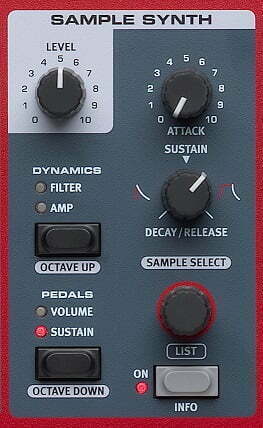

SAMPLE SYNTH SECTION
46 Voice Polyphony
Amp envelope with Attack and Decay/Release
Selectable velocity sensitive low pass filter and dynamic range
Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)
Volume controllable with Volume Pedal (not included)
MEMORY
Approx. 1 GB dedicated to the Nord Piano Library
Approx. 512 MB dedicated to the Nord Sample Library 3.0

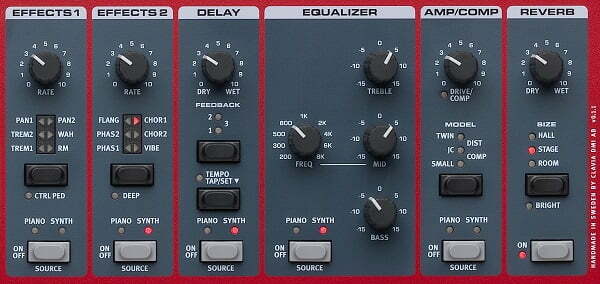

EFFECTS SECTION
Effect 1
Pan, Tremolo, Wah and Ring Modulator
Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal
Effect 2
Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
Two selectable depths for each effect
Amp Simulations, Comp and EQ
Comp/Amp – three amp/speaker simulations, Tube Overdrive
Drive/Compression amount controlled with the Drive knob
Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
Master Effects
Dedicated Reverb with Room, Stage and Hall algorithms, each with an additional Bright mode
Dedicated Delay Effect – Rate, Amount and Tap-tempo function
CONNECTIONS
2 Audio outputs L & R – ¼”, 6,35 mm jacks, unbalanced
1 Monitor input – 1/8″, 3,5 mm stereo jack
1 Headphone output – ¼”, 6,35 mm stereo jack
1 Piano pedal input – ¼”, 6,35 mm jack. Use the included Nord Triple Pedal or a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc
1 Volume Pedal input – ¼”, 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
MIDI In, MIDI Out – 5 pin DIN connectors
USB – type B connector – for transferring sounds and USB-MIDI
IEC C14 power connector

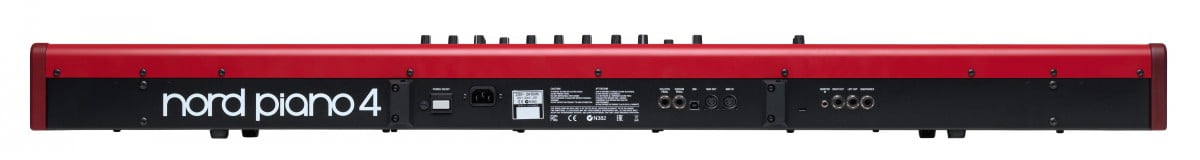

Nord Piano 2 Connections
DIMENSIONS
Nord Piano 4: 1287 mm (50.7″), 121 mm (4.8″), 340 mm (13.4″)
Nord Triple Pedal: 264 mm (10.4″), 224 mm (8.8″), 70 mm (2.8″)
WEIGHT
Nord Piano 4: 18,5 kg (40.1 lbs)
Pedal: 2 kg (4.4 lbs)
INCLUDED ACCESSORIES
Nord Triple Pedal
User Manual
Power cord
OPTIONAL ACCESSORIES
Nord Keyboard Stand V2
Nord Soft Case
Nord Music Stand
Dust Cover
Specifications subject to change without notice. *Steinway, Wurlitzer, Hohner, Clavinet, Farfisa and Vox are trademarks of their respective owners and are not affiliated or associated with Clavia. These trademarks are mentioned here as a reference to a sound only. Leslie is mentioned to describe a connector standard.
