Traktor Kontrol S8

Rp14.650.000

Description

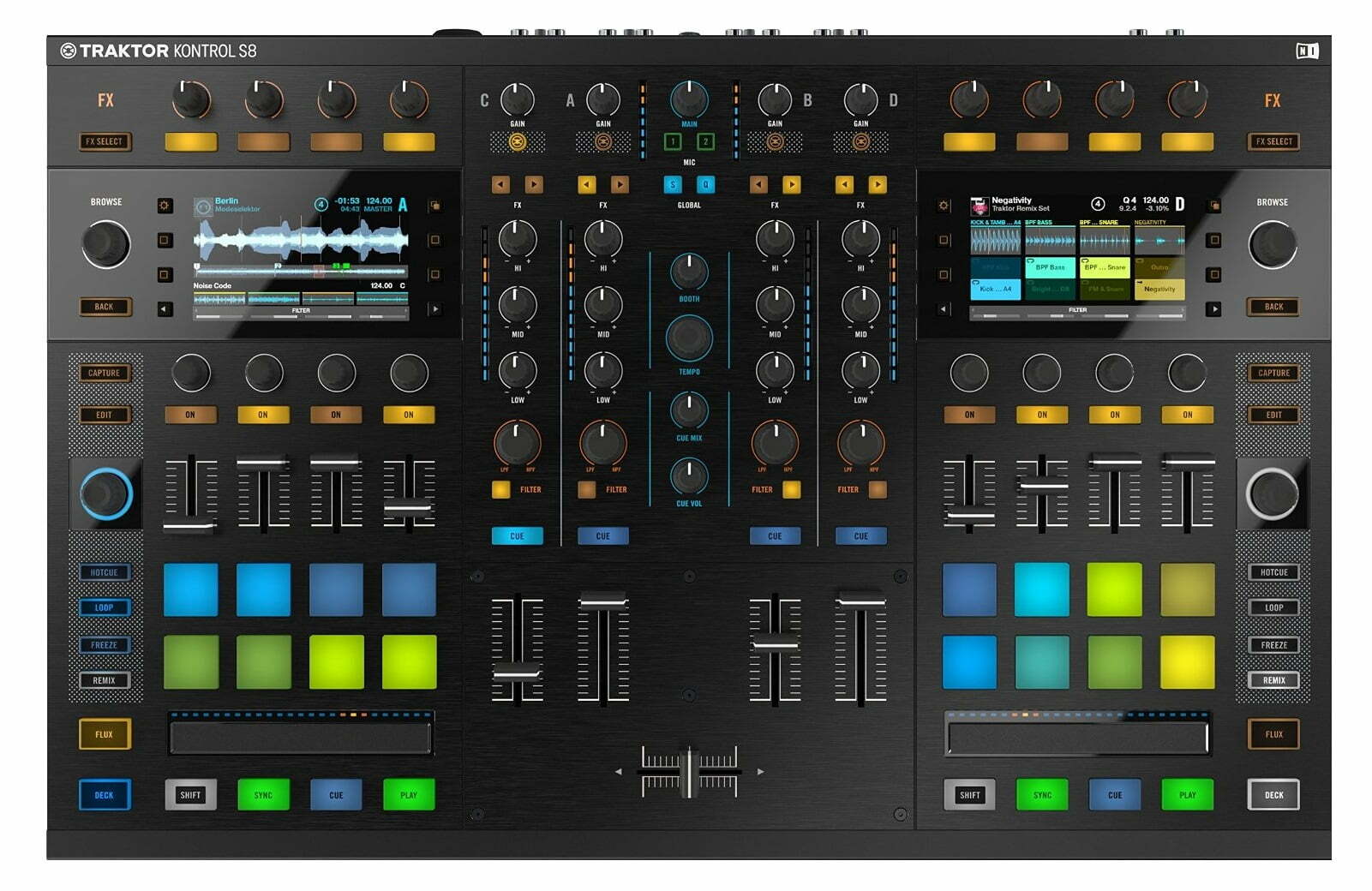

Traktor Kontrol S8. Flagship all-in-one DJ system

  • Cutting-edge DJ controller, decks, and stand-alone mixer
  • Stunning high-res displays react to touch-sensitive controls
  • Plug-and-play with included TRAKTOR SCRATCH PRO software

Touch and See Workflow

TRAKTOR KONTROL S8’s features work together to set your creativity in motion – DJ workflow that is truly multisensory.

Touch-sensitive knobs respond to activate the Browse View, plus filter, pitch, and effect parameters on the displays – all without shifting focus to the laptop.



Responsive Hardware

Designed for enhanced DJ performance, TRAKTOR KONTROL S8 is the perfect fusion of hardware and software.

The S8’s touch-and-see workflow brings the industry-leading DJ software to life under your fingertips – and right before your eyes.

Access transport controls, cue points, and trigger loops or Remix Decks directly on the unit. Plug-and-play control of TRAKTOR SCRATCH PRO 2 means no mapping or control assignments necessary.



Next Generation Decks

Play different. TRAKTOR SCRATCH PRO’s Effects, Remix Decks, and track browsing come to life on full color displays triggered by touch-sensitive controls. Two wide touch strips allow for pitch bending, track seeking, and vinyl scratch emulation.

Sixteen color-coded performance pads transform the decks into powerful live performance controls. Trigger Remix Set cells, slice up and rearrange in Freeze mode, tweak your loops, or improvise using hotcues – all within view, and within reach.



Versatile Mixer

Not the average mixing interface. TRAKTOR Mode buttons on every mixer channel toggle between TRAKTOR and stand-alone mode for integrating a wealth of analog and digital gear – perfect for use with TRAKTOR SCRATCH and seamless transitions between multiple setups.

The S8’s 4-channel mixer section features innovative wear-resistant faders. Under the hood, inversed carbon strips prevent nightclub wear from debris and drastically prolong fader life.

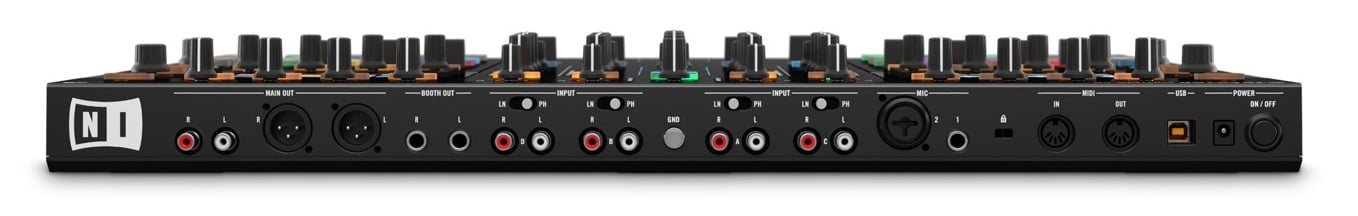

Audio Interface

The S8 offers the most comprehensive connectivity on a TRAKTOR controller yet. Four analog inputs with phono and mic preamps let you connect turntables, CDJs or other gear. Both XLR and RCA master outputs and ¼ inch booth outputs connect the TRAKTOR KONTROL S8 to any sound system imaginable.

24-bit/48kHz of built-in, pristine audio boosts output to levels designed for the most demanding situations. MIDI In and Out lets you sync TRAKTOR with synthesizers, drum computers, MASCHINE, or external effects.



Smart Views

TRAKTOR KONTROL S8’s smart views and pop-up panels deliver dynamic visual feedback that’s more than meets the eye. Browse your library, monitor effects, improvise on the fly, and more at the touch of a button – and directly within view.

Track Preparation

Keep your tracks ready for the mix. The Beatgrid view instantly shows your grids on the displays for editing in advance or on the fly.

Creative Performance

Trigger cue points and loops with color-coded pads for instant creative editing. The colors match the different hotcue types for easy recognition.

Live Capturing

Remix Decks’ hands-on workflow lets you capture loops from a running track in perfect sync and layer them for advanced track edits on the fly.

Improvising in Freeze

Take a snapshot from a running track using the Freeze Button. A loop appears on the deck display ready for you to slice up with the performance pads.

Enhanced Remix Deck Control

Activate Remix Decks directly from the S8 to see your Remix Sets in full view. Trigger sounds from the performance pads and mix them in with the deck faders.

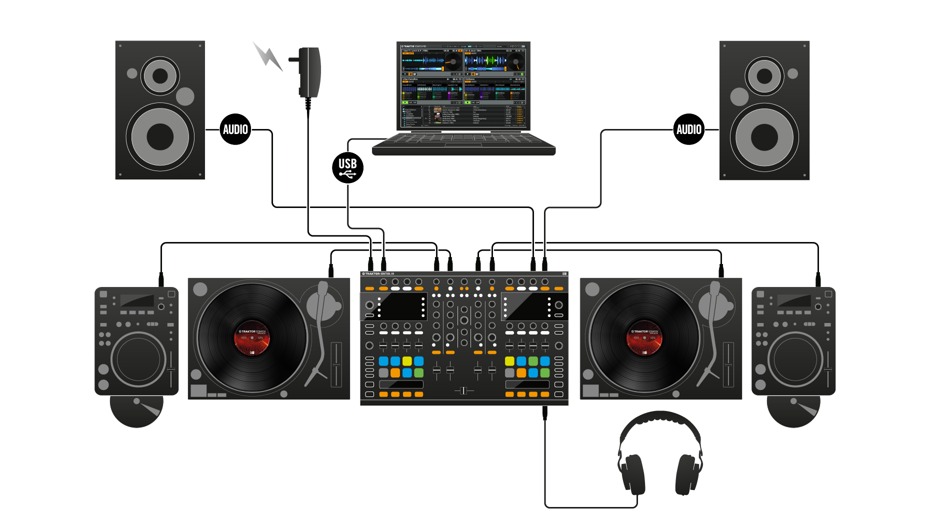

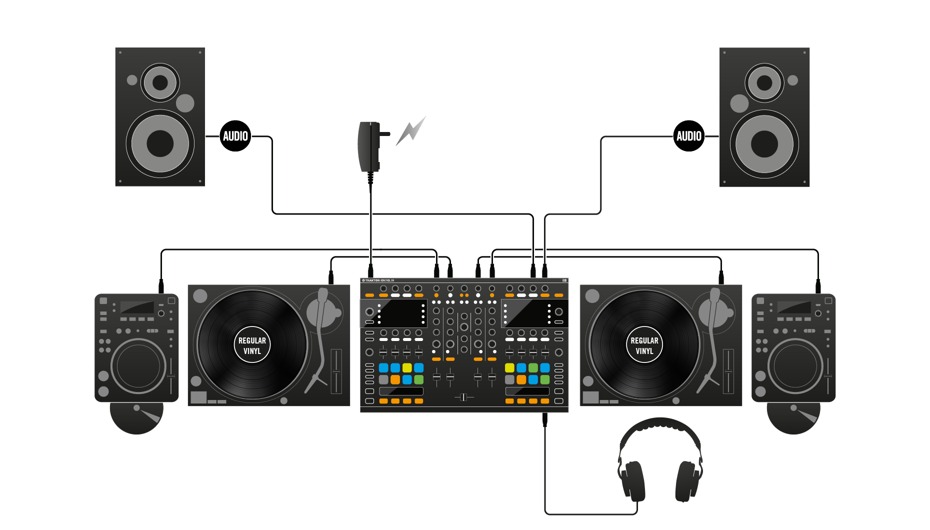

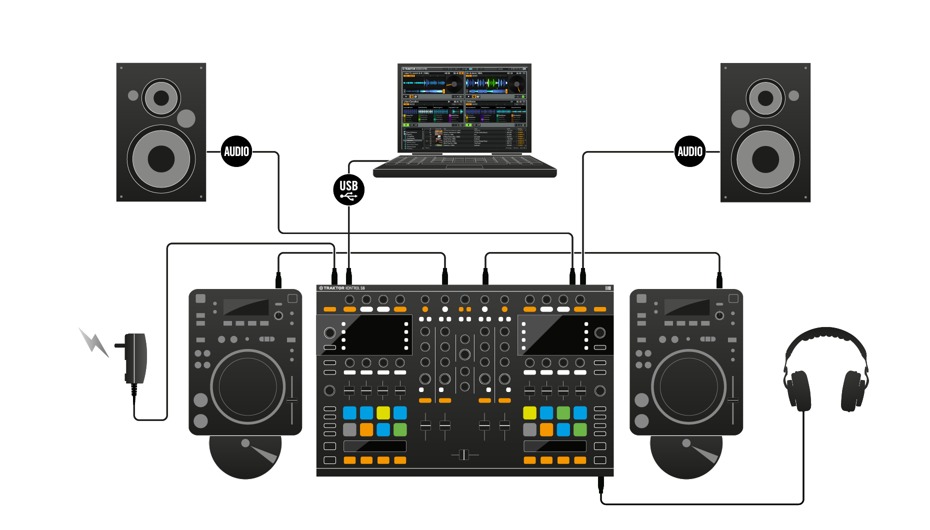

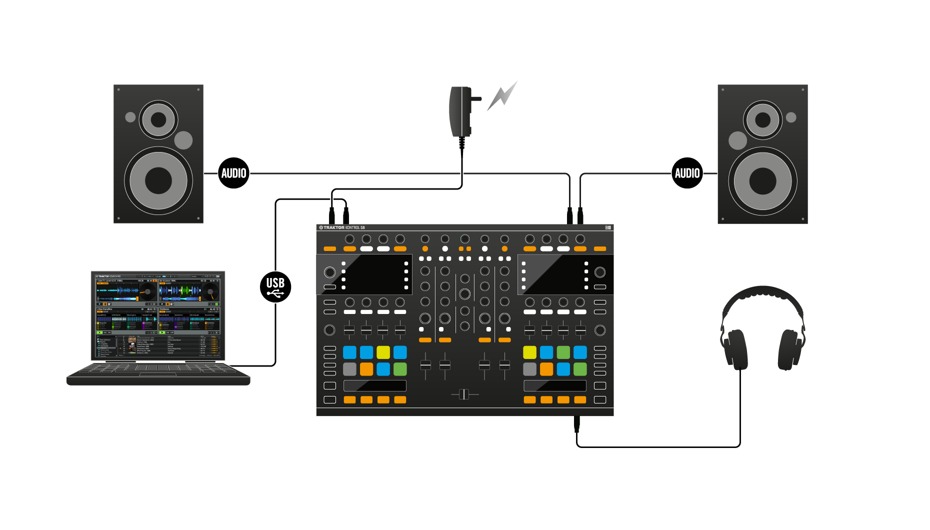

Setup Examples

System Requirements

Mac OS X 10.8 or 10.9 (latest update), Intel® Core™ i5, 4 GB RAM

Windows 7 or 8 (latest Service Pack, 32/64 Bit), 2.0 GHz Intel® Core™ i5 or AMD A-Series, 4 GB RAM



Supported Audio Formats

MP3, WAV, AIFF, Audio-CD, FLAC, Ogg Vorbis, non-DRM WMA**, non-DRM AAC

** WMA playback supported only on Windows



General

Monitor with 1024 x 768 screen resolution, USB 2.0 or higher, OpenGL version 2.1 or higher, 1.5 GB free disc space, high-speed internet connection (for installation)



Dimensions

Depth: 38.7 cm, Height: 6,6 cm, Width: 58,5 cm, Weight: 5 kg



Specifications

Audio Inputs (A/D)
Channels4 Stereo
Sample Rate48kHz
Bit Resolution24-bit
ConverterCirrus Logic
Line Inputs
Full Scale Level+13 dBu
DNR (a-weighted)113 dB
THD+N0.001%
Frequency Response20 Hz – 20 kHz, +/- 0.1 dB
Cross Talk @ 1kHz-116 dB
Mic Input
Full Scale Level @ 1 kHz-7.2 dBu
DNR (a-weighted) @ 1 kHz104 dB
THD+N @ 1KHz0.006%
Frequency response20 Hz – 20 kHz, +/- 0.6 dB
Phono Inputs
Input Impedance47 KOhm
Full Scale Level @ 1 kHz– 23.8 dBu
DNR (a-weighted) @ 1 kHz84 dB
THD+N @ 1KHz0.002%
Crosstalk @ 1kHz-105 dB
Audio Outputs (D/A)
Channels2 Stereo
Sample Rate48 kHz
Bit Resolution24-bit
ConverterCirrus Logic
Line Outputs (XLR & 1/4″ Booth)
Maximum Output Level+20 dBu
DNR (a-weighted)108 dB
THD+N0,001%
Frequency Response20 Hz – 20 kHz, +/- 0.2 dB
Crosstalk @ 1kHz-115 dB
Line Outputs (RCA)
Maximum Output Level+14 dBu
DNR (a-weighted)108 dB
THD+N0,001%
Frequency Response20 Hz – 20 kHz, +/- 0.1dB
Crosstalk @ 1kHz-117 dB
Headphone Output
Load Impedance16 Ohms – 600 Ohms
Maximum Output Level (32 Ohm load)+7.2 dBu
DNR (a-weighted)109 dB
THD+N0.07%
Frequency Response20 Hz – 20 kHz, +/- 0.2 dB
Crosstalk @ 1kHz-63 dB
