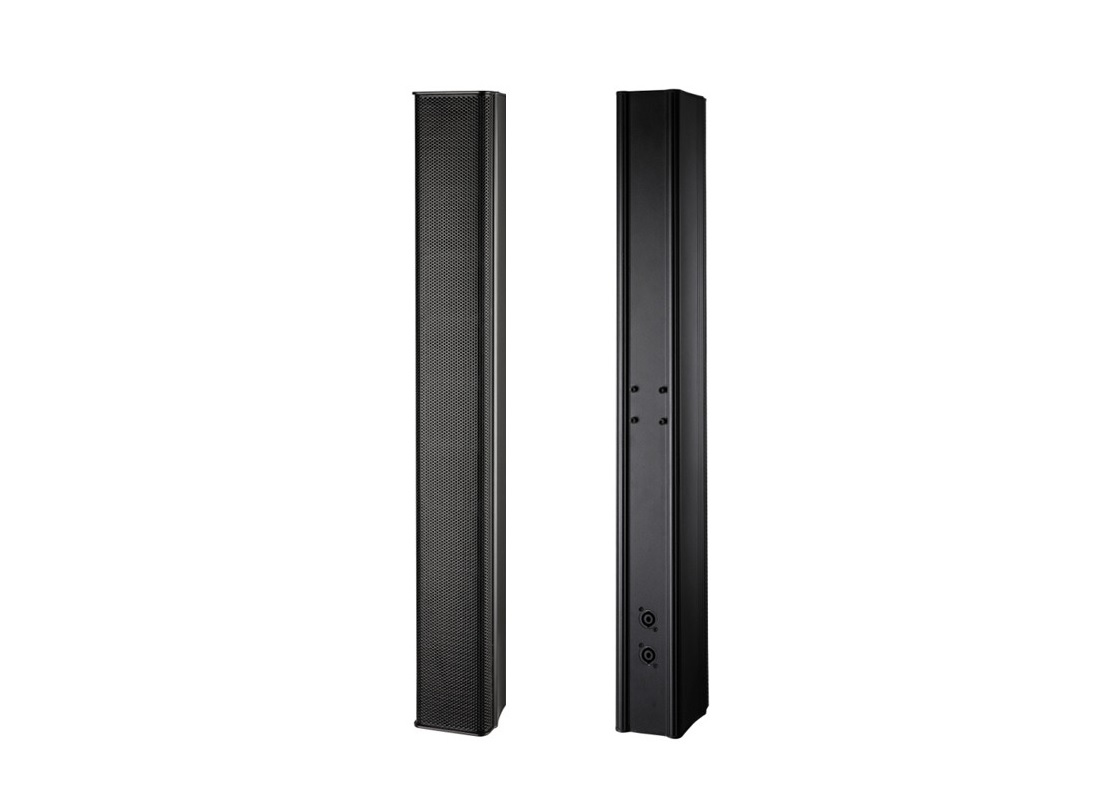

CMX Audio LAS-403 3 Inch Line Array Loudspeaker System
LAS-403 is 3 inch passive line array speaker system of multiple driver units up to 120W/240W output, its aluminum body optional to add the rotatable mounting bracket, it is ideal for meeting room and conference center main sound reinforcement loudspeaker systems.
3 Inch Line Array Loudspeaker System
Description:
The passive line array speaker LAS-403 is high-end passive line array loudspeaker, an undisputed success in the field of professional audio, into a new range of applications within both the live and fixed installation fields. The passive line array column speaker system is compact and elegant, with a refined yet functional design. Most importantly it offers an uncompromising quality capable of successfully solving applications where conventional systems are inadequate.
Features:
- High-end line array column loudspeaker with a frequency response of 150Hz to 20kHz
- Compact passive line array column loudspeakers
- 4 x 3" full range speakers Neodymium magnet
- 2 x XLR connectors for input or link
- RMS power 120W Max 240W
- Improved dispersion of horizontal 140 ° & vertical 15°
- Design and elegance for easy integration even in the most demanding installations
- Compact dimensions ensure listeners will focus on the sound and not the speaker
- Mounting bracket L3A purchased separately
Specifications:
| Model | LAS-403 |
| Description | 3” Passive Line Array Loudspeaker System |
| RMS Power | 120 Watts |
| Continuous Power | 240 Watts |
| Peak Power | 500 Watts |
| Sensitivity | 94dB 1W/1m |
| MAX SPL | 120/123dB (Bi-Amp) |
| Nominal Impedance | 8 Ω |
| Speaker | 4 x 3″ full range speakers Neodymium magnet |
| Crossover Frequency | 3K Hz |
| Horizontal Dispersion | 140 ° |
| Vertical Dispersion | 15° |
| High Filter Pass | 150Hz, -24dB |
| Connector | 2 x XLR connectors for input or link |
| Material | Aluminum alloy and steel grill in black |
| Dimension | 180x450x350mm |
| Weight | 3.4kg |
