Description
Schertler Unico
Rp32.650.000 – Rp48.500.000
A Versatile Acoustic Amplifier with a Cutting Edge Features
The Schertler Unico is a powerful acoustic amplifier with 250W of power, 3 channels, and arguably the clearest, most natural sound of any acoustic amp on the market! This unit features a two way 10″ woofer, a 1″ dome tweeter, and a Class A preamp which will add warmth and clarity to your sound.

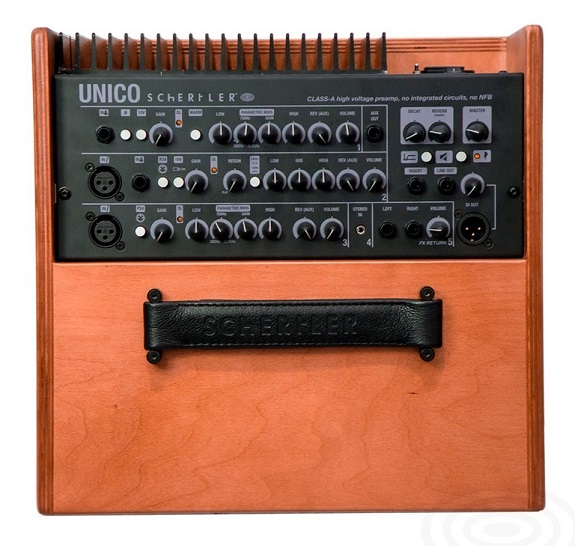

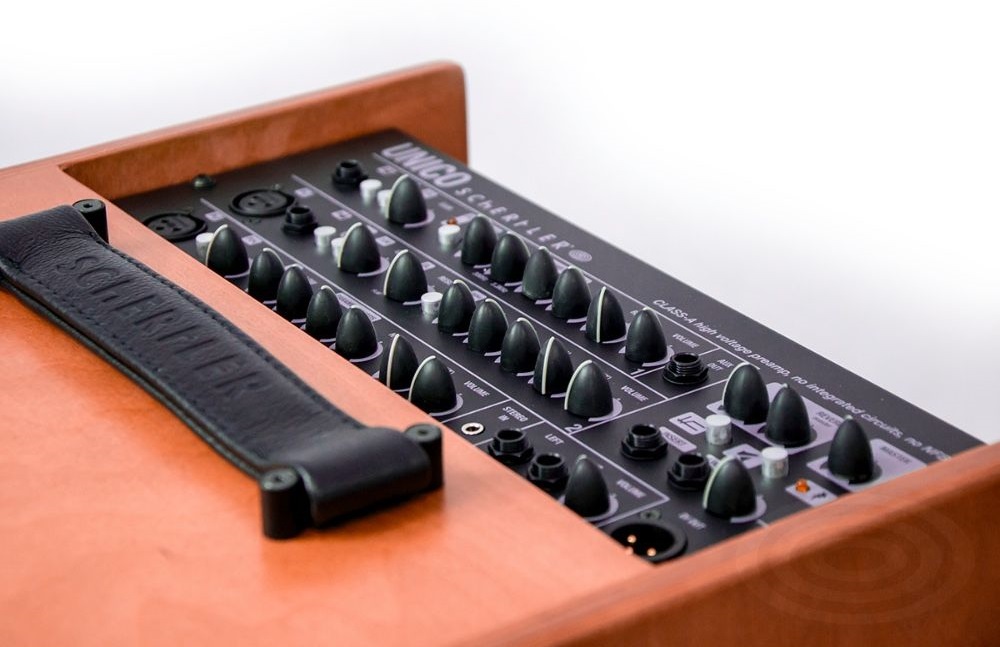

The Unico is Equipped with All the Inputs and Outputs You’ll Need
The Schertler Unico has three main channels: one channel with a 1/4″ instrument input and two channels with XLR mic inputs which provide phantom power. The second XLR channel also has another 1/4″ input, offering even more options for the player. A fourth channel has a mini stereo input for an MP3 player and a fifth channel has stereo inputs for the external effects loop. An insert plug is also included which can be used with Schertler’s nondestructive side-chained volume pedal or any other dynamics processing device. The output section includes a Line Out, adjustable DI, and an AUX out as well as a low cut filter and a mute switch.
Advanced Signal Processing is at Your Fingertips
The Schertler Unico features versatile EQ controls with Low, High, and Mid sweeps as well as parametric EQ for added control. The RESON control notches out feedback prone Low Mids, enabling mics or Schertler DYN pickups to achieve substantially more volume before feedback. The WARM button essentially emulates the tone of an AER amp by boosting Mids and cutting Highs, which smooths out quacky, harsh sounding piezo type pickups. An internal digital reverb with a decay control in also included.
Specs
Weight 14.2 kg (31.30lb)
Dimensions 32.4×32.6×43.8cm
Frequency Response 50 Hz to 20 kHz (+/-3dB)
Speakers 1” dome tweeter, 10” woofer
Construction Plywood
Channels 5 indipendent channels
Inputs Channel 1 Jack 6.3mm unbalanced, Channel 2/3 XLR balanced
Channel 4 Jack 3.5mm stereo, Channel 5 2x Jack 6.3mm unbalanced
Outputs DI, LINE, AUX
Phantom Power 10V on Channel 1, 24V and 10V on Channel 2, 24V on Channel 3

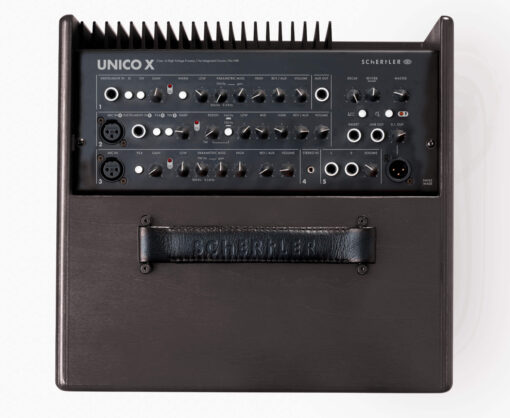

UNICO X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter neetwork, limiter and gain, this impressive 5-channel combo amp provides 280W (123dN SPL) of bi-amplified analog power.
UNICO X is equipped with a 1″ dome tweeter and 10″ woofer. It is design with an optimized 2-way bass reflex construction. UNICO X is ideal fotr those seeking no-compromise acoustic instrument amplification in both live performance and studio situations. It delivers the wide low range typically need for vocal or acoustic guitars, along with clarity and transparancy. The five input can accommodate a variety of different setups, including ab effect loop via Aux Out.
UNICO X is available in a choice of wood or anthracite finishes.
SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and no negative feedback.
Specs
Weight: 16.8 kg
Dimensions (LxDxH): 34.2 x 32.6 x 43.8 cm
Frequency Response (@ +/-3dB): 40 to 20 kHz
Sensitivity (1W/1m) @1 kHz: 98 dB
Power: 280 W Pure analog power
SPL Max: 123 dB
Speakers: 1” dome tweeter, 10” woofer
Box construction: 12 mm birch BB laminated
System – Format: Bass reflex – Two way – Bi-amp
Mic In connector: XLR
Mic In sensitivity: -52 dB
Mic In impedance: 4.7 kΩ
Instrument In connector: 1/4″ jack unbalanced
Instrument In sensitivity: -47 dB
Instrument In impedance: 820 kΩ
Stereo In connector: 1/8″ jack stereo
Stereo In sensitivity: -10 dBu
Stereo In impedance: 40 kΩ
Insert: On master
Line Out connector: 1/4″ jack
Line out level: 0 dBu
Line Out impedance: 200 Ω
DI Out connector: XLR
DI Out level: -∞ to +6 dBu
DI Out impedance: 180 Ω
Aux Out connector: 1/4″ jack unbalanced
Aux Out level: 0 dBu
Aux Out impedance: 200 Ω
Phantom Power (nominal): 24 VDC (XLR) / 10 VDC (jack)
Effect: Spring-type digital reverb with decay
Preamp: Class-A, no negative feedback, no integrated circuits
Footswitch: n.a.
Stand mounting:
Flange mount: ø 36 mm, h=102 mm
Available versions: Dark wood and anthracite
