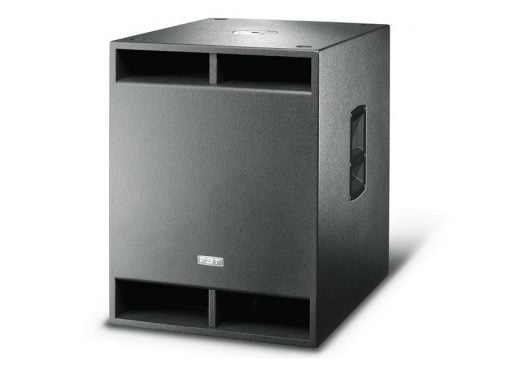

FBT X SUB 18SA

Rp20.250.000

Designed as the perfect partner for the X-LITE and X-PRO series, FBT introduces the new X-SUB 18SA powered subwoofer. Loaded with a single 18” heavy duty woofer, the X-SUB 18SA is controlled by a 1200W Class D amplifier with DSP at 4 presets allowing perfect tailoring of the extended low frequency to the mid-high. The rugged plywood enclosure is built to withstand touring conditions, yet crafted with Italian style to suit the most elegant fixed installations. Finally, the M20 thread allows for pole mounting on a 3-way system design.

SKU: FBT-SUB18SA Categories: , , Tags: , ,

Description



Designed as the perfect partner for the X-LITE and X-PRO series, FBT introduces the new X-SUB 18SA powered subwoofer. Loaded with a single 18” heavy duty woofer, the X-SUB 18SA is controlled by a 1200W Class D amplifier with DSP at 4 presets allowing perfect tailoring of the extended low frequency to the mid-high. The rugged plywood enclosure is built to withstand touring conditions, yet crafted with Italian style to suit the most elegant fixed installations. Finally, the M20 thread allows for pole mounting on a 3-way system design.

1200W – 136dB SPL Processed Active Subwoofer

  • Compact band-pass design subwoofer with high SPL and punch
  • 460mm (18”) high excursion woofer with 75 mm (3”) voice coil
  • Frequency response from 38Hz to  120Hz
  • 1200W Class D power amplifier with switch mode supply
  • Digital Signal processor with 6 presets, 2 equalization with 2 LPF crossover settings
  • Control panel with stereo combo XLR/Jack in/outs, Stereo XLR HP-Filter outs, Volume, EQ  presets, phase reversal switch 0°-180°, status LED indicators
  • 18mm plywood cabinet with scratch & scuff resistant paint finish
  • M20 (20mm) top mount speaker stand socket, two FBT design  aluminum handles, 100mm optional wheels
  • Provides additional low frequency reinforcement when used along with X-PRO or X-LITE speaker series





Specifications

Code:38772
Configuration:1 way
Built-in amplifier LF/HF:1200 W RMS
Frequency response:38Hz – 120Hz -6dB
Low Frequency woofer:18 – 3 coil inch
Maximum SPL cont/peak:136 half- space dB
Dispersion:omni HxV
Input impedance:22 Kohm
Input connector:XLR ST with loop, XLR ST OUT
Power cord:5 / 16.4 m/ft
Net Dimension (WxHxD):510x692x650 / 20.07×27.24×25.59 mm/inch
Net Weight:34 / 74.95 kg/lb
Transport Dimension (WxHxD):700x840x800 / 27.55×33.07×31.49 mm/inch
Transport Weight:37 / 74.95 Kg/lb
