Schertler Bass Fidelity

The B10 is an ideal companion for practice, travel and small venue use. This compact bass combo offers 300W RMS of bi-amplified power and is equipped with a 10” woofer, 1” compression driver, transistor preamp and Class D amplifier. Weighing just 15.5kg, it is easily transportable and offers all the power, sound quality and flexibility you’d expect from a compact, high performance amplifier.

B10 is provided with its own cover bag.

Specifications

Weight 18 kg (39.68lb)
Dimensions 44x35x39cm (17.32×13.78×15.35 in)
Frequency Response 50 Hz to 18 kHz (+/-3dB)
Speakers 1” dome tweeter, 10” woofer
Construction 2-way Bass Reflex Plywood
Channels 1 channel
Sensitivity (1W/1m) 98 dB
Outputs DI, XLR pre/post EQ and Headphones
Stand-by switch yes
Impedance 22 Kohm to 2 Mohm @ 1kHz
Preamp Transistor
Power Digital Class-D amplifier
Power handling 300W
Crossover 3.5 kHz 18dB/oct
Tone control 4-band +/- 15dB

The B12 bass combo has been designed with the small to medium venue in mind. Offering 400W RMS of bi-amplified power, it is equipped with a 12” woofer, 2 x1” compression drivers, transistor preamp and Class D amplifier. The B12 is suitable for a range of applications including practice, studio recording and live performance. Although larger than its B10 sibling, it still offers a practical solution for when travel and transportation are required.

B12 is provided with its own cover bag.

Specificattions

Weight 21 kg (46.3lb)
Dimensions 58x34x41cm (22.83×13.38×16.14 in)
Frequency Response 45 Hz to 18 kHz (+/-3dB)
Speakers 1” dome tweeter, 12” woofer
Construction 2-way Bass Reflex Plywood
Channels 1 channel
Sensitivity (1W/1m) 99 dB
Outputs DI, XLR pre/post EQ and Headphones
Stand-by switch yes
Impedance 22 Kohm to 2 Mohm @ 1kHz
Preamp Transistor
Power Digital Class-D amplifier
Power handling 400W
Crossover 3.5 kHz 18dB/oct
Tone control 4-band +/- 15dB

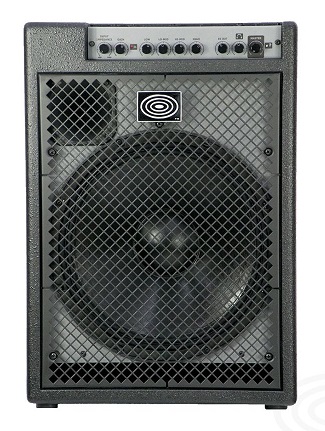

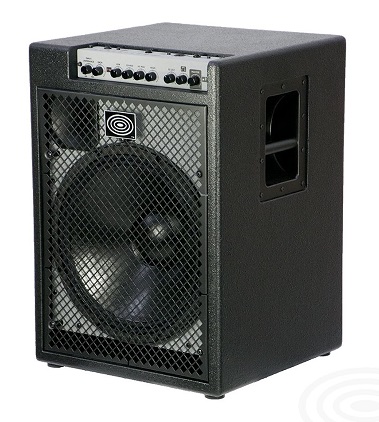

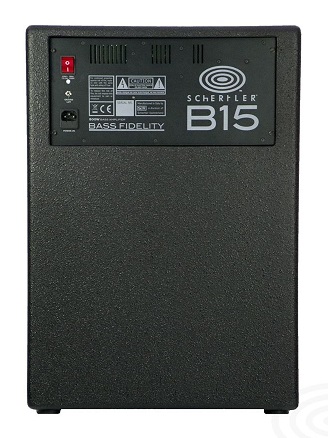

This top-of-the-range combo has a variety of uses for the bass guitarist, as well as delivering an amazing sound! Equipped with a 15” woofer, custom horn with 1” compression driver, transistor preamp and Class D amplifier, the B15 packs out a useful 500W RMS of bi-amplified power, making it ideal for larger venues and loud environments such as rock concerts. The amplifier has a wide frequency range, resulting in a great bottom end and excellent overall dynamics. It is suitable for use with a range of instruments including 5- and 6-string basses.

B15 is provided with its own cover bag.

Specifications

Weight 24 kg (52.91lb)
Dimensions 63×44.5×43.5cm (24.8×17.52×17.12 in)
Frequency Response 40 Hz to 16 kHz (+/-3dB)
Speakers Custom horn 1″ compression driver, 15” woofer
Construction 2-way Bass Reflex Plywood
Channels 1 channel
Sensitivity (1W/1m) 100 dB
Outputs DI, XLR pre/post EQ and Headphones
Stand-by switch yes
Impedance 22 Kohm to 2 Mohm @ 1kHz
Preamp Transistor
Power Digital Class-D amplifier
Power handling 500W
Crossover 3 kHz 18dB/oct
Tone control 4-band +/- 15dB
