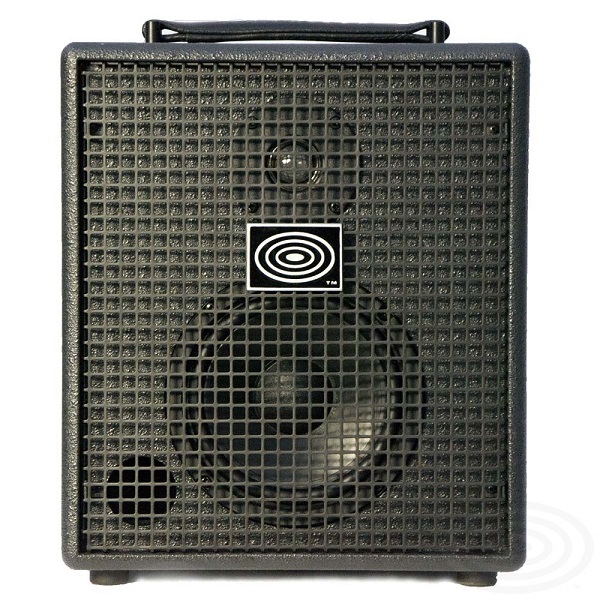

Schertler David X

Rp28.100.000

Color Clear
Add to wishlist
SKU: SCHR-DVD-X Categories: , , , , , Tags: , ,

Description


DAVID X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this amp provides 120W (112dB SPL) of bi-amplified analog power. DAVID X is equipped with a 1” dome tweeter and 6” woofer. It is designed with an optimized 2-way bass reflex construction.

DAVID X is ideal of those seeking no-compromise acoustic instrument amplification. An effective system for practice and home studio use, DAVID X’s size also make it the most portable and flexible SCHERTLER amplifier model. The three input can accept two instrument, or an instrument and a vocal microphone, plus a stereo playback device.

DAVID X is available in a choice of wood or anthracite finishes.

SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and no negative feedback.

Specifications

  • Weight: 11 kg
  • Dimensions (LxDxH): 29.5 x 25.5 x 35.5 cm
  • Frequency Response (@ +/-3dB): 45 to 20 kHz
  • Sensitivity (1W/1 m) @1 kHz: 92 dB
  • Power: 120 W Pure analog power
  • SPL Max: 112 dB
  • Speakers: 1” dome tweeter, 6” woofer
  • Box construction: 12 mm birch BB laminated
  • System – Format: Bass reflex – Two way – Bi-amp
  • Mic In connector: XLR
  • Mic In sensitivity: -52 dB
  • Mic In impedance: 4.7 kΩ
  • Instrument In connector: 1/4″ jack unbalanced
  • Instrument In sensitivity: -47 dB
  • Instrument In impedance: 820 kΩ
  • Stereo In connector: 1/8″ jack stereo
  • Stereo In sensitivity: -10 dBu
  • Stereo In impedance: 40 kΩ
  • Insert: On master
  • Line Out connector: 1/4″ jack
  • Line out level: 0 dBu
  • Line Out impedance: 200 Ω
  • DI Out connector: XLR
  • DI Out level: -∞ to +6 dBu
  • DI Out impedance: 180 Ω
  • Aux Out connector: n.a.
  • Aux Out level: n.a.
  • Aux Out impedance: n.a.
  • Phones connector: n.a.
  • Phones level: n.a.
  • Phones impedance: n.a.
  • Phantom Power (nominal): 24 VDC (XLR) / 10 VDC (jack)
  • Effect: Spring-type digital reverb
  • Preamp: Class-A, no negative feedback, no integrated circuits
  • Footswitch: n.a.
  • Stand mounting: Flange mount ø 36 mm, h=102 mm
