Schertler Jam
Rp26.700.000 – Rp43.800.000
JAM is a 5-channel amplification system that offers 200W (114dB) of bi-amplified analog power. Equipped with a 1″ dome tweeter and 8″ woofer, it is design with a 2-way bass reflex construction.
Ideal for acoustic instrument in both live performance and studio situation, JAM deliver the wide low range typically needed for acoustic guitar, along with clarity and transparency. Its speaker configuration makes it a perfect match for the acoustic gitar player. JAM’s five input can accommodate a variety of different setups, including an effect loop via Aux Out.

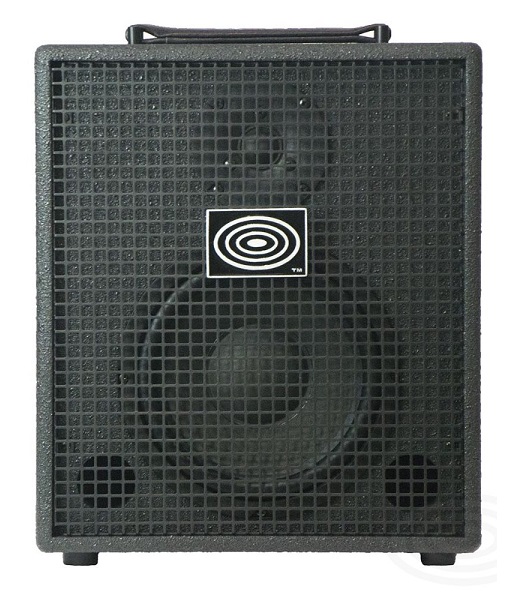

JAM is available in a choice of wood or anthracite finishes.
SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and no negative feedback.
Specs
Weight 12.2 kg (26.89lb)
Dimensions 32.4×29.7x38cm
Frequency Response 50 Hz to 30 kHz (+/-3dB)
Speakers 1″ dome tweeter, 8″ woofer
Construction Plywood
Channels 5 indipendent channels
Inputs Channel 1 Jack 6.3mm unbalanced, Channel2/3 XLR balanced
Channel 4 Jack 3.5mm stereo, Channel 5 2x Jack 6.3mm unbalanced
Outputs DI, LINE, AUX
Phantom Power 10V on Channel 1, 24V and 10V onChannel 2, 24V on Channel 3
Effect Digital reverb with Decay
Preamp Class-A
Power 200W Bi-amplified

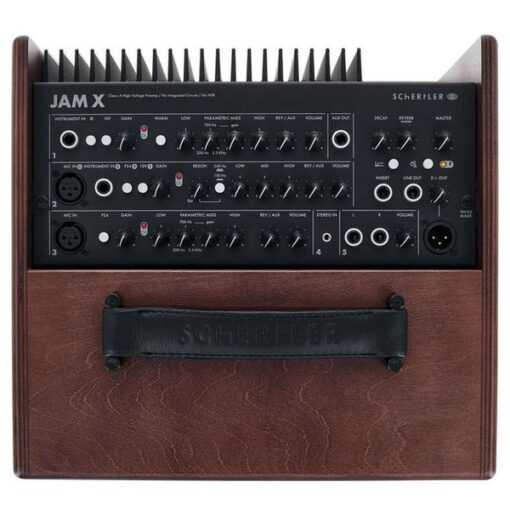

JAM X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this flagship 5-channel amp provides 230W (117dB SPL) of bi-amplified analog power.
JAM X is equipped with a 1” dome tweeter and 8” woofer. It is designed with an optimized 2-way bass reflex construction. JAM X is ideal for those seeking no-compromise acoustic instrument amplification in both live performance and studio situations. It delivers the wide low range typically needed for vocals or acoustic guitars, along with clarity and transparency. The five inputs can accommodate a variety of different setups, including an effect loop via the Aux Out.

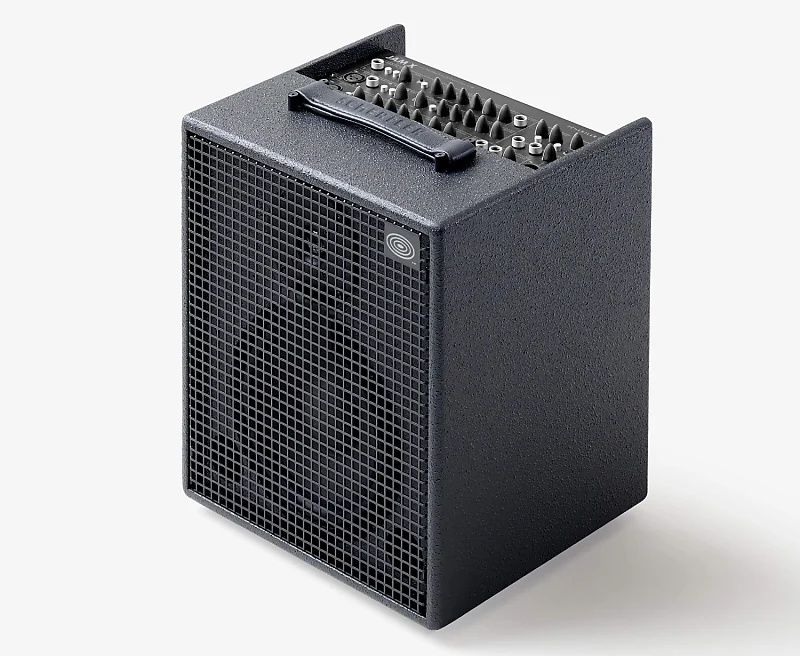

JAM X is available in a choice of wood or anthracite finishes.
SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and no negative feedback.
Specs
Power amp 240 W pure analog power amp
Frequency response (@ +/-3dB) 40 – 20 kHz
Sensitivity (1W/1m) @1 kHz 95 dB
SPL Max 117 dB
Speaker system 1” dome tweeter, 8” woofer
Box construction 12 mm birch BB laminated
System – Format Bass reflex – Two way, Bi-amplified
Mic In connector XLR
Mic In sensitivity -52 dB
Mic In impedance 4.7 kΩ
Instrument In connector 1/4″ jack unbalanced
Instrument In sensitivity -47 dB
Instrument In impedance 820 kΩ
Stereo In connector 1/8″ jack stereo
Stereo In sensitivity -10 dBu
Stereo In impedance 40 kΩ
Insert On master
Line Out connector 1/4″ jack
Line Out level 0 dBu
Line Out impedance 200 Ω
DI Out connector XLR
DI Out level -∞ to +6 dBu
DI Out impedance 180 Ω
Aux Out connector 1/4″ jack unbalanced
Aux Out level 0 dBu
Aux Out impedance 200 Ω
Phones connector No
Phones level No
Phantom Power (nominal) 24 VDC (XLR) / 10 VDC (jack)
Effects Spring-type digital reverb
Preamp Class-A, no negative feedback, no integrated circuits
Footswitch No
Stand mounting Flange mount ø 36 mm, h=102 mm
Finish Dark Wood
Dimensions 32.4 (L) x 29.7 (D) x 38 (H) cm
Weight 12.5 kg
