Description
AVANTIS – IT’S A SMALL STEP TO A GIANT LEAP

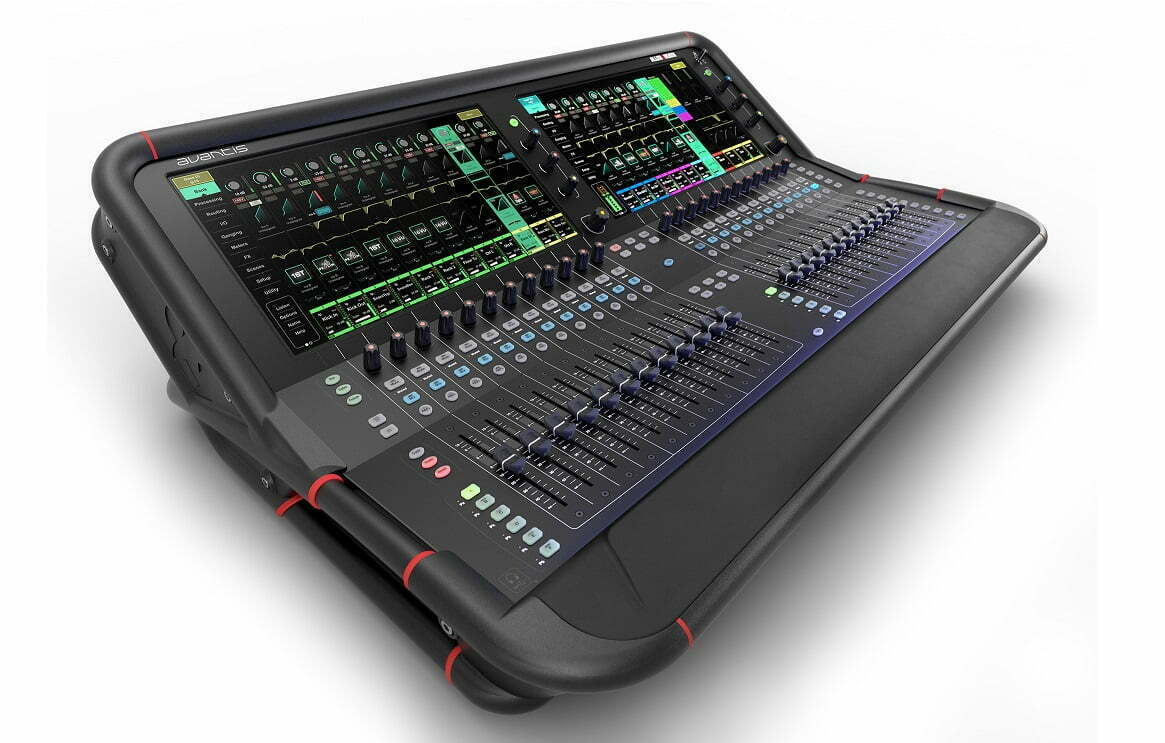

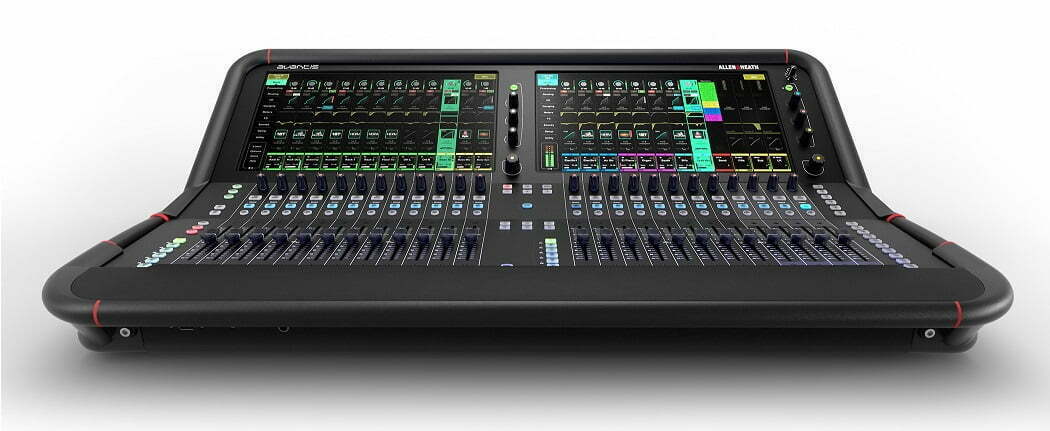

The third mixer based on our 96kHz XCVI FPGA engine, Avantis puts all our next-generation technology in a 64 channel / 42 configurable bus console, with dual Full HD touchscreens, a super-flexible workflow with Continuity UI, extensive I/O options, add-on processing from our flagship dLive mixing system, and a rugged full metal chassis.
About XCVI
The power of Avantis emanates from the XCVI Core – pioneered by the Allen & Heath R&D team using next generation FPGA technology, with parallel virtual processing cores generating enough power for 88×42 (including FX returns) channels of processing at 96kHz sampling rate.
The massive power of XCVI (25 billion operations per second) allows Avantis to deliver 64 full processing inputs and 12 stereo FX returns, 42 bus with configurable mix architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class-leading latency at an ultra-low 0.7ms.
CONTINUITY UI
It’s your mixer so mix your way.

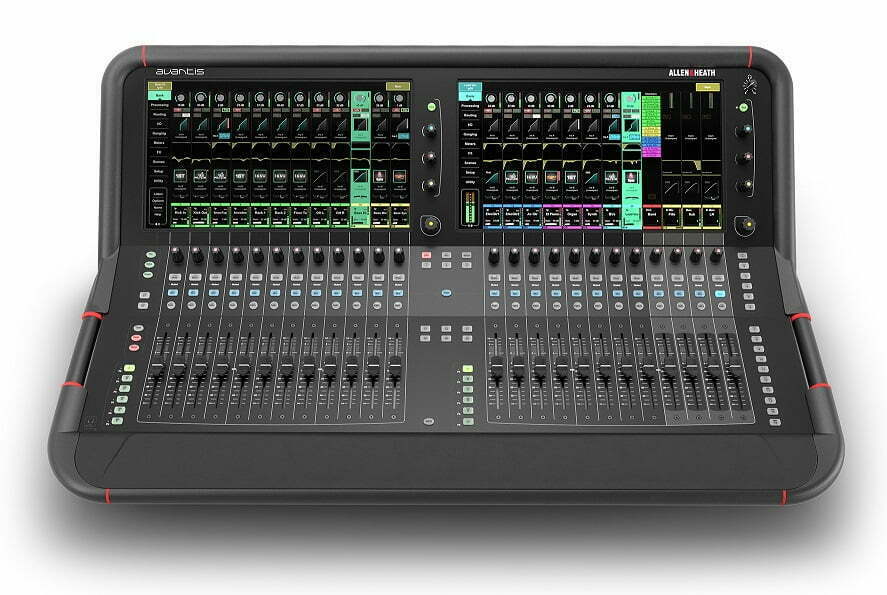

With a massive 206 square inches of screen space operating at a crisp 1080p Full HD resolution, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the displays.
The faders react on touch to immediately highlight the active channels for instant visual feedback.
The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank.
Each screen also features a FastGrab tab on the right-hand side, giving you split-second access to key freely-assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel.
The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.
dPack
Right out of the box, Avantis is loaded with powerful processing tools that will easily meet the demands of most users and applications. Want more options? Upgrade your console with Avantis dPack to get additional dLive processing including Dyn8 (up to 16 instances), DEEP Compressors, and the Dual Stage Valve Preamp, plus more models as they’re added.

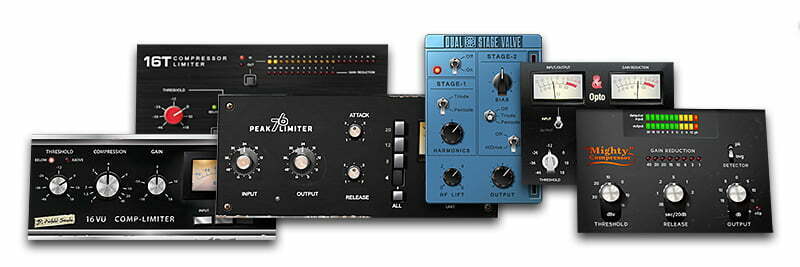

dPACK – DEEP
Trusted by platinum selling artists on sellout tours, DEEP puts incredible emulations directly within Avantis’ input and mix channels with zero latency. No burning FX slots, no 3rd party gear hassles and no issues with latency or phase coherency.

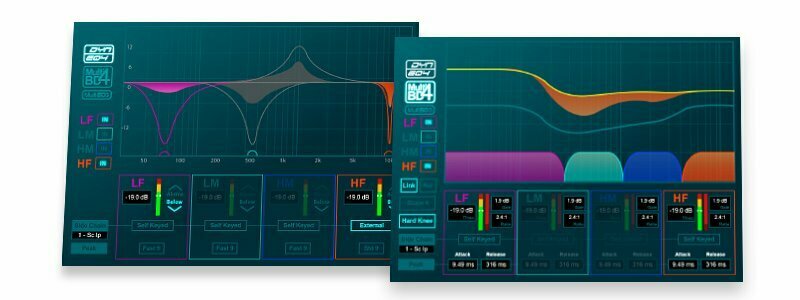

dPACK – DYN8
Avantis dPack also delivers Dyn8, a powerful and sophisticated processor boasting 4 bands of dynamic EQ and 4 bands of multiband compression. With endless applications including taming vocals, tightening sub-groups or adding sonic glue to a mix, Dyn8 changes the way we think about dynamic processing. dPack enables 16 Dyn8 engines for inserting on Input and Mix channels.

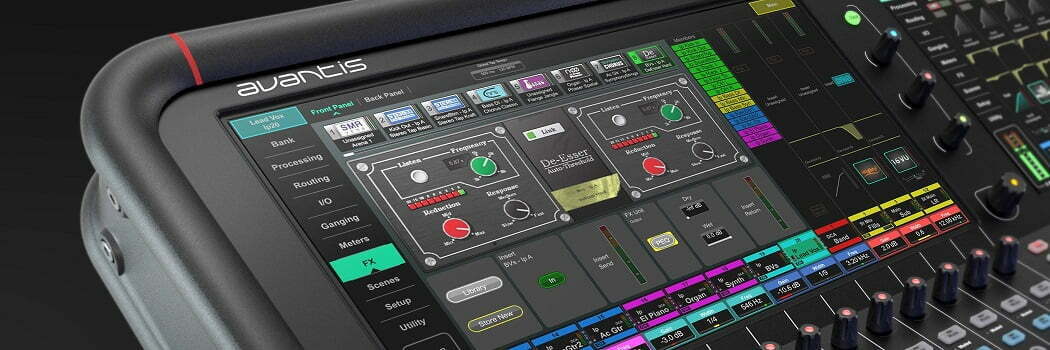

RACKEXTRA FX
Trust us, these are not your usual built-in effects.
Allen & Heath has a well-earned reputation for crafting FX emulations that rival the very best third party plug-ins, but with none of the associated hassle.
With a passion bordering on obsession, we’ve created a suite of FX inspired by some of the most revered outboard equipment, including pristine reverbs, detailed delays, and wonderful classic modulation effects.
Best of all, we offer our 12 FX slots with no compromises. Each effect takes up just one of the 12 slots, and each of the 12 FX slots has a dedicated stereo return – so you don’t need to waste your input channels.

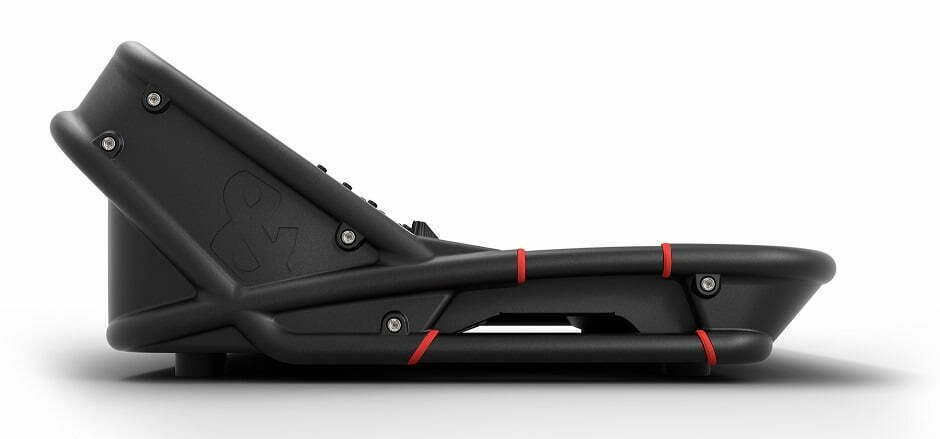

FULL METAL CHASSIS
You’ve probably noticed that Avantis is not just another dull grey box mixer with plastic sides. Part-inspired by the tubular exo skeletons of the latest generation of superbikes, those sleek curves are all metal – super tough – but lightweight.
Because every part of Avantis was designed in pursuit of performance and reliability, we subjected it to some of the most rigorous testing we’ve ever embarked upon. And it took it all.
WELL CONNECTED

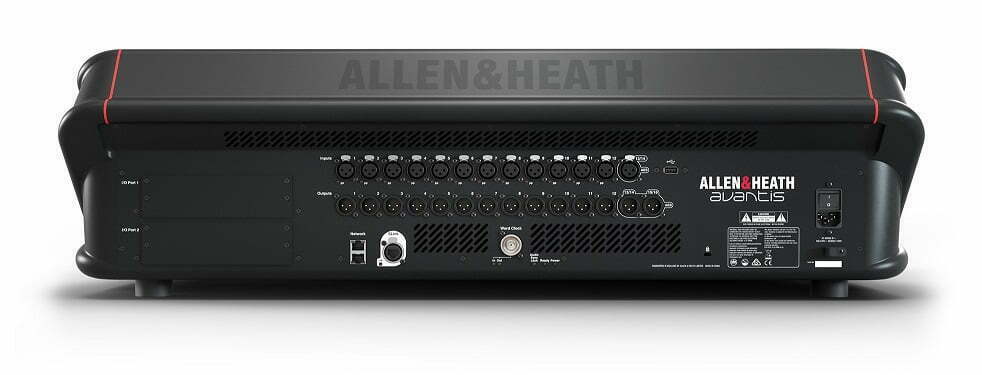

For local I/O, Avantis is well equipped with 12 XLR analogue inputs, 12 XLR analogue outputs, plus AES (Stereo In, 2x Stereo Out).
Two additional I/O Ports allow Avantis to benefit from the full range of current dLive option cards, including Dante (64×64 and 128×128), Waves, gigaACE, MADI and more, expanding the scope for system integration, FoH / monitor splits and multitrack recording.
DANTE 128×128
With 128 channels of bidirectional audio at 96kHz, the Dante 128×128 card is suitable for high channel digital splits between systems, for instance FOH and MON, whilst offering simultaneous multitrack recording via Dante Virtual Soundcard (available separately).
DANTE 64×64
The Dante 64×64 audio networking card offers low latency connectivity to Dante networks and devices using standard networking cabling and hardware and is a cost-effective alternative to Dante 128×128 in applications that don’t require the additional I/O.
Waves V3
An interface to the Waves SoundGrid networking platform, for plugin processing, multitrack recording and audio distribution.
gigaACE
A cost-effective and plug ‘n play solution for digital splits and point-to-point connections.
superMADI
A flexible toolkit of broadcast connectivity. Multiformat to address requirements of broadcast/recording feeds + OB Vans.
fibreACE
A fibre optic solution for large scale events and long cable runs up to 500m.
Features
- 96kHz 64 channel / 42 bus digital mixer
- XCVI FPGA core with ultra-low latency (0.7ms)
- Fully configurable mix bus architecture
- Super-tough, full metal chassis
- Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows
- dPack option adds dLive processing, including 16 Dyn8 engines, plus per-channel zero-latency DEEP Compressors and Dual-Stage Valve preamp
- 12 RackExtra FX slots with dedicated stereo returns
- 16 DCAs
- Dual 15.6” Full HD capacitive touchscreens with gesture control
- AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
- Fully assignable layout
- 144 fader strips (24 faders, 6 layers) with optional dedicated master section
- SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System
- 12 analogue XLR Inputs / 12 analogue XLR Outputs
- 1 Stereo AES In / 2 Stereo AES Out
- 2 I/O Ports, both capable of 128×128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
- User configurable rotary controls
- 24 assignable SoftKeys
- Comprehensive metering with multi-point peak detection
- USB stereo recording and playback
- BNC Word Clock
