Introducing TASCAM Sonicview
With TASCAM Sonicview, TASCAM has created an entirely new line of digital recording and mixing consoles that incorporate the latest technology and no-compromise audio quality. Our goal is to allow artists, engineers, and performers realize their creativity with the ultimate audio and recording quality possible.
We started with high-performance Class 1 HDIA mic preamp newly developed using over 50 years of TASCAM know-how and technology, 96 kHz, 54-bit float internal processing, FPGA mixer engine, 32-bit ADC, and other specifications that transcend to a class above and beyond.
In addition to intuitive control brought about by multiple color touch displays,TASCAM Sonicview recording and mixing consoles integrate beautifully with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, built-in 32-channel multi-track SD recording*, and plenty of I/O.
A next-generation recording mixer with superior sound quality and innovative operation that meets the demanding needs of sound and recording engineers.Its name is “TASCAM Sonicview”

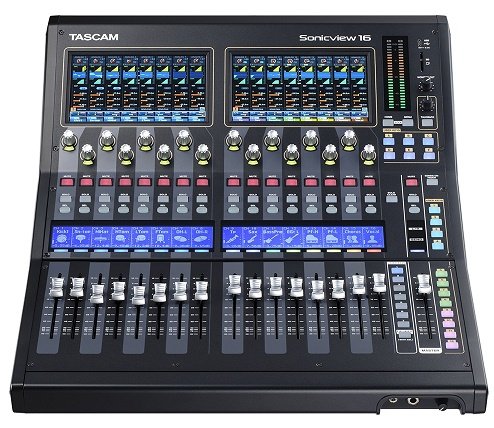

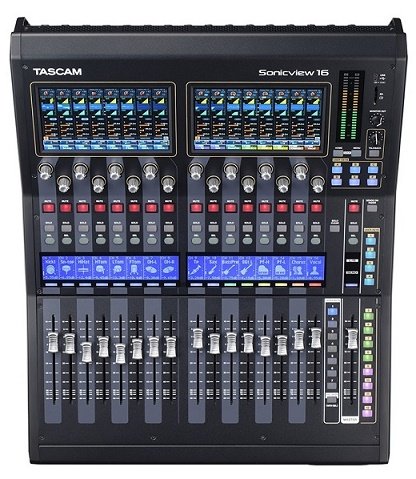

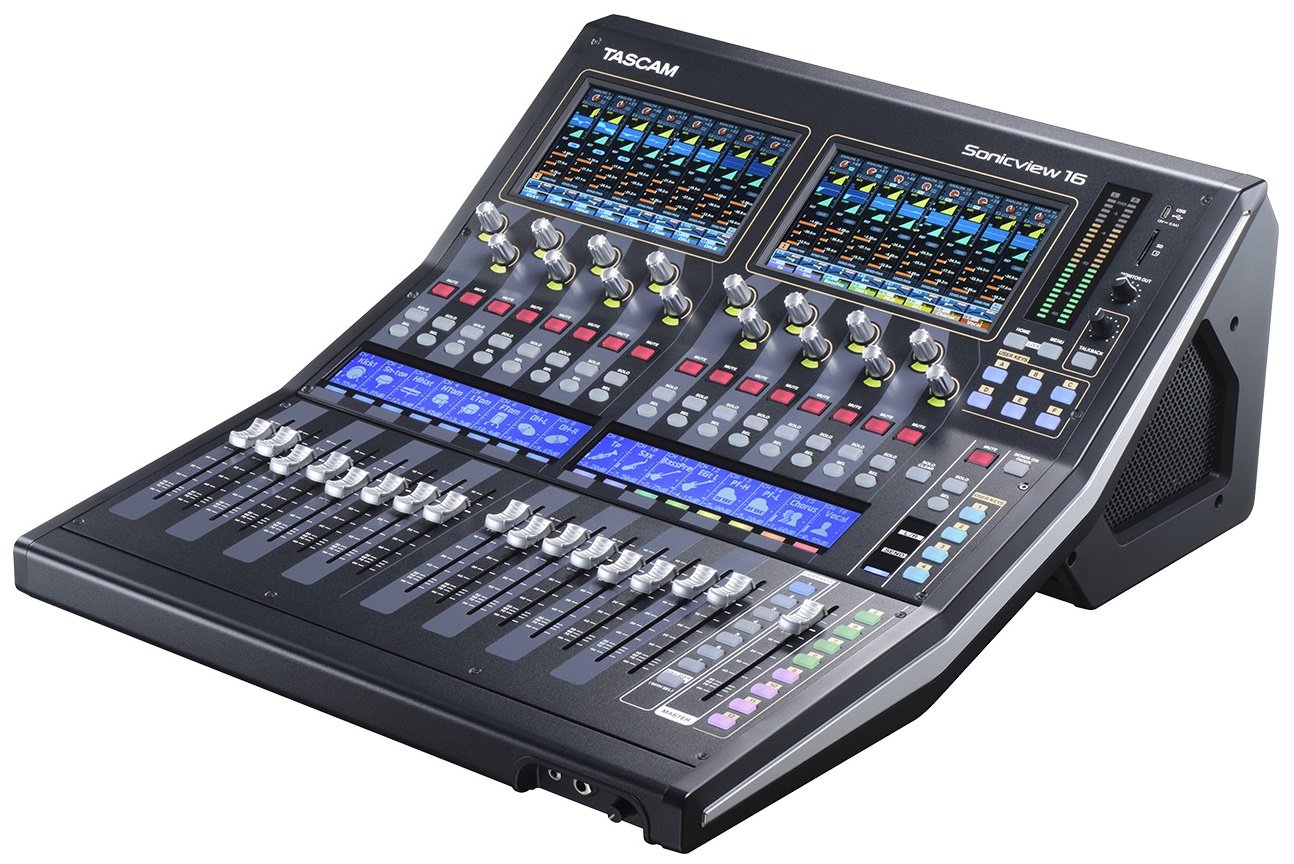

TASCAM Sonicview 16XP
Digital Recording and Mixing Console with Multi-Environment Touch Screens
Key Features
TASCAM VIEW (Visual Interactive Ergonomic Workflow) interface supports intuitive operation with three different view system
44 input channels (or 40 mono input channels and 2 stereo input channels) and 4 FX return
22 flexible output buses and main L/R bus with 31-band graphic EQ
Ultra-low latency: 2 x samples (20.8μS) in mixing engine, 0.51 ms analog-to-analog
32-in/32-out, 32-bit/96 kHz USB audio interface
Built-in 32-track SDXC recorder
64-in/64-out built-in Dante interface; supports redundancy and DDM, AES67 and SMPTE ST 2110 interoperability

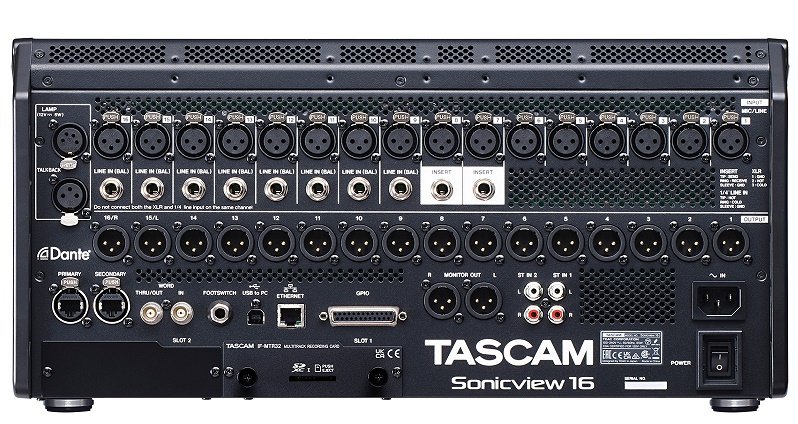

16 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
SPECS
Overall Dimensions: 472.0(W) x 228.1(H) x 554.4(D) mm, 18.59 (W) x 8.99(H) x 21.83 (D) inch
Weight: 13kg / 28.67lb
Power Consumption: 65W
What’s In The Box
TASCAM Sonicview 16XP with integrated IF-MTR32 recorder card x 1
Power cord (JAPAN/USA/EUROPE/OCEANIA) x 3
Owner’s Manual with Warranty x 1
TASCAM ID Registration Guide x 1

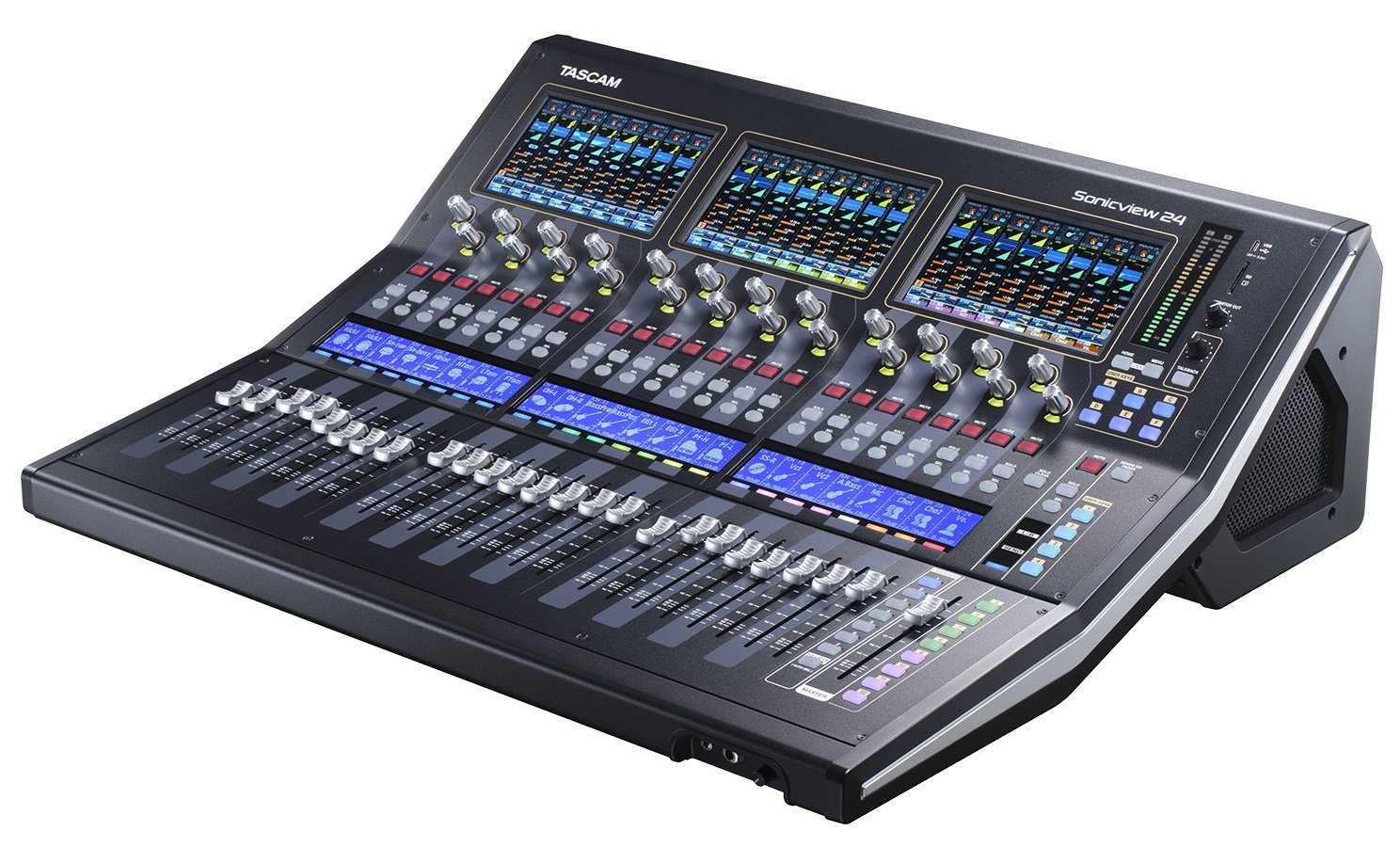

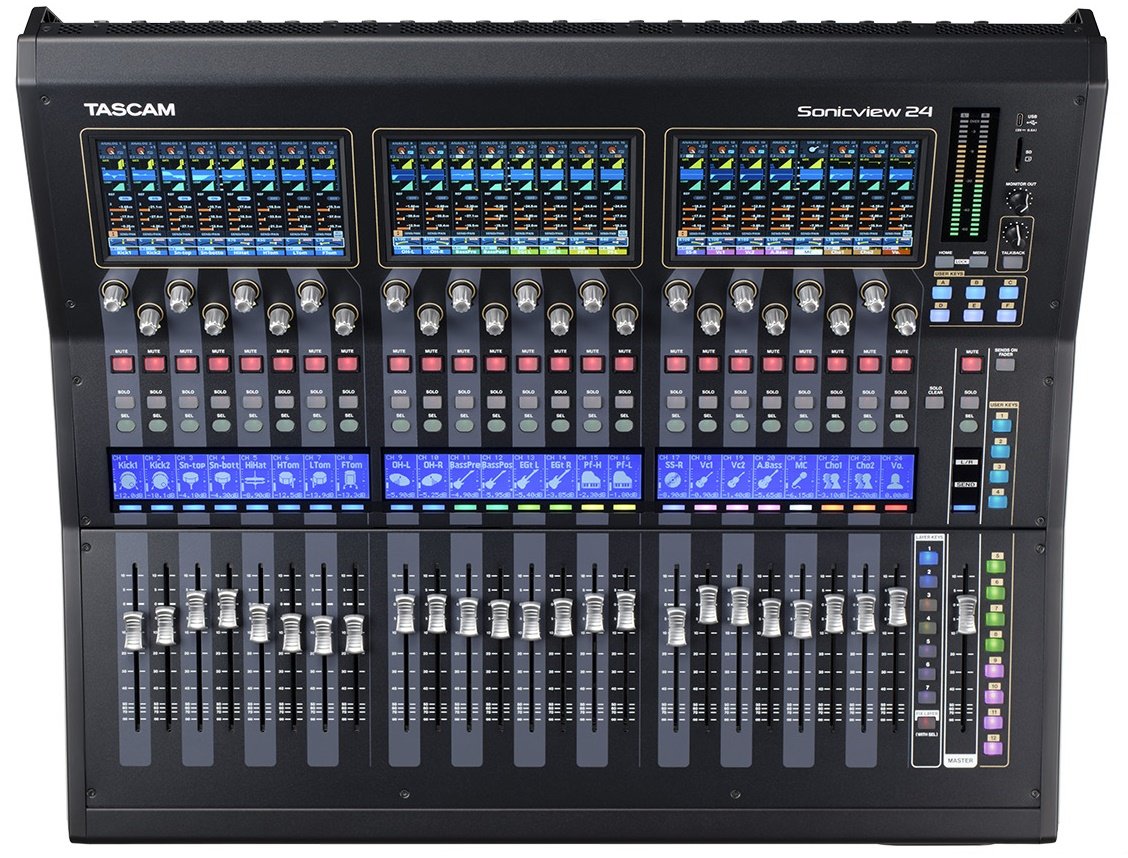

TASCAM Sonicview 24XP
Digital Recording and Mixing Console with Multi-Environment Touch Screens
Key Features
TASCAM VIEW (Visual Interactive Ergonomic Workflow) interface supports intuitive operation with three different view system
44 input channels (or 40 mono input channels and 2 stereo input channels) and 4FX return
22 flexible output buses and main L/R bus with 31-band graphic EQ
Ultra-low latency: 2 x samples (20.8μS) in mixing engine, 0.51 ms analog-to-analog
32-in/32-out, 32-bit/96 kHz USB audio interface
Built-in 32-track SDXC recorder
64-in/64-out built-in Dante interface; supports redundancy and DDM, AES67 and SMPTE ST 2110 interoperability

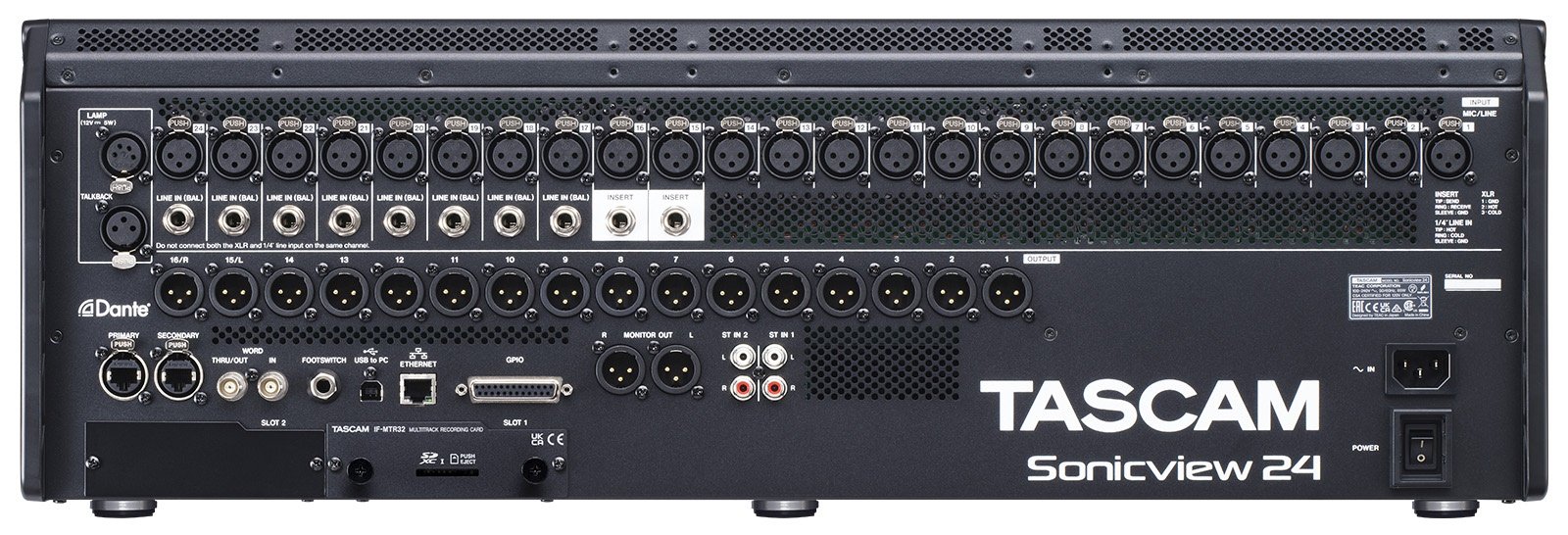

24 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
SPECS
Overall Dimensions: 690.8(W) x 228.1(H) x 554.4(D) mm, 27.20 (W) x 8.99(H) x 21.83 (D) inch
Weight: 18kg / 39.69lb
Power Consumption: 85W
What’s In The Box
TASCAM Sonicview 24XP with integrated IF-MTR32 recorder card x 1
Power cord (JAPAN/USA/EUROPE/OCEANIA) x 3
Owner’s Manual with Warranty x 1
TASCAM ID Registration Guide x 1

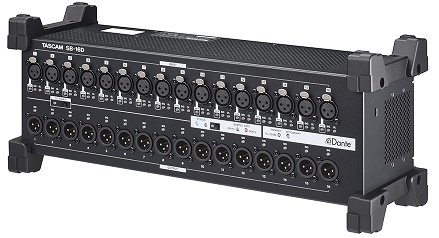

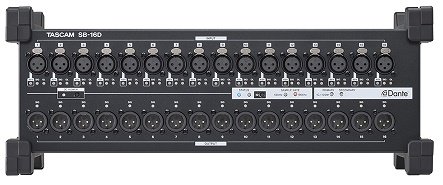

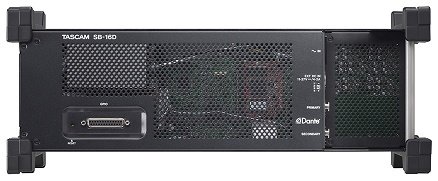

SB-16D
16-in/16-out Dante Stage Box
16-in/16-out Dante analog converter with built-in 32-bit ADC & Class 1 HDIA mic preamps. Controllable with TASCAM IO Control app or with TASCAM Sonicview series.
Features
16 in/16 out Dante enabled stage box with redundancy
16 XLR mic/line inputs with +48 phantom power and SIG OL LED input signal/overload indicators
16 XLR line outputs with SIG OL LED output signal indicators
Up to 96 kHz sampling and 32-bit precision

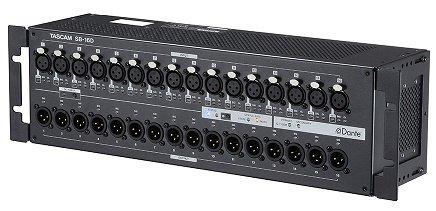

Supports both floor installation and 3U rack mounting
Fully controllable from connected TASCAM Sonicview mixers
Remote control and offline editing using TASCAM IO Control app for macOS, Windows, and iPadOS
Specs
Dimensions (the original foot is attached): 454(W) x 140(H) x 179.6(D) mm
Dimensions (rackmount angle is attached): 482.8(W) x 132(H) x 120(D) mm
