EV ELX SERIES
EV ELX SERIES (PASSIVE)
CALL
ELX112
12″ passive loudspeaker
- Compact power for sound reinforcement and stage monitoring
- EVS-12K woofer
- 1.5-inch DH-1K titanium HF compression driver
- 55 Hz – 20 kHz frequency range
- 90° x 50° coverage-pattern waveguide
- 60° Monitor Angle
- 94 dB SPL sensitivity; 132 dB max SPL
- Power handling: 250 W continuous, 1000 W peak
- Braced 15mm plywood enclosure
- Pole mount or stack with Live X Subwoofers
- Black textured finish
The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.
Specifications
| Freq. Response (-3 dB) | 82 Hz – 18 kHz¹ |
| Freq. Range (-10 dB) | 55 Hz – 20 kHz¹ |
| Axial Sensitivity | 94 dB |
|
More Specifications |
|
| Max. Measured SPL³ | 132 dB |
| Recommended HP Freq. | 45 Hz |
| Coverage (Horiz. x Vert.) | 90° x 50° |
| Power Handling | 250W Continuous, 1000W Peak |
| LF Transducer(s) | (1) EVS-12K, 305mm (12″) Woofer |
| HF Transducer | DH-1K, 39mm (1.5″) Titanium Diaphragm Compression Driver |
| Crossover Frequency | 2.1 kHz |
| Nominal Impedance | 8 Ohms |
| Minimum Impedance | 7.0 Ohms |
| Connectors | Dual NL4 |
| Enclosure Material | 9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
| Grille | 18GA Steel with Black Powdercoat |
| Dimensions (H x W x D) | 607mm x 362mm x 340mm (23.89′ x 14.25″ x 13.41″) |
| Net Weight | 16.0 kg (35.2 lbs) |
| Shipping Weight | 19.9 kg (43.8 lbs) |
| Accessories | TSS-1, Aluminum Tripod Stand TSP-1, Tripod Kit, Includes (2) Tripod Stands and Carrying Case ASP-1, Steel Subwoofer Stand |
ELX115
15″ passive loudspeaker
- More power, fuller sound for larger rooms
- EVS-15K woofer
- 1.5-inch DH-1K titanium HF compression driver
- 50 Hz – 20 kHz frequency range
- 90° x 50° coverage-pattern waveguide
- 60° Monitor Angle
- 134 dB max SPL
- Power handling: 400 W continuous, 1600 W peak
- Braced 15mm plywood enclosure
- Pole mount or stack with Live X Subwoofers
- Black textured finish
A powerful step up from the ELX112, the ELX115 features a 15” woofer that delivers extended low-frequency response for bigger sound in larger rooms.
Specifications
| Freq. Response (-3 dB) | 75 Hz – 18 kHz¹ |
| Freq. Range (-10 dB) | 50 Hz – 20 kHz¹ |
| Axial Sensitivity | 95 dB |
|
Fewer Specifications |
|
| Max. Measured SPL³ | 134 dB |
| Recommended HP Freq. | 40 Hz |
| Coverage (Horiz. x Vert.) | 90° x 50° |
| Power Handling | 400W Continuous, 1600W Peak |
| LF Transducer(s) | (1) EVS-15K, 381mm (15″) Woofer |
| HF Transducer | DH-1K, 39mm (1.5″) Titanium Diaphragm Compression Driver |
| Crossover Frequency | 1.7 kHz |
| Nominal Impedance | 8 Ohms |
| Minimum Impedance | 7.4 Ohms |
| Connectors | Dual NL4 |
| Enclosure Material | 9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
| Grille | 18GA Steel with Black Powdercoat |
| Dimensions (H x W x D) | 708mm x 432mm x 382mm (27.89″ x 17.02 x 15.05″), |
| Net Weight | 21.9 kg (48.2 lbs) |
| Shipping Weight | 26.6 kg (58.6 lbs) |
| Accessories | TSS-1, Aluminum Tripod Stand, TSP-1, Tripod Kit, Includes (2) Tripod Stands and Carrying Case, ASP-1, Steel Subwoofer Stand |
ELX118
18″ passive subwoofer
-
- Supplemental bass for ELX112 or ELX115
- EVS-18K woofer for extended LF
- 35 Hz – 200 Hz frequency range
- 134 dB max SPL
- Power handling: 400 W continuous, 1600 W peak
- Braced 15mm plywood enclosure
- Stack or pole-mount full-range boxes
- Black textured finish
Optimized for performance with the ELX112 and ELX115, the ELX118 adds a full, deep, low-frequency punch that you can hear and feel.
Specifications
| Freq. Response (-3 dB) | 50 Hz – 100 Hz² |
| Freq. Range (-10 dB) | 35 Hz – 200 Hz² |
| Axial Sensitivity | 96 dB |
|
Fewer Specifications |
|
| Max. Measured SPL³ | 134 dB |
| Recommended HP Freq. | 30 Hz |
| Coverage (Horiz. x Vert.) | Omnidirectional |
| Power Handling | 400W Continuous, 1600W Peak |
| LF Transducer(s) | (1) EVS-18K, 457mm (18″) Woofer |
| Nominal Impedance | 8 Ohms |
| Minimum Impedance | 6.7 Ohms |
| Connectors | Dual NL4 |
| Enclosure Material | 9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
| Grille | 18GA Steel with Black Powdercoat |
| Dimensions | (H x W x D) 661mm x 507mm x 574mm (26.02″ x 19.98″ x 22.60″) |
| Net Weight | 30.6 kg (67.4 lbs) |
| Shipping Weight | 37.2 kg (81.9 lbs) |
| Accessories | ASP-1, Steel Subwoofer Stand |

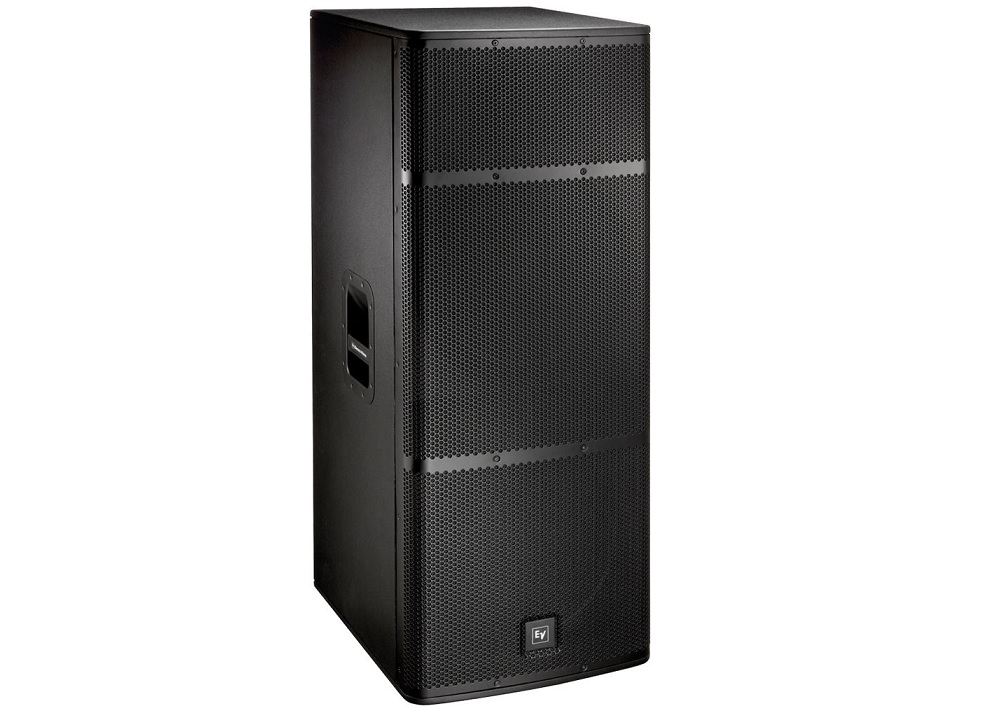

ELX215
Dual 15″ 2‑way passive full‑range loudspeaker
- High-volume punch and ultra-wide frequency response
- Ideal for mains
- Two EVS-15K woofers for extended LF
- 1.5-inch DH-1K titanium HF compression driver
- 38 Hz – 20 kHz frequency range
- 90° x 50° coverage-pattern waveguide
- 137 dB max SPL
- Power handling: 600 W continuous, 2400 W peak
- Braced 15mm plywood enclosure
- Black textured finish Dual 15-inch two-way full-range loudspeaker
This twin woofer configuration delivers real low-end punch — ideal for applications that demand high volume output and an ultra-wide frequency response from a single cabinet.
Specifications
| Freq. Response (-3 dB) | 62 Hz – 18 kHz¹ |
| Freq. Range (-10 dB) | 38 Hz – 20 kHz¹ |
| Axial Sensitivity | 96 dB |
|
Fewer Specifications |
|
| Max. Measured SPL³ | 137 dB |
| Recommended HP Freq. | 35 Hz |
| Coverage (Horiz. x Vert.) | 90° x 50° |
| Power Handling | 600W Continuous, 2400W Peak |
| LF Transducer(s) | (2) EVS-15K, 381mm (15″) Woofers |
| HF Transducer | DH-1K, 39mm (1.5″) Titanium Diaphragm Compression Driver |
| Crossover Frequency | 1.7 kHz |
| Nominal Impedance | 4 Ohms |
| Minimum Impedance | 3.7 Ohms |
| Connectors | Dual NL4 |
| Enclosure Material | 9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
| Grille | 18GA Steel with Black Powdercoat |
| Dimensions (H x W x D) | 1154mm x 432mm x 501mm (45.44″ x 17.02″ x 19.73″) |
| Net Weight | 40.7 kg (89.6 lbs) |
| Shipping Weight | 48.4 kg (106.6 lbs) |
