Sennheiser E600 Drum Set Microphone Kit

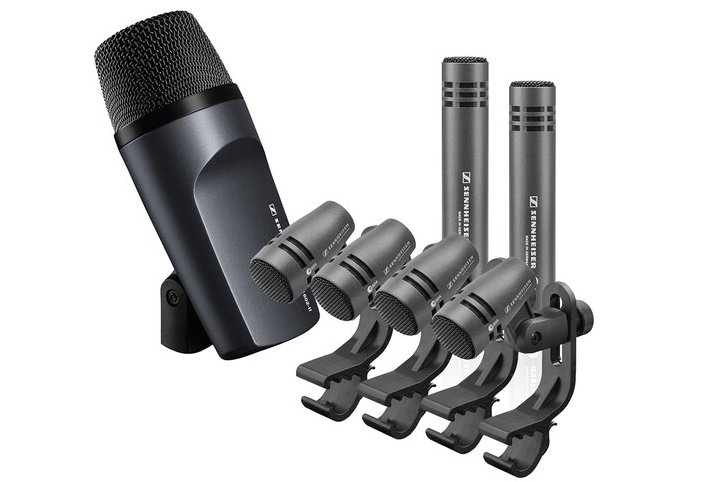

Sennheiser e 600 Drum Microphone Kit
The Sennheiser e 600 Drum Kit is a professional, all-in-one microphone package designed for capturing an entire drum set with high sound quality and reliability. It is widely used for live sound, studio recording, rehearsals, and touring.
This kit includes multiple microphones, each optimized for a specific part of the drum kit, providing a balanced, powerful, and natural drum sound with excellent isolation and high SPL handling.

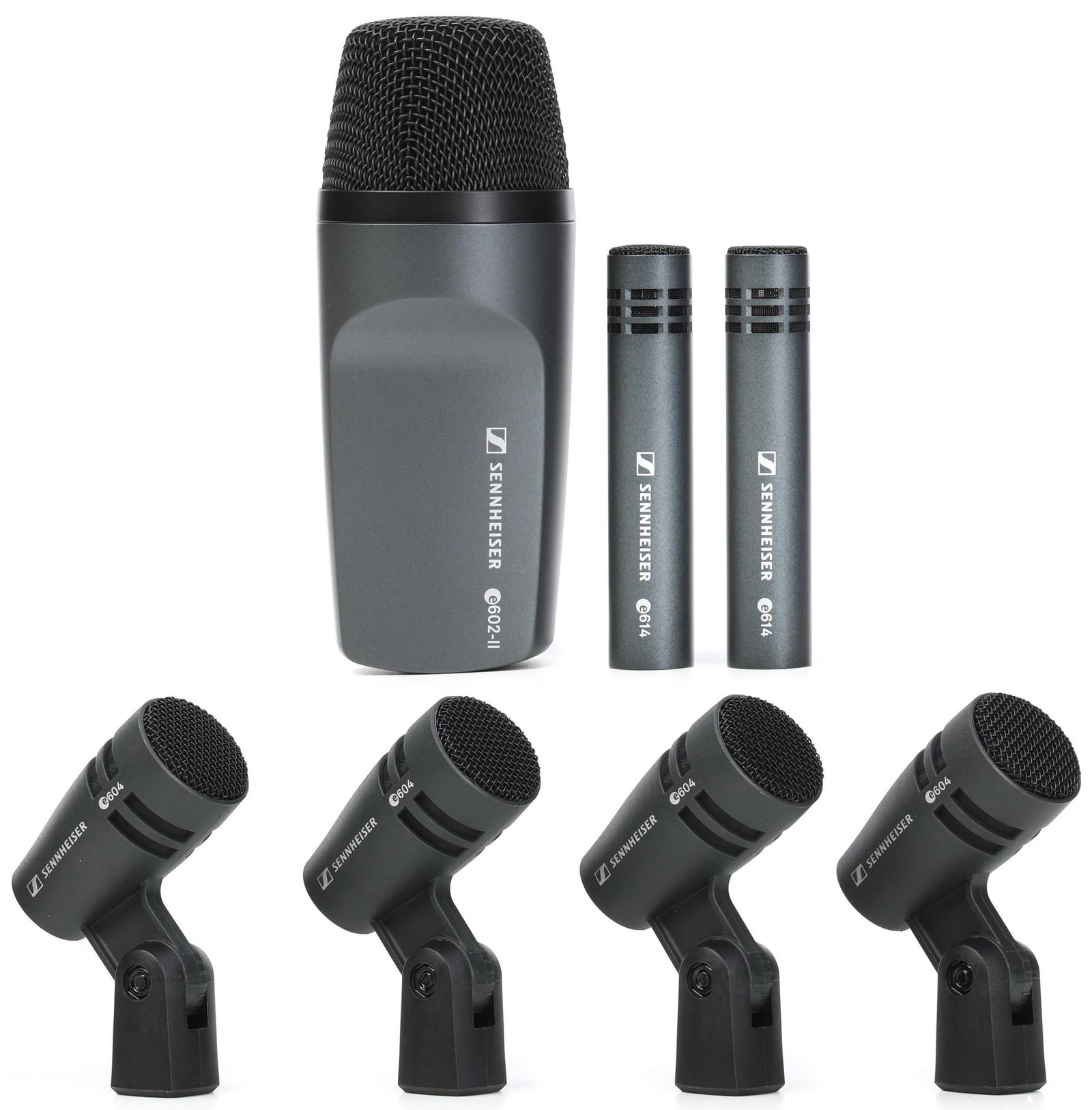

Typical Kit Contents
1 × e 602-II – Dynamic microphone for kick drum / bass drum
4 × e 604 – Dynamic cardioid microphones for snare and toms
2 × e 614 – Condenser microphones for overheads and cymbals

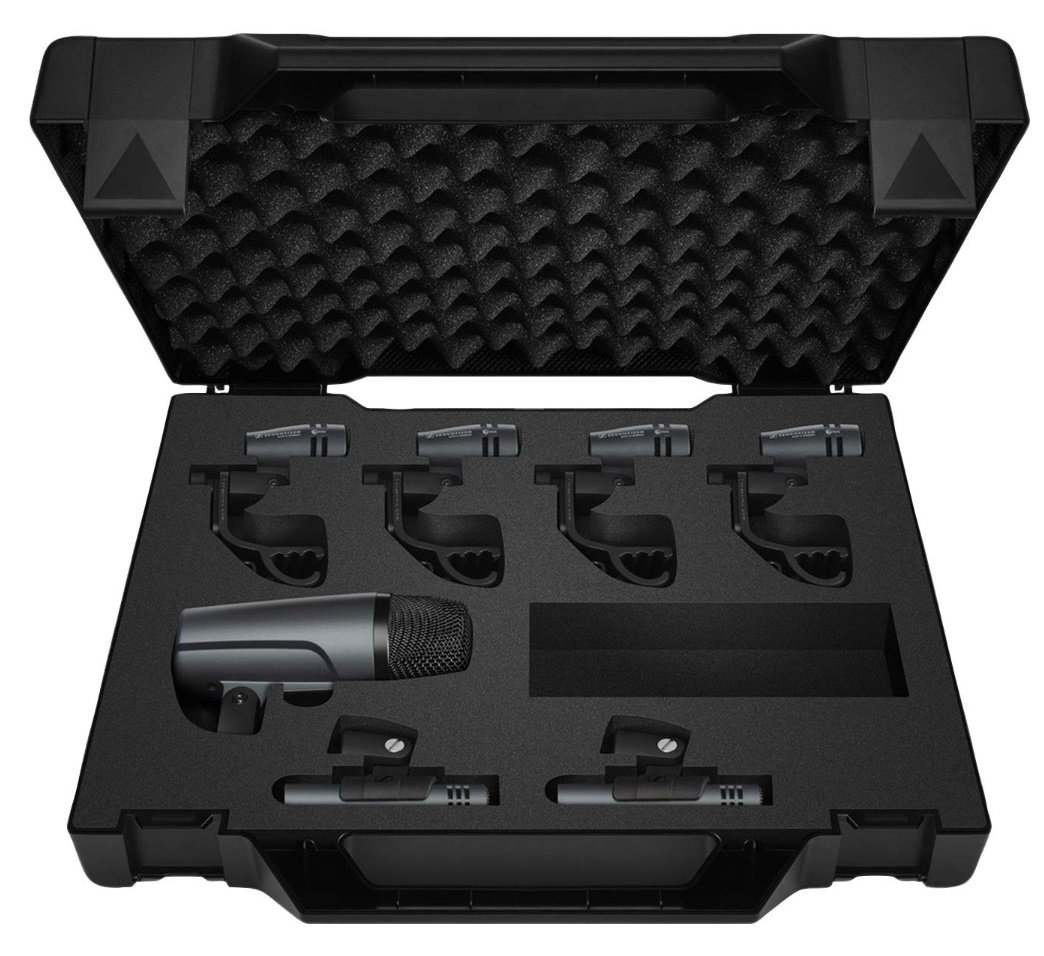

Protective carrying case for transport and storage
Key Features
Designed to mic a full drum kit with one complete solution
High sound pressure handling, ideal for loud drums
Excellent isolation to reduce bleed from other instruments
Rugged construction for live and touring use
Fast and easy setup with included mounting accessories
Applications
Live concerts and stage performances
Studio drum recording
Practice rooms and rehearsal spaces
Professional and semi-professional sound reinforcement
Individual Mic Specifications

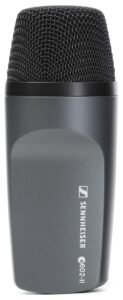

E602-II — Kick Drum / Low-Freq Mic
Transducer type: Dynamic
Polar pattern: Cardioid
Frequency response: 20 Hz – 16 kHz
Sensitivity: ~0.25 mV/Pa @1 kHz; 0.9 mV/Pa @50 Hz
Nominal impedance: 350 Ω
Min. terminating impedance: 1000 Ω
Connector: XLR-3
Dimensions: Ø 60 mm × 153 mm
Weight: ~318 g

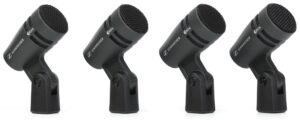

4 × E604 — Snare & Toms Microphones
Transducer type: Dynamic
Polar pattern: Cardioid
Frequency response: 40 Hz – 18 kHz
Sensitivity: ~1.8 mV/Pa @1 kHz
Nominal impedance: 350 Ω
Min. terminating impedance: 1000 Ω
Connector: XLR-3
Dimensions: Ø 33 mm × 59 mm
Weight: ~60 g (without cable)

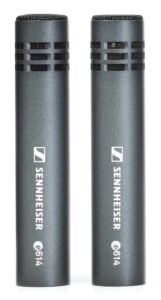

2 × E614 — Overhead / Cymbal Microphones
Transducer type: Pre-polarised condenser
Polar pattern: Super-cardioid
Frequency response: 40 Hz – 20 kHz
Max. SPL: 139 d
Sensitivity: ~3 mV/Pa = –50 dB (0 dB = 1 V/Pa)
Nominal impedance: 50 Ω
Min. terminating impedance: 1000 Ω
Phantom power: 12 – 52 V / 3 mA required
Equivalent noise level: ~24 dB(A) / 35 dB (CCIR)
Connector: XLR-3
Dimensions: Ø 20 mm × 100 mm
Weight: ~93 g (without cable)
