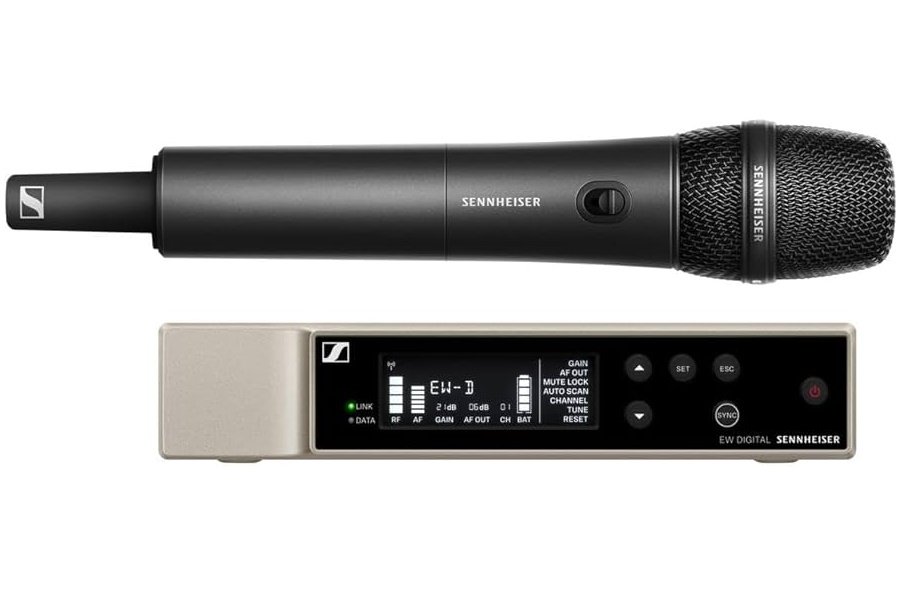

Sennheiser EW-D 835-S Digital Wireless Handheld Microphone

CALL

Description

All-in-one digital wireless handheld set for those who sing or speak featuring Sennheiser’s renowned e 835 capsule.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.

Features

  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

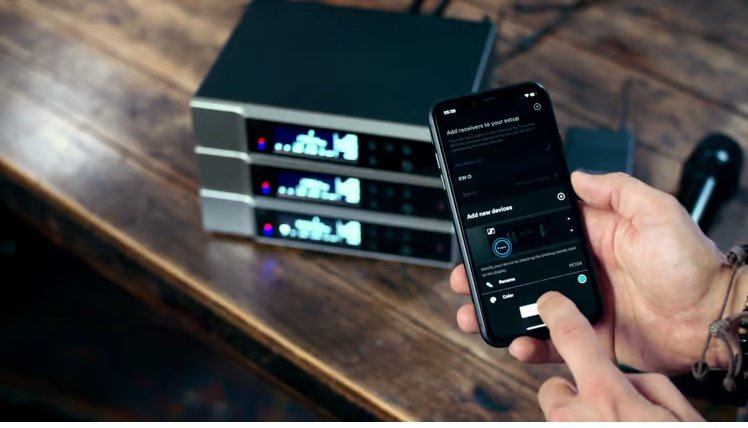

  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
  • Auto scan creates reliable connections with minimal time and effort
  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
  • 2,240 selectable frequencies allow for fine tuning
  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)




EFFORTLESS, WORRY-FREE WIRELESS

  • Full control via Bluetooth using the Smart Assist app.
  • Easy setup, monitoring, and troubleshooting—even for beginners.
  • Smart algorithms handle frequency selection and syncing, minimizing dropouts and interference.




ROCK-SOLID RELIABILITY

  • The most reliable UHF connection
  • German-engineered build quality
  • Pro-grade build quality with uncompromised fit and finish
  • Lightweight, rugged transmitters and receivers
  • Rack-mountable receivers for pro setups

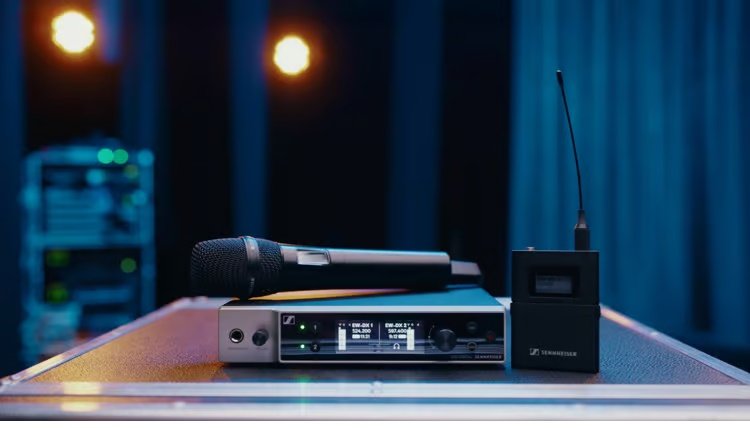

PRISTINE SOUND QUALITY

  • Superior clarity via 24-bit resolution, surpassing analog systems.
  • Handles quiet and loud sources effortlessly with 134 dB dynamic range.
  • Sound feels natural and immediate with ultra-low latency (1.9 ms)
  • Evenly spaced frequencies eliminate intermodulation interference

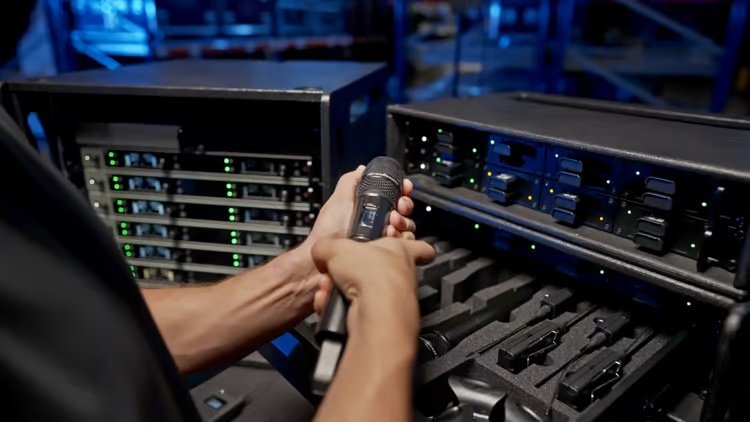

FUTURE-PROOF & UPGRADABLE

  • Integrates easily with other Evolution Wireless components
  • Scales well for growing setups—from simple gigs to multi-channel stage productions
  • Compatible with a wide range of Sennheiser mic capsules (on the handheld version)









Specifications

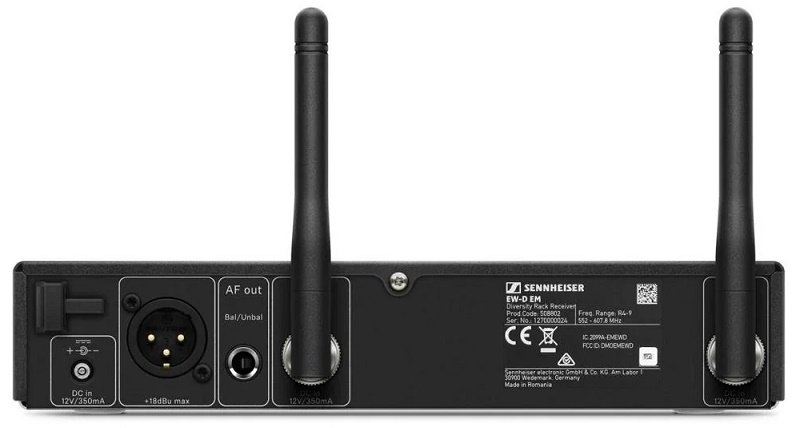

Receiver

  • Rack or tabletop mountable with OLED display

  • Outputs: XLR balanced + 1/4″ unbalanced

  • Antennas: 2× removable BNC

  • Automatic frequency sync via Bluetooth

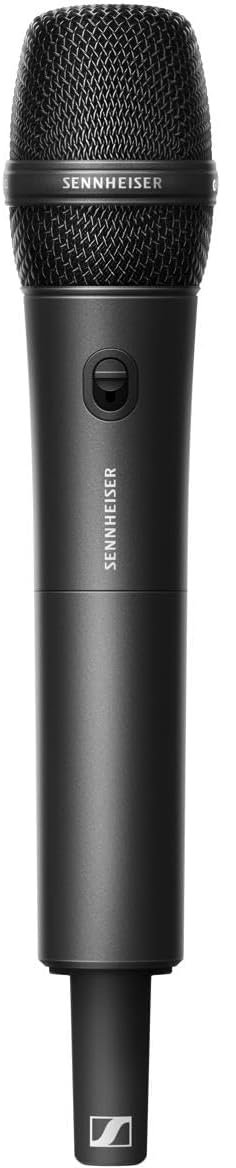

Handheld Transmitter

  • Powered by 2× AA batteries (~8 h) or rechargeable battery (~12 h)

  • RF output: ~10 mW

  • Includes MMD 835 dynamic cardioid capsule (interchangeable)

Audio Performance

  • Frequency response: 20 Hz–20 kHz

  • Dynamic range: ~134 dB

  • Latency: ~1.9 ms

General

  • Operating temperature: –10°C to +55°C

  • Wireless range: ~100 m (line-of-sight)

  • Bluetooth app for setup and control
