CKMOVA Instruments Wireless System

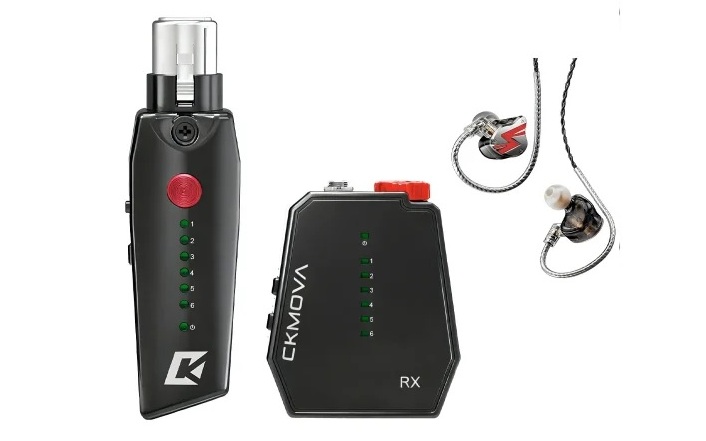

CKMOVA In-Ear Monitor Wireless System
Price range: Rp2.300.000 through Rp12.950.000
If you're referring to the CKMOVA Wireless In-Ear Monitor (IEM) System, it's a wireless monitoring solution designed for musicians, singers, and stage performers to hear their personal monitor mix without being tethered by cables. CKMOVA offers this under its Vocal G series of wireless IEM products.
Typical features include:
- UHF wireless transmission for stable stage performance.
- Low-latency audio suitable for live monitoring.
- Belt-pack receiver with volume control.
- Multiple selectable channels to reduce interference.
- Compatible with standard 3.5 mm in-ear earphones.
- Intended for live performances, worship teams, rehearsals, and stage productions.
The Vocal G V4 is a wireless in-ear monitor (IEM) system with a 3-pin XLR transmitter and a 3.5 mm TRS receiver, ideal for live monitoring with headphones. It operates at 2.4 GHz with uncompressed digital audio and automatic frequency hopping, ensuring a stable signal, high fidelity, and low interference. It offers a range of up to 50 m in open areas and 30 m with obstacles.
Specs
- Transmission type: Digital 2.4 GHz
- Modulation: Gfsk
- Antenna: Internal
- Anti-interference method: Automatic frequency hopping
- Frequency response: 20 Hz – 20 kHz
- Channels: 84
- Channel groups: 6
- Operating range: 50 m (unobstructed), 30 m (with obstacles)
- Audio I/O: Balanced Analog
- Latency: < 5 ms
- Distortion: < 0.1%
- Bit depth / sampling rate: 24 bit / 48 kHz
- Signal-to-noise ratio: 113 dB
- Dynamic range: 123 dB
- RF output power: 19 dBm maximum
- Supported headphone impedance: 6 Ω – 600 Ω
- RF Sensitivity: -88 dBm
- Input mode: Aux & Line & Mic
- Stereo/Mono: Mono
- Battery life: Tx 7 hours / Rx 9 hours
- Power supply: Internal lithium-ion battery or Type-C DC 5V
- Internal battery capacity: 600 mAh / 3.7 V
- Charging time: 3 hours
- Dimensions: 3-Pin Xlr Tx 99 x 28 x 29 mm, 3.5 mm Trs Rx 65 x 54 x 22 mm
- Weight: Tx 55 g / Rx 49 g
- Operating temperature: 0°C to 50°C
- Manufacturer Part Number: Vocal G V4
The Vocal G V5 is a wireless in-ear monitor (IEM) system with a 3-pin XLR transmitter and two 3.5 mm TRS receivers, ideal for live monitoring with headphones. It operates at 2.4 GHz with uncompressed digital audio and automatic frequency hopping, ensuring a stable signal, high fidelity, and low interference. It offers a range of up to 50 m in open areas and 30 m with obstacles.
Specs
- Transmission type: Digital 2.4 GHz
- Modulation: Gfsk
- Antenna: Internal
- Anti-interference method: Automatic frequency hopping
- Frequency response: 20 Hz – 20 kHz
- Channels: 84
- Channel groups: 6
- Operating range: 50 m (unobstructed), 30 m (with obstacles)
- Audio I/O: Balanced Analog
- Latency: < 5 ms
- Distortion: < 0.1%
- Bit depth / sampling rate: 24 bit / 48 kHz
- Signal-to-noise ratio: 113 dB
- Dynamic range: 123 dB
- RF output power: 19 dBm maximum
- Supported headphone impedance: 6 Ω – 600 Ω
- RF Sensitivity: -88 dBm
- Input mode: Aux & Line & Mic
- Stereo/Mono: Mono
- Battery life: Tx 7 hours / Rx 9 hours
- Power supply: Internal lithium-ion battery or Type-C DC 5V
- Internal battery capacity: 600 mAh / 3.7 V
- Charging time: 3 hours
- Dimensions: 3-Pin Xlr Tx 99 x 28 x 29 mm, 3.5 mm Trs Rx 65 x 54 x 22 mm
- Weight: Tx 55 g / Rx 49 g
- Operating temperature: 0°C to 50°C
- Manufacturer Part Number: Vocal G V5
Vocal G V6 In-Ear Monitor System 4 Receivers
Specs
- Transmission type: Digital 2.4 GHz
- Modulation: Gfsk
- Antenna: Internal
- Anti-interference method: Automatic frequency hopping
- Frequency response: 20 Hz – 20 kHz
- Channels: 84
- Channel groups: 6
- Operating range: 50 m (unobstructed), 30 m (with obstacles)
- Audio I/O: Balanced Analog
- Latency: < 5 ms
- Distortion: < 0.1%
- Bit depth / sampling rate: 24 bit / 48 kHz
- Signal-to-noise ratio: 113 dB
- Dynamic range: 123 dB
- RF output power: 19 dBm maximum
- Supported headphone impedance: 6 Ω – 600 Ω
- RF Sensitivity: -88 dBm
- Input mode: Aux & Line & Mic
- Stereo/Mono: Mono
- Battery life: Tx 7 hours / Rx 9 hours
- Power supply: Internal lithium-ion battery or Type-C DC 5V
- Internal battery capacity: 600 mAh / 3.7 V
- Charging time: 3 hours
- Dimensions: 3-Pin Xlr Tx 99 x 28 x 29 mm, 3.5 mm Trs Rx 65 x 54 x 22 mm
- Weight: Tx 55 g / Rx 49 g
- Operating temperature: 0°C to 50°C
- Manufacturer Part Number: Vocal G V6
CKMOVA Vocal G V7 In-Ear Monitor System Includes In-Ear
The Vocal G V7 is a wireless in-ear monitor system that includes a 3-pin XLR transmitter, a 3.5 mm receiver, and in-ear headphones, ready for immediate stage use. It operates at 2.4 GHz with uncompressed digital audio, offering a stable signal, high fidelity, and low latency for professional monitoring.
Specs
- Transmission type: Digital 2.4 GHz
- Modulation: Gfsk
- Antenna: Internal
- Anti-interference method: Automatic frequency hopping
- Frequency response: 20 Hz – 20 kHz
- Channels: 84
- Channel groups: 6
- Operating range: 50 m (unobstructed), 30 m (with obstacles)
- Audio I/O: Balanced Analog
- Latency: < 5 ms
- Distortion: < 0.1%
- Bit depth / sampling rate: 24 bit / 48 kHz
- Signal-to-noise ratio: 113 dB
- Dynamic range: 123 dB
- RF output power: 19 dBm maximum
- Supported headphone impedance: 6 Ω – 600 Ω
- RF Sensitivity: -88 dBm
- Input mode: Aux & Line & Mic
- Stereo/Mono: Mono
- Battery life: Tx 7 hours / Rx 9 hours
- Power supply: Internal lithium-ion battery or Type-C DC 5V
- Internal battery capacity: 600 mAh / 3.7 V
- Charging time: 3 hours
- Dimensions: 3-Pin Xlr Tx 99 x 28 x 29 mm, 3.5 mm Trs Rx 65 x 54 x 22 mm
- Weight: Tx 55 g / Rx 49 g
- Operating temperature: 0°C to 50°C
- Manufacturer Part Number: Vocal G V7
CKMOVA Vocal G V8 In-Ear Monitor System 2 Receivers and 2 In-Ears
It features 84 channels in 6 groups, switchable AUX/Line/Mic input, and broad headphone compatibility. It integrates 24-bit/48 kHz audio, latency of less than 5 ms, and 123 dB of dynamic range, allowing multiple receivers per transmitter for flexible setups.
Specs
- Transmission type: Digital 2.4 GHz
- Modulation: Gfsk
- Antenna: Internal
- Anti-interference method: Automatic frequency hopping
- Frequency response: 20 Hz – 20 kHz
- Channels: 84
- Channel groups: 6
- Operating range: 50 m (unobstructed), 30 m (with obstacles)
- Audio I/O: Balanced Analog
- Latency: < 5 ms
- Distortion: < 0.1%
- Bit depth / sampling rate: 24 bit / 48 kHz
- Signal-to-noise ratio: 113 dB
- Dynamic range: 123 dB
- RF output power: 19 dBm maximum
- Supported headphone impedance: 6 Ω – 600 Ω
- RF Sensitivity: -88 dBm
- Input mode: Aux & Line & Mic
- Stereo/Mono: Mono
- Battery life: Tx 7 hours / Rx 9 hours
- Power supply: Internal lithium-ion battery or Type-C DC 5V
- Internal battery capacity: 600 mAh / 3.7 V
- Charging time: 3 hours
- Dimensions: 3-Pin Xlr Tx 99 x 28 x 29 mm, 3.5 mm Trs Rx 65 x 54 x 22 mm
- Weight: Tx 55 g / Rx 49 g
- Operating temperature: 0°C to 50°C
- Manufacturer Part Number: Vocal G V8
Box Contents
- 1 × Wireless Transmitter
- 2 × Bodypack Receivers
- 2 × Pairs of In-Ear Monitor Headphones
- Necessary audio cables and charging accessories

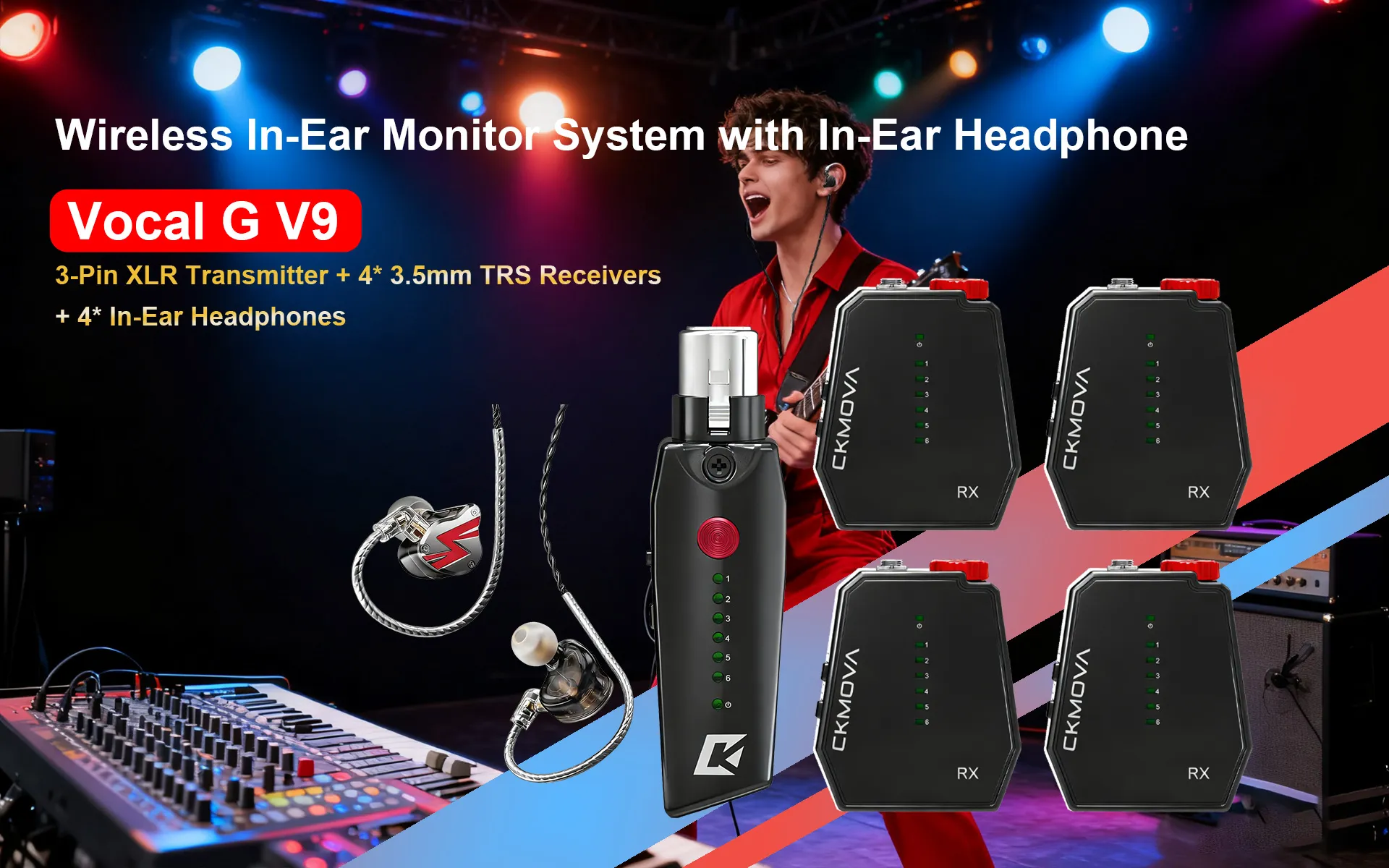

The CKMOVA Vocal G V9 is a professional-grade, multi-user wireless in-ear monitor (IEM) system designed for musicians, public speakers, and stage performers. Operating on the license-free 2.4 GHz digital frequency band, it delivers low-latency, crystal-clear audio monitoring directly to the stage
Key System Specifications
- Multi-User Configuration: Package includes one transmitter, four bodypack receivers, and four pairs of in-ear monitoring headphones.
- Versatile Inputs: Features a 3-pin XLR and a 3.5mm TRS input connector to easily link with mixing consoles or audio players.
- Global Operation: Utilizes the 2.4 GHz spectrum for universal, license-free stage use.
- Rechargeable Battery: Built-in 600mAh battery charges fully in about 3 hours via USB-C.
- Optimized Runtimes: Yields up to 7 hours of transmitter runtime (on dynamic mics/line input) and up to 12 hours of receiver runtime.
The CKMOVA Vocal G V10 is a compact 2.4GHz digital wireless in-ear monitor (IEM) system designed for musicians, guitarists, and stage performers. It provides a portable, license-free wireless monitoring solution to replace bulky traditional stage monitors.
Components
- One 1/4″ TS Transmitter: A plug-and-play transmitter that easily connects directly into audio mixers, guitar/bass setups, or electric-acoustic instruments.
- One 3.5mm TRS Receiver: A compact, wearable bodypack receiver that receives the wireless audio stream.
- One In-Ear Headphone: Packaged straight out of the box to deliver real-time, high-fidelity monitoring
Key Features
- 2.4GHz Digital Transmission: Delivers a globally license-free wireless signal with automatic frequency switching to combat interference.
- Low-Latency Audio: Ensures your stage timing stays perfect without noticeable audio delays.
- Instrument & Stage Integration: Specifically optimized for electric guitars, acoustic-electric instruments, and live music configurations.
- Flexible Expansion: The transmitter can link to an unlimited number of receivers simultaneously, making it ideal for full band monitoring setups.
<
The CKMOVA Vocal G V11 is a professional wireless in-ear monitor system packaged with in-ear headphones. It is designed by CKMOVA to deliver real-time, zero-latency audio monitoring for singers, musicians, and stage performers.
Key Features & Design
- Form Factor: Includes a compact wireless transmitter, a bodypack receiver, and high-quality monitoring earphones.
- Connection Interface: Features a specialized “Jack” plug connector layout for seamless stage and instrument gear routing.
- Application: Tailored for live music performances, stage tracking, studio monitoring, and DJ sets.Signal Stability: Utilizes high-performance wireless transmission to provide clear, drop-out-free sound across demanding stage environments.
- Signal Stability: Utilizes high-performance wireless transmission to provide clear, drop-out-free sound across demanding stage environments.Signal Stability: Utilizes high-performance wireless transmission to provide clear, drop-out-free sound across demanding stage environments.
