CKMOVA Wireless Microphone System – Vocal G V12, Vocal G V14 & Vocal G V15 Overview
The CKMOVA Vocal G V12, Vocal G V14, and Vocal G V15 are wireless audio systems designed for professional live sound applications, including stage performances, public speaking, houses of worship, DJ events, conferences, and broadcasting. These systems are designed to provide reliable wireless transmission while allowing users to move freely without cables. Publicly available information indicates these models are part of the Vocal G family, though CKMOVA has not published detailed specification sheets that clearly differentiate each model.
Key Features
- Reliable wireless audio transmission for stable performance.
- Low-latency audio for real-time voice monitoring.
- Clear, high-quality sound with low noise.
- Compact and lightweight bodypack design.
- Rechargeable battery for extended operating time.
- Multiple selectable wireless channels to minimize interference.
- Easy pairing between transmitter and receiver.
- Suitable for indoor and outdoor events.
- Durable construction for professional use.
- Compatible with standard audio equipment and monitoring accessories where supported.
Functions
- Wireless voice transmission for presentations and performances.
- Hands-free operation with compatible headset or lavalier microphones.
- Personal monitoring for performers (where configured as an in-ear monitoring system).
- Adjustable output level for comfortable listening.
- Stable signal transmission during movement on stage.
- Quick setup for live events and mobile productions.
Compatible Microphone Types
Depending on the transmitter configuration and connector type, the systems can be used with:
- Lavalier (lapel) microphones
- Headset microphones
- Ear-hook microphones
- Handheld microphones (using a compatible transmitter or adapter)
- Instrument microphones
- Line-level audio sources, if supported by the transmitter.
Typical Applications
- Live music performances
- Vocal performances
- DJ and MC events
- Houses of worship
- Conferences and seminars
- Corporate presentations
- Education and training
- Theaters
- Wedding and event production
- Live streaming and broadcasting
Model Overview
| Model | Recommended Use |
|---|---|
| Vocal G V12 | Solo performers, presenters, and musicians needing reliable wireless audio. |
| Vocal G V14 | Bands, DJs, worship teams, and live event production. |
| Vocal G V15 | Professional stage productions, touring performers, and demanding live sound environments. |

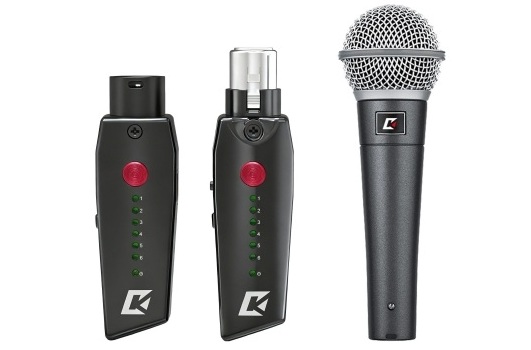

The Vocal G V12 is a professional wireless system that includes a dynamic microphone, transmitter, and 3-pin XLR receiver, designed to deliver reliable performance in both stage and live applications. It operates at 2.4 GHz with uncompressed digital audio and automatic frequency switching, providing a high-fidelity signal with excellent interference resistance. It offers a range of up to 50 meters in open areas and 30 meters with obstructions, providing complete freedom of movement.
It features 84 wireless channels organized into 6 groups to suit different environments, along with switchable inputs for AUX, line, and dynamic microphone, allowing for great versatility with mixers and sound systems. A single transmitter can be linked to multiple receivers, facilitating larger setups. Its high-resolution 24-bit/48kHz audio quality ensures clear and detailed sound, while low latency (less than 5ms) and a wide dynamic range of 123dB guarantee professional performance without perceptible delays. Furthermore, it incorporates a long-lasting battery that offers up to 7 hours of operation for the transmitter and 12 hours for the receiver.
Specs
- Transmission type: Digital 2.4 GHz
- Modulation: Gfsk
- Antenna: Internal
- Anti-interference method: Automatic frequency hopping
- Frequency response: 20 Hz – 20 kHz
- Channels: 84
- Channel groups: 6
- Operating range: 50 m (unobstructed), 30 m (with obstacles)
- Audio I/O: Balanced Analog
- Latency: < 5 ms
- Distortion: < 0.1%
- Bit depth / sampling rate: 24 bit / 48 kHz
- Signal-to-noise ratio: 113 dB
- Dynamic range: 123 dB
- RF output power: 19 dBm maximum
- RF Sensitivity: -88 dBm
- Input mode: Aux & Line & Mic
- Stereo/Mono: Mono
- Battery life: Tx 7 hours / Rx 12 hours
- Internal battery capacity: 600 mAh / 3.7 V
- Power supply: Internal lithium-ion battery or Type-C DC 5V
- Charging time: 3 hours
- Dimensions: 3-Pin XLR Tx 99 x 28 x 29 mm, 3-Pin XLR Rx 89 x 28 x 29 mm
- Weight: Tx 55 g / Rx 50 g
- Operating temperature: 0°C to 50°C
- Manufacturer Part Number: Vocal G V12
The CKMOVA Vocal G V14 is a professional 2.4GHz digital wireless microphone system packaged specifically with a headset microphone. Designed primarily for live stage performances, public speaking, fitness instructors, and music applications, this system delivers uncompressed, high-fidelity audio transmission without complex setup.
Specification Details
Transmission Type: 2.4GHz Digital Frequency
Audio Resolution: 24-Bit / 48kHz uncompressed audio
Working Range: Up to 50m line-of-sight (30m with obstacles)
Latency: Extremely low latency at less than 5ms
Channels & Groups: 84 channels across 6 separate groups
Frequency Response: 20Hz to 20kHz
Dynamic Range: Wide range up to 123dB
Battery Life: Up to 7 hours for Transmitter / 12 hours for Receiver
Charging Port: Universal USB Type-C
The CKMOVA Vocal G V15 is a professional 2.4GHz digital wireless microphone system designed for music and stage audio. It comes bundled with a high-quality lavalier microphone and is optimized for stable, uncompressed audio transmission over live performances, theater, or presentations.
Key Technical Specifications
- Wireless Technology: Digital 2.4GHz with GFSK modulation.
- Audio Quality: High-quality 24-bit/48kHz uncompressed audio.
- Working Distance: Up to 50 meters without obstacles (30 meters with obstacles).
- Channels: 84 selectable wireless channels across 6 separate groups.
- Latency & Distortion: Ultra-low latency of less than 5ms and distortion rate under 0.1%.
- Dynamic Range: Exceptionally wide dynamic range of up to 123dB.
- Power & Battery: Powered via a built-in Li-ion rechargeable battery or Type-C DC 5V input.
Performance Features
- Anti-Interference: Utilizes automatic frequency hopping technology to ensure a stable signal.
- Versatile Connectors: Combo options include 1/4” TS, 3-pin XLR, and 3.5mm TRS connections.
- Input Modes: Supports Instrument (INST), Microphone (MIC), Auxiliary (AUX), and Line-in configurations.
- Phantom Power: Built-in compatibility with 12V and 48V phantom power.
