CKMOVA Instruments Wireless System
CKMOVA PA & DJ Wireless System
Price range: Rp2.250.000 through Rp4.650.000
CKMOVA is primarily known for wireless audio products such as wireless microphones, in-ear monitoring, and intercom systems. While it does not currently market a dedicated "PA & DJ Wireless System" product line, its wireless microphone systems are designed to integrate with PA speakers, audio mixers, and DJ equipment for live sound applications.
Key Features
- Reliable wireless transmission
- Available in UHF and 2.4 GHz digital models, depending on the product series.
- High-quality audio
- Broadcast-quality sound with low latency for speech and live performances.
- Multiple output options
- Compatible with cameras, mixers, recorders, powered speakers, and PA systems via 3.5 mm or suitable adapters.
- Portable design
- Compact transmitters and receivers with rechargeable batteries.
- Real-time monitoring
- Selected models include headphone monitoring and adjustable output levels.
Typical Applications
- DJ performances
- Live bands
- Karaoke events
- Houses of worship
- Corporate presentations
- Weddings and special events
- Public address (PA) systems
- Live streaming and content creation
Typical Setup
- Connect the CKMOVA receiver to a mixer or powered speaker.
- Pair the transmitter(s) with the receiver.
- Adjust input gain and output volume.
- Route the mix through the PA system or DJ mixer.
The CKMOVA Vocal G V2 is a 2.4GHz digital wireless audio link system designed to convert dynamic microphones, line-level gear, and AUX signals into wireless devices. Part of CKMOVA’s professional music and stage audio lineup, this hardware eliminates stage cable clutter for performing musicians, DJs, and live audio engineers.
Key Specifications
According to official product documentation on the CKMOVA Product Catalogue, the hardware features the following tech specs:
- Frequency Band: Digital 2.4GHz with GFSK modulation.
- Connectors: Equipped with 1/4″ TS, 3-pin XLR, and 3.5mm TRS multi-connector options.
- Audio Resolution: High-quality 24-bit / 48kHz uncompressed digital audio.
- Channels: 84 selectable wireless channels organized into 6 operational groups.
- Operating Range: Works up to 50 meters line-of-sight (30 meters with obstacles).
- Latency: Ultra-low latency of under 5 milliseconds (<5ms).
- Dynamic Range: Wide range of up to 123dB with less than 0.1% distortion.
- Phantom Power: Selectable 12V and 48V phantom power modes.
- Power Source: Internal rechargeable lithium-ion battery via Type-C DC 5V.
Box Contents
- 1 x 1/4″ TS Transmitter (TX)
- 1 x 1/4″ TS Receiver (RX)
- 1 x Type-C to Type-A Charging Cable
- 1 x Protective Storage Bag
- 1 x User Manual
Target Application Scenarios
This system functions as an invisible cable for multiple stage setups:
- Dynamic Microphones: Directly converts handheld vocal mics to wireless.
- Instruments & Pedals: Plugs into guitars, basses, or effects boards via the 1/4″ jacks.
- Audio Mixers & Amps: Connects output/input feeds from mixers directly into active PA speakers or guitar amps.

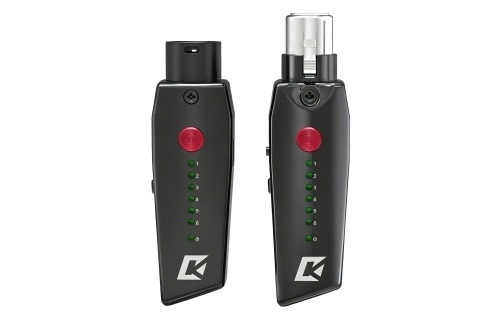

The CKMOVA Vocal G V3 is a professional 2.4GHz digital uncompressed wireless adapter system specifically designed for studio condenser microphones. It turns a traditional wired XLR condenser microphone into a high-fidelity wireless setup while supplying the necessary phantom power.
Key Technical Specifications
- Audio Quality: High-resolution 24-bit / 48kHz uncompressed audio with a wide 123dB dynamic range.
- Phantom Power: Selectable 12V or 48V phantom power to drive studio-grade condenser microphones.
- Latency: Ultra-low latency of under 5ms to eliminate performance delay.
- Wireless Range: Transmission up to 50 meters in open space (30 meters with obstacles).
- Battery Life: Built-in lithium-ion battery providing up to 5 hours of continuous use with a condenser mic, rechargeable via USB Type-C.
- Channels: Features 84 wireless channels across 6 setup groups using automatic frequency hopping to prevent interference.
System Layout & Connectivity
- The Transmitter (TX): Plugs directly into the bottom of an XLR condenser microphone.
- The Receiver (RX): Plugs into your audio mixer, PA system, or recording interface.
- Input Modes: Supports a wide input array including instrument, microphone, AUX, and LINE-level audio.
The CKMOVA Vocal G V13 is a professional wireless system designed for stereo and dual-mono PA & DJ applications
Key Specifications & Performance
- Transmission Type: Digital 2.4GHz frequency band with GFSK modulation.
- Anti-Interference: Automatic Frequency Hopping technology ensures a stable signal.
- Audio Quality: High-quality 24-bit/48kHz uncompressed audio transmission.
- Latency: Ultra-low latency of less than 5ms to avoid audio lag during performance.
- Range: Reliable operational distance up to 50 meters (164 feet) in clear line-of-sight, or 30 meters with obstacles.
- Frequency Channels: Features 84 wireless channels across 6 setup groups to avoid local interference.
- Dynamic Range: Wide spectrum reaching up to 123dB.
Build & Connectivity
- Audio Output Support: Supports both Stereo and Dual Mono system variations optimized for PA mixers and DJ equipment.
- Multi-Connector Flexibility: Equipped with flexible output options, including standard 1/4″ (6.35mm) TS, 3-pin XLR, and 3.5mm TRS combo connections.
- Power: Powered by a built-in rechargeable lithium-ion battery or a standard external Type-C DC 5V source.
