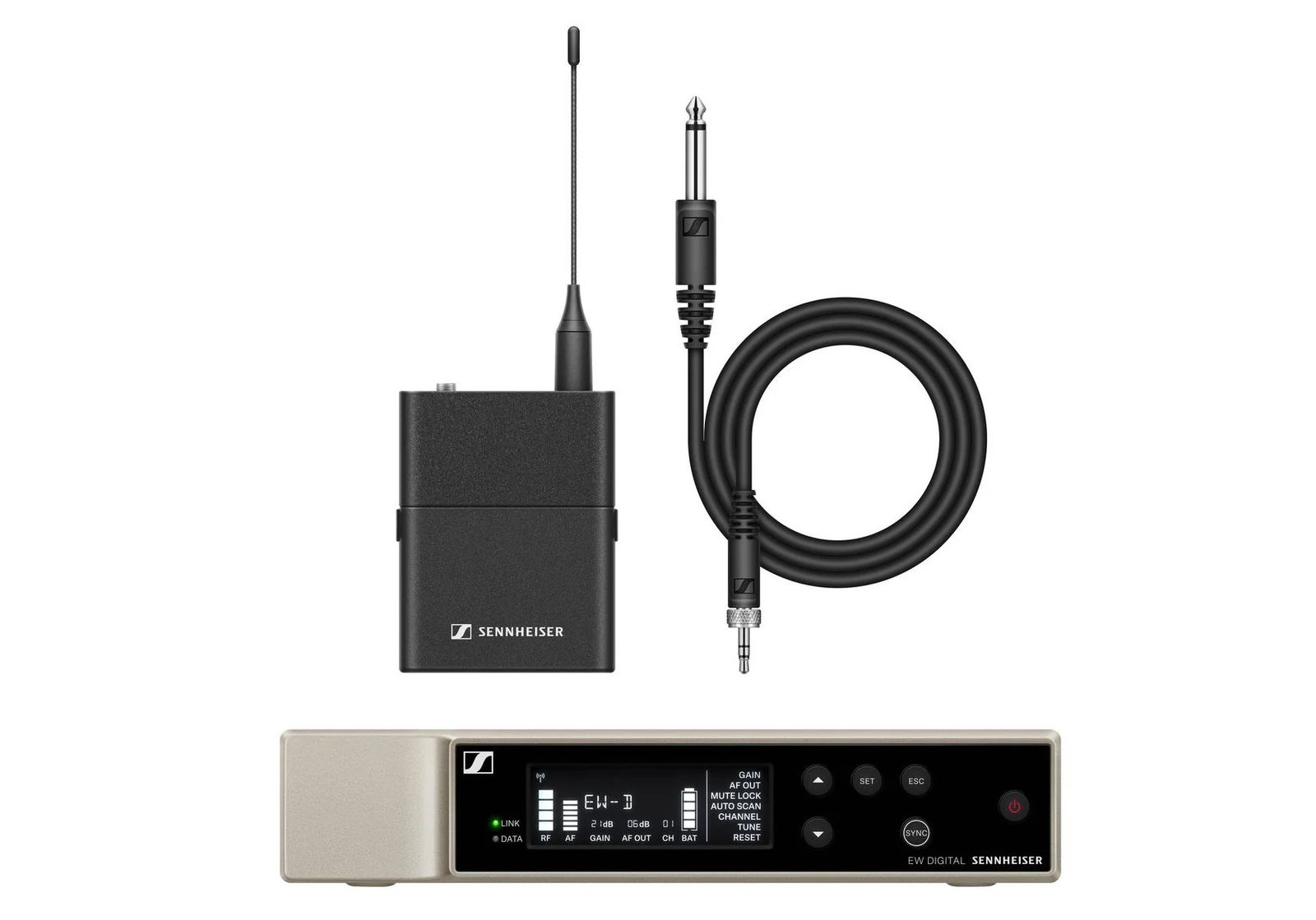

Sennheiser EW-D CI1 Set Digital Wireless Instrument System

Sennheiser EW-D CI1 Set Digital Wireless Instrument System

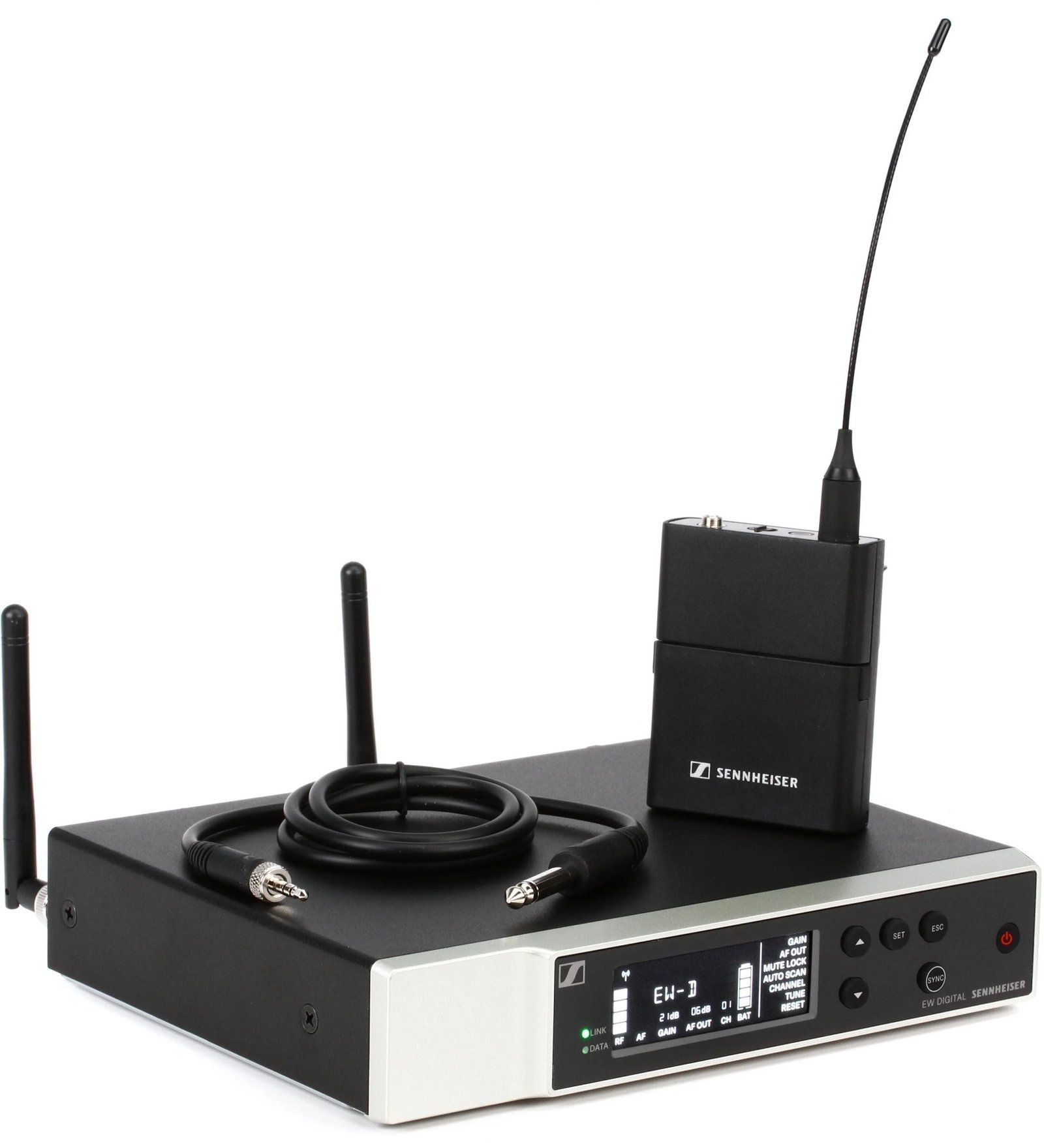

Sennheiser EW-D CI1 Set Digital Wireless Instrument System - Image 2

Rp16.200.000

SKU: SENN-EWD-CI1 Categories: , , , , , Tags: , , ,

All-in-one digital wireless instrument set for those who play the guitar.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and included CI 1 instrument cable suit perfectly for daily use on stage.



Features

  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
  • Auto scan creates reliable connections with minimal time and effort
  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
  • 2,240 selectable frequencies allow for fine tuning
  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)



What’s In The Box

  • EW‑D True diversity receiver

  • EW‑D bodypack transmitter

  • CI1 instrument cable (1/4″)

  • 2 × detachable antennas

  • Power supply with adapters

  • Rackmount kit and rubber feet

  • Batteries

  • Quick start guide

System Overview

  • System type: Sennheiser Evolution Wireless Digital (EW‑D)

  • Configuration: True diversity digital receiver + bodypack transmitter

  • Use cases: Wireless instrument connection (guitar, bass, keyboard), stage use, small venues

  • Wireless range: Up to approximately 100 m (328 ft) line‑of‑sight

  • Latency: Around 1.9 ms (very low delay)

  • Dynamic range: ~134 dB

  • Selectable channels: Up to about 2240 presets on a fine UHF grid

  • Control: Bluetooth Smart Assist for mobile control and monitoring

Receiver (EM)

  • Receiver type: True diversity tabletop/rack unit (half‑rack width)

  • Mounting: Rackmount hardware included (half‑rack)

  • Antennas: 2 detachable BNC external antennas

  • Audio outputs:
    • Balanced XLR
    • Unbalanced 1/4″ TRS

  • Gain range: About ‑3 dB to +42 dB in 3 dB steps

  • Audio frequency response: 20 Hz to 20 kHz

  • Output levels:
    • Balanced XLR: approx. +18 dBu
    • Unbalanced TRS: approx. +12 dB

Transmitter (Bodypack)

  • Transmitter type: EW‑D bodypack

  • Input: Locking 3.5 mm TRS jack for instrument or mic/line signals

  • Cable included: CI1 instrument cable for guitar/bass

  • RF output power: ~10 mW (standard)

  • Power source: 2 × AA batteries (alkaline)

  • Battery life: ~8 hours with alkaline, up to ~12 hours with optional rechargeable pack

  • Mute switch: On bodypack

Audio Performance

  • Audio frequency response: 20 Hz – 20 kHz

  • Sample resolution: 24‑bit digital audio quality

  • Dynamic range: ~134 dB

  • Latency: Approx. 1.9 ms

  • Distortion: Very low (within digital system specification)

Wireless & Frequency Info

  • Modulation: Digital transmission (wideband, robust against interference)

  • Frequency selection: Automatic scanning and selectable channels

  • Frequency ranges: Varies by regional model — typical EW‑D bands can include ranges around 470–526 MHz, 520–576 MHz, etc.

  • Bluetooth: BLE for Smart Assist app control and syncing
