Description

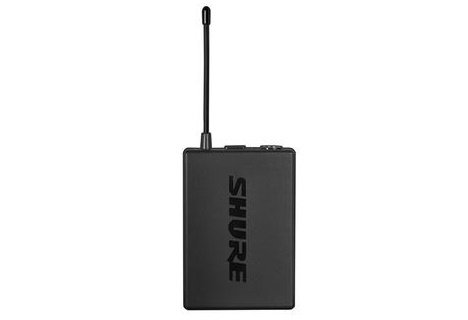

The SVX1 Bodypack Transmitter can be used with the SVX Lavalier or Headworn Wireless system. 10mW maximum RF output (country dependent); 8 RF channels selected by a switch; on/off switch with power LED; TA4F audio input connector; input gain switch and gain potentiometer; operates on two AA batteries for up to 10 hours; supplied with PG185 lapel microphone or PG30 headworn microphone.
SVX1 Frequency Bands (UHF, selectable)
| Band Code | Frequency Range (approx.) |
|---|---|
| J9 | 558 – 570 MHz |
| P12 | 698 – 710 MHz |
| P14 | 710 – 726 MHz |
| P16 | 726 – 742 MHz |
| Q16 | 742 – 758 MHz |
| Q18 | 758 – 774 MHz |
| R23 | 774 – 787 MHz |
| R25 | 794 – 806 MHz |
| X7 | 925 – 937.5 MHz |
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
