Description
Overview

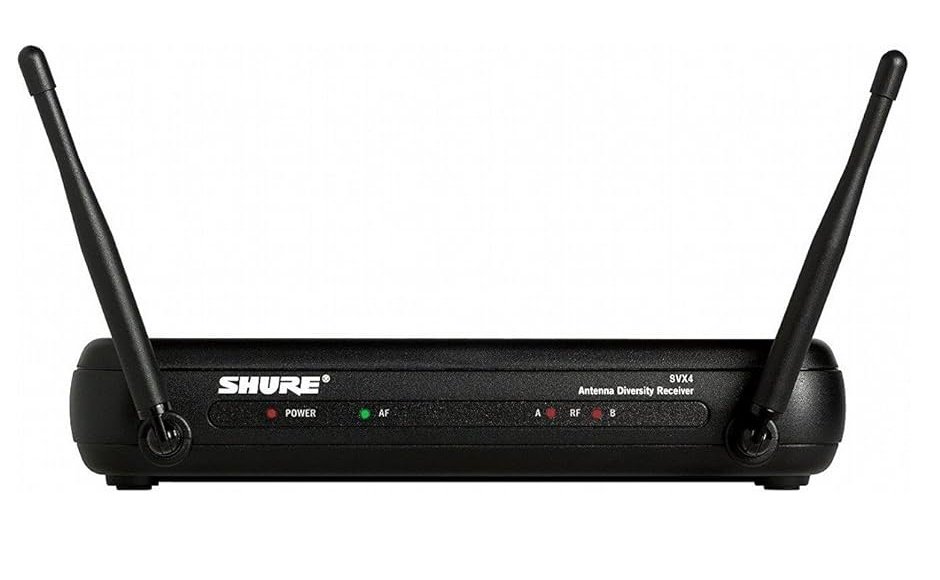

Single channel receiver for use with Shure SVX Wireless systems.
DETAILS
- Up to 8 selectable channels
- Up to 4 compatible systems*
- Antenna Switching Diversity
- Adjustable Squelch Level

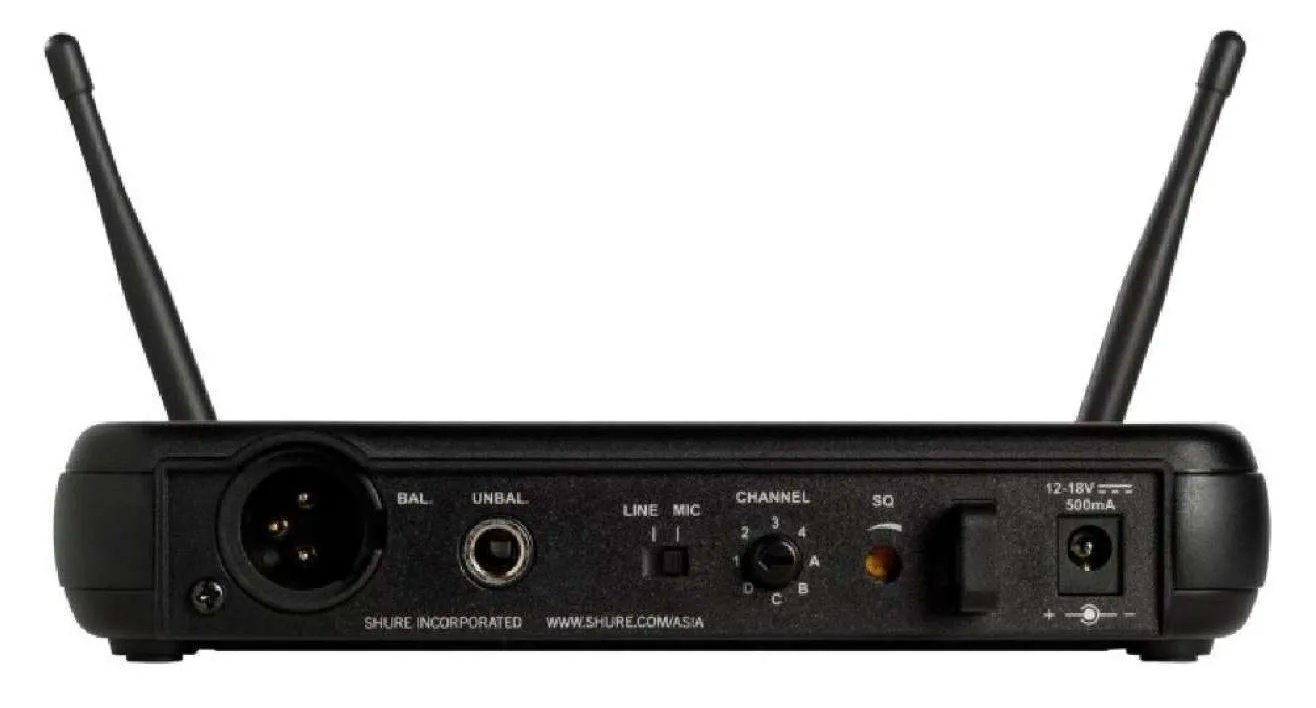

- 1/4″ and XLR output
- Available with Handheld and Lavalier system packages
SVX4 Frequency Bands (UHF, selectable)
Shure SVX systems (including SVX4 receivers) are available in several possible frequency ranges. The exact range depends on the specific band version of your unit:
| Band Code | Frequency Range (approx.) |
|---|
| J9 | 558 – 570 MHz |
| P12 | 698 – 710 MHz |
| P14 | 710 – 726 MHz |
| P16 | 726 – 742 MHz |
| Q16 | 742 – 758 MHz |
| Q18 | 758 – 774 MHz |
| R23 | 774 – 787 MHz |
| R25 | 794 – 806 MHz |
| X7 | 925 – 937.5 MHz |
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
SYSTEM
- Working Range (Line of Sight):
– HI power mode: 75 m (250 ft)
– LO power mode: 18 m (60 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
- Audio Frequency Response: 50 Hz to 15 kHz
Note: Dependent on microphone type
- Total Harmonic Distortion (Ref. ±48 kHz deviation, 1 kHz tone): <1%
- Dynamic Range: 90 dB A-weighted, typical
- Operating Temperature Range: –10°C (14°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.
- Transmitter Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output
SVX4 Receiver
- Dimensions: 32 mm X 168 mm X 104.5 mm (1.26 in. x 6.625 in. x 4.2 in.)
- Weight: 245 g (11.5 oz.)
- Housing: Molded ABS
- Audio Output Level (Ref. ±48 kHz deviation with 1 kHz tone):
– XLR connector into 100 kΩ load: -16 dBV (MIC)
– 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV (MIC)
– XLR connector: 600 Ω
– 6.35 mm (1/4”) connector: 600 Ω
- Sensitivity: –105 dBm for 12 dB SINAD, typical
- Image Rejection >50 dBm, typical
- Power Requirements: 12 to 18 V DC @ 130 mA, supplied by external power supply
