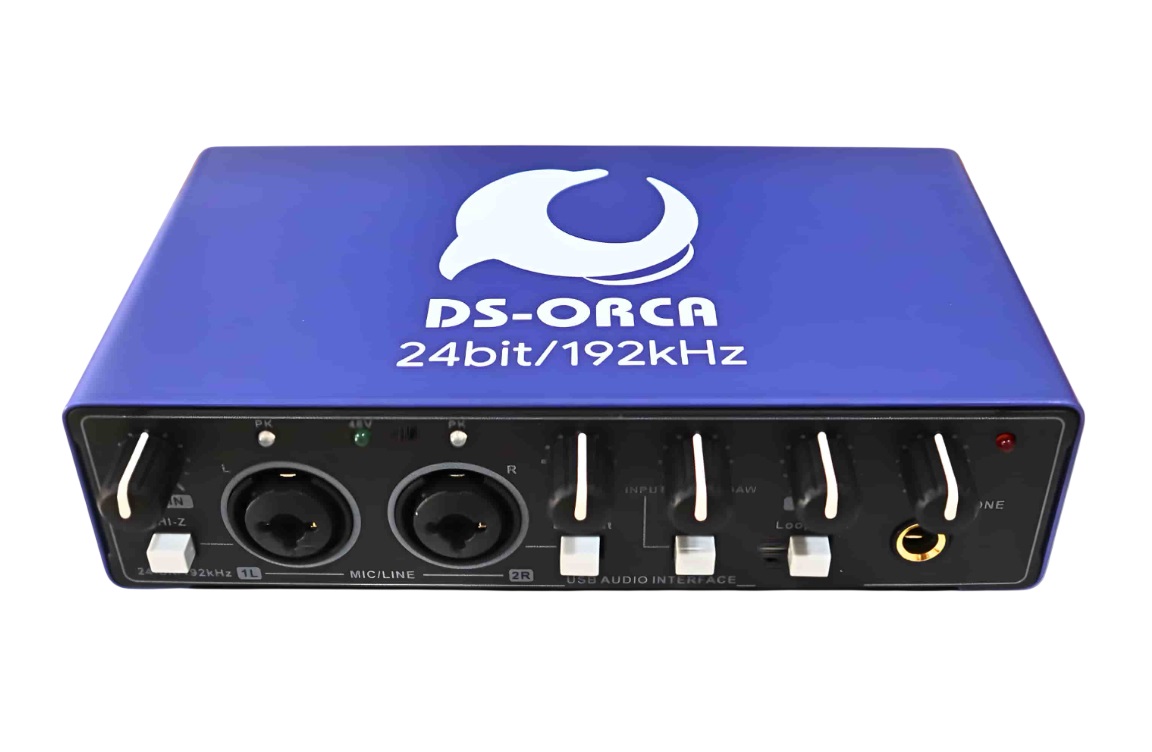

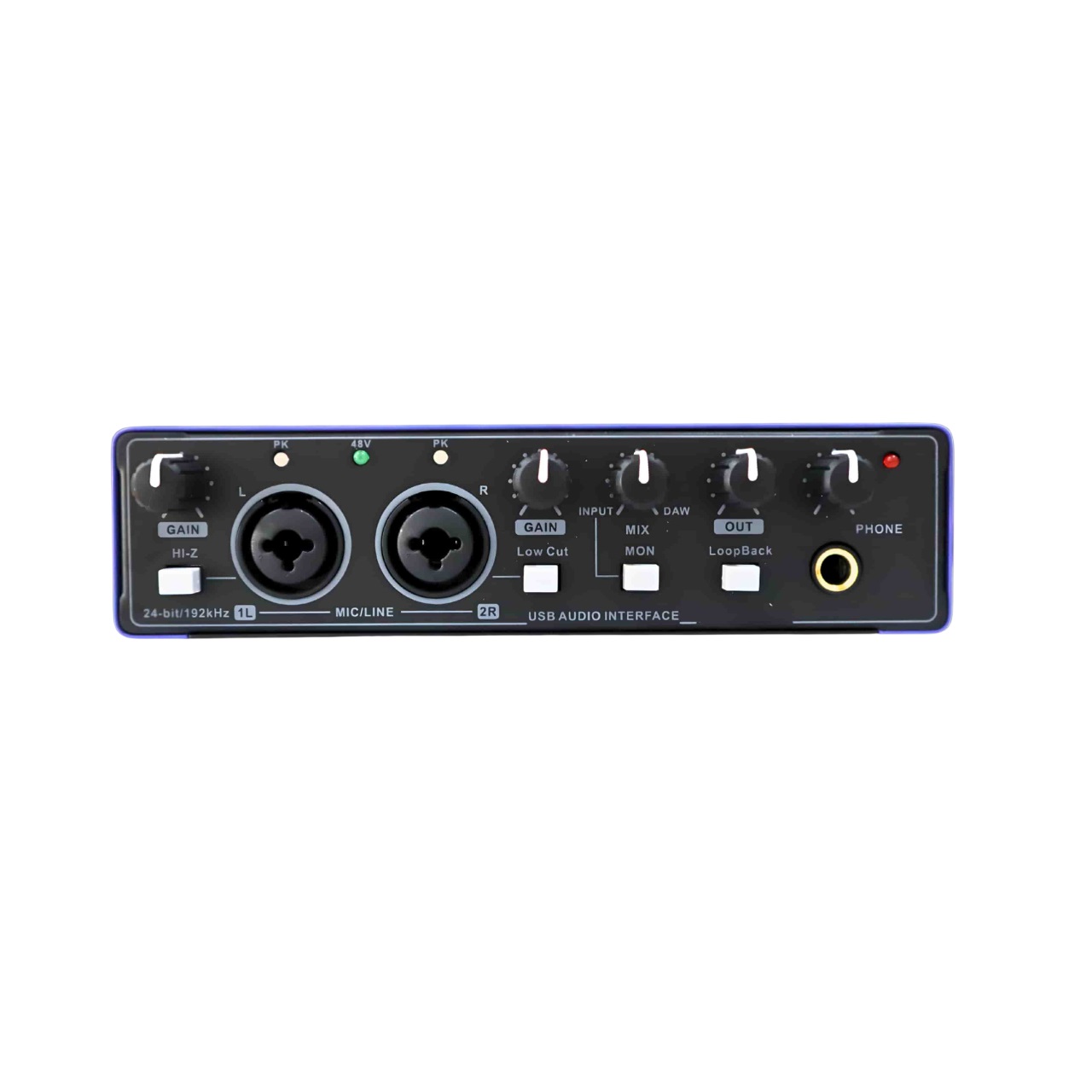

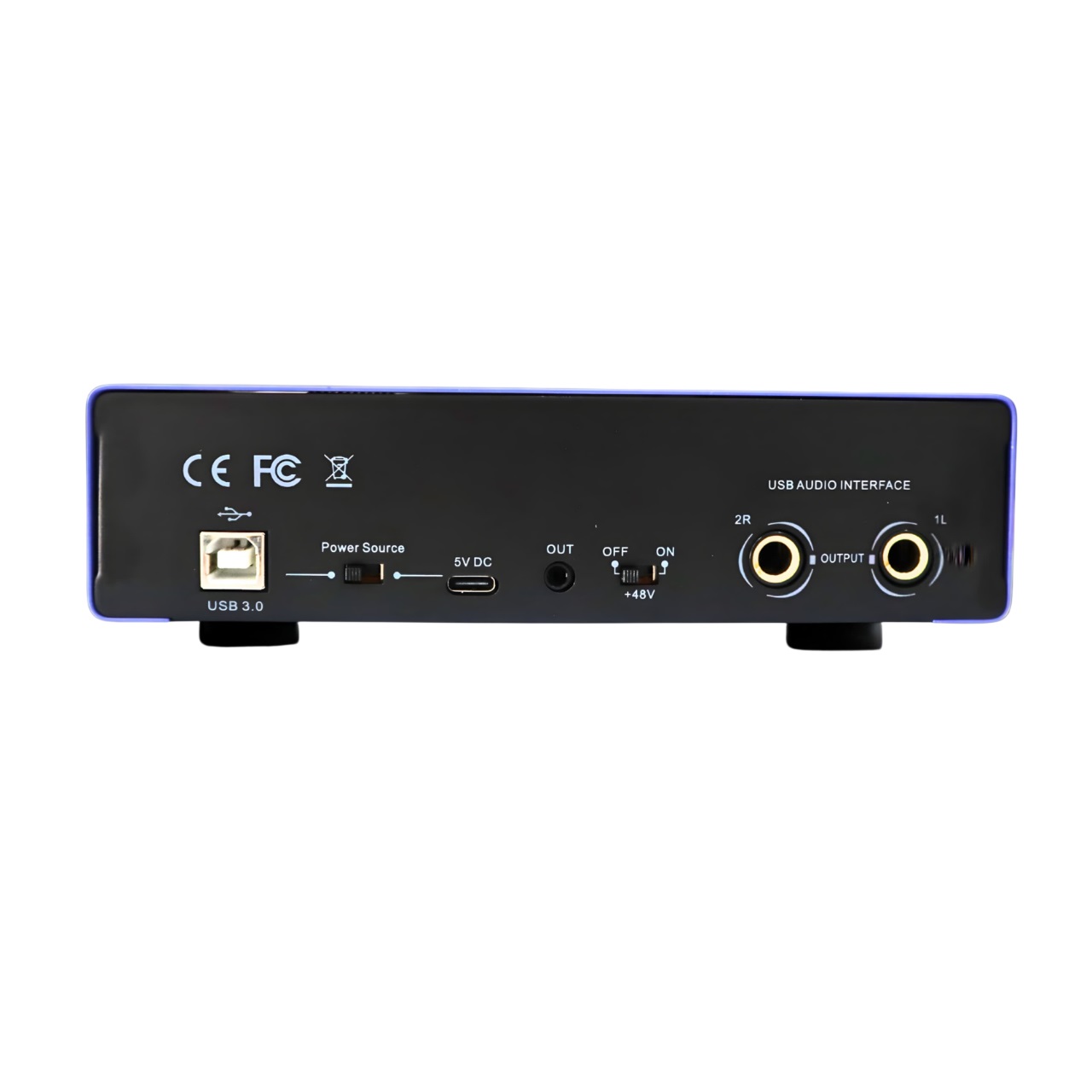

Dolphin Sound DS Orca MK2

The Dolphin Sound DS Orca MK2 is a compact 2-channel USB audio interface (sound card) designed for home recording, podcasting, and music production. It provides microphone, instrument, and line inputs in a portable unit that connects directly to a computer via USB.
The interface supports high-resolution audio up to 24-bit / 192 kHz, allowing users to record and monitor audio with clarity and detail. With features such as phantom power for condenser microphones, instrument (Hi-Z) input for guitars, and direct monitoring, the DS Orca MK2 is suitable for beginners and home studio enthusiasts looking for an affordable recording interface.
Key Features
2-Channel Audio Interface
Provides two input channels for microphones, instruments, or line signals.High-Resolution Recording (24-bit / 192 kHz)
Captures detailed audio suitable for professional-quality recordings.48V Phantom Power
Supports condenser microphones commonly used for vocals and studio recording.Hi-Z Instrument Input
Allows direct connection of electric guitars or bass instruments.Direct Monitoring
Lets users hear the input signal in real time with minimal latency during recording.Dual Headphone Monitoring
Includes headphone outputs for convenient monitoring during recording sessions.USB Plug-and-Play Connectivity
Connects easily to computers through USB for recording and playback.
Specifications
| Specification | Details |
|---|---|
| Product Type | USB Audio Interface / Sound Card |
| Channels | 2 Input / 2 Output |
| USB Interface | USB 2.0 |
| Sampling Resolution | 24-bit / 192 kHz |
| Frequency Response | 20 Hz – 20 kHz (±0.5 dB) |
| Dynamic Range | 98 dB |
| THD+N | < 0.03% |
| Stereo Crosstalk | 92 dB |
| Mic / Line Inputs | 2 |
| Instrument Input Gain | Max 46 dB |
| Mic Preamp Gain | Max 56 dB |
| Phantom Power | +48 V |
| Headphone Outputs | Up to 2 |
| Max Output Level | 3 Vrms |
| Power Supply | DC 5V / 500 mA (USB) |
| Power Consumption | Max 2.5 W |
| Indicators | 2 × LED Level Meter |
| Connectivity | USB stereo input/output |
