Description
PreSonus AudioBox Mac/PC/iPad Interfaces
Rp2.050.000 – Rp6.550.000

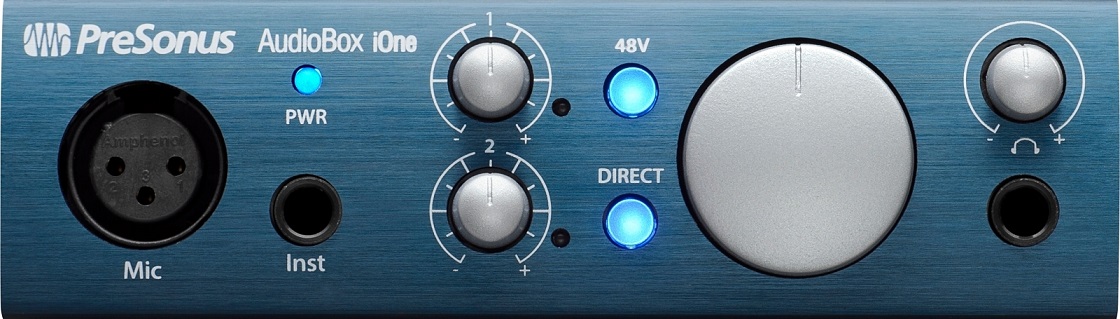

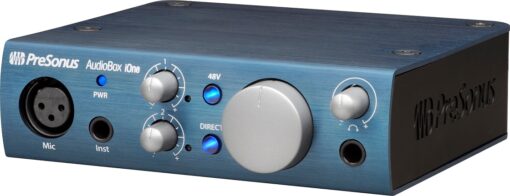

PreSonus® AudioBox iOne
Bring your studio with you and record wherever you go! The two-input PreSonus® AudioBox® iOne lets you capture voice and instrument on macOS, Windows and iPadOS devices. Simply plug in your guitar and microphone, and you’re ready to create! USB bus-powered and bundled with powerful, easy-to-use recording software, the AudioBox iOne makes it easy to capture ideas and create professional-quality recordings.
The AudioBox iOne offers one instrument input for your guitar or bass and one mic input with a sweet-sounding Class A mic preamp that will capture your voice in all its glory, plus phantom power for condenser microphones. High-quality 24-bit, 96 kHz digital converters; balanced ¼-inch outputs; and a loud, clear headphone output with independent level control ensure you hear every detail. An internal analog mixer enables you to monitor recorded tracks and overdubs with zero latency.
Record in stereo on iPad with free PreSonus Capture® Duo or record up to 32 tracks with affordable Capture for iPad. Then wirelessly beam your iPad tracks to included Studio One™ recording and production software for macOS and Windows for editing and mixing – or do the whole project with Studio One.
The AudioBox iOne can sit on a tabletop or fit in the pocket of a backpack and works with standard iOS power accessories. Its metal chassis is built to travel, yet it weighs just 1.35 pounds (0.62 kg). Your AudioBox iOne is ready to go wherever sound takes you.
Features
- Bus-powered USB 2.0/iPad audio interface
- 24-bit resolution; 44.1, 48, 88.2, and 96 kHz sampling rate
- 1 instrument input and 1 microphone input with low-noise, high-headroom, Class A mic preamplifier and +48V phantom power
- 2 balanced ¼-inch TRS main line-level outputs
- Stereo headphone output with independent level control
- Zero-latency monitoring via internal analog mixer (fixed 50/50 mix via Direct button)
- Large main volume knob
- Signal present and clipping LEDs
- Includes Studio One™ Artist DAW software (macOS/Windows) and Studio Magic Software Suite (more than $1,000 value!); compatible with recording software for macOS, Windows, iOS and iPadOS
- Metal chassis with Kensington lock hole
Highlight & Specs
World-class recording software included.

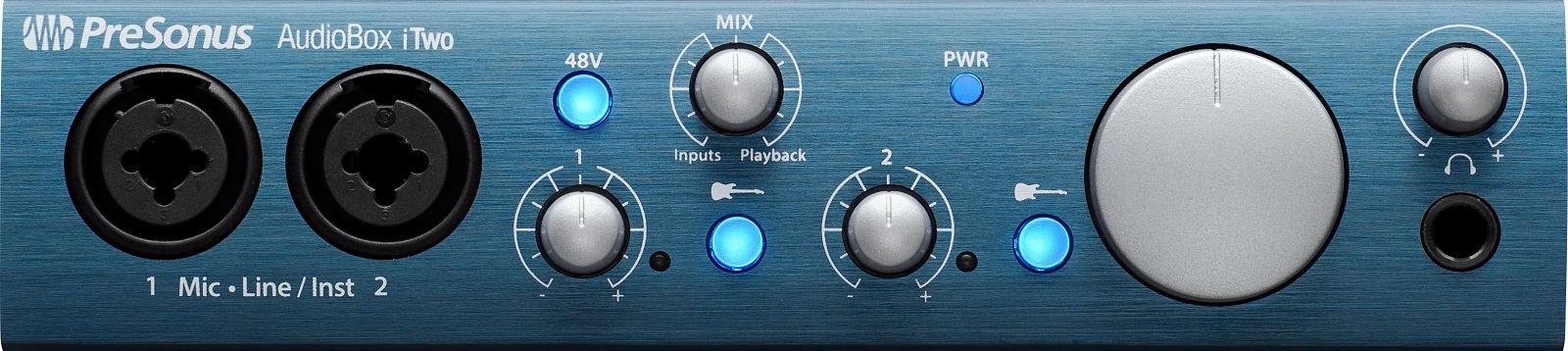

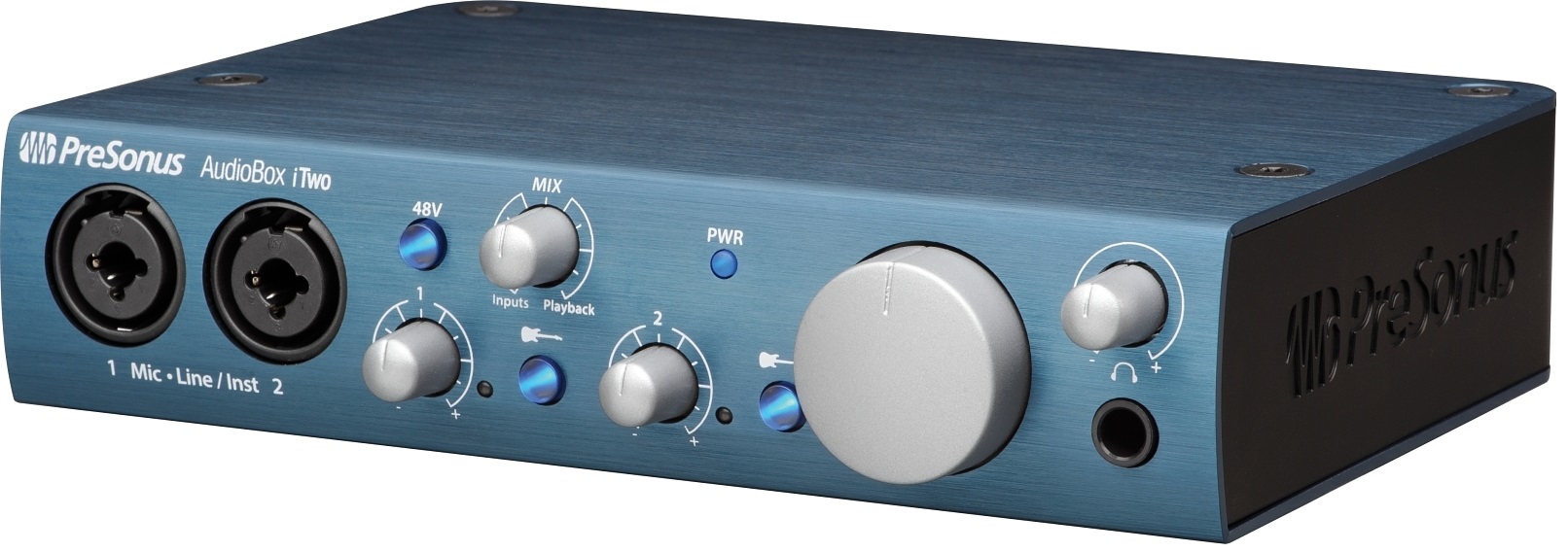

The AudioBox® iTwo works with virtually all macOS, Windows, iOS and iPadOS audio-recording software and comes with a license for PreSonus® Studio One™ Artist for a complete recording solution. Studio One is easy to learn and enables you to compose, record and produce without getting distracted by the tools.
Make your own magic.
Expand your Studio One™ experience with the Studio Magic Suite of software. Studio Magic iincludes over $1,000 USD worth of music software including plug-ins, loops, virtual instruments, effects and tutorials.
Specifications
Electronics
- Voltage : USB Bus Powered
- Inputs : Two – 1 Mic/Line, 1 Line
- Headphone Jack : 1/4″ TRS Active Stereo
Miscellaneous
- Connection Type : USB 2.0 Bus-Powered
Microphone Preamp
- Total Harmonic Distortion : <0.008% (Unweighted, 1 kHz at +4 dBu Output, Unity Gain)
- Signal To Noise Ratio : >95 dB (Unity Gain, Reference = +4 dBu, 20 Hz to 22 kHz)
- Common Mode Rejection Ratio : >65 dB (1 kHz, 52 dB Gain)
- Gain Control Range : 0 dB to 52 dB (±1 dB)
- Maximum Input Level : +10 dBu (Unity Gain, 1 kHz at 0.5% THD+N)
- Phantom Power : +48 VDC (±2 VDC)
- Frequency Response : 10 Hz to 40 kHz (±3.0 dB)
- Input Impedance : 1200Ω
Main and Line Outputs
- Main And Line Outputs Output Impedance : 51Ω
Headphone Outputs
- Maximum Output : 60 mW/Channel at 60Ω Load
- Frequency Response : 20 Hz – 30 kHz (±1.0 dB)
- Impedance Working Range : 10Ω
Digital Audio
- Dynamic Range : 105 dB (A-Weighted, 48 kHz Sample Rate)
- Bit Depth : 24
- Supported Sample Rates : 44.1, 48, 88.2, 96 (kHz)

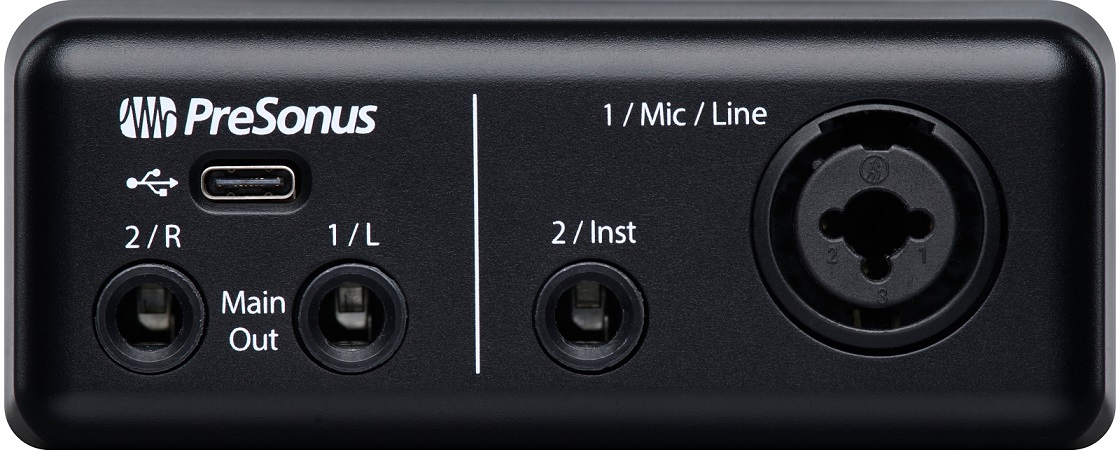

AudioBox GO
Ultra-affordable, surprisingly powerful, and small enough to fit in your pocket, AudioBox GO™ gives you all the connections you need to record on the move or in your home studio. Whether you’re recording a guitar riff at rehearsal or a full-length solo album in your bedroom, you’ll have all the tools you need to create like a pro, right from the start. Compatible with both computers and mobile devices, the AudioBox GO is perfect for anyone who wants to get started recording fast.
You get a PreSonus® XMAX-L preamp backed by over 25 years of recording-studio knowhow to make your XLR microphones perform at their best. The combo jack doubles as a line-level input that you can use to record keyboards, drum machines, and more! Record guitar and vocals at the same time using the dedicated Instrument input for you electric guitar or bass.
Monitor with professional studio monitors using the balanced Main outputs. You also get a surprisingly powerful Headphone output that lets you listen in loud and clear. An easy-to-use Mix control makes creating a monitor mix simple by blending the audio from your hardware inputs and your software so you can record vocals while listening to the tracks you’ve already recorded.
Best of all, the AudioBox GO is small enough to toss into your guitar case or your laptop bag. Whether you’re recording on Android™ or Apple® mobile devices, a laptop, your desktop computer, the AudioBox GO makes recording fun and easy.
Features
- Ultra-affordable, ultra-compact and versatile audio interface for home and mobile recording.
- USB-C®-compatible for use with the latest devices.
- Recording software included: Get started right away with Studio One® Prime DAW recording software and Studio Magic Suite software bundle including music tutorials, tons of sound samples and virtual instruments.
- Bus-powered by your connected USB-C® device so no need for an additional power supply – works great with both Apple and Android devices.
- Connect an instrument and a microphone at the same time: One TS instrument input to record guitar or bass and one mic/line combo input to record vocals or a keyboard, drum machine or other line-level instrument.
- One ¼-inch stereo headphone output
- Mix control lets you create a custom blend between inputs and playback for monitoring recordings with zero latency.
- Two balanced TRS ¼-inch main outputs for studio monitors or other speakers.
- Professional audio quality: Studio-grade converters allow for up to 24-bit/96 kHz recording and playback assuring the highest quality possible.
- Professional XMAX-L mic preamp: Your microphone will sound its best thanks to this custom low-noise, high-headroom design with 50 dB of adjustable gain and switchable +48V phantom power for professional XLR condenser mics.
Highlight & Specs
World-class recording software included.
The AudioBox® iTwo works with virtually all macOS, Windows, iOS and iPadOS audio-recording software and comes with a license for PreSonus® Studio One™ Artist for a complete recording solution. Studio One is easy to learn and enables you to compose, record and produce without getting distracted by the tools.
Make your own magic.
Expand your Studio One™ experience with the Studio Magic Suite of software. Studio Magic iincludes over $1,000 USD worth of music software including plug-ins, loops, virtual instruments, effects and tutorials.
Specifications
Electronics
- Voltage : USB Bus Powered
- Inputs : One – XLR Female (via Combo), Balanced, Microphone; One – 1/4″ TS Female (via Combo), Unbalanced, Line; One – 1/4″ TS Female (Input 2), Unbalanced, Instrument
- Headphone Jack : 1/4” TRS Female, Stereo, Unbalanced : Line Out
Two – 1/4″ Balanced (Left and Right)
Miscellaneous
- Connection Type : USB-C® Bus-Powered
Microphone Preamp
- Total Harmonic Distortion : 0.004% (1 kHz, -1 dBFS, Minimum Gain)
- Gain Control Range : 50 dB (0 dB to +50 dB)
- Maximum Input Level : +10 dBu (±0.5 dBu, Minimum Gain)
- Phantom Power : (±2 VDC) +48 VDC
- Frequency Response : 20 Hz – 20 kHz (±0.3 dBu, Unity Gain, Unweighted)
- Input Impedance : 1.4 kΩ
Line Inputs
- Maximum Level : +19 dB
- Line Inputs Gain Range : 50 dB,(-20 dB to +30 dB)
- Line Inputs Impedance : 750 KΩ
Main and Line Outputs
Main And Line Outputs Frequency Response : 20 Hz to 20 kHz, +/-0.2 dB
Main And Line Outputs Total Harmonic Distortion : < 0.007%
Main And Line Outputs Output Impedance : 51Ω
Headphone Outputs
Maximum Output : 30 mW/Channel @ 60 Ω
Frequency Response : 20 Hz to 20 kHz, +/-0.5 dB
Total Harmonic Distortion : < 0.08%
Digital Audio
Dynamic Range : ADC Dynamic Range (A-Weighted) 90 dB, 48 kHz; DAC Dynamic Range (A-Weighted) 102 dB, 48 kHz
Bit Depth : 24-bit
Supported Sample Rates : 44.1, 48, 88.2, 96kHz

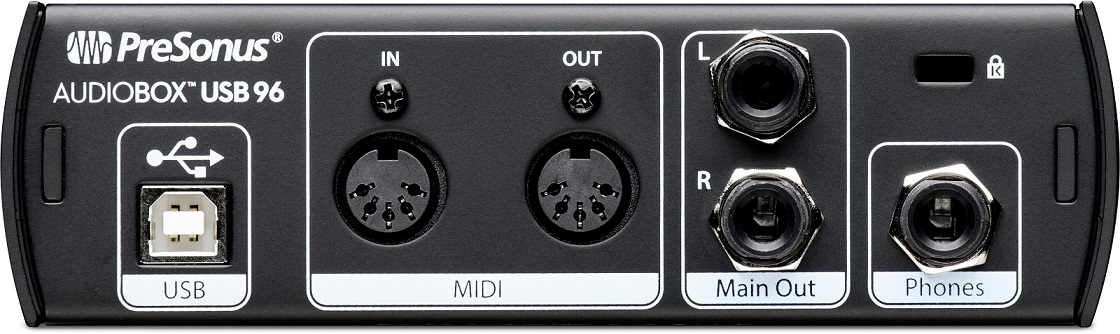

PreSonus® AudioBox USB® 96 25th Anniversary
A complete, all-PreSonus, hardware/software, high-definition recording kit — just add a computer!
The AudioBox USB® 96 audio interface has just the right features you need to start recording right away. Bus-powered and built to travel, the AudioBox USB 96 makes recording easy.
Two front-panel combo mic/instrument inputs, two balanced line-level outputs, an ultra-loud headphone out, and MIDI I/O make the AudioBox USB 96 an affordable stereo-recording solution for singer/songwriters, podcasters, guitar or guitar-bass collaborations and more. A Mix control lets you balance the level between the input signal and computer playback without any latency.
The AudioBox USB 96 is built to be used on the go with a heavy-duty steel chassis to stand up to the rigors of mobile recording. It’s USB class-compliant – no special drivers to install – and natively compatible with Apple Silicon-based Macs and iOS and iPadOS devices. A screaming-loud headphone output ensures you can hear your music clearly, even in noisy locations.
Compatible with virtually all macOS, Windows, iOS and iPadOS audio-recording software, the AudioBox USB 96 comes with a license for PreSonus®’ Studio One® Artist and Studio Magic Suite bundle for a complete recording solution so you can get recording right away.
Whether you’re just getting into recording or are a veteran producer who wants to go mobile, the AudioBox USB 96 audio interface is ready to hit the road when you are.
Features
- Simple, affordable stereo-recording solution for singer/songwriters, podcasters, guitar or guitar-bass collaborations and more
- Professional-quality mic preamps: Your microphone will sound its best thanks to this low-noise, high-headroom design with +35 dBu of adjustable gain and switchable +48V phantom power for professional XLR condenser mics
- Recording software included: Get started right away with PreSonus® Studio One® Artist recording software and Studio Magic Suite software bundle
- Bus-powered by your connected USB device so no need for an additional power supply
- 2 combo mic/instrument inputs with high-quality mic preamplifiers: Connect mics, guitars and basses
- One loud, clear ¼-inch stereo headphone output
- Mix control lets you create a custom blend between inputs and playback for monitoring recordings with zero latency
- Two balanced TRS ¼-inch main outputs for studio monitors or other speakers
- Professional audio quality: Studio-grade converters allow for up to 24-bit/96 kHz recording and playback assuring the highest quality possible
- USB 2.0-compatible
Highlight & Specs
World-class recording software included.
The AudioBox® iTwo works with virtually all macOS, Windows, iOS and iPadOS audio-recording software and comes with a license for PreSonus® Studio One™ Artist for a complete recording solution. Studio One is easy to learn and enables you to compose, record and produce without getting distracted by the tools.
Make your own magic.
Expand your Studio One™ experience with the Studio Magic Suite of software. Studio Magic iincludes over $1,000 USD worth of music software including plug-ins, loops, virtual instruments, effects and tutorials.
Specifications
Electronics
- Voltage : USB Bus Powered
- Inputs : Two – Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4″ TS Female Unbalanced)
- Headphone Jack : 1/4″ TRS Active Stereo
- Line Out : Two – 1/4″ Balanced (Left and Right)
Miscellaneous
- Connection Type : USB 2.0 Bus-Powered
- MIDI I/O : Dual 5-Pin Female DIN
Microphone Preamp
- Total Harmonic Distortion : THD+N (Unweighted, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
- Signal To Noise Ratio : (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
- Common Mode Rejection Ratio : (1 kHz, 55 dB Gain) > 45 dB
- Gain Control Range : (± 1 dB) 0 dB to 35 dB
- Maximum Input Level : (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
- Phantom Power : (±2 VDC) +48 VDC
- Frequency Response : (±3.0 dB) 20 Hz to 20 kHz
- Input Impedance : (Balanced) 1200Ω
Main and Line Outputs
- Main And Line Outputs Output Impedance : 51Ω
Headphone Outputs
- Maximum Output : 60 mW/Channel @ 60Ω Load
- Frequency Response : (±1.0 dB) 20 Hz to 30 kHz
Digital Audio
- Dynamic Range : ADC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB
- Bit Depth : 24
- Supported Sample Rates : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

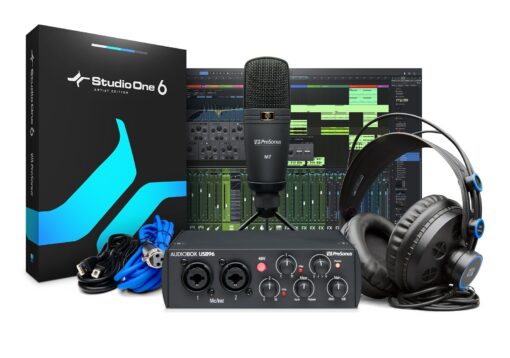

PreSonus® AudioBox USB® 96 Studio
Complete Hardware/Software Recording Kit
Start Recording Guitar and Vocals TodayAudioBox 96 Studio is a complete recording and production bundle. Get everything you need to start recording guitar (or anything else) in a single purchase!
You get:
- The AudioBox 96 USB two-channel audio interface
- M7 condenser microphone
- HD7 headphones
- Studio One Artist
- Studio Magic software suite
The heart of the AudioBox 96 Studio is PreSonus’ best-selling AudioBox USB® 96 interface, which captures your recordings in stellar studio quality. Its two front-mounted XLR / ¼” combo jacks let you connect a pair of mics for recording acoustic guitar or electric guitar cabinets. Alternatively, you can simply plug your electric guitars in directly and record direct, using Studio One Artist’s Ampire for world-class guitar amp and cab tones – and without your cranked Bassman angering your neighbors. And since there are two inputs, you and a friend can record guitar and bass or vocals and guitar simultaneously to separate tracks to mix later.
The M7 large-diaphragm condenser microphone is the perfect mic for capturing acoustic guitar or vocals. The crystal-clear HD7 headphones will help you avoid any mic feedback issues while recording with open mics, let you closely monitor your performance, as well as mix late into the night without bothering sleeping roommates or neighbors.
Finally, you get over $1000 USD of inspiring professional audio software – including Studio One Artist and the Studio Magic Suite, so your productions will be a step ahead from day one.
We even include all the cables required to hook it all up, so you’ll hit the ground running right out of the box and get your creative vision out into the world. With all the hardware and software you need, the AudioBox 96 Studio makes getting started recording and mixing fast and easy.
Features
AudioBox USB 96
- PreSonus’ all-time best-selling USB audio interface, now in sleek 25th-anniversary black
- Record guitar and vocals at the same time: Two crystal-clear, class-A mic preamps with +48v provide power for condenser mics
- Combo inputs let you record line-level sources like keyboards
- Zero-latency hardware monitoring lets you hear yourself in real-time via internal analog mixer
- High-volume headphone output lets you monitor your performance loudly and clearly while recording so you get a great take every time.
- MIDI In/Out lets you connect synths, drum machines, and controllers
- Balanced ¼” Main Outputs for connecting professional studio monitors
- Recording Software included: Studio One Artist DAW recording software and Studio Magic software bundle including music tutorials, tons of sound samples and virtual instruments; plus Ableton Live Lite
- USB cable included
- USB bus-powered: no wall wart required!
- 24-bit resolution; 44.1, 48, 88.1, and 96 kHz sampling rates provided for maximum audio quality
M7 Condenser Microphone
- Large-diaphragm design makes it perfect for capturing the nuance of acoustic guitar and voice
- +48v phantom-powered via AudioBox USB 96
- Mic stand adapter included
- 9′ / 3 m XLR cable included
HD7 Headphones
- High resolution neodymium drivers for optimal sound quality
- Extended bass response so you’ll hear the lowest lows
- Built tough to withstand abuse
- Lightweight and comfortable with long-lasting ear pads
Studio One® Artist
- Record, produce, and mix all from a single, intuitive application
- Intuitive single-window work environment with quick and easy drag-and-drop functionality and multi-touch support
- Unlimited audio and instrument tracks, virtual instruments, buses, and FX channels
- Five powerful virtual instruments including: Impact XT drum sampler; Presence XT virtual sample-player; Mai Tai polyphonic analog modeling synthesizer; Mojito monophonic subtractive synthesizer; and Sample One XT live sampler and sample editor
- Patterns allow for intuitive drum and melody composition via familiar drum machine/step-sequencer style UI
- VST / AU and ReWire Support lets you use third-party plug-ins, virtual instruments, and ReWire-enabled applications.
- Studio One Remote Support. Use the free Studio One Remote app for iPad® and Android™ tablets to remotely control Studio One while you’re away from your computer. Great for recording alone!
Highlight & Specs
World-class recording software included.
The AudioBox® 96 Studio comes with PreSonus® Studio One™ Artist and the Studio Magic Software Suite for a complete recording solution. Studio One offers unlimited tracks and plug-ins and is easy to learn and use. Studio Magic includes over $1,000 USD of music software, including plug-ins, loops, virtual instruments, effects and tutorials.
Capture every nuance with the M7 condenser microphone.
Get your mic collection off to a good start with the M7 large-diaphragm condenser microphone. Condenser mics are the overwhelming choice of recording studio professionals, enabling you to capture musical details, harmonics, and subtle nuances that would get lost with dynamic mics. Large-diaphragm condenser microphones, like the M7, tend to “warm up” a sound, making them the go-to microphone for recording vocals and a wide range of instruments.
Hear every detail with HD7 professional headphones.
PreSonus’ high-definition HD7 headphones take advantage of a patented, semi-open sound chamber to deliver exceptionally deep low frequencies with a balanced and yet powerful bass punch. Accurate midrange and extended treble response let you pick out the fine details of a mix or track. The lightweight, ergonomic design adjusts to any head size, offering a comfortable listening experience during long recording sessions.
Apple Silicon, iOS, and iPadOS compatibility—standard.
The PreSonus AudioBox 96 Studio is natively compatible with Apple Silicon-based Mac computers*, as well as iOS and iPadOS devices, including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone. Because it’s USB class-compliant, there are no special drivers or applications to download and install. You’ll be able to produce on the go—everything from podcasts to folk rock to trap—wherever sound takes you.
Specifications
Accessories
- Included Accessories : 1/8″ to 1/4″ (3.5 to 6.3 mm), Screw-On, Gold-Plated, Stereo Mini-Plug
Electronics
- Voltage : 100-120V
- Inputs : Two – Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4″ TS Female Unbalanced)
- Headphone Jack : 1/4″ TRS Active Stereo
- Line Out : Two – 1/4″ Balanced (Left and Right)
Miscellaneous
- Connection Type : USB 2.0 Bus-Powered
- MIDI I/O : Dual 5-Pin Female DIN
- Rack Units : 1/3U (steel chassis)
Microphone
- Polar Pattern : Cardioid
- Type : Large-Diaphragm Condenser Microphone
- Sensitivity : -39 dBV/pa (12.2 mV/pa)
- Element : Electret
- Equivalent Input Noise : 20 dB
- Maximum SPL : 136 dB SPL
- Phantom Power Requirements : +12 to +52 VDC, 3 mA
- Signal To Noise Ratio : 74 dB
- Dynamic Range : 11 dB
- Frequency Response : 40 Hz – 18 kHz
Microphone Preamp
- Total Harmonic Distortion : THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
- Signal To Noise Ratio : (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
- Common Mode Rejection Ratio : (1 kHz, 55 dB Gain) > 45 dB
- Gain Control Range : (± 1 dB) 0 dB to 35 dB
- Maximum Input Level : (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
- Phantom Power : (±2 VDC) +48 VDC
- Frequency Response : (±3.0 dB) 20 Hz to 20 kHz
- Input Impedance : (Balanced) 1200Ω
Main and Line Outputs
- Main And Line Outputs Output Impedance : 51Ω
Headphone Outputs
- Maximum Output : 60 mW/Ch @ 60Ω Load
- Frequency Response : (±1.0 dB) 20 Hz to 30 kHz
Digital Audio
- Dynamic Range : ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
- Bit Depth : 24
- Supported Sample Rates : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Headphones
Driver Type : 50 mm, Neodymium
Acoustic Design : Dynamic, semi-open
Frequency Response : 10 Hz to 30 kHz
Sensitivity : 98 dB SPL (1 mW)
Maximum Power : 300 mW
Rated Impedance : 32Ω
Earpad : Leather
Weight Without Cable : 7.8 oz (222g)
Cable : 8′ 2″ (2.5m) straight, single-sided
PreSonus® AudioBox® iTwo Studio
Get everything you need to produce professional podcasts and music alike with the iTwo Studio complete recording and production package in a single purchase! At the heart of the AudioBox iTwo Studio is the AudioBox iTwo interface, which has two combo jacks to capture your voice and instruments in stellar studio quality. It works with Windows, Mac, iPad, and iOS, so you can record very nearly anywhere. It’s compatible with both microphones and real instruments, so it’s the right tool for the job – wherever imagination takes you!
The versatile M7 large-diaphragm condenser microphone (with stand) is also included, ideal for recording… well, everything; from podcasts to acoustic guitar to voice-over dialogue. The crystal-clear HD7 headphones will help you avoid any mic feedback issues during your live streams, while also letting you mix and produce late into the night without bothering anybody.
When you’re done recording to the free Capture Duo for iPad, you can wirelessly transmit your tracks to any computer on your Wi-Fi network running Studio One for mixing and postproduction.
Finally, you get over $1000 USD of inspiring professional audio software – including Studio One Artist and the Studio Magic Suite, so your productions will be a step ahead from day one. We even included all the cables required to hook it all up, so you’ll hit the ground running right out of the box and get your creative vision out into the world faster than anyone else.
Features
- Everything you need to record and produce anywhere.
- AudioBox iTwo USB 2.0 audio interface
- Versatile M7 condenser microphone
- Comfy HD7 headphones with powerful bass
- Software bundle includes Studio One Artist, Studio Magic, and Capture Duo
- All required cables included
Highlight & Specs
World-class recording software included.
The AudioBox® 96 Studio comes with PreSonus® Studio One™ Artist and the Studio Magic Software Suite for a complete recording solution. Studio One offers unlimited tracks and plug-ins and is easy to learn and use. Studio Magic includes over $1,000 USD of music software, including plug-ins, loops, virtual instruments, effects and tutorials.
Capture® Duo recording software for iPad.
Free PreSonus® Capture® Duo for iPad is a perfect companion for the AudioBox® iTwo, enabling you to record and play two stereo tracks simultaneously with up to 24-bit, 96 kHz fidelity. You can even record and save songs on an iPad, then wirelessly transfer them to Studio One™. Or record up to 32 tracks with affordable Capture for iPad!
Specifications
Electronics
- Voltage : 100-120V
- Inputs : Two – Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4″ TS Female Unbalanced (Inst) or TRS Female Balance (Line))
- Headphone Jack : 1/4″ TRS Active Stereo

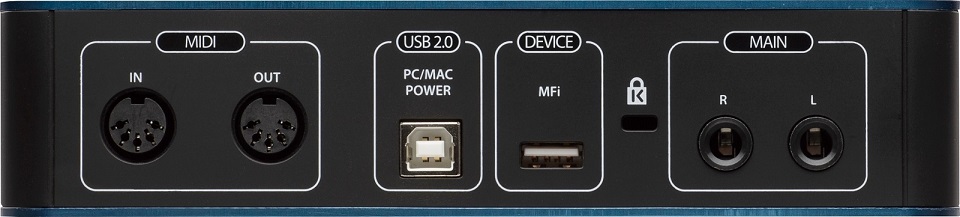

- Line Out : Two – 1/4″ Balanced (Left and Right)
Miscellaneous
- Connection Type : USB 2.0 Bus-Powered
- MIDI I/O : Dual 5-Pin Female DIN
Microphone
- Polar Pattern : Unidirectional
- Type : Back-Electret Condenser
- Sensitivity : -38 dB ±3 dB (0 dB=1V/Pa at 1 kHz)
- Equivalent Input Noise : 19 dBA
- Maximum SPL : 134 dB (at 1 kHz = 1% THD)
- Phantom Power Requirements : 48V Phantom Power
- Signal To Noise Ratio : 75 dB
- Frequency Response : 20 Hz to 18 kHz
Microphone Preamp
- Total Harmonic Distortion : <0.008%
- Signal To Noise Ratio : >95 dB
- Gain Control Range : 0 dB to 52 dB
- Maximum Input Level : +10 dBu
- Phantom Power : +48 VDC
- Frequency Response : 20 Hz to 20 kHz
- Input Impedance : 1200Ω
Line Inputs
- Line Inputs Impedance : 10 kΩ
Main and Line Outputs
- Main And Line Outputs Output Impedance : 51Ω
Headphone Outputs
- Maximum Output : 60 mW/Channel at 60Ω Load
- Frequency Response : 20 Hz – 30 kHz
Digital Audio
- Dynamic Range : ADC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB
- Bit Depth : 24 Bit
- Supported Sample Rates : 44.1, 48, 88.2, 96kHz
Monitors
- Peak SPL : 134 dB (at 1 kHz = 1% THD)
- Frequency Response : 20 Hz to 20 kHz
- Input Impedance : 1200Ω
Headphones
- Driver Type : 50 mm, Neodymium
- Acoustic Design :Dynamic, Semi-Open
- Frequency Response : 10 Hz to 30 kHz
- Sensitivity : 98 dB SPL (1 mW)
- Maximum Power : 300 Watts
- Rated Impedance : 32Ω
- Earpad : Leather
- Weight Without Cable : 0.49 lbs. (0.22 kg)
- Cable : 8′ 2″ (2.5m) Straight, Single-Sided
Specifications
- Input Impedance : 1200Ω
