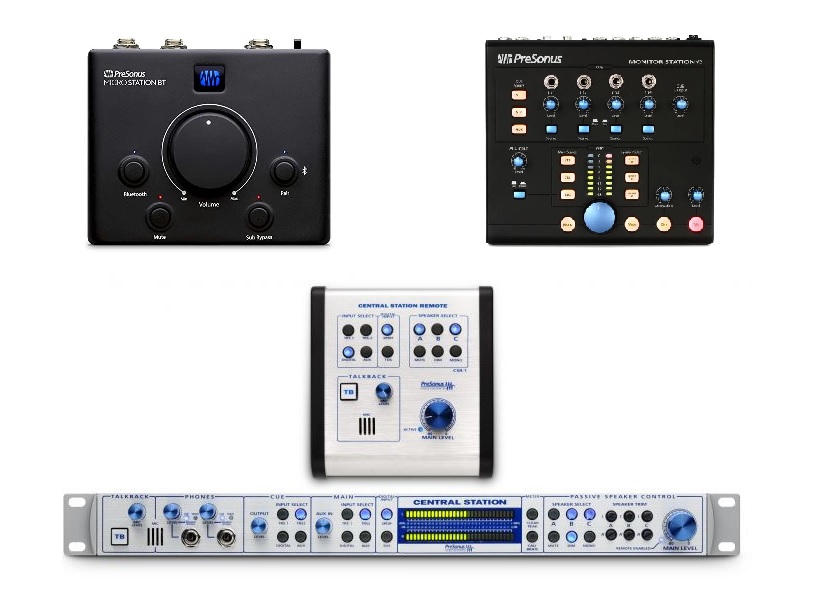

Presonus Monitoring Controllers Series
Rp3.000.000 – Rp16.050.000

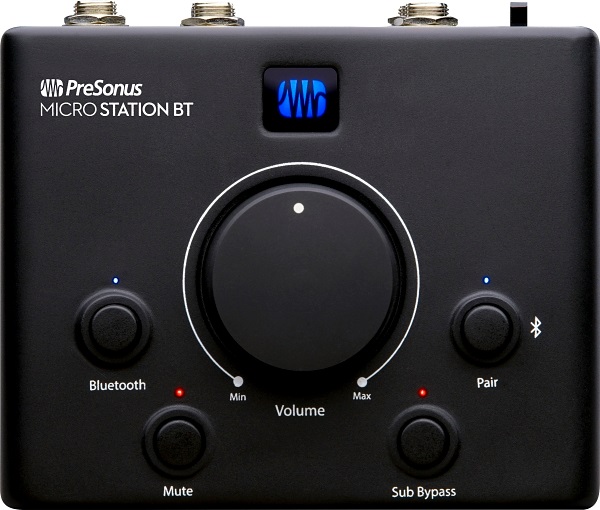

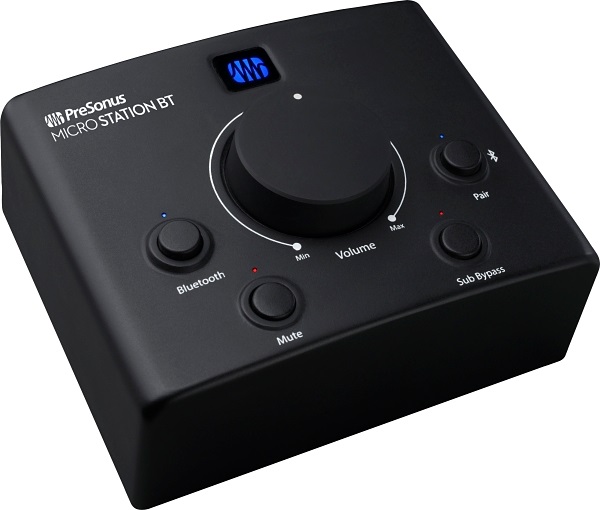

PreSonus®’ MicroStation BT
PreSonus®’ MicroStation BT is the ultimate solution for anyone who wants to add Bluetooth connectivity to a pair of studio or media reference monitors or other powered speakers. Compact, convenient and stylish, the MicroStation BT also makes it easy to add a subwoofer to create a 2.1 listening environment while putting the overall system-level control right under your fingertips.
A convenient Bluetooth 5.0 input lets you wirelessly stream audio to any pair of powered speakers directly from your phone or other Bluetooth-equipped audio device. Balanced ¼-inch TRS inputs are provided to connect pro audio hardware, such as an audio interface. A stereo ⅛-inch input is available to hardwire your phone, media player or tablet when you don’t want to use Bluetooth.
Ready to add a subwoofer for more boom in your room? MicroStation BT is ideal for creating a simple 2.1 system. A convenient, large knob lets you control the overall level of your speakers and sub at the same time. The Sub Bypass button lets you switch back to simple stereo listening whenever you like. A headphone output and Main Mute let you silence your speakers without stopping the tunes.
With flexible connectivity and easy-to-use controls, MicroStation BT will make you wonder how you listened without it!
Features
- Stereo Bluetooth input adds wireless connectivity to any speaker system

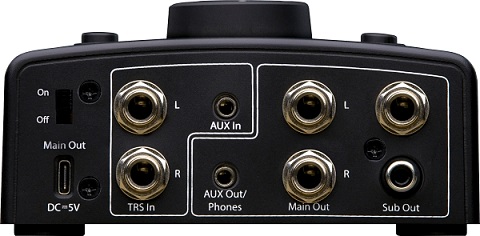

- 2 balanced ¼-inch TRS L/R inputs for pro audio gear and 1 stereo ⅛-inch TRS input for consumer audio gear
- 2 full-range balanced ¼-inch TRS L/R outputs to connect professional studio and media reference monitors
- Stereo ⅛-inch TRS headphone/aux output for listening, streaming, recording and more
- Balanced ¼-inch TRS and unbalanced RCA Subwoofer output
- Large ergonomic Volume knob controls overall full-range and subwoofer level
- Bluetooth On/Off button lets you toggle between Bluetooth and analog source
- Easy-to-use Bluetooth pairing button
- Sub Bypass button mutes the subwoofer without silencing the full-range speakers
- Mute button with LED silences the speakers or headphones
Specificactions
Electronics
- Voltage : N/A
Miscellaneous
- Connection Type : USB-C™ Compatible
Line Inputs
- Line Inputs Frequency Response : 20 Hz to 20 kHz
- Line Inputs Dynamic Range : 108 dB
- Line Inputs Total Harmonic Distortion : 0.001%
Main and Line Outputs
- Main And Line Outputs Frequency Response : 20 Hz to 20 kHz
- Main And Line Outputs Total Harmonic Distortion : <0.02%
Headphone Outputs
- Maximum Output : 32.5 mW / Channel
- Frequency Response : 20 Hz to 20 kHz
- Total Harmonic Distortion : <0.50%

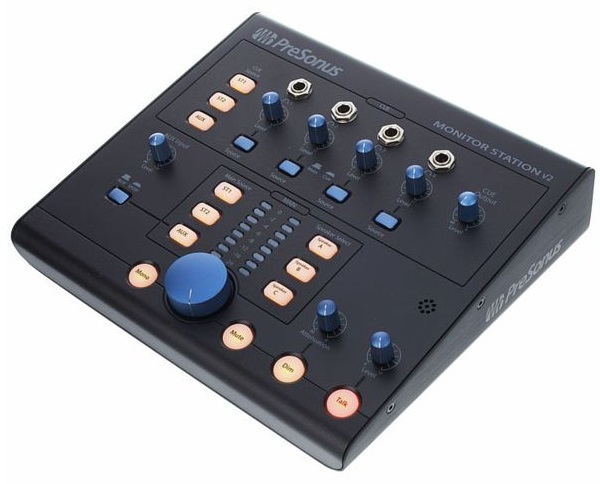

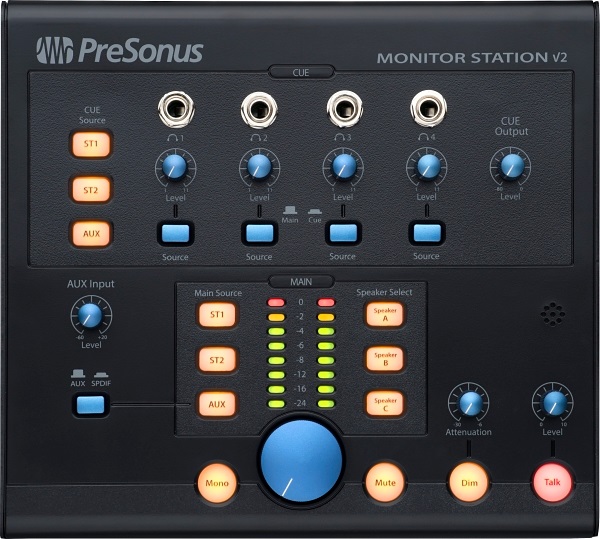

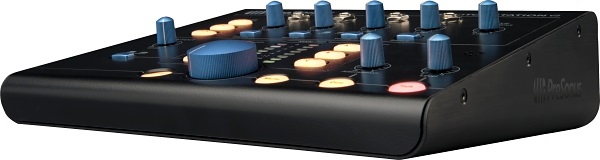

PreSonus® Monitor Station V2 Monitoring Controller
With its intuitive layout, extensive features and I/O and PreSonus®’ famed sound quality, the Monitor Station V2 provides a versatile, convenient and affordable solution for managing your studio monitoring system from your desktop. Switch quickly and easily between up to four audio sources, including two pairs of balanced ¼-inch inputs and a third input channel that can be fed from an S/PDIF digital input (up to 96 kHz), unbalanced RCA Aux inputs with gain control and a ⅛-inch TRS unbalanced input. A button switches between the analog Aux and digital S/PDIF inputs.
Audition on up to three stereo pairs of speakers, each with separate level control. All speakers can be available, or one pair at a time, or choose between speakers A and B, with output C active to feed a subwoofer. You can set each set of speakers’ level individually so when you switch between speakers, your monitoring level stays the same.
Four loud, clear ¼-inch TRS headphone outs ensure everyone hears every note. Each headphone out has a Main/Cue source selector and individual output-level control. A built-in, electret-condenser Talkback mic let you communicate with the musicians. A flaming red Talk button activates the mic and attenuates the cue signal. Eight-segment, three-color LED meters indicate left and right signal levels and can be set in for +4 dB, +10 dB, or +18 dB levels.
So take control of your monitoring system the way the pros do with the PreSonus Monitor Station V2!
Features

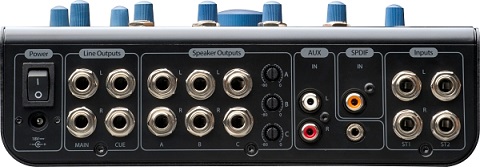

- 2 Stereo pairs of ¼-inch TRS inputs, 1 Stereo pair of RCA Aux inputs with level control and 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
- 3 Stereo pairs of ¼-inch TRS speaker outputs with level controls, 1 Stereo pair of ¼-inch TRS Main outputs and 1 Stereo pair of ¼-inch TRS Cue outputs
- 4 ¼-inch TRS screaming-loud stereo headphone outputs
- Large Main level control
- 3 Individual Main Source (ST1, ST2, Aux) select switches
- 3 Individual Speaker Select switches
- Cue section with Source select (ST1, ST2, Aux) and output-level control
- Main Mute, Mono, and Dim switches with variable Dim attenuation
- 8-segment color LED input meters with selectable reference level
- Built-in electret-condenser talkback microphone with input-gain control and Talkback button
Highlights & specs
Additional controls.
The Monitor Station V2 offers many features to customize your monitoring system. A Mono switch sums the stereo outputs to check for phase problems. A large knob controls the main speaker output level (but not the main line-level outs), and a Dim switch lets you reduce the speaker output by a variable amount. You can mute the speakers as well.
Specifications
Electronics
- Voltage : 100-120V
Miscellaneous
- Connection Type : External DC Transformer/Internal Line, 18 VDC
Microphone
- Type : Electret Condenser
- Sensitivity : -42 dB
Line Inputs
- Maximum Level : +22 dBu
- Line Inputs Frequency Response : 10 Hz to 65 kHz
- Line Inputs Total Harmonic Distortion : <0.0075%
- Line Inputs Impedance : 10 kΩ
Main and Line Outputs
- Main And Line Outputs Frequency Response : 10 Hz to 50 kHz
- Main And Line Outputs Total Harmonic Distortion : <0.01%
- Main And Line Outputs Output Impedance : 51Ω
Headphone Outputs
- Maximum Output : 150 mW / channel
- Frequency Response : 10 Hz to 50 kHz

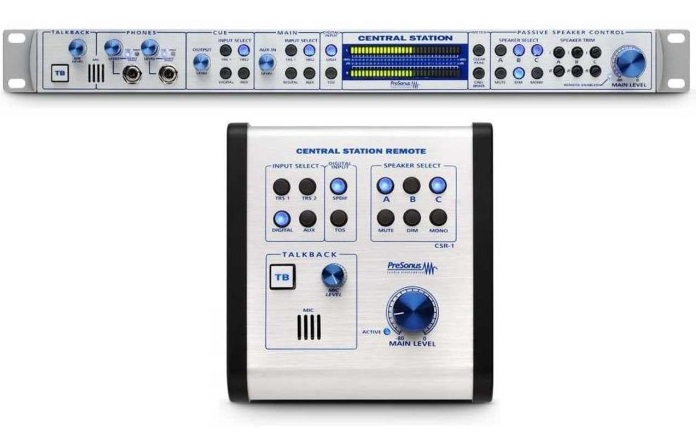

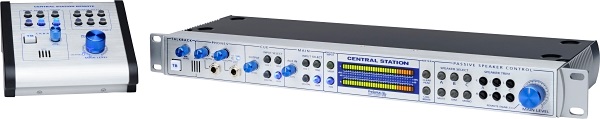

PreSonus® Central Station PLUS Monitoring Controller
When you want to switch between multiple sets of monitors and multiple analog and digital sources and hear exactly what your mix sounds like, with no coloration, you need the PreSonus® Central Station PLUS professional monitor controller. Its audiophile-quality, passive signal path, with no op-amps or ICs, and its S/PDIF inputs with 24-bit, 192 kHz D/A converters ensure the sonic transparency pros need.
Easily switch between three sets of stereo, analog input sources and one stereo digital input source and audition them with up to three pairs of speakers, with individual trim pots for each speaker. You also get two screaming-loud headphone amplifiers with individual level controls. If that’s not enough, connect the line-level Cue outputs to a headphone distribution system, such as a PreSonus HP2, HP4 or HP60.
We’ve included plenty of extras. Talk to the musicians over the headphone and cue buses using the onboard talkback microphone, or connect a dynamic mic to the XLR Talkback input. A footswitch input enables hands-free talkback operation. A Mono switch sums the stereo source to check for phase problems, and Dim and Mute switches let you reduce or mute the speaker outputs without changing the main level knob. The included CSR-1 remote control lets you manage it all from your desktop.
With its I/O, audio quality and features, it’s no surprise that the 1U rack-mount Central Station PLUS is the pro’s choice for monitor control.
Features
- Passive audio path – no op amps or ICs – for minimal noise and coloration
- Manage 3 stereo analog sources and 1 digital source, using 2 stereo pairs of balanced ¼-inch line-level inputs, 1 stereo pair of unbalanced RCA line-level inputs and 2 S/PDIF digital inputs (coax and optical, 24-bit/192 kHz)
- Switch between 3 sets of monitor speakers using 3 stereo pairs of balanced ¼-inch, line-level speaker outputs with
- Speaker Select switches and recessed trim pot for each output
- Main section with with 2 (L/R) balanced ¼-inch, line-level outputs with Input-select switch, Aux-input level control, Output-level control and Mute, Dim (-20 dB) and Mono switches
- Cue section with 2 (L/R) balanced ¼-inch, line-level outputs, Input-select switch and Output-level control
- 2 loud stereo ¼-inch headphone outputs with dual-function volume controls and Main/Cue input switches
- Onboard electret condenser talkback microphone, balanced XLR Talkback microphone input w/level control (feeds Headphone and Cue outputs) and footswitch jack for hands-free talkback operation
- Dual 30-segment, fast-acting, peak-hold LED metering (dBu and dBfs) with Clear Peak switch and calibration to match DAW or other audio device
- Included Central Station Remote (CSR-1) wired remote control
- 1U 19-inch rack-mountable, rugged steel chassis and external AC power supply
Highlights & specs

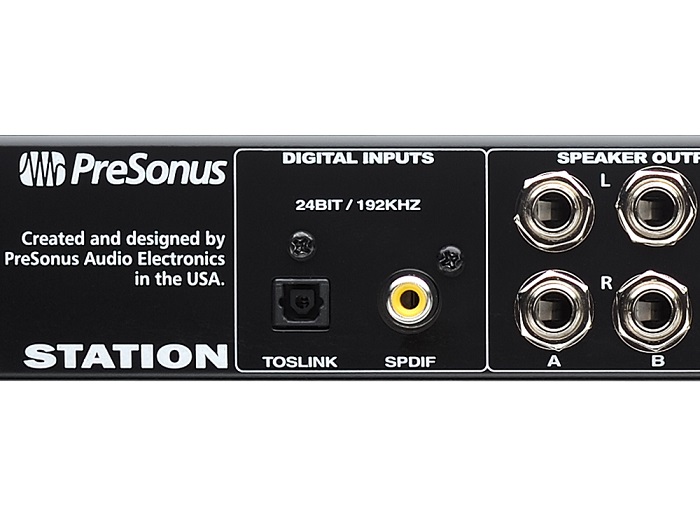

High-Definition Digital Inputs
The Central Station PLUS’ coaxial and optical S/PDIF digital inputs provide up to 24-bit, 192 kHz digital-to-analog conversion, with more than 115 dB of dynamic range. The Central Station will automatically detect and lock to the sampling rate of the source device.
Passive Components for Transparent Audio
The Central Station PLUS uses no op-amps or ICs, only top-quality passive components, including military-grade, 1% tolerance metal-film resistors; multi-element potentiometers; and durable connectors. The result is a transparent signal path; maximum dynamic range, frequency response and headroom; and minimal noise and coloration.

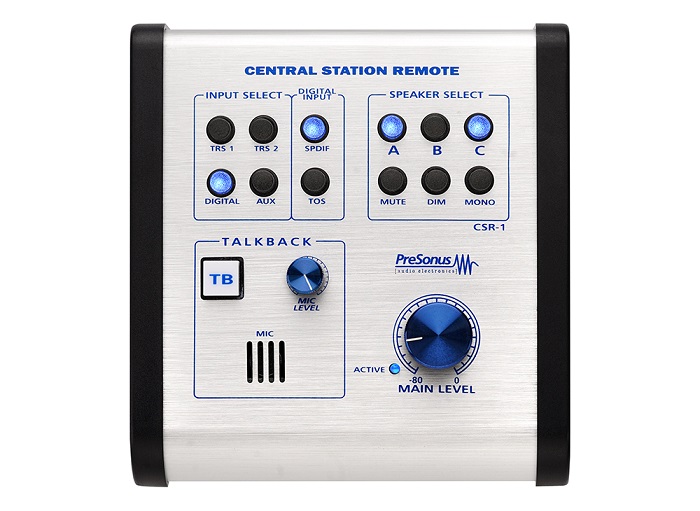

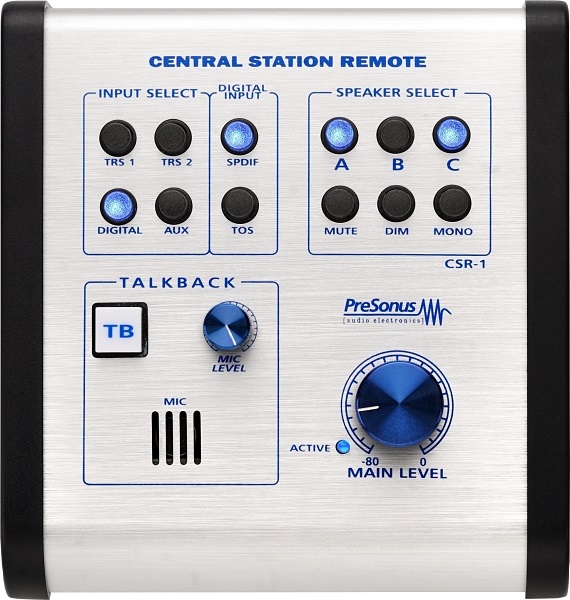

CSR-1 Wired Remote Control

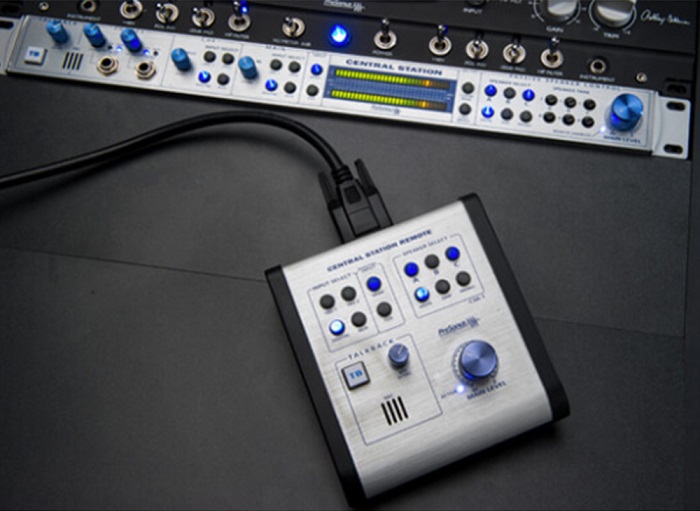

The included Central Station Remote (CSR-1) wired remote control connects via a DB15 cable and lets you manage Main Volume, Input Select, Output Select, Talkback, Mute, Dim, and Mono summing — all from your desktop. Rackmount the 1U Central Station PLUS and use the CSR-1 for ultimate control and flexibility.
Specifications
Electronics
- Voltage : 100-120V
Miscellaneous
- Connection Type : External A.C. Transformer/Internal Linear
- Rack Units : 1U (Steel Chassis)
Microphone
- Type : Internal Electret Condenser
- Sensitivity : -42 dB
Microphone Preamp
- Gain Control Range : 15-55 dB
- Input Impedance : 2,400Ω
Line Inputs
- Line Inputs Frequency Response : > 1 MHz
- Line Inputs Total Harmonic Distortion : < 0.0005% (1 kHz @ 0 dBu)
- Line Inputs Impedance : 2-5 kΩ (Speaker Load and Trim Level Dependent)
Main and Line Outputs
- Main And Line Outputs Frequency Response : 10 Hz-50 kHz, -0.5 dB
- Main And Line Outputs Total Harmonic Distortion : < 0.0025%
- Main And Line Outputs Output Impedance : 51Ω
Headphone Outputs
- Maximum Output : 150 mW/Channel @ 60Ω Load
- Frequency Response : 10 Hz-50 kHz, +1 dB
- Total Harmonic Distortion : 0.015% (150 mW/Channel @ 60Ω Load)
