Steinberg UR242

Rp4.500.000

Description



UR242 – 4 x 2 USB 2.0 Audio Interface with 2 x D-PRE and 192 kHz support & MIDI I/O

The UR242 offers musicians and producers far more than just a portable I/O device, or even an audio interface; the UR242 is a mobile production solution. That’s because it combines fantastic-sounding I/O and durability with advanced DSP-based FX that can be used with your DAW software, and that at a price point that is still easily affordable.

An advanced portable production solution

The UR242 offers musicians and producers far more than just a portable I/O device, or even an audio interface; the UR242 is a mobile production solution. That’s because it combines fantastic-sounding I/O and durability with advanced DSP-based FX that can be used with your DAW software, and that at a price point that is still easily affordable.

Built to Impress

The UR242 offers a perfect balance between three vital factors: quality, portability and cost. First-class components and integrated DSP-powered FX engineered to fit into a small yet rugged interface at an eminently affordable price point — that’s the UR242.

Record vocals, guitars, MIDI gear and other audio equipment with up to 4 audio channels at once in pristine 24/192 quality, yet without making any compromises in terms of durability: full metal casing means the UR242 is ready for the rough and tumble of life of a mobile lifestyle. That could be between your recording studio and your hotel room, or between your home recording rig and your band’s rehearsal room: the UR242 offers the features and quality to manage a huge range of production situations.

Full Integration with Any DAW with dspMixFx

The UR series integrates seamlessly — as you’d expect — with Cubase, yet also with just about any DAW out there. Just like the 19″ rack model in the UR range, the UR242 offers latency-free monitoring with DSP-powered FX thanks to the onboard SSP2 DSP chip and the latest dspMixFx technology. This gives you a fully integrated DSP-based monitoring setup wherever you are and with whichever DAW you use.

When running with Cubase, the UR242 no additional virtual mixer apps are required! All aspects of I/O handling and DSP management are handled directly from within Cubase. Once your UR242 interface has been installed, Cubase detects the device and automatically embeds it into the Cubase production environment.

iPad Connectivity

Connect the UR242 to your iPad or even iPhone thanks to the Class Compliant mode. iOS music production apps like Steinberg’s iPad-based Cubasis are a perfect way to sketch out ideas at home or on the go; then hook up the same interface to your PC or Mac to take your musical ideas to the next level.

Features

  • 24-bit/192 kHz USB 2.0 audio interface
  • Two Class A D-PRE mic preamps
  • Latency-free hardware monitoring with FX
  • Basic FX Suite
  • Rugged Metal Casing
  • Compatible with all major recording software
  • iOS Connectivity
  • MIDI input & output
  • Loopback Function
  • Cubase AI included
  • Cubasis LE Included



  1. HI-Z switch for Input 1
  2. 2 XLR/TRS combo connector for mic/line
  3. Peak indicator for Input 1 and 2
  4. +48 V phantom power indicator for Inputs 1/2
  5. USB power indicator
  6. Gain control for Input 1
  7. Pad switch for Input 1 and 2
  8. Gain control for Input 2
  9. Phantom power switch for input 1/2
  10. Headphone volume control knob
  11. Output volume control
  12. Headphones output with TRS

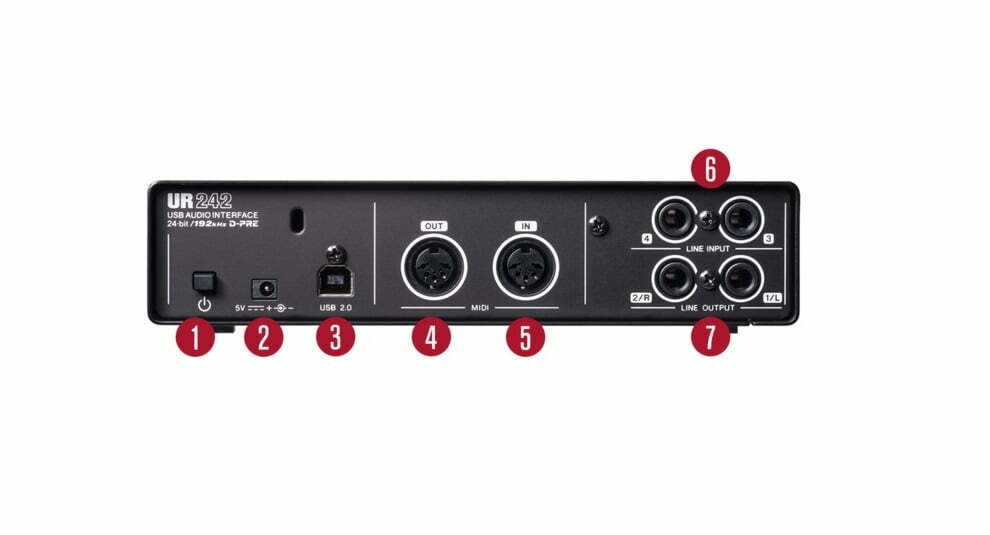

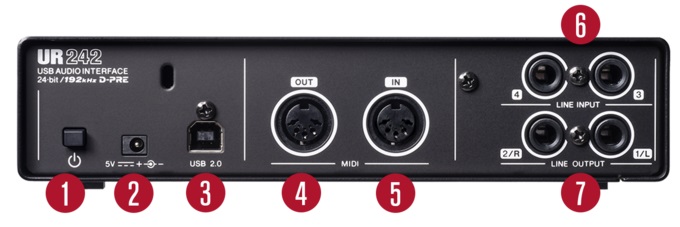

  1. Power switch
  2. Power supply connector
  3. USB 2.0 port
  4. MIDI output socket
  5. MIDI input socket
  6. 2 analog TRS line input
  7. Line output L/R, 2 analog TRS line outputs

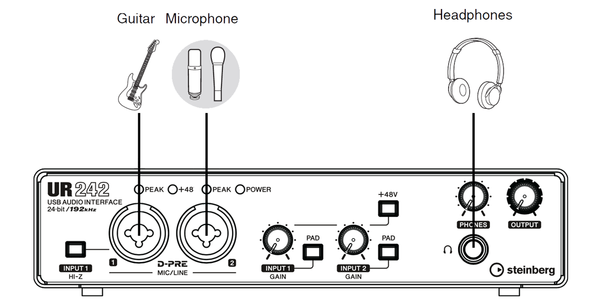

Setup

The two XLR/TRS combo inputs can be put to use in any of a number of recording situations. These could include recording two vocalists singing a duet; a singer who plays acoustic guitar with voice and guitar each recorded using a high-quality condenser mic; a choir or other classical performance recorded using two well-placed microphones; or any of the above accompanied by a backing track recorded using the two additional line inputs.



MIDI instruments can be recorded ”in parallel” with both MIDI data and audio streams routed to corresponding channels in your DAW, letting you edit or rework the MIDI data in your project later. Monitor speakers are connected to the two output jacks on the rear, enabling the UR242 to offer a compact, high-quality MIDI-based production solution.



Connecting an iPad or iPhone is accomplished using an Apple camera adapter*. Now you’re ready to record, edit and mix music on your iPad or iPhone, for example, using Steinberg’s widely praised Cubasis iPad app. Hook up a keyboard, drum pad or controller on the MIDI ports, with monitor speakers plugged into the dedicated Line output pair, and you’re good to go.

*iPad Camera Connection Kit, Lightning to USB Camera Adapter or Lightning to USB 3 Camera Adapter
