Description

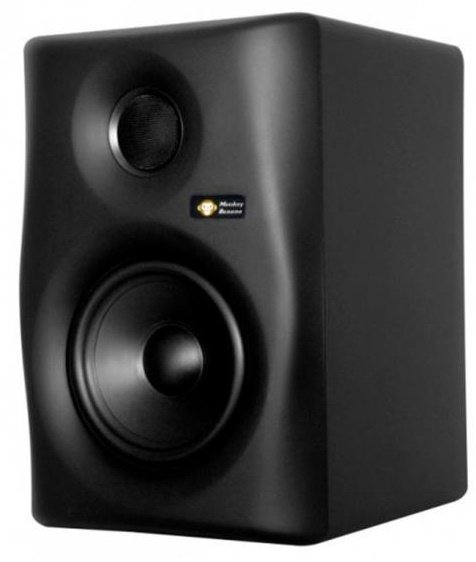

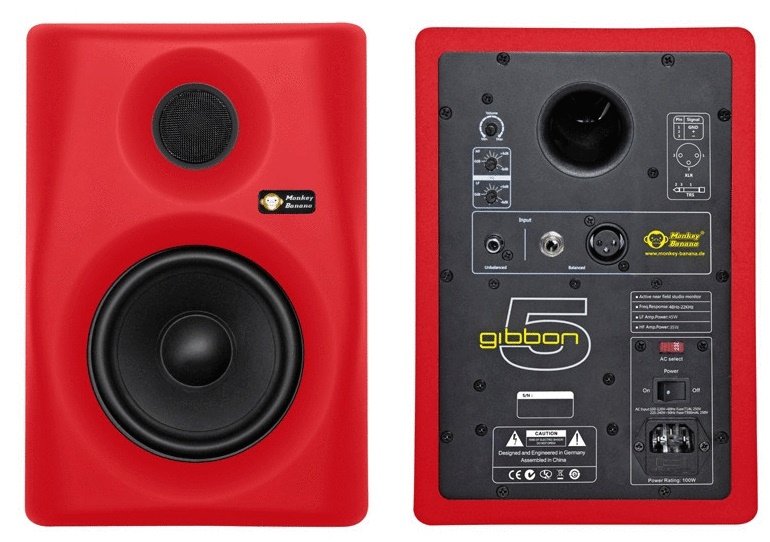

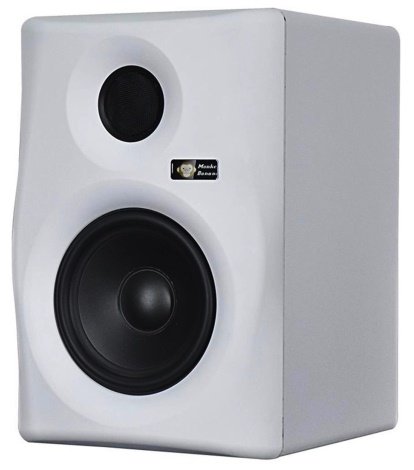

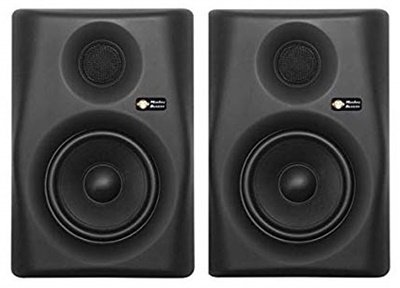

Monkey Banana Gibbon 5 is anactive near field monitor for the ambitious home studio or for editing suites in broadcasting studios. With this digital bi-amp-powered loudspeaker, you achieve perfect mixes in small scale monitoring environments.
The application possibilities that the small Gibbon 5 offers for near field monitoring, are extremely versatile. A 5.25“ polypropylene woofer for the low-end-range is combined with a 1“-silk tweeter. The amplification power of the bi-amp-module provides 45 watts for the low frequency range and 35 watts for the high frequency range.
SPECIFICATIONS
Woofer: 5 1/4-inch magnetically shielded polypropylene membrane
Tweeter: 1-inch silk dome tweeter
Frequency response: 48Hz – 22kHz
HF – Level: -6dB ~ +6 dB variable at 10Khz
LF – Level: -6dB ~ +6 dB variable at 100hz
Crossover frequency: 3kHz
LF – Amplifier Power: 45W
HF – Amplifier Power: 35W
Signal HF / LF: >90dB / 95dB
THD + N @ Rated Power HF / LF: 0.05% / 0.02%

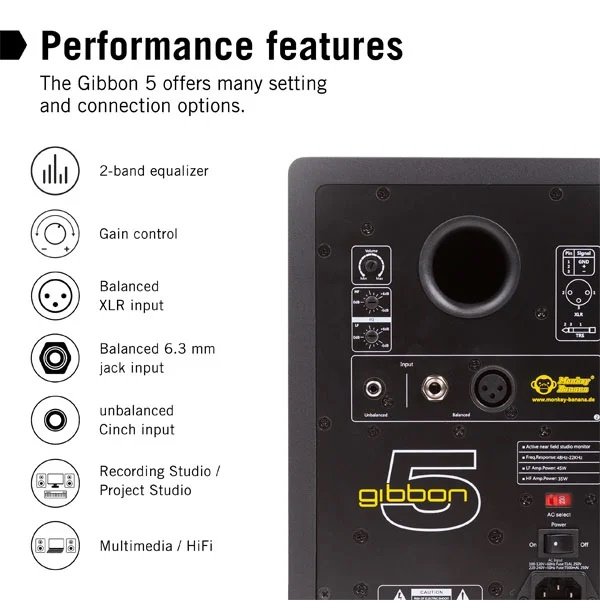

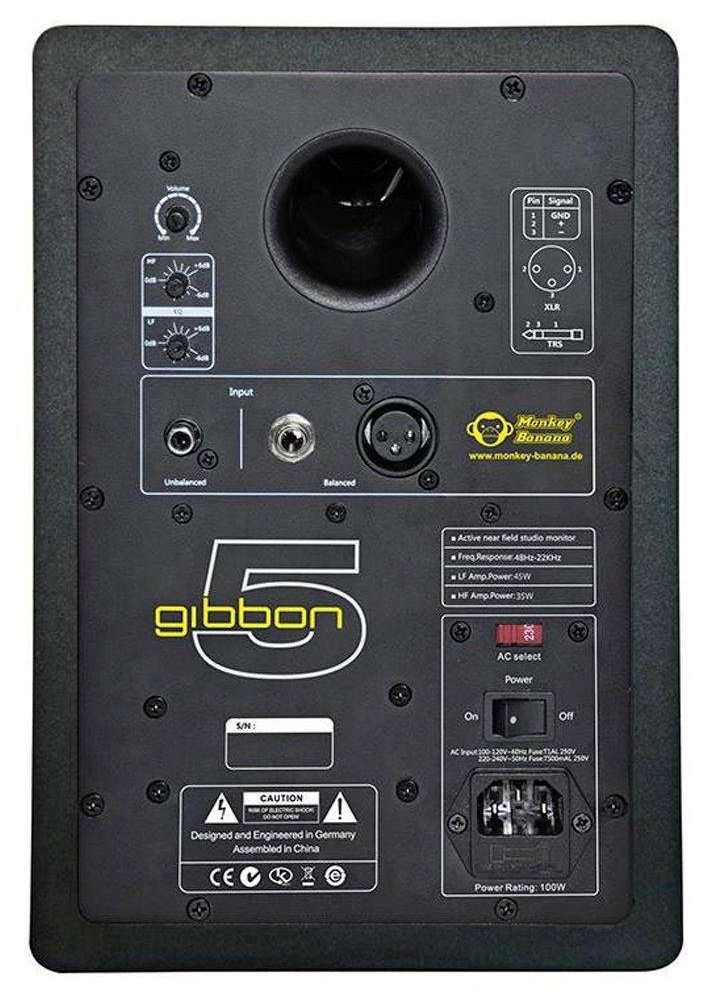

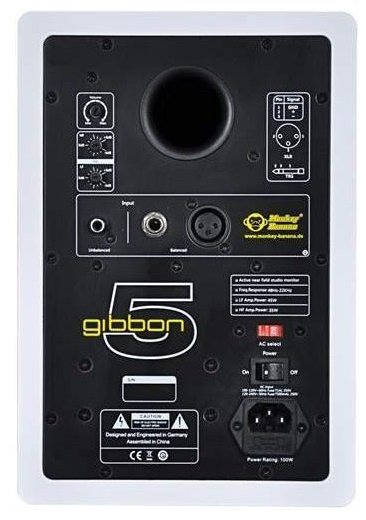

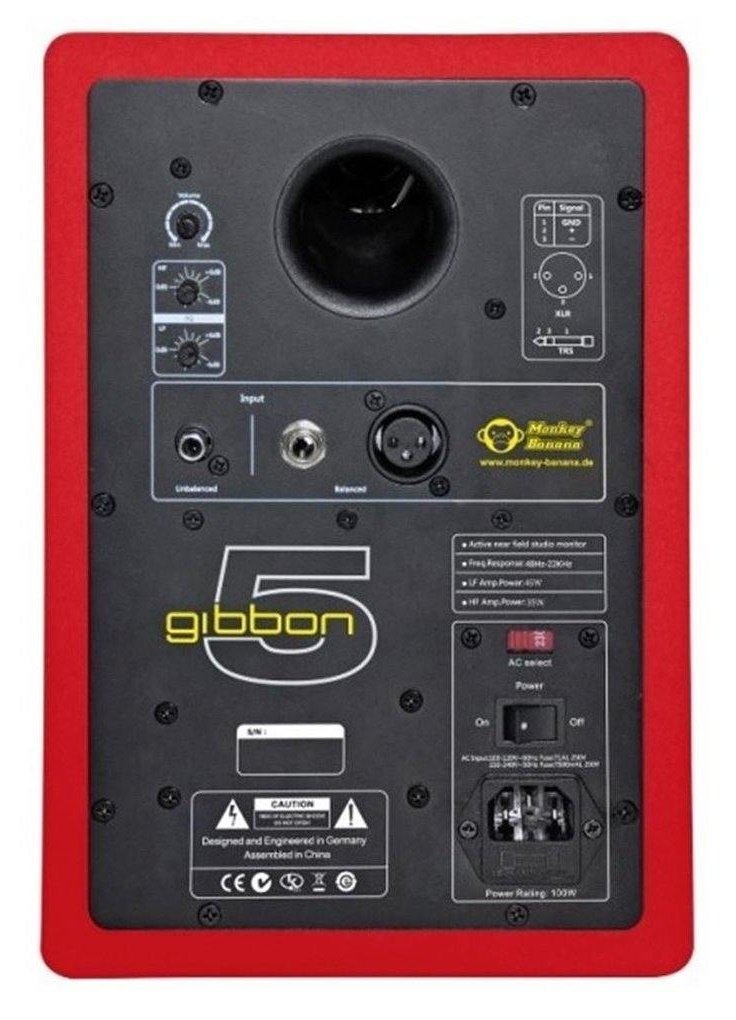

Inputs: XLR Connector, TRS Connector, RCA input
Input Impedance: 20 kOhm balanced, 10 kOhm unbalanced
Input Sensitivity: +4 dBu (balanced), -10dBV (unbalanced)

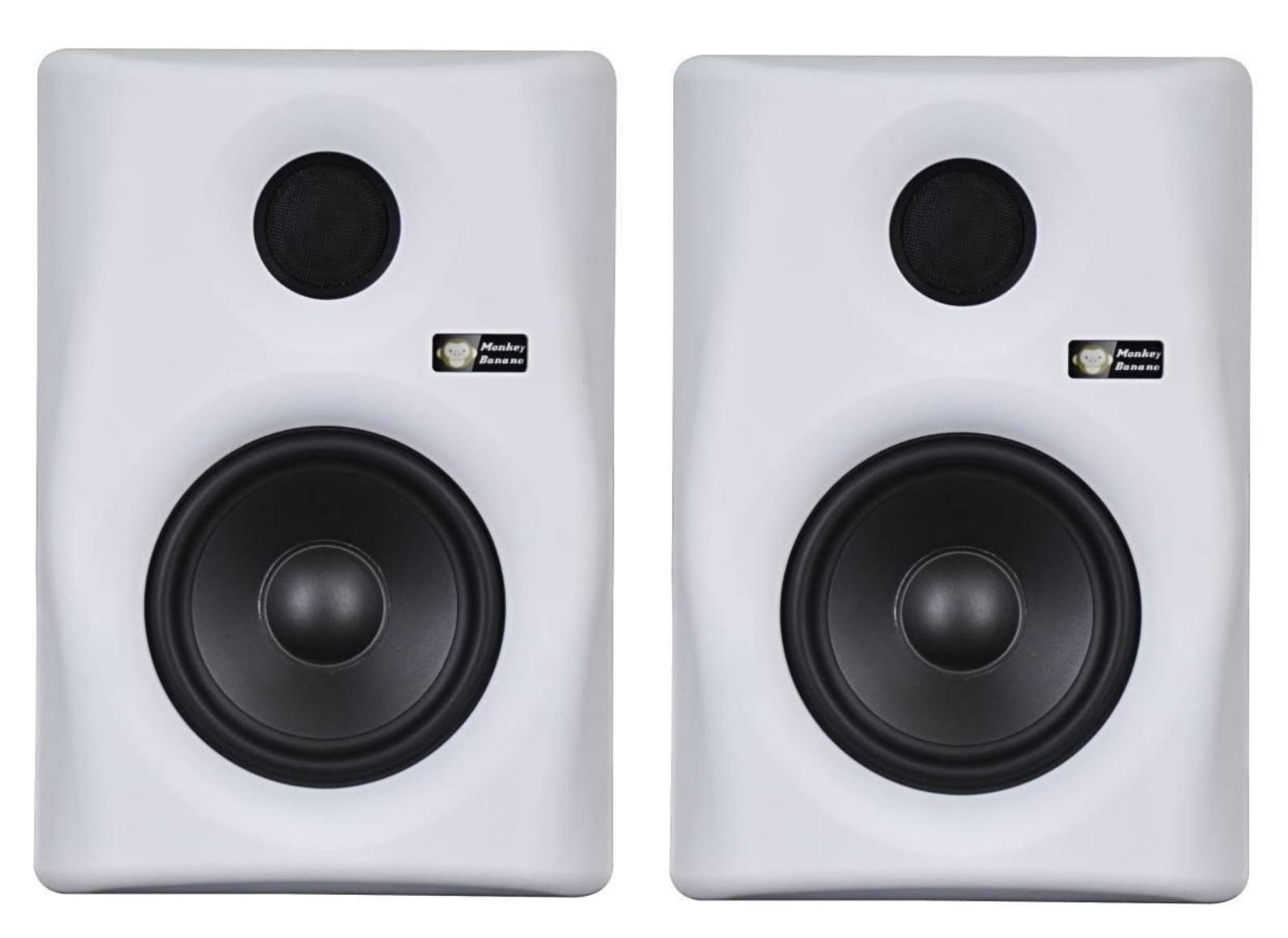

Available colors: Red, Black, White, Banana
Net weight: 5.9 kg / 13.1lb
Net Dimensions: L215 x W190 x H277 mm
L8.44 x W7.48 x H10.91 in

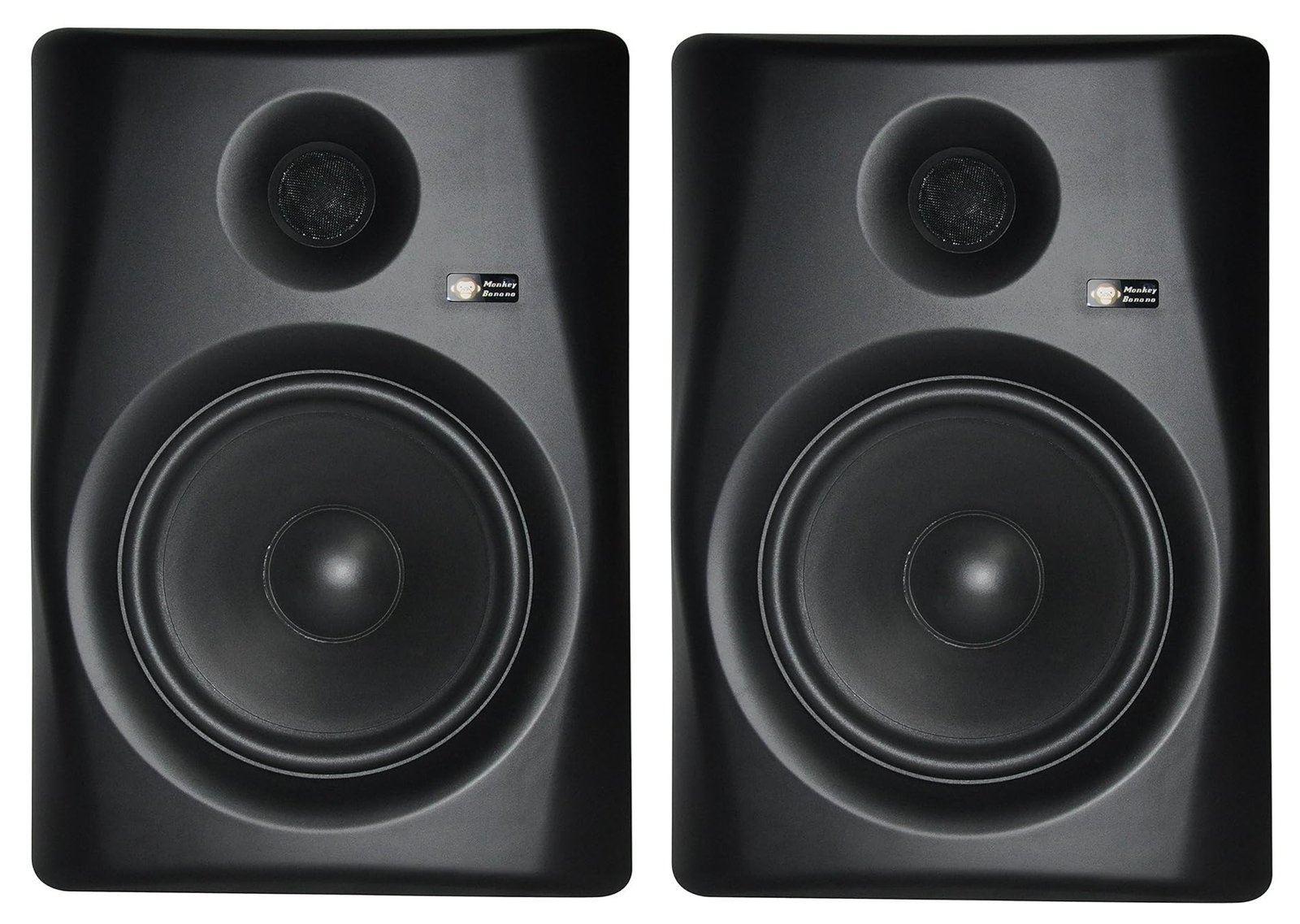

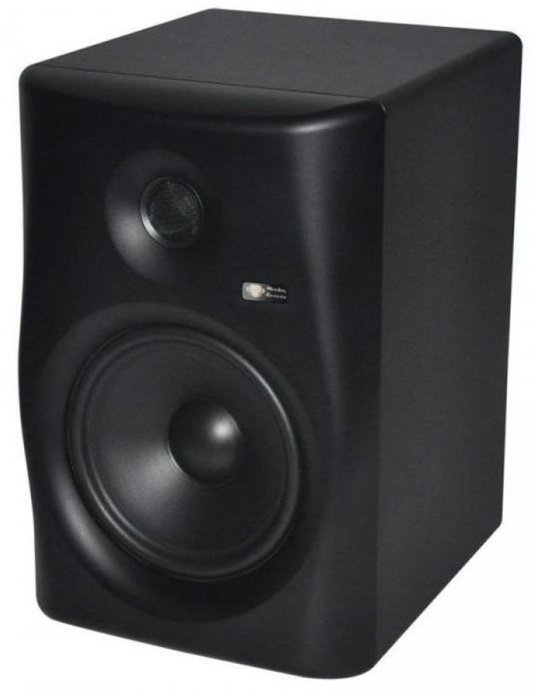

Monkey Banana Gibbon 8 is an active near field monitor for home studios and professional recording studios. The digital-bi-amp-powered loudspeakers enable perfect mixes in medium to large monitoring environments. Due to the significant downward extension of the low-end frequency range, the Gibbon 8 is the ideal DJ-monitor as well. The monitor also provides HIFI-pleasure in large living rooms or for gamers.
The Gibbon 8 is an extremely versatile solution for near field monitoring applications. It combines an 8” polypropylene woofer for the low-end range and a 1” silk tweeter. The amplification power of the bi-amp module is 80 watts for the low-end frequency range and 30 watts for the high-end frequency ra
SPECIFICATIONS
Woofer: 8-inch magnetically shielded polypropylene ceramic cone
Tweeter: 1-inch silk dome tweeter
Frequency response: 45Hz – 22kHz
HF – Level: -6dB ~ +6 dB variable at 10Khz
LF – Level: -6dB ~ +6 dB variable at 100hz
Crossover frequency: 3kHz
LF – Amplifier Power: 80W
HF – Amplifier Power: 30W
Signal HF / LF: >94dB / 100dB
THD + N @ Rated Power HF / LF: 0.04% / 0.02%

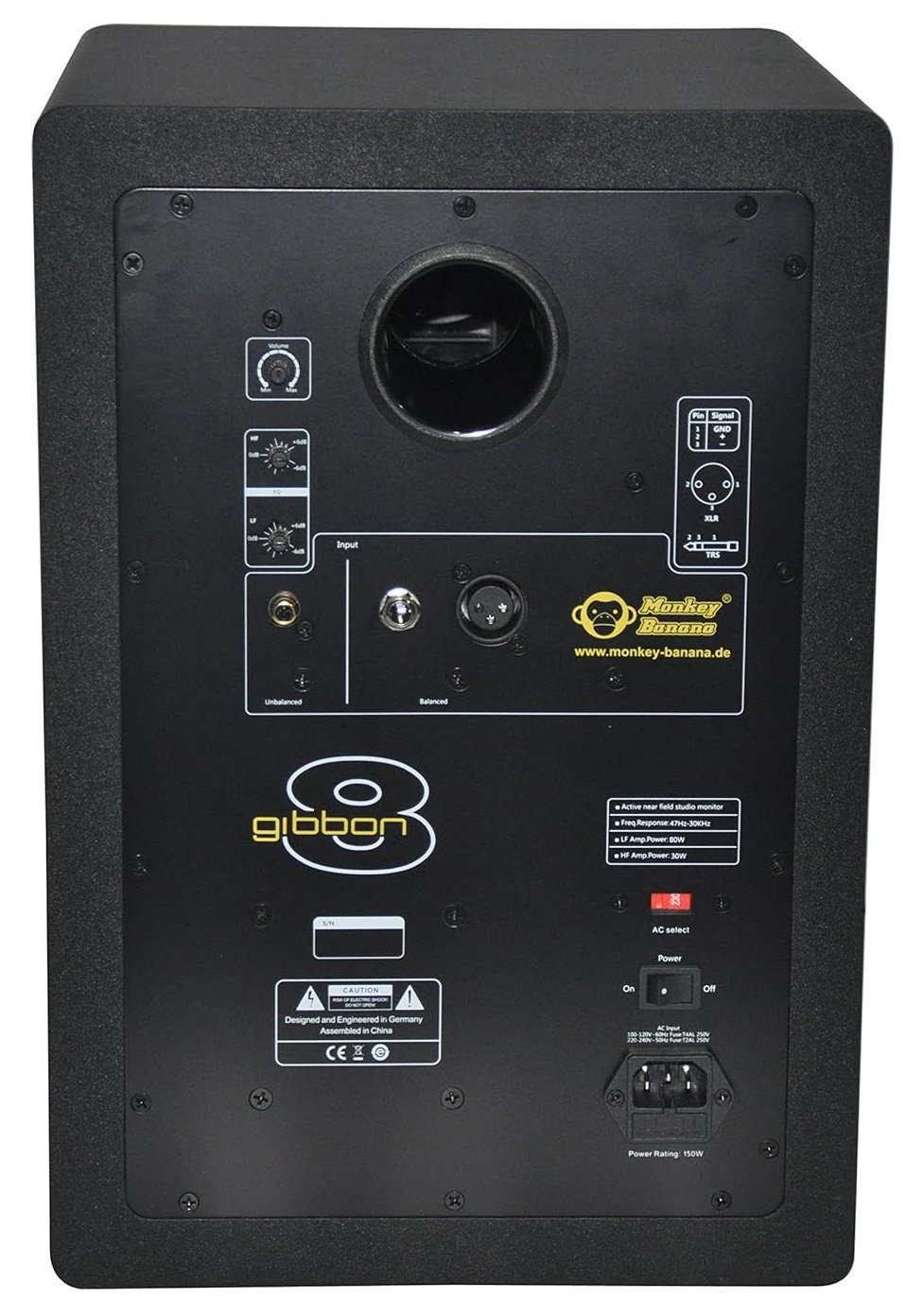

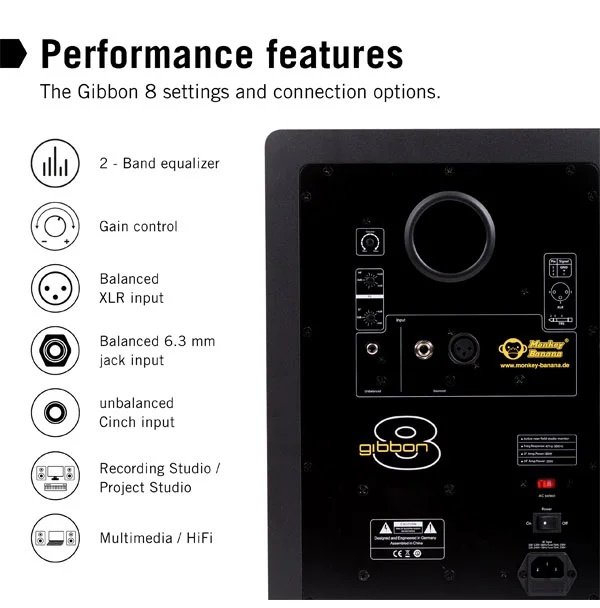

Inputs: XLR Connector, TRS Connector, RCA input
Input Impedance: 20 kOhm balanced, 10 kOhm unbalanced
Input Sensitivity: +4 dBu (balanced), -10dBV (unbalanced)
Available colors: Red, Black
Net weight: 11kg / 24.2lb
Net Dimensions: L320 x W274 x H399 mm
L13 x W10.79 x H15.7 in

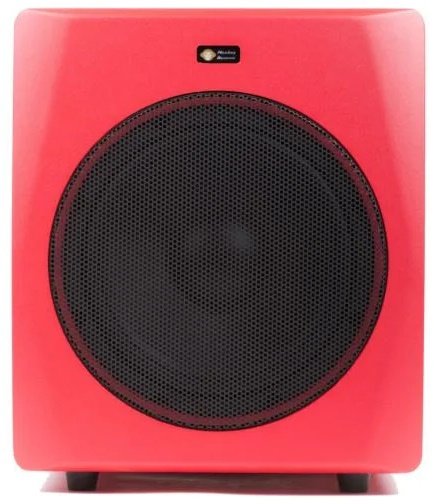

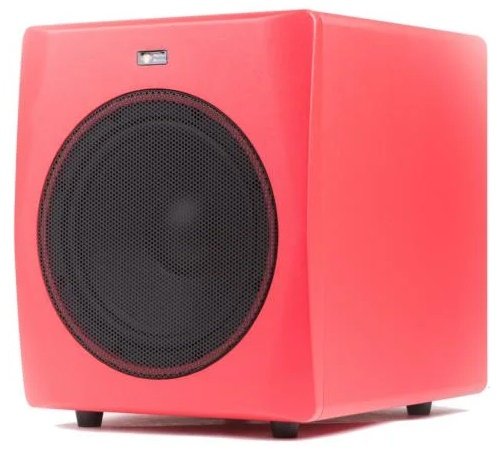

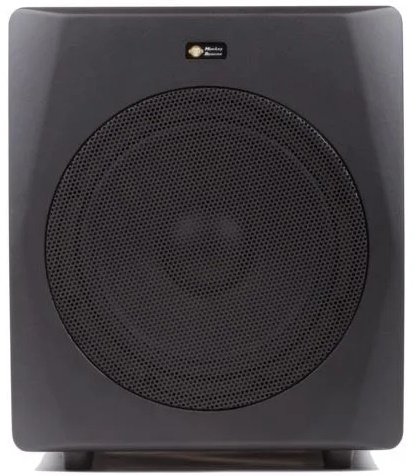

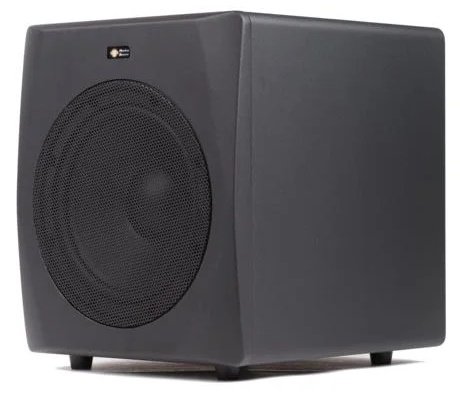

Monkey Banana Gibbon 10 is an active subwoofer for applications in home studios and professional recording studios. It is perfectly matched to the Gibbon series and offers significant downward extension to the low-end frequency range. The Gibbon 10 is also the ideal deep bass support for DJ-monitoring. As the crossover frequency is adjustable, the subwoofer can be combined perfectly with all Gibbon models. The subwoofer can be used in professional studios and also in large living rooms.
The application fields for the Gibbon 10 are extremely broad. The subwoofer comes with a 10” woofer and hefty 300 watts of amplification power. The crossover is flexibly adjustable between 50 and 130 Hz.
SPECIFICATIONS
Woofer: 10-inch black Glass-Composite Cone
Frequency response: 20Hz – 200Hz
Crossover frequency: 40Hz – 120Hz adjustable
Amplifier Power: 300W
S/N Ratio (A weighted): >95dB
THD + N @ Rated Power: 0.08%

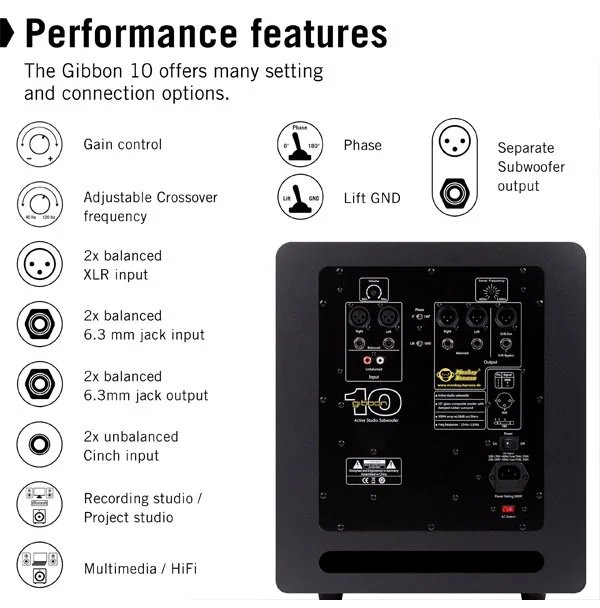

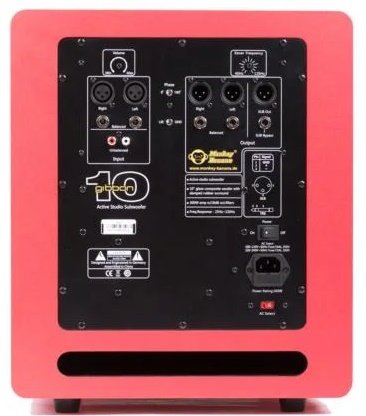

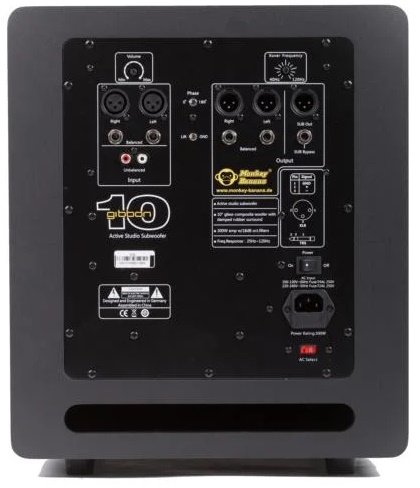

Inputs: 2x XLR, 2x TRS, 2x RCA Connectors
Outputs: 2x XLR, 2x TRS, 1x XLR balanced (Sub out) Connectors
Input Impedance: 20 kOhm balanced, 10 kOhm unbalanced
Phase reverse: 0 / 180° – switch
Ground Lift switch: On / Off
Bypass Footswitch: On / Off
Available colors: Red, Black
Net weight: 17.6kg / 38.7lb

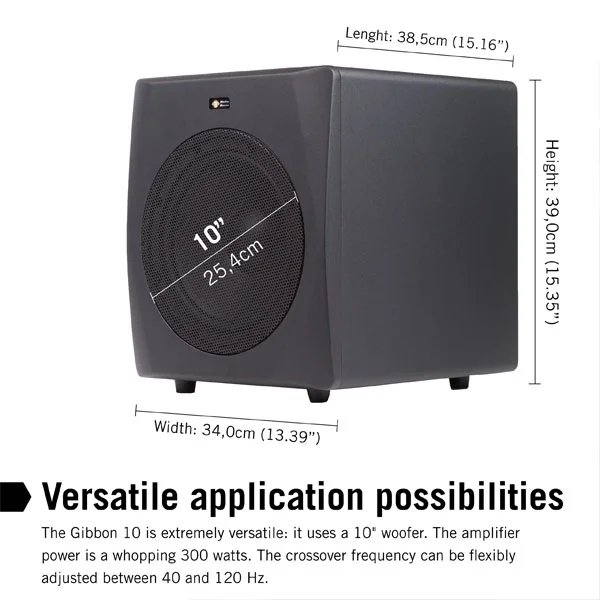

Net Dimensions: L385 x W340 x H390 mm
L15.16 x W13.39 x H15.35 in
